Audio-Technica

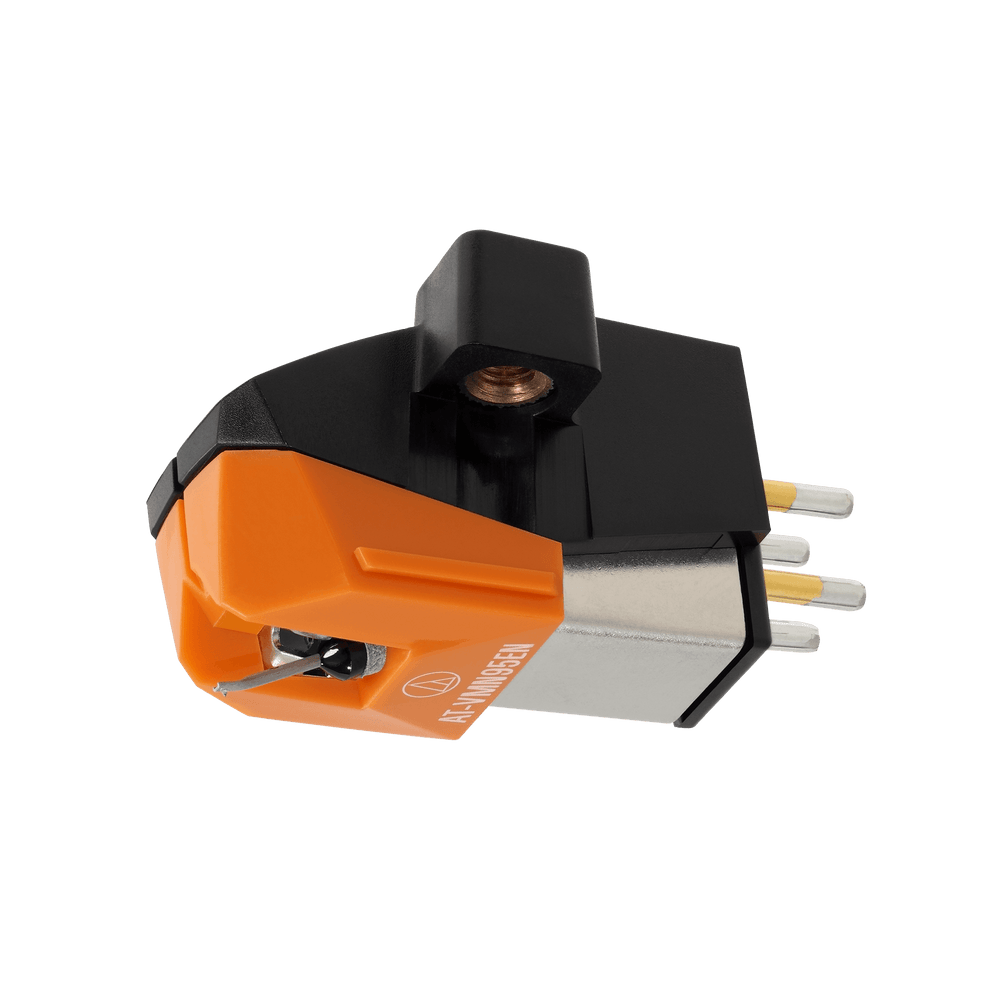

Audio-Technica AT-VM95EN, kartridžas

€119.00 EUR

Pristatymas į namus nuo 4.99 €

Lietuvoje Venipak kurjeriu pristatymas per 1-2 darbo dienas.
Pristatymas už Lietuvos ribų per 4-10 darbo dienų.

Atsiimkite parduotuvėje už 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

VM95 serijos eliptinis stereo kartridžas (su dvigubu magnetu).

  • Dažnių juosta: 20 - 23.000 Hz.
  • Kantileveris: Aliuminis.
  • Kanalų atskirtis: 22 dB (1 kHz).
  • VM tipo kartridžas.



VM95 series Elliptical Nude stereo cartridge AT-VM95EN VM95 series Elliptical Nude stereo cartridge - Aluminium cantilever, 3.5mV output voltage and Compatible body with all VM95 Series stylus assemblies


      SPECIFIKACIJOS

      Frequency Response 20 - 23,000 Hz
      Channel Separation 22 dB (1 kHz)
      Vertical Tracking Angle 23°
      Stylus Construction Nude Round Shank
      Recommended Load Impedance 47,000 Ω
      Coil Impedance 3.3 kΩ (1 kHz)
      DC Resistance 485 Ω
      Coil Inductance 550 mH (1 kHz)
      Output Voltage 3.5 mV (@ 1 kHz, 5 cm/sec)
      Output Channel Balance 2.0 dB (1 kHz)
      Stylus Shape Elliptical
      Cantilever Aluminium Pipe
      Static Compliance 20 x 10 – 6 cm / dyne
      Dynamic Compliance 7 x 10 – 6 cm / dyne (100 Hz)
      Mounting 1/2” centres
      Cartridge Weight 6.1g
      Dimensions 17.2 x 18.9 x 28.3 ( H x W x D mm)
      Accessories Included Two 11 mm installation screws;
      Two 8 mm installation screws;
      Two washers
      Non-magnetic screwdriver
      Model AT-VM95EN
      Recommended Load Capacitance 100-200 pF
      Replacement Stylus AT-VMN95EN
      Stylus Size 0.3 x 0.7 mil
      Type VM Stereo Dual Magnet
      Wire Used for Coil T.P. Copper



      Kategorijos

      AT-VM95EN
      Audio-Technica

      Audio-Technica AT-VM95EN, kartridžas

      €119.00 EUR

      VM95 serijos eliptinis stereo kartridžas (su dvigubu magnetu).



      APRAŠYMAS

      VM95 series Elliptical Nude stereo cartridge
      AT-VM95EN VM95 series Elliptical Nude stereo cartridge - Aluminium cantilever, 3.5mV output voltage and Compatible body with all VM95 Series stylus assemblies


        TECHNINIAI DUOMENYS

        SPECIFIKACIJOS

        Frequency Response 20 - 23,000 Hz
        Channel Separation 22 dB (1 kHz)
        Vertical Tracking Angle 23°
        Stylus Construction Nude Round Shank
        Recommended Load Impedance 47,000 Ω
        Coil Impedance 3.3 kΩ (1 kHz)
        DC Resistance 485 Ω
        Coil Inductance 550 mH (1 kHz)
        Output Voltage 3.5 mV (@ 1 kHz, 5 cm/sec)
        Output Channel Balance 2.0 dB (1 kHz)
        Stylus Shape Elliptical
        Cantilever Aluminium Pipe
        Static Compliance 20 x 10 – 6 cm / dyne
        Dynamic Compliance 7 x 10 – 6 cm / dyne (100 Hz)
        Mounting 1/2” centres
        Cartridge Weight 6.1g
        Dimensions 17.2 x 18.9 x 28.3 ( H x W x D mm)
        Accessories Included Two 11 mm installation screws;
        Two 8 mm installation screws;
        Two washers
        Non-magnetic screwdriver
        Model AT-VM95EN
        Recommended Load Capacitance 100-200 pF
        Replacement Stylus AT-VMN95EN
        Stylus Size 0.3 x 0.7 mil
        Type VM Stereo Dual Magnet
        Wire Used for Coil T.P. Copper
