1 3
AMPIRE

AMPIRE BTR100X, Bluetooth imtuvas- resyveris

€61.95 EUR

AMPIRE BTR100X, Bluetooth imtuvas- resyveris - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Nemokamas pristatymas Lietuvoje nuo 100 €

Lietuvoje Venipak kurjeriu pristatymas per 1-2 darbo dienas.
Pristatymas už Lietuvos ribų per 4-10 darbo dienų.

Atsiimkite prekes parduotuvėje už 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Klausykitės mėgstamiausios muzikos savo automobilyje be laidų šio imtuvo pagalba. Lengvas įrenginių poravimas bei įrenginio instaliacija leis, be rūpesčių, mėgautis praplėstu automobilio funkcionalumu.

  • Kodekas: Qualcomm®aptX Audio-Codec
  • Dažnių juosta: 20Hz-20kHz.
  • RCA išėjimas (1.0V).
  • Sertifikatas: Bluetooth 4.0 CSR8645
  • Auto įsijungimas.



FEATURES
- Marine certified
- with auto turn on function (remote out)
- certified Bluetooth 4.0 CSR8645
- RCA output with 1.0V Signal output
- QDL licensed
- SSID Name: BTR100X
- aptX Audio-Codec von Qualcomm®
- Bitrate: up to 345 kBit/s.

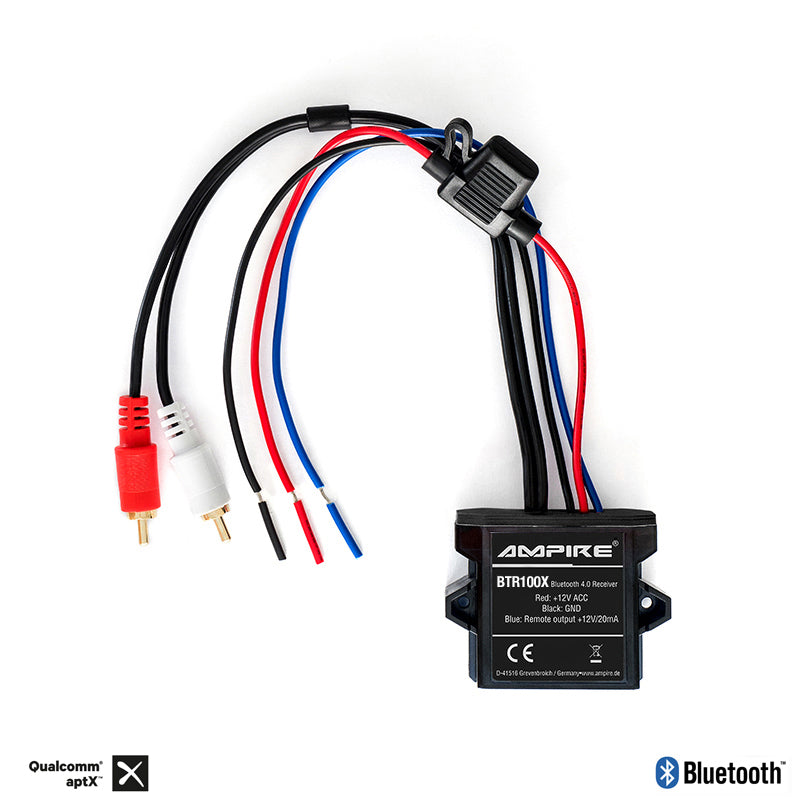

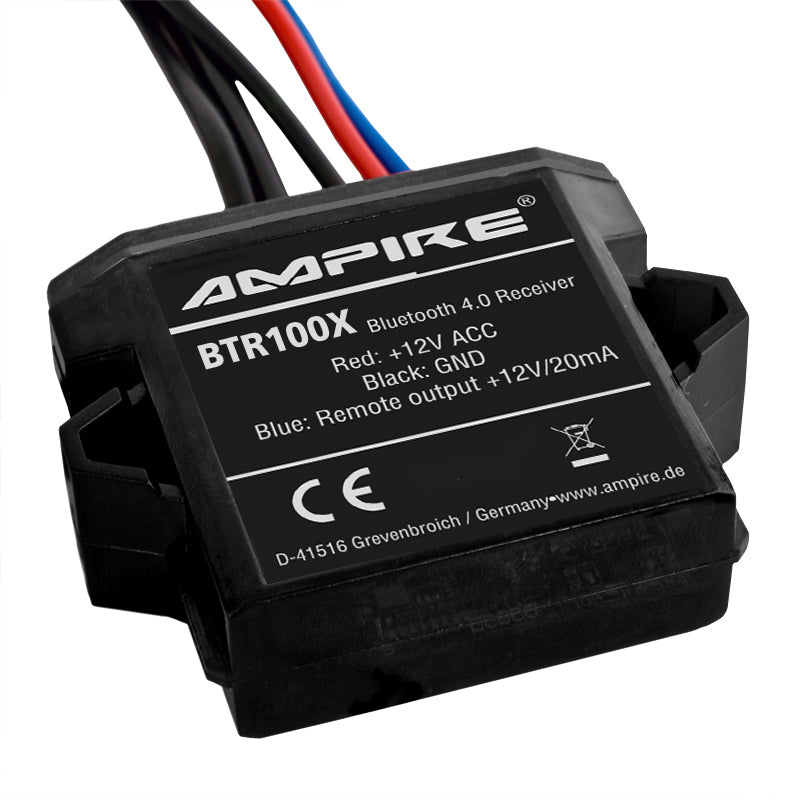

CONNECTIONS
- Blue: Remote out wire +12V/20mA
- Red: +12V ignition (ACC) Fuse 2A
- Black: GND
- RCA outputs: red= right, white= left

BLUETOOTH LICENSE
- Declaration ID D025151
- Referenced Qualified Design ID 56386
- Listing Date 08 December 2014

PAIRING
- Ensure that your streaming device has Bluetooth enabled.
- Turn the ignition (ACC) on.
- The LED (6) starts blinking (pairing mode).
- Select BTR100X in your devices Bluetooth setup menu.
- When successfully connected, the LED on the BTR100 will stop blinking and remain lit. A single beep will be heard through the connected sound system.

ATTENTION
- Multiple devices can be paired to the BTR100, but only one device can connect at one time.
- The BTR100 will remember the last device which was connected to it and reconnect with it automatically. If that device is not active, then other paired devices can connect manually, or new devices can be paired.
- When a connected device is out of range for more than one minute, the BTR100 will automatically disconnect it and returns to pairing mode [the LED (6) starts blinking].

OPERATING
- Once connected, audio is controlled from the sreaming device. This includes volume and media selection.
- The BTR100 can be installed out of sight, as it has no user controls that needs to be accessed.



SPECIFIKACIJOS

- Power: 12V DC
- Current consumption: 40mA max.
- Bluetooth 4.0
- Frequency range: 20Hz-20kHz
- Output level: 1V RMS



INSTRUKCIJOS

User Manual (DE).
