Audison

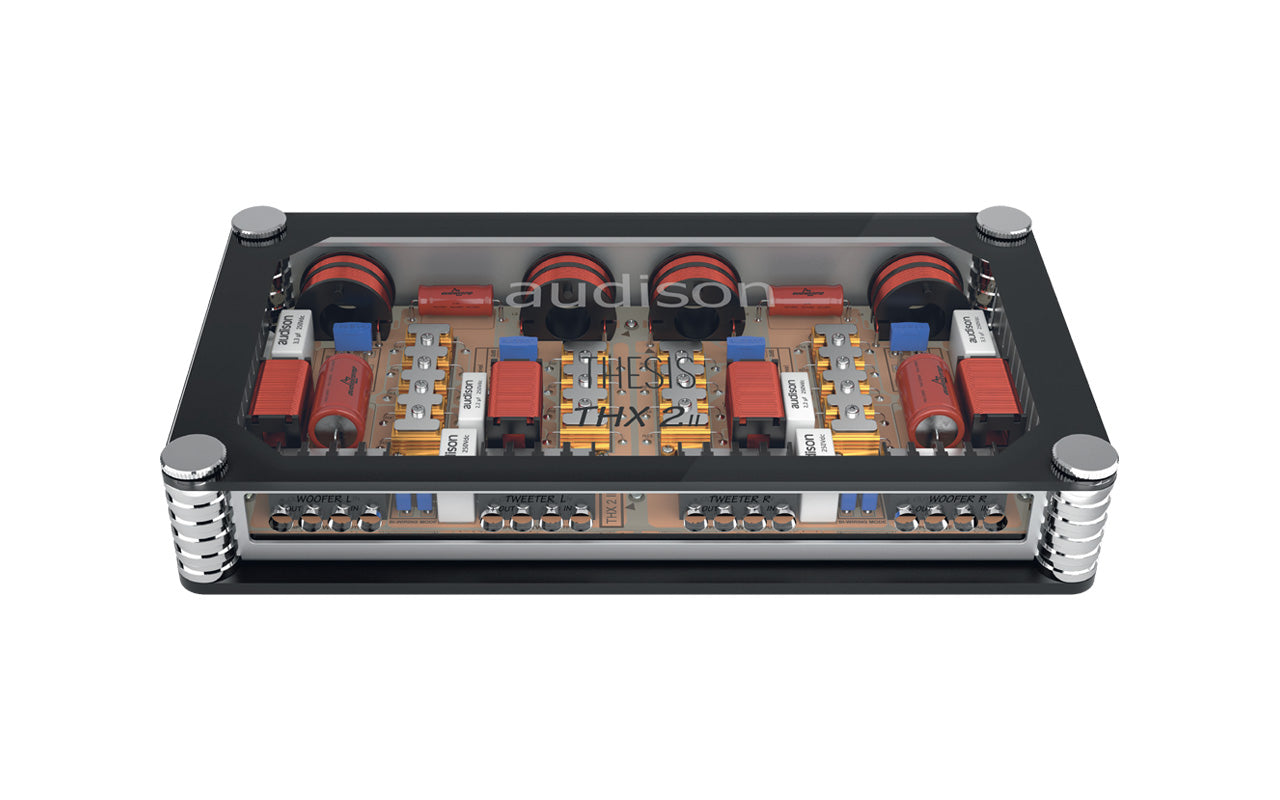

Audison THX 2 II, perėjimo blokas

€1,832.00 EUR

Audison THX 2 II, perėjimo blokas - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Nemokamas pristatymas Lietuvoje nuo 100 €

Lietuvoje Venipak kurjeriu pristatymas per 1-2 darbo dienas.
Pristatymas už Lietuvos ribų per 4-10 darbo dienų.

Atsiimkite prekes parduotuvėje už 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Perėjimo blokas sukurtas aukštos klasės komponentais.

  • Tinka: 300W galios sistemoms.
  • Lo-Pass filtras: Lo-pass 1,35 kHz @ 6 dB/Oct.
  • Hi Pass filtras: Hi-pass 2,8 kHz @ 12 dB/Oct. Q=0,48.



For the enthusiasts who prefer to use a passive filter, the R&D team has created THX 2 II, a crossover engineered without compromise with the use of high quality resistors, capacitors and inductors. The filter, for both woofer and tweeter, has special compensation networks that optimize the load seen by the amplifier. The filtering configuration originates from the active Best Envelopment configuration and allows the following fine-tuning options to improve the performance in the passenger compartment:

• 4 emission levels for the tweeter ( -4, -2 , 0, +1,5 dB), designed with L-Pad technique

• mid-frequency level control ( -4 / -2 / 0 / +1,5 dB) centered at 900 Hz to vary the sound character from the analytical one obtained from professional monitors to the softer one typical of the most sophisticated home systems.

• possibility of bi-amplification

SPECIFIKACIJOS

Comp 2-way Passive Crossover for TH 1.5 II + TH 6.5 II
Size mm (in.) 348 x 190 x 66,5 (13.7 x 7.48 x 2.62)
Power Handling W peak 300
W continuos 150
Filters   Woofer cut-off  Lo-pass 1,35 kHz @ 6 dB/Oct.
Tweeter cut-off   Hi-pass 2,8 kHz @ 12 dB/Oct. Q=0,48
Filters – Adjustment Contour @ 1 kHz  -3 / -1,5 / 0 dB
Tweeter level  -4 / -2 / 0 / +1,5 dB
Weight of one component kg (lb)   3,6 (7)

INSTRUKCIJOS

User Manual (EN).
