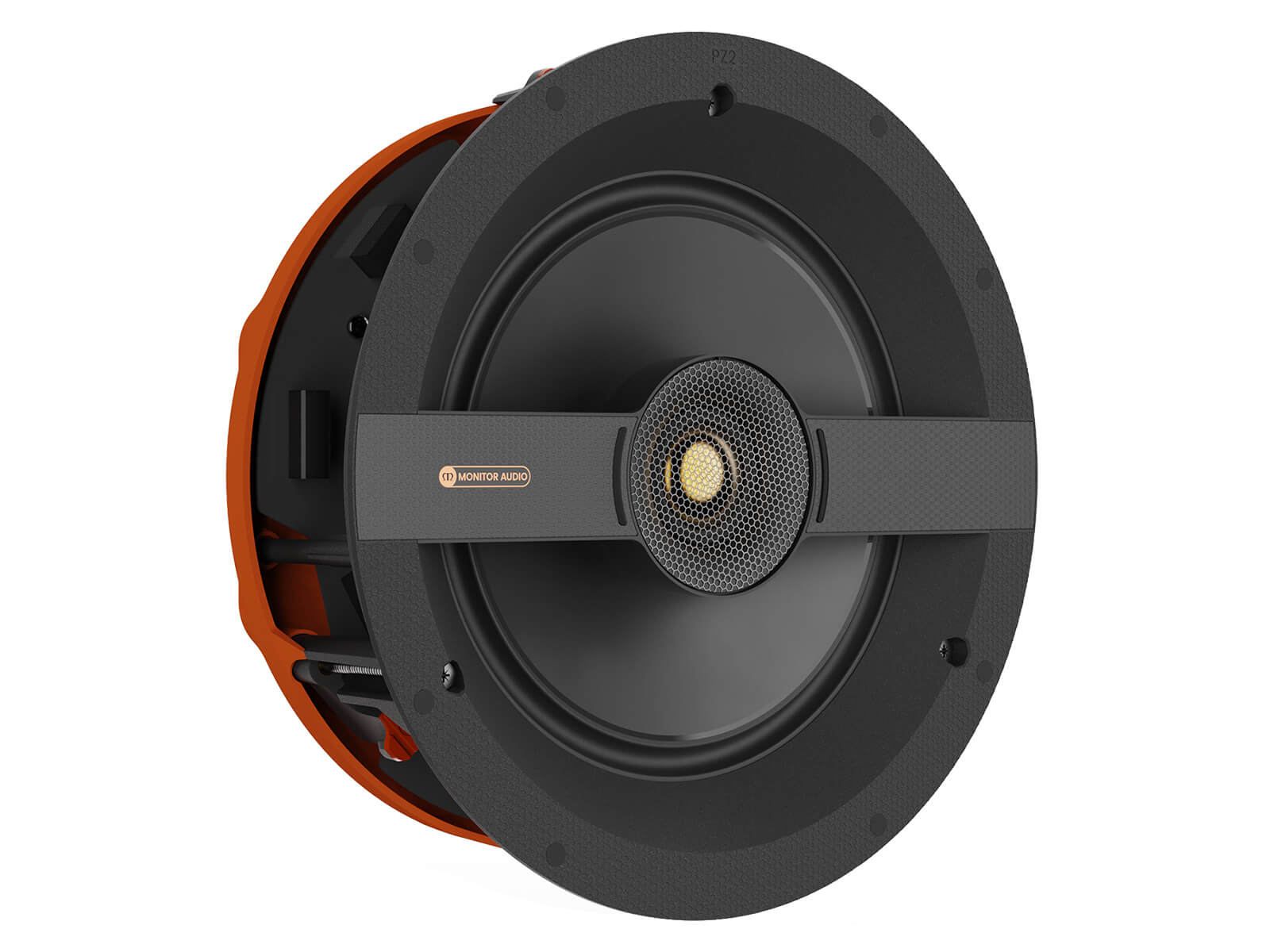

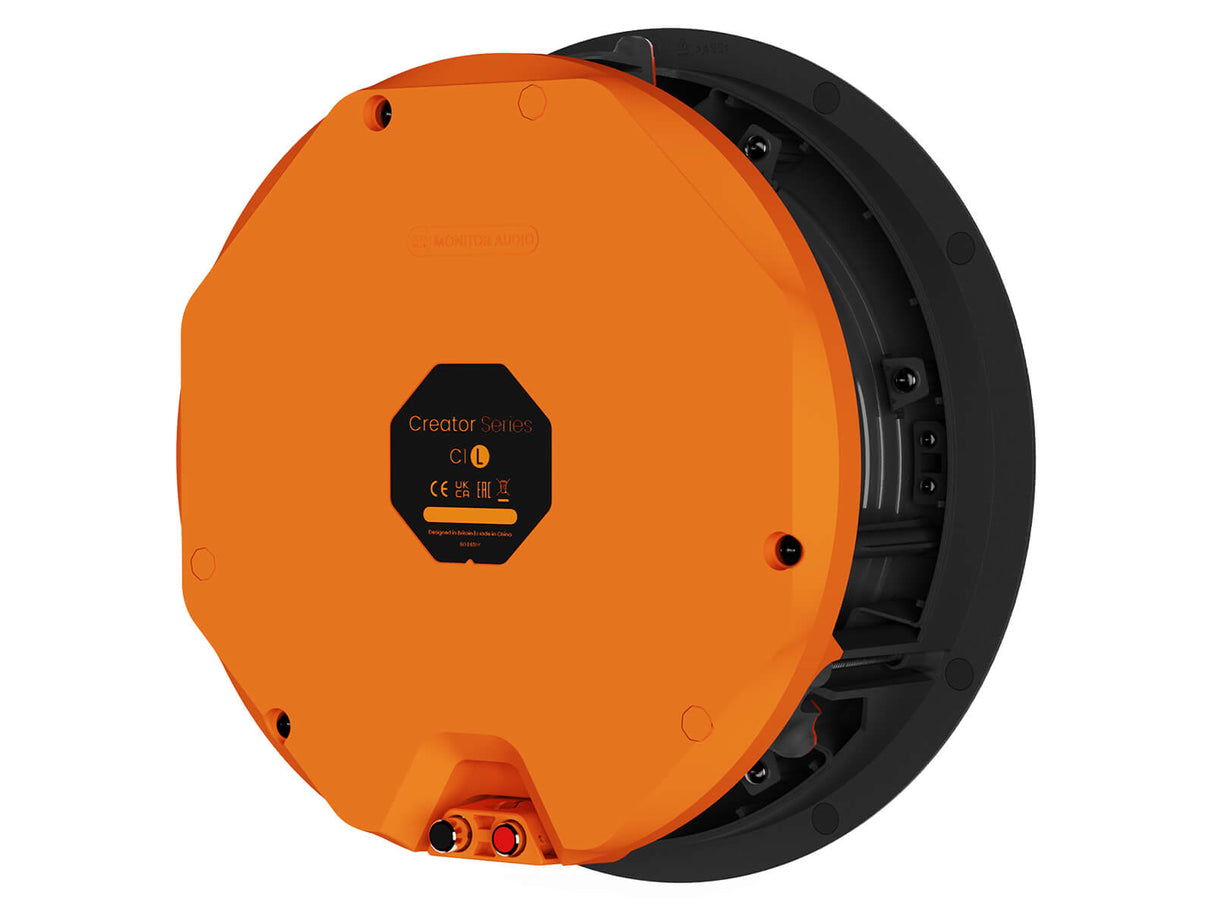

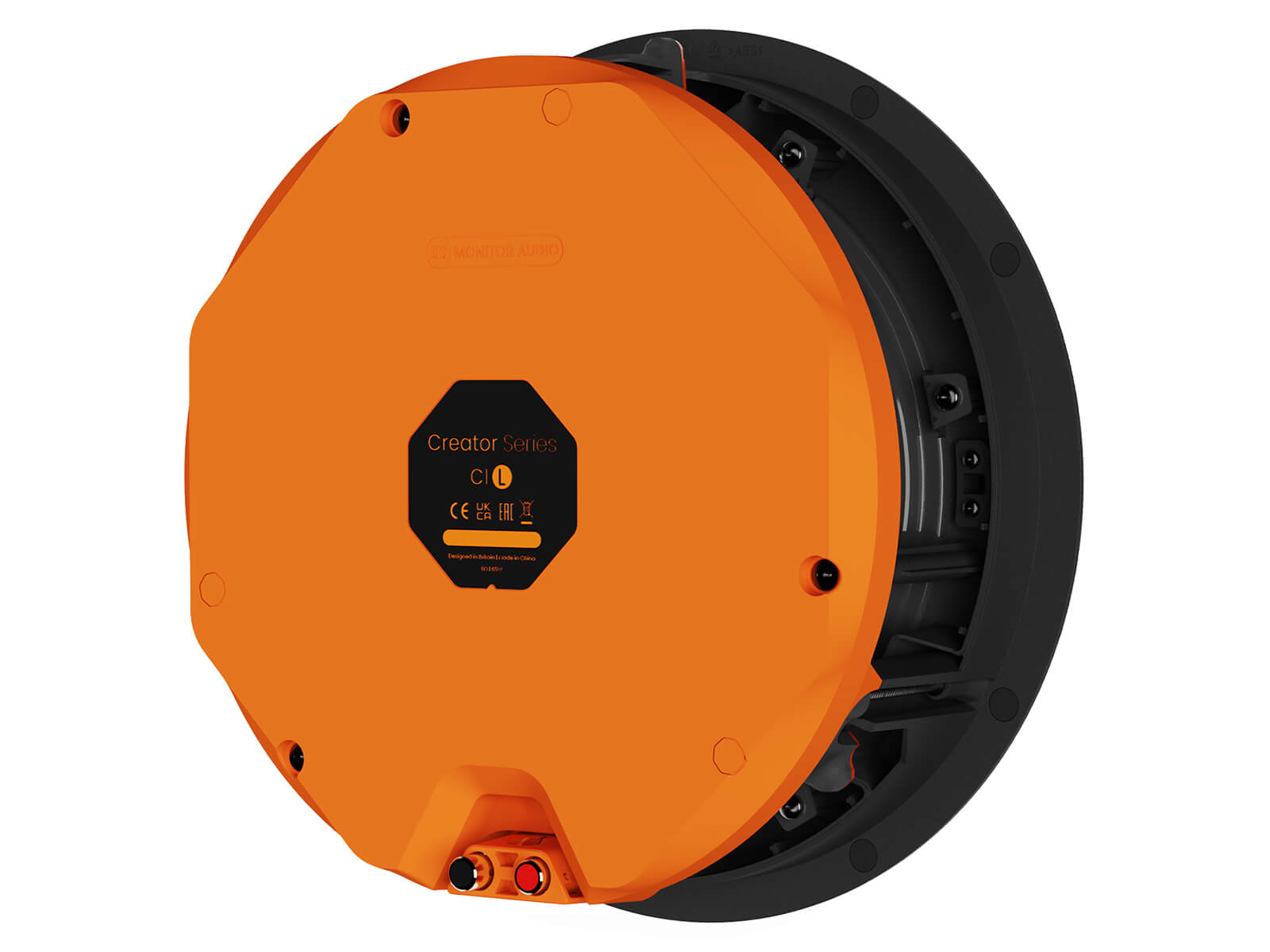

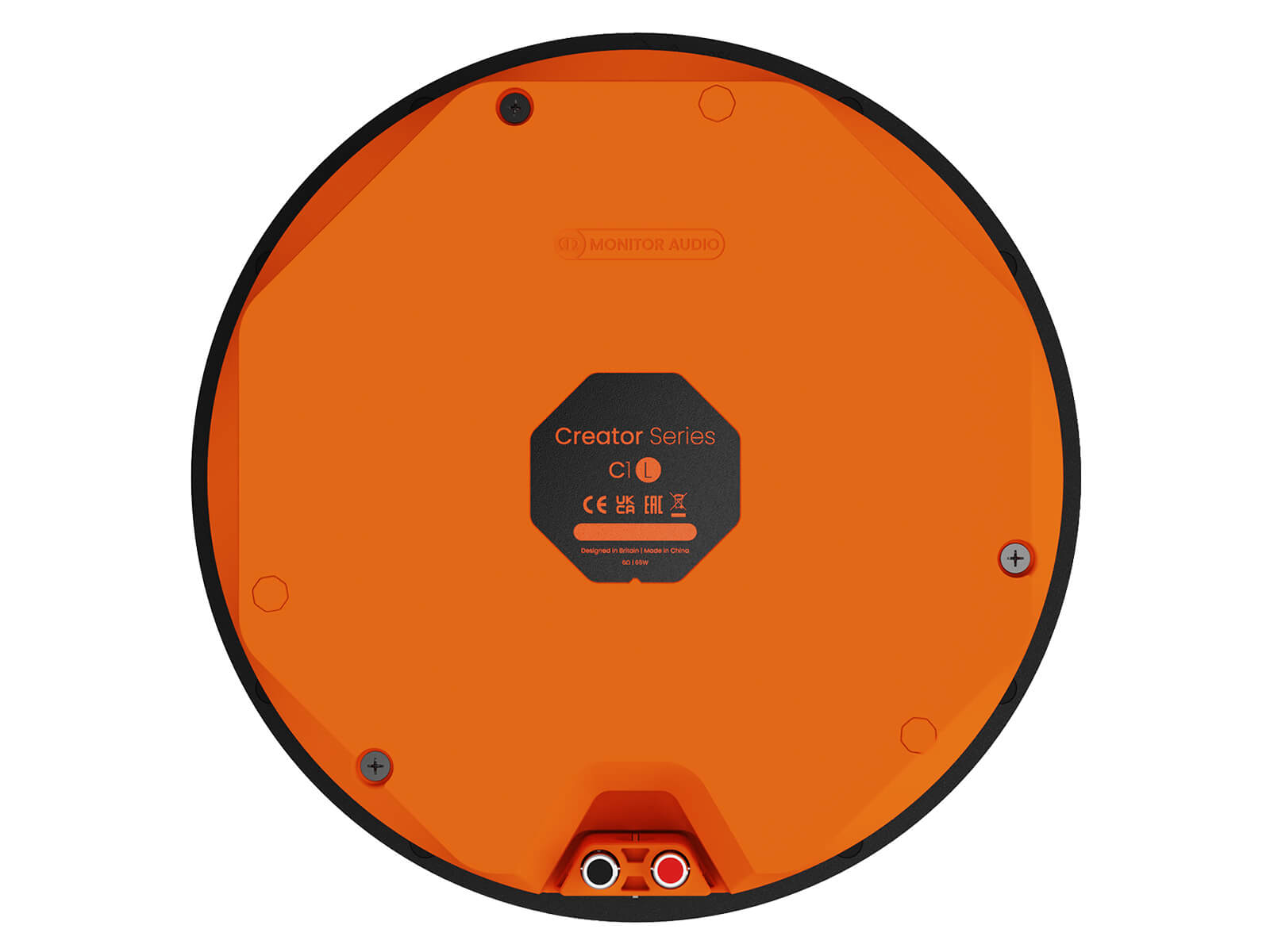

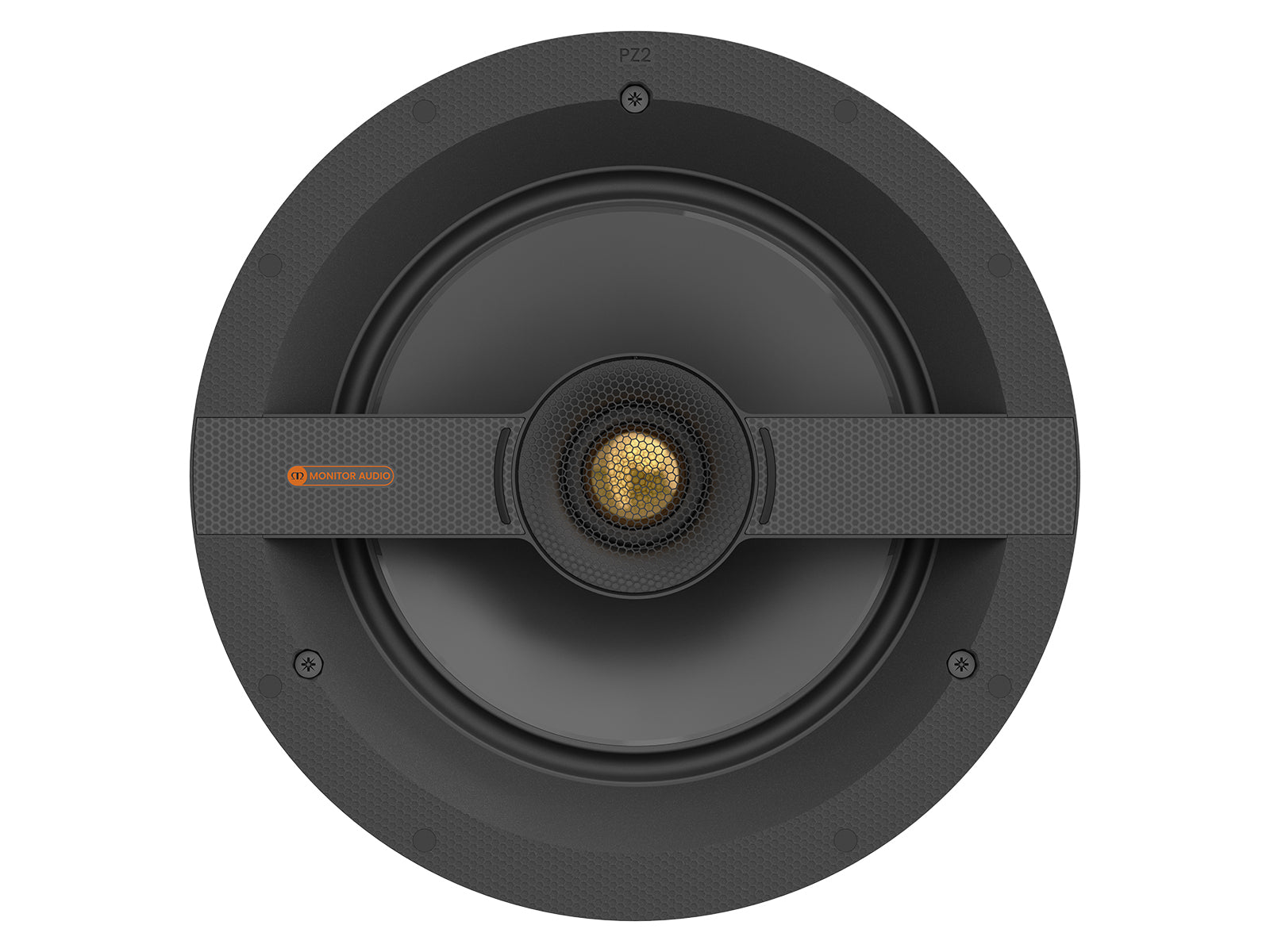

Monitor Audio C1L, į lubas montuojama garso kolonėlė

Monitor Audio C1L - didelio dydžio, dviejų juostų  į lubas montuojama garso kolonėlė, skirta ekonomiškiems sprendimams, kur svarbus paprastumas ir tvirtas akustinis veikimas. Įrengtas 9" C-CAM vidutinio-žemų dažnių garsiakalbis ir 1,25" C-CAM aukštadažnis su UD Waveguide I technologija, užtikrinantys aiškų, natūralų garsą ir plačią sklaidą. Išpjovos skersmuo – 248 mm. Montavimą palengvina patentuota Quik-Link jungtis ir Tri-Grip II sistema. Galima rinktis kvadratines groteles. Puikus pasirinkimas kainos ir kokybės santykio ieškantiems sprendimams.

This large Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.

This large Tier 1 in-ceiling loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

Optional square grille can be used with this model.

Key Features
Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
Two-way design
1 x 1.25" (32 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
1 x 9" (229 mm) C-CAM mid-bass driver for clear mid-range and full bass
Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
Tri-Grip II for easy and secure fitment

System Format
2–Way
Channels
1
Frequency Response, Installed (-6dB)
30 Hz – 25 kHz​
Nominal Impedance
8 ohm
Minimum Impedance (20Hz to 20kHz)
6.4 Ohm @ 150 Hz
Sensitivity (2.83Vrms@1m, Installed)
88 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
116 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
75 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
40 – 150 W
Drive Unit Complement
1 x 9" (229 mm) C-CAM mid-bass driver
1 x 1.25" (32 mm) C-CAM tweeter
Crossover Frequency
LF/HF: 2 kHz
Mounting Depth
99 mm (37/8")
Cut-Out Hole Diameter
248 mm (93/4")
External Dimensions (Including Grille (H x W x D))
278 x 278 x 103​ mm (1015/16 x 1015/16 x 44/16)"
Weight (each)
2.5 kg (5 lb 8 oz)
Pre-Construction Bracket
CL-B
Cabinet Finish
Matte black & Orange​
Sold As
Single Unit
