Monitor Audio W3M, į sieną montuojama garso kolonėlė

Monitor Audio W3M - tai aukštos kokybės "Creator Series", vidutinio dydžio, įmontuojamos kolonėlės, sukurtos tiekti nepriekaištingą garso kokybę aukštos klasės garso sistemoms. Šis trijų juostų modelis naudoja naujausias Monitor Audio technologijas, užtikrinančias puikią garso kokybę namų kino teatruose ir kituose aukščiausios klasės audio įrenginiuose.

1 x MPD II transduktorius užtikrina nepaprastai tikslius aukštų dažnių garsus
1 x 3" (76 mm) C-CAM vidutinio dažnio garsiakalbis
2 x 5" (127 mm) RDT III žemų dažnių garsiakalbiai užtikrina pilną žemųjų dažnių atkūrimą
Patentuotas Quik-Link jungiklis
Greitesnis ir paprastesnis kabelių prijungimas (JK patentas 2216966.8)
Tri-Grip II sistema
Lengvas ir tvirtas montavimas, užtikrinantis saugų garsiakalbio tvirtinimą.

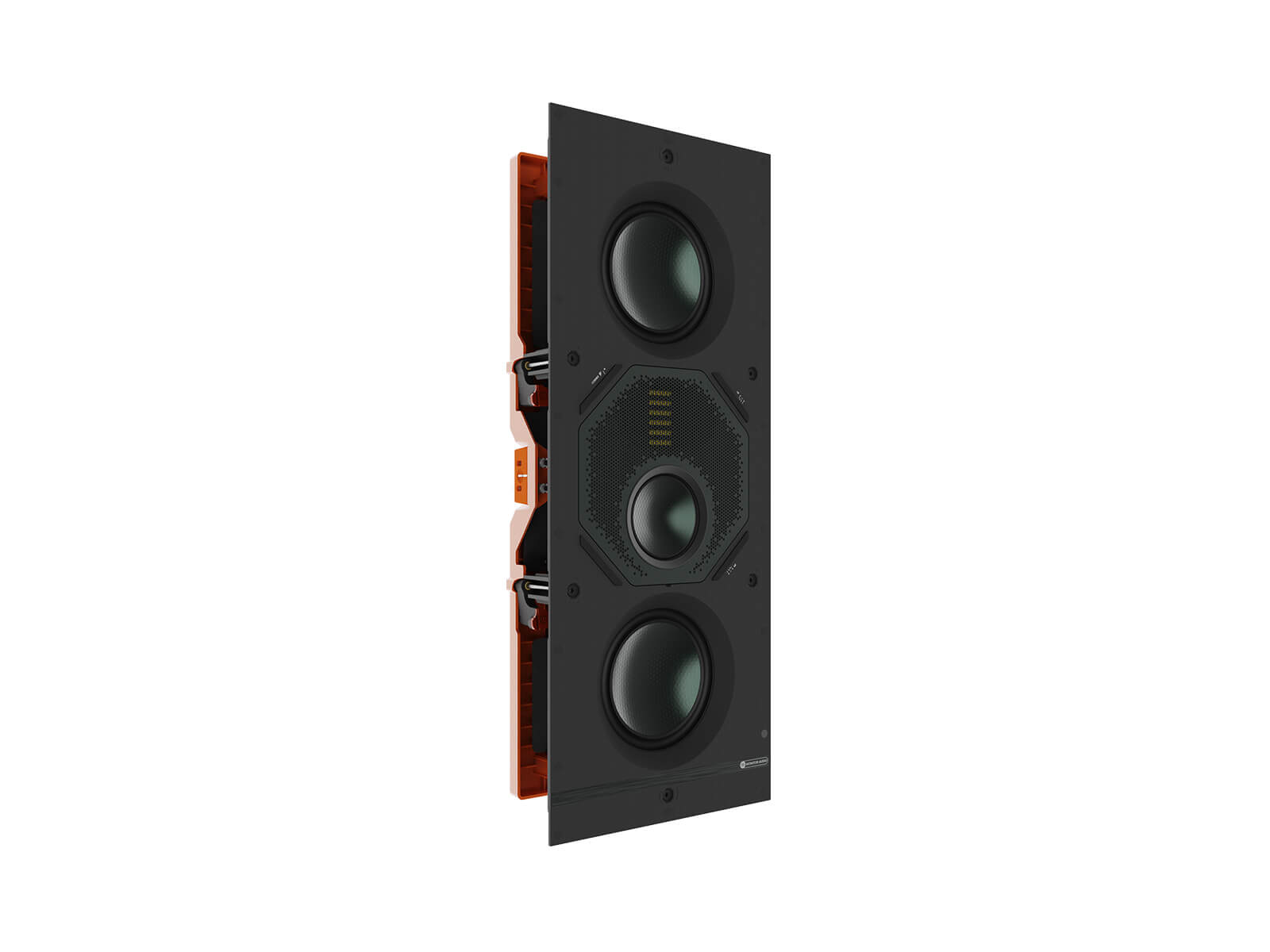

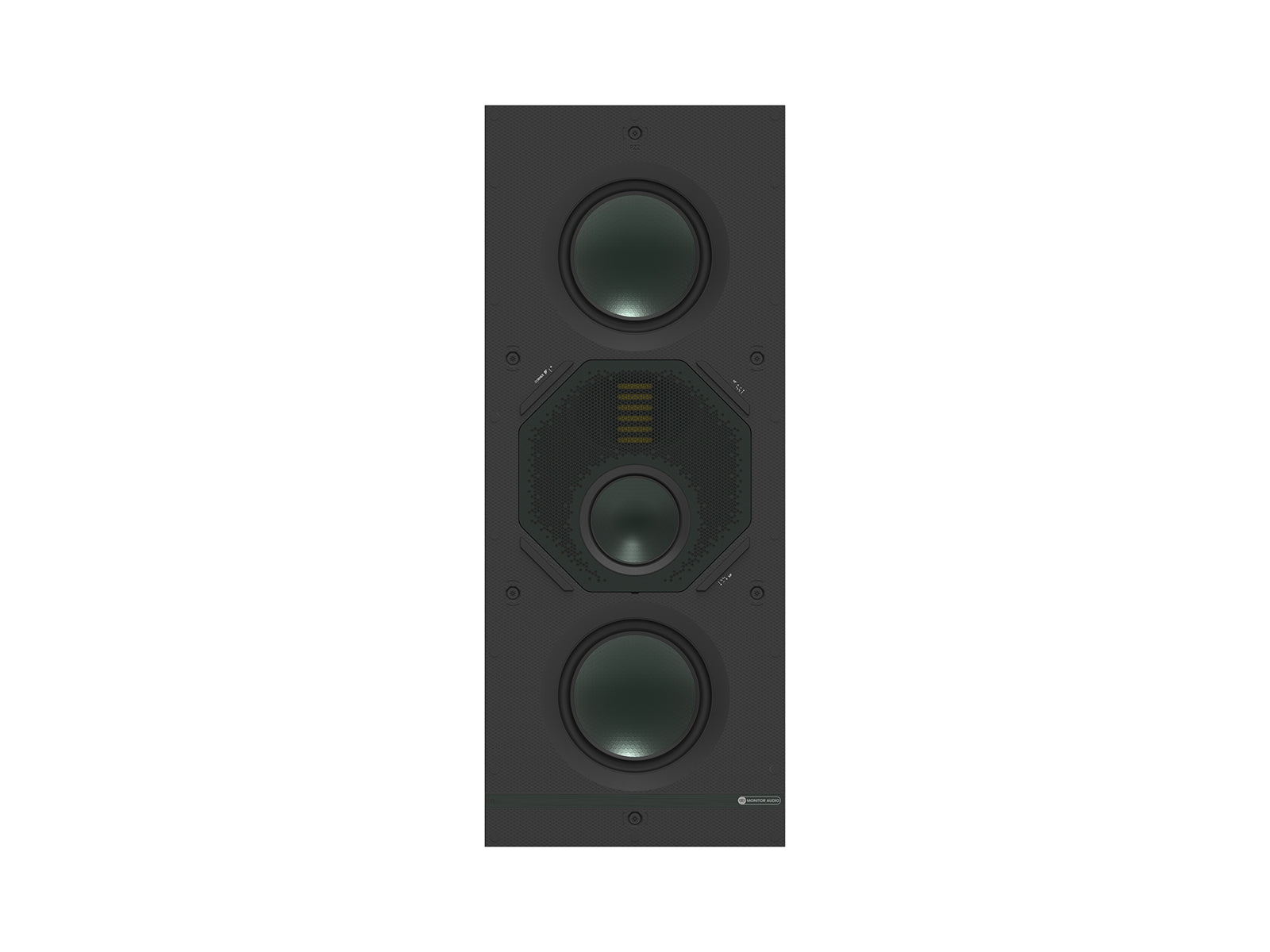

This high-performance, medium-sized Tier 3 in-wall loudspeaker is a three-way model featuring two RDT III bass drivers, a C-CAM mid-range driver and MPD II transducer. It has a cut-out dimension of 527 x 198 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.

This high-performance, large Tier 3 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model based on the Platinum Series 3G, and features the very latest acoustic technologies from Monitor Audio. This includes an MPD II high-frequency transducer, developed for the THX Certified Ultra Cinergy range. The precision specification of the Micro Pleated Diaphragm technology is designed to produce accurate, lifelike sound without any distortion. This is coupled with a C-CAM midrange driver and two RDT III bass drivers.

This combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of his acoustic technology was developed. This really is the last word in installed performance.

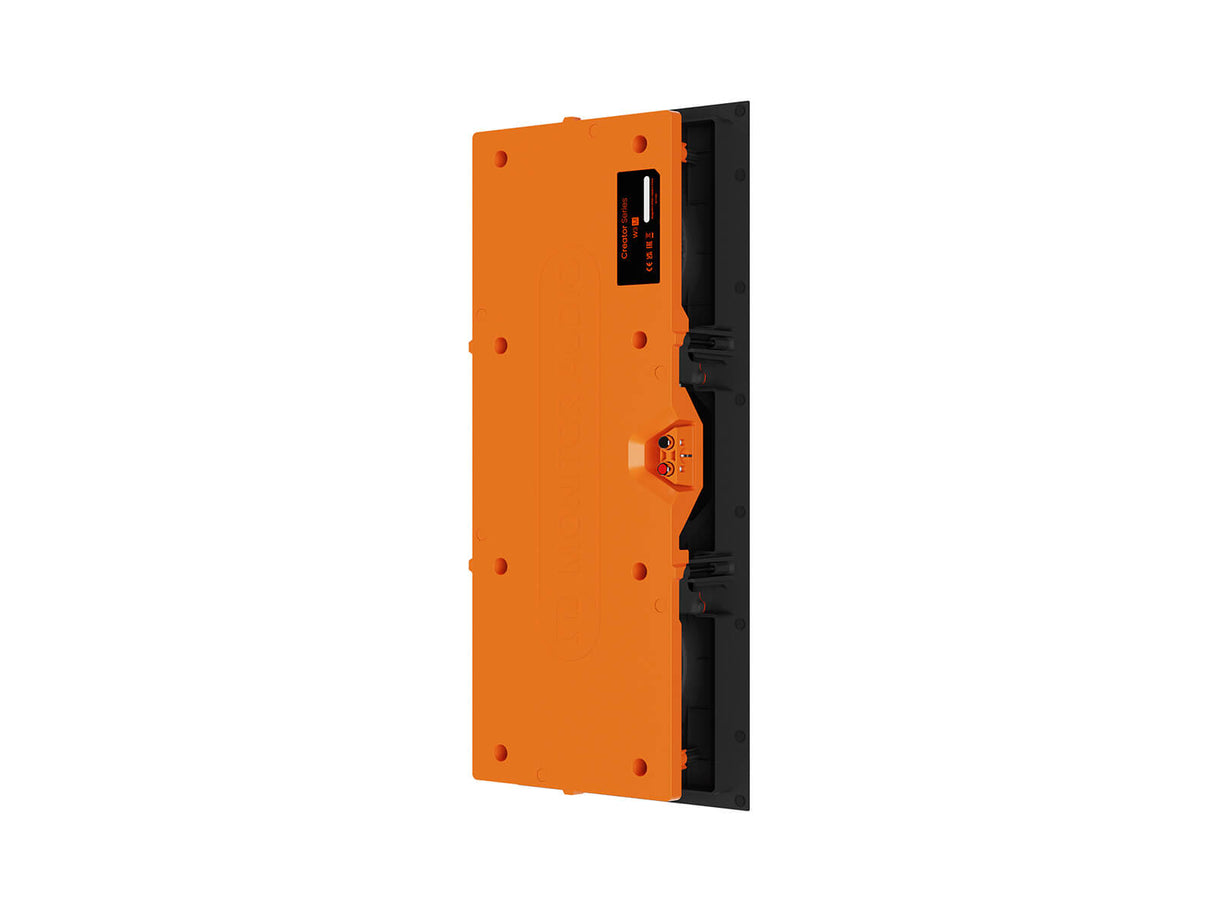

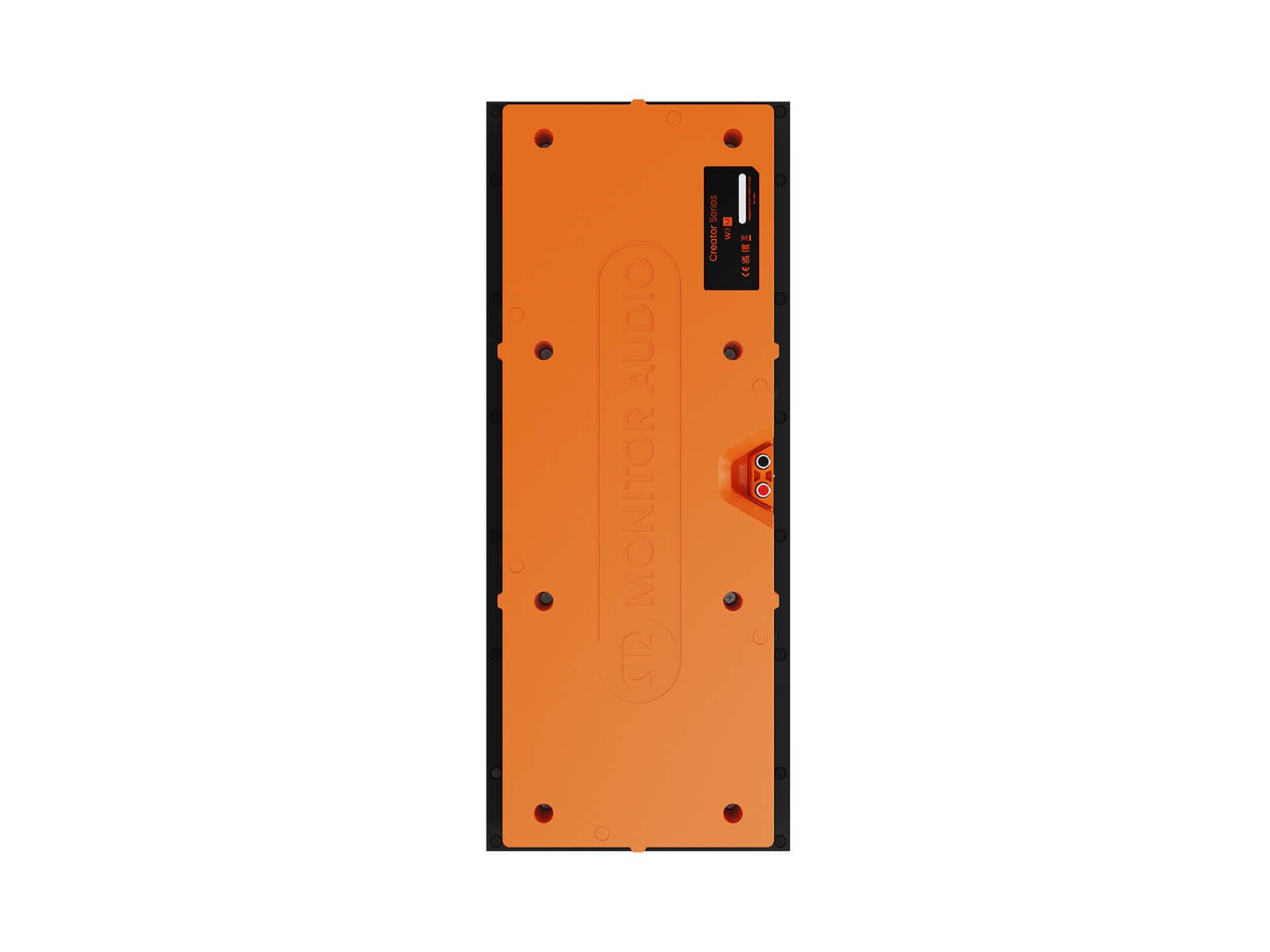

It has a cut out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

Key Features
Ideal for installations where high-performance acoustics are desired
Three-way design
1 x MPD II transducer for breathtakingly precise high-frequency performance
1 x 3" (76 mm) C-CAM midrange driver
2 x 5" (127 mm) RDT III bass drivers for full bass
Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
Tri-Grip II for easy and secure fitmen

System Format
3–Way
Channels
1
Frequency Response, Installed (-6dB)
45 Hz – 60 kHz​
Nominal Impedance
6 ohm
Minimum Impedance (20Hz to 20kHz)
4.8 Ohm @ 150 Hz
Sensitivity (2.83Vrms@1m, Installed)
88 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
122 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
150 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
60 – 225 W
Drive Unit Complement
2 x 5" (127 mm) RDT III bass driver
1 x 3" (76 mm) C-CAM midrange driver
1 x MPD II transducer
Crossover Frequency
LF/HF: 650 kHz
MF/HF: 3.5 kHz
Mounting Depth
85 mm (33/8")
Cutout L x W
527 x 198 mm (203/4 x 713/16")
External Dimensions (Including Grille (H x W x D))
560 x 231 x 90 mm (221/16 x 91/8 x 39/16")
Weight (each)
4.7 kg (10 lb 6 oz)
Pre-Construction Bracket
WM-B
Cabinet Finish
Matte black & Orange & Green
Sold As
Single Unit
Corner Switch
On/Off
MF Switch
- /0/ +
HF Switch
- /0/ +t
