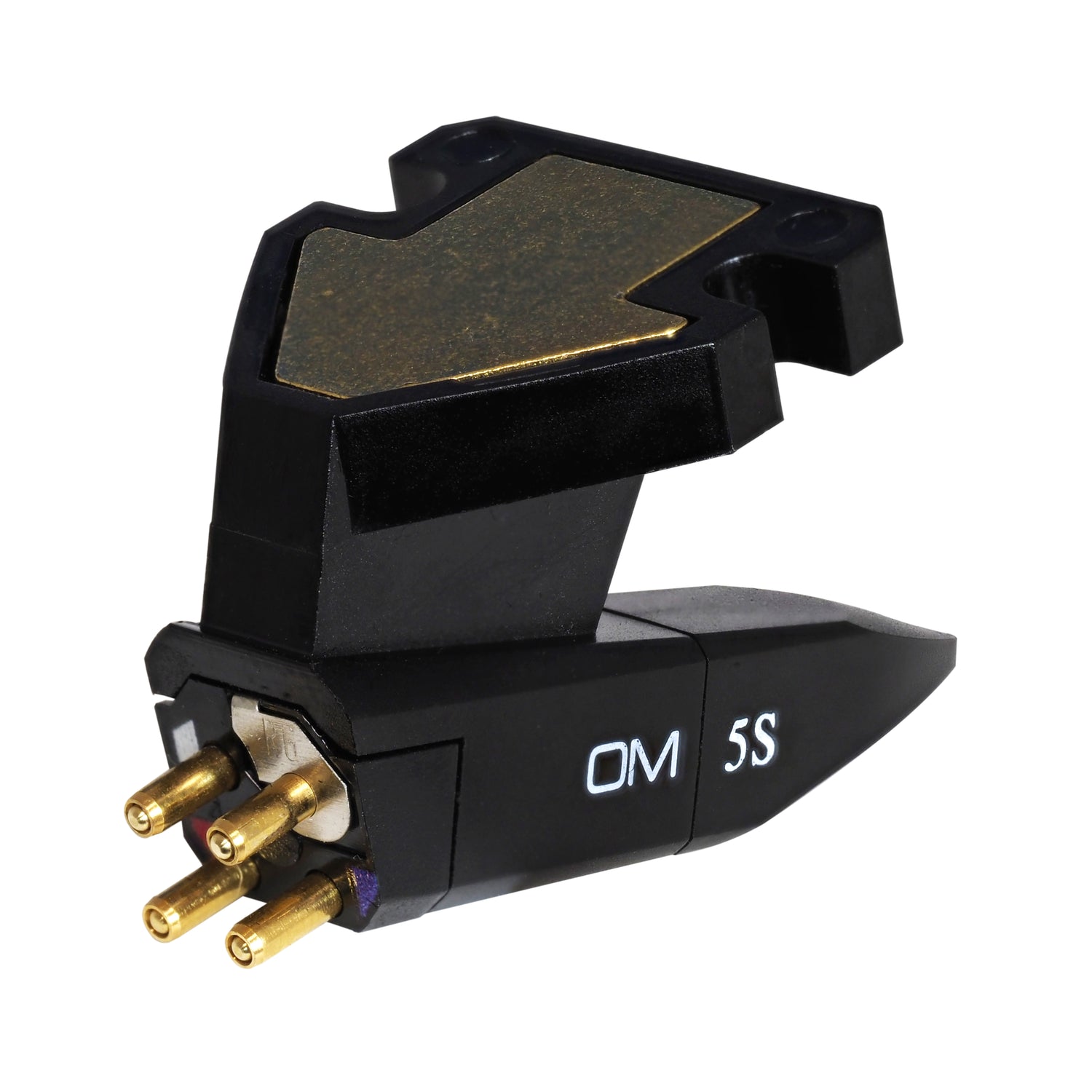

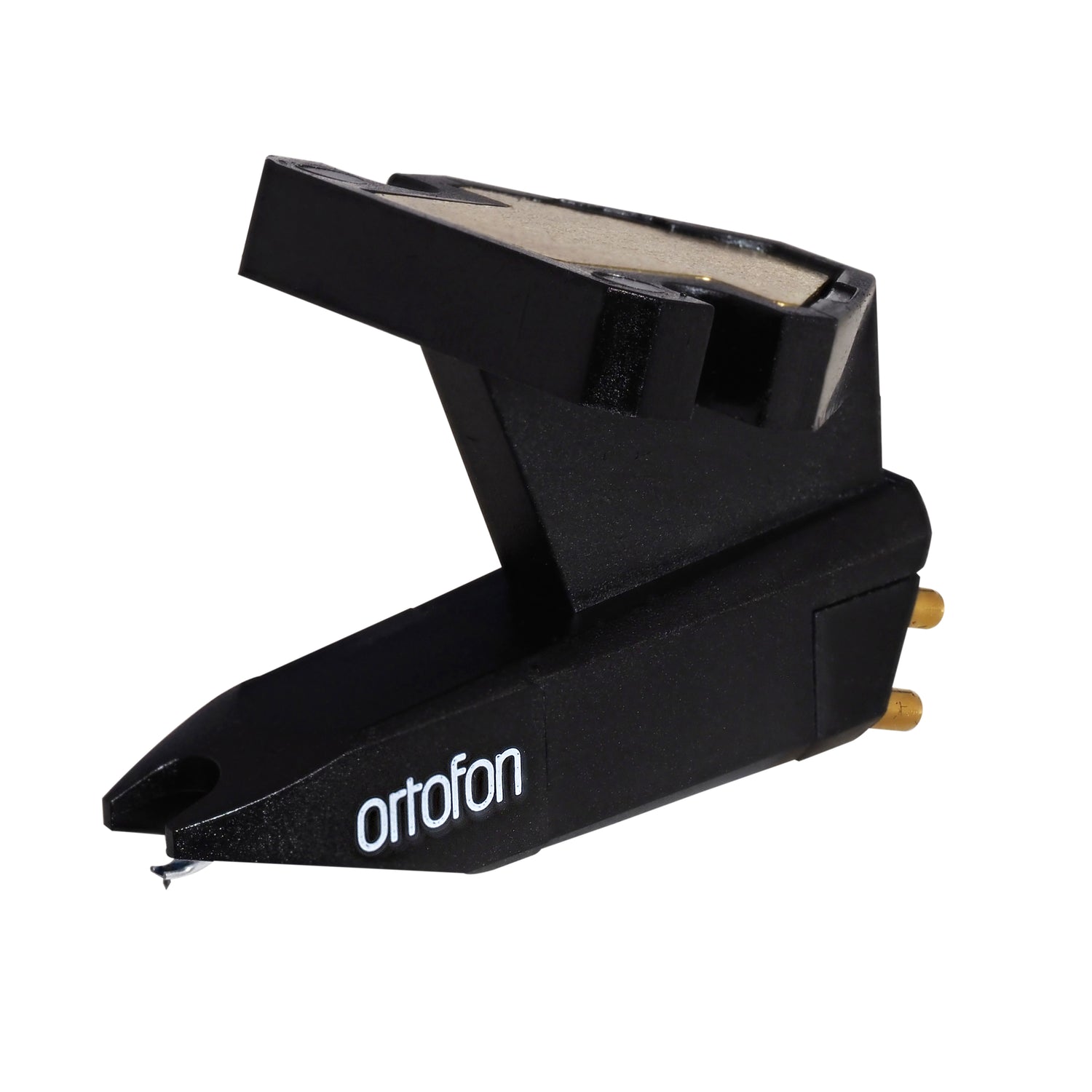

Ortofon OM 5S, patefono galvutė

€45.00 EUR

Ortofon OM 5S, patefono galvutė - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Nemokamas pristatymas Lietuvoje nuo 100 €

Lietuvoje Venipak kurjeriu pristatymas per 1-2 darbo dienas.
Pristatymas už Lietuvos ribų per 4-10 darbo dienų.

Atsiimkite prekes parduotuvėje už 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

OM 5S turi sferinį stylusąį tai, tvirtas ir ekonomiškas sprendimas vinilinėms plokštelėms atkurti.

  • Stylus tipas: Spherical.
  • Dažnių juosta: 20 Hz - 20 kHz.
  • Sekimo jėga: 1.5-2.0 g (15-20 mN).



A great match for your home system

Styli types and interchangeability

By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application, and budget.



Ortofon OM 5S, patefono galvutė

In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.

Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.

The OM 5 Series

The Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E and Super OM 5E.

  • The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.
  • The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
  • The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The Super OM 5E major improvements:

  1. By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation, and reduced distortion.
  2. OM Super cartridges models have split pole PINs which reduces magnetic losses at the treble end. This technology extends the frequency range and improves phase linearity.
  3. The OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound), which ensures high rigidity and freedom from resonances.

SPECIFIKACIJOS

  • Channel balance at 1 kHz 2 dB
  • Output voltage at 1 kHz, 5cm/sec 4.5 mV
  • Channel seperation at 1 kHz 20 dB
  • Channel seperation at 15 kHz 12 dB
  • Frequency response 20 Hz - 20 kHz 20-20.000 Hz
  • Tracking ability at 315Hz at recommended tracking force 60 µm
  • Compliance, dynamic, lateral 20 µm/mN
  • Stylus type Spherical
  • Stylus tip radius R 18 µm
  • Tracking force range 1.5-2.0 g (15-20 mN)
  • Tracking force, recommended 1.75 g (17.5 mN)
  • Tracking angle 20°
  • Internal impedance, DC resistance 750 Ohm
  • Cartridge colour Black/Black
  • Cartridge weight incl. extra weight 5 g, excl. extra weight 2.5 g
  • Recommended load resistance 47 kOhm
  • Internal inductance 450 mH
  • Recommended load capacitance 200-500 pF

INSTRUKCIJOS

User Manual (EN).
