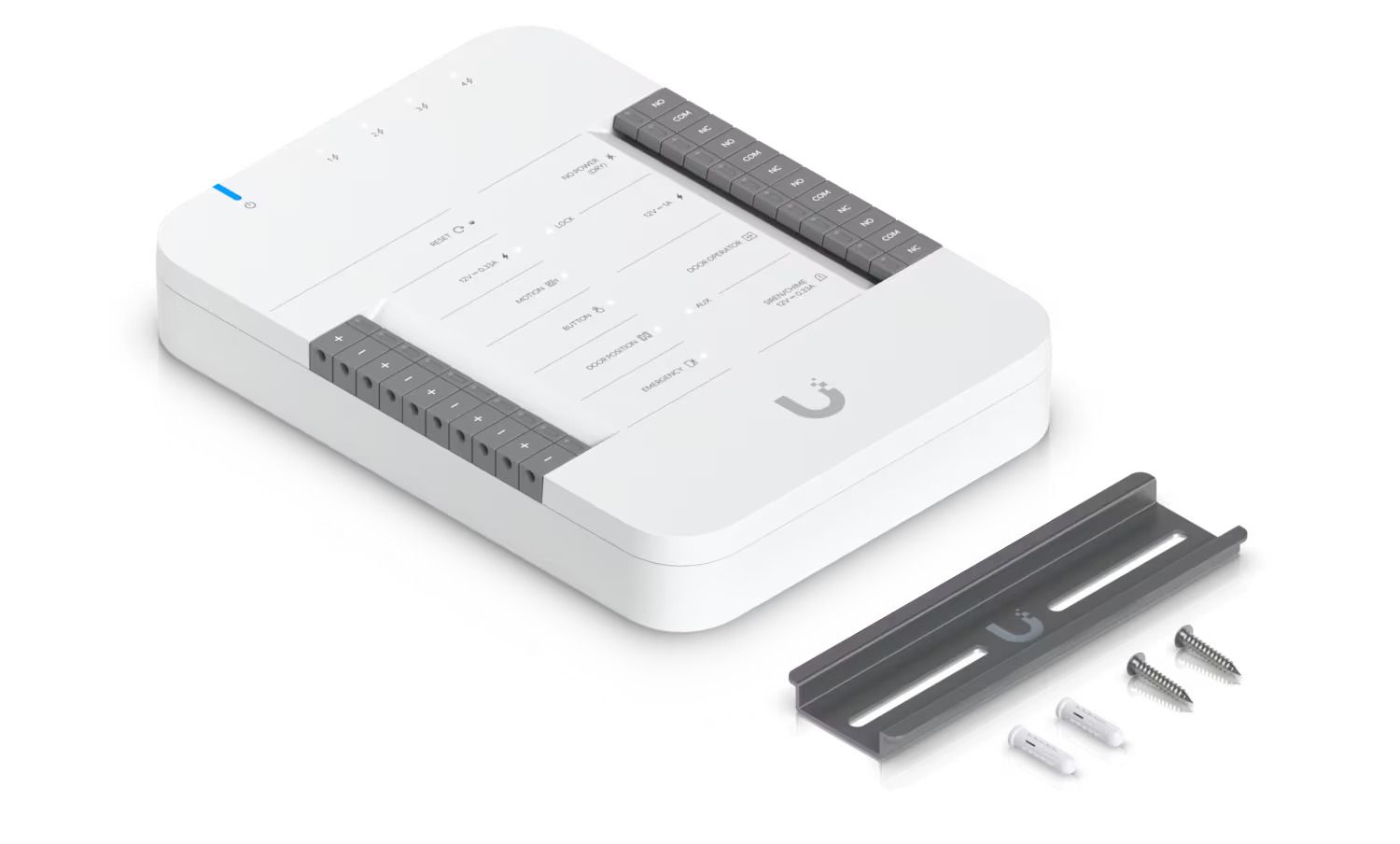

UBIQUITI UniFi Door Hub, durų valdymo įrenginys

UniFi Door Hub – tai vieno durų valdymo įrenginys, skirtas pilnai kontroliuoti įėjimo ir išėjimo procesus.

Jis suderinamas su UniFi Access skaitytuvais ir kameromis, suteikiantis patikimą ir efektyvų prieigos valdymą.

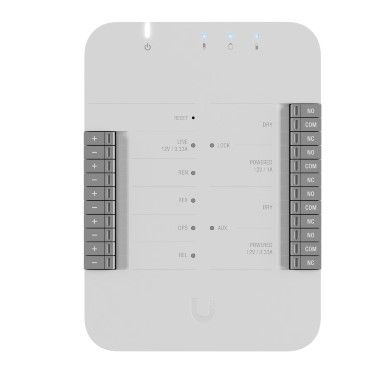

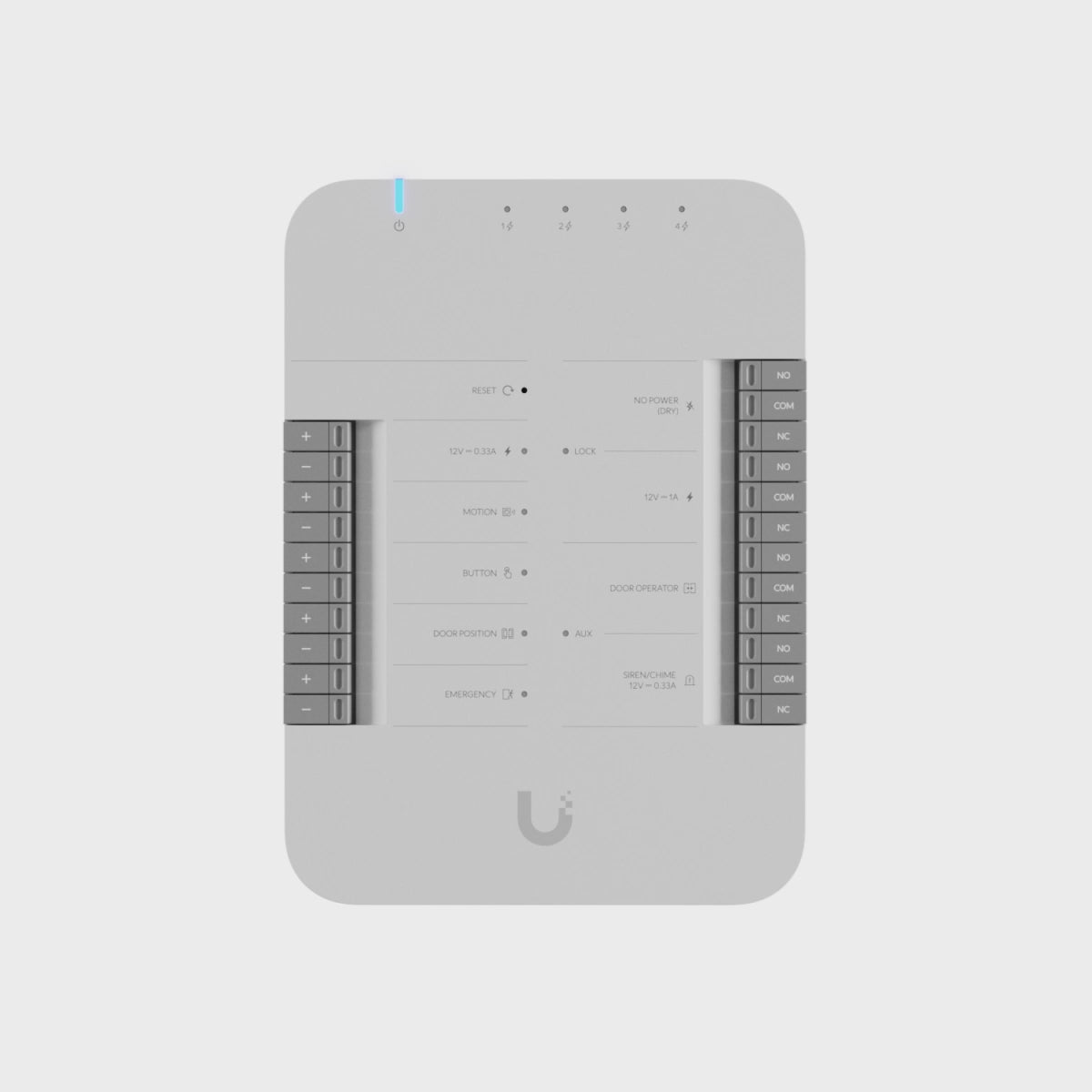

• Dviejų užraktų jungtys: 12V arba sauso kontakto (Dry).
• Papildomi AUX terminalai: Skirti išorinei sirenai ar automatiniam durų atidarytuvui.
• 4 papildomi įėjimai: Jutikliams ar mygtukams prijungti.
• PoE++ maitinimas: Paprasta ir efektyvi instaliacija.
• Suderinamumas:
  • Palaiko du UniFi Access skaitytuvus.
  • Palaiko dvi UniFi Protect kameras arba skambučio įrenginius.

• Mechanical
  Dimensions    174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
  Weight    363 g (12.8 oz)
  Enclosure material    Polycarbonate
  Mounting material    Polycarbonate
  Hardware
  Networking interface    (5) 10/100/1000 Base-T
  Power method    PoE++
  UL 294 Power-limited Class 2 PSU
  UL 60950-1/62368-1 LPS/PS2 PSU
  Max. power consumption    Without PoE output: 30W
  With PoE output: 50W
  PoE input    50V DC, 1A
  PoE output    PoE passthrough, (4) PoE, 50V DC, total 20W
  LEDs    White/blue (Learn more)
  Button    (1) Factory-reset
  Digital input    Request to exit/request to enter/remote release/door position sensor
  Dry output relay    Lock: 30V DC, 1A
  Aux: 30V DC, 1A
  Powered output relay    Lock: 12V DC, 1A
  Aux: 12V DC, 0.33A
  12V DC, 0.33A
  Recommend max. cable length
  18 AWG
  UACC-Cable-DoorLockRelay length    20
  AWG length    22
  AWG length    24
  AWG length
  UA-Lock-Electric
  (400mA)    100 m
  (328 ft)    66 m
  (217 ft)    42 m
  (138 ft)    25 m
  (82 ft)
  UA-Lock-Magnetic-270kg
  (800mA)    46 m
  (151 ft)    30 m
  (98 ft)    20 m
  (66 ft)    12 m
  (29 ft)
  UA-Lock-Magnetic-540kg
  (500mA)    80 m
  (262 ft)    51 m
  (167 ft)    32 m
  (105 ft)    20 m
  (66 ft)
  Other locks
  (1A)    36 m
  (118 ft)    24 m
  (79 ft)    15 m
  (49 ft)    9 m
  (30 ft)
  PoE cabling requirements    Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
  The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
  Operating environment    Indoor use only
  Ambient operating temperature    0 to 40° C (32 to 104° F)
  Ambient operating humidity    5 to 95% noncondensing
  UL 294 level    Destructive attack: Level I
  Line security: Level I
  Endurance: Level I
  Standby power: Level I
  UL 294 statement    Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
  The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
  CAN/ULC-60839-11-1 Grade    Grade assignment: 1
  Certifications    CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
  Document number, and issue date and/or revision level    UA-Hub-Door002, V01
