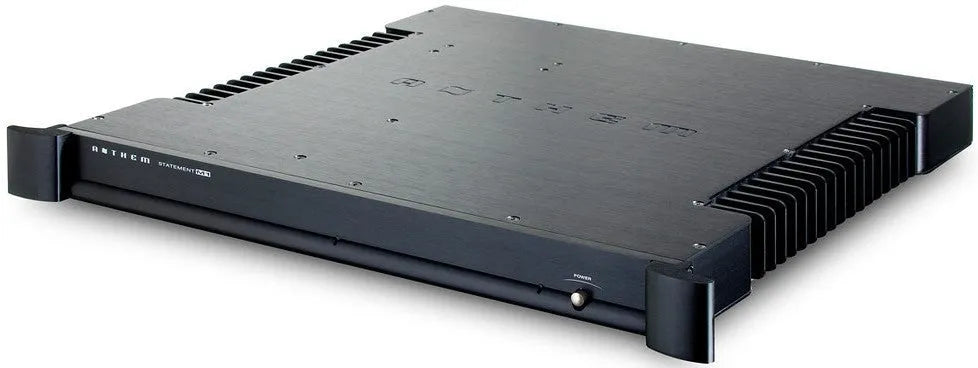

Anthem M1 Statement, galios stiprintuvas

"Anthem M1 Statement" galios stiprintuvas - tai monofoninis stiprintuvas, pasižymintis neįtikėtina garso kokybe ir moderniausiomis technologijomis, puikiai skambantis visuose garsumo lygiuose.

• Galia: 2400 W.
• D-Klasės garso stiprintuvas.
• Dažnių juosta: 20 - 20k Hz.

Class D Amplification

Although there may be many generalisations about the capabilities of Class D amplifiers, the Anthem M1 refutes these ideas. It offers all the advantages of a Class D amplifier being highly efficient, compact in size and high output power. But it avoids all the limitations expected with this type of amplifier such as mains line contamination, difficulty driving high-end speakers and issues with reliability and sound quality. The M1 breaks the mould and delivers breathtaking realism to your music and movies

Low Noise

This system prides itself on its exceptionally low noise levels. It has a cool running system that has an extremely efficient heat transfer process that eliminates the need for fans thus reducing the danger of overheating in multiple M1 systems. Without a noisy fan the amplifier can enjoy a low noise floor and sounds super quiet making it suitable for even the quietest listening rooms.

Dynamic Signal Range

The Anthem M1 is a highly efficient power amplifier that enjoys full resolution of all the sonic details and subtleties in the input signal, and enjoys a full dynamic range reproduced accurately for a realistic audio experience. The M1's control system continuously varies the width of the output pulse train in direct relation to the analog input signal.

Key Features

- Compact design occupies only 1 rack space
- Proprietary load monitoring system can handle all loads and  deliver highest output possible for each operating condition
- Power Factor Correction maximises available power whilst reducing AC line noise, enabling continuous power throughout the AC
- Bridged mode amplification with lower voltage MOSFET's that can handle peak current of 260 amperes

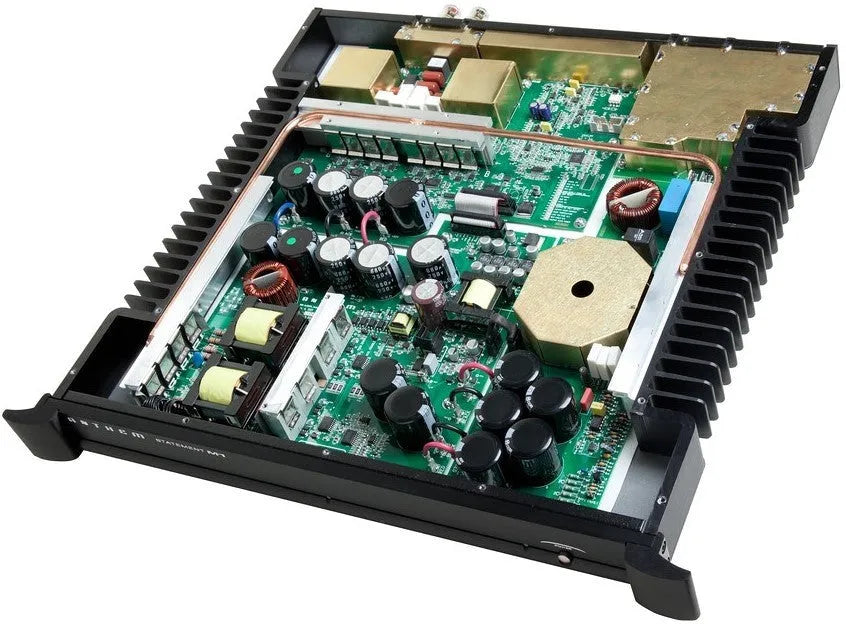

- Hand-crafted 4-layer FR4-rated glass-epoxy circuit board with 2-ounce copper traces promotes exceptional conductivity
- Auto Power On/Off mode

SPECIFIKACIJOS

Power Output continuous, 20 Hz to 20 kHz, <0.1% THD+N
- 8 Ω: 1000 W
- 4 Ω: 2000 W
- 3 Ω: 2400 W
- 2 Ω: >2000 W depending on line voltage regulation

Frequency Response 20 Hz to 20 kHz
- Open circuit: +/- 0.1 dB
- 8 Ω: +/- 0.1 dB
- 4 Ω: +/- 0.1 dB
- 2 Ω: +/- 0.2 dB

Power Bandwidth 1000 W at 8 Ω: 5 Hz to 45 kHz

THD+N at 1 kHz, 8 Ω
- 1 W: 0.01 %
- 10 W: 0.01 %
- 100 W: <0.03 %
- 1000 W: <0.06 %

- IMD 19 kHz + 20 kHz, CCIF: 0.003%
- S/N Ratio ref. 1000 W, IEC-A: 113 dB
- Voltage Gain: 29 dB
- Input Sensitivity: 100 mV for 1 W output, 3.2 V for 1000 W output (8 Ω)
- Input Impedance: 10 kΩ (RCA), 20 kΩ (XLR)
- Damping Factor: 800 to 1400 depending on frequency
- XLR Configuration: Pin 1: Ground, Pin 2: Positive, Pin 3: Negativ

Power Requirements
- Consumption in a typical music/theater installation
- standby mode, 120V mains: <1 W
- standby mode, 240V mains: <2 W
- operate mode, idle: 33 W
- typical operation: 300 W

Dimensions
- Height with feet: 2 1/4 inches (5.7 cm)
- Height without feet: 1 rack unit
- Width standard handles: 19 1/4 inches (49 cm)
- Width rackmount handles: 19 inches (48.3 cm)
- Depth: 18 3/4 inches (47.6 cm)
- Weight: (unpacked) 20 lb (9 kg)
