Audio-Technica

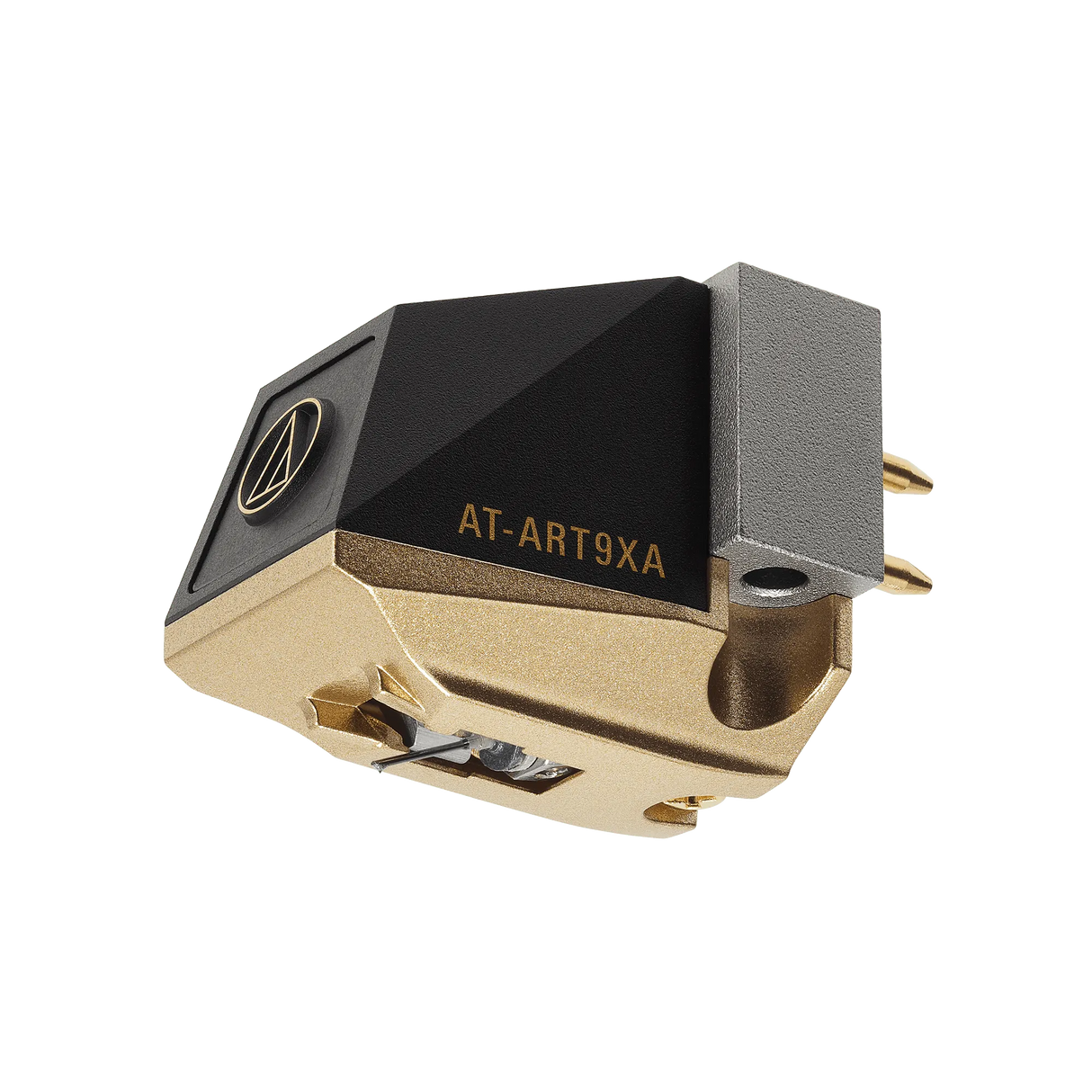

Audio-Technica AT-ART9XA, kartridžas

€1,549.00 EUR

Audio-Technica AT-ART9XA, kartridžas - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Nemokamas pristatymas Lietuvoje nuo 100 €

Lietuvoje Venipak kurjeriu pristatymas per 1-2 darbo dienas.
Pristatymas už Lietuvos ribų per 4-10 darbo dienų.

Atsiimkite prekes parduotuvėje už 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

AT-ART9XI turi specialų linijinį kontaktinį plunksną ant 0,28 mm skersmens kietos boro konsolės, todėl AT-ART9XI pakeičia AT-ART9 ir yra "Audio-Technica" pavyzdinė magnetinės šerdies MC kasetė.

  • Dažnių juosta: 20-50,000 Hz.
  • Kanalų atskirtis: 30 dB (1 kHz).
  • Nude tipo kartridžas.

An update of the AT-ART7, the AT-ART9XA non-magnetic core MC cartridge features a Shibata stylus on a 0.28 mm diameter solid boron cantilever.

The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that we give only to our flagship phono cartridges. Compared with the magnetic core used in most MC cartridges, non-magnetic core cartridges are free from magnetic distortion, allowing for natural timbre and a precise sound field.
  • Non-magnetic core moving coil cartridge offers superior spatial representation

  • Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion

  • Shibata stylus ensures accurate high and mid-low range reproduction, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics

  • Neodymium magnet and permendur yoke significantly increase magnetic energy

  • Redesigned coil armature provides an output voltage of 0.2 mV (1 kHz, 5 cm/sec)

  • PCOCC coils ensure high-fidelity transmission

  • Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
  • Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance

  • Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm


    SPECIFIKACIJOS

    Cartridge & Stylus
    Frequency Response 20-50,000 Hz
    Channel Separation 30 (dB at 1 kHz)
    Vertical Tracking Angle 20°
    Vertical Tracking Force 1.6-2.0 g (1.8 g standard)
    Stylus Construction Nude
    Recommended Load Impedance Min. 100 ohms (when head amplifier connected)
    Coil Impedance 12 ohms (1 kHz)
    DC Resistance 12 ohms
    Coil Inductance 2.5 µH (1 kHz)
    Output Voltage 0.2 mV (1 kHz, 5 cm/sec.)
    Output Channel Balance 0.5 dB (1 kHz)
    Stylus Shape Shibata
    Cantilever 0.28 mm diameter solid boron
    Static Compliance 20 x 10-6 cm/dyne
    Dynamic Compliance 10 x 10-6 cm/dyne (100 Hz)
    Mounting Half-inch
    Cartridge Weight 8.5 g (0.30 oz)
    Dimensions 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
    Accessories Included Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
    Threaded Hole M2.6 x 2
    Notes Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
    Atgal į viršų

    AT-ART9XI turi specialų linijinį kontaktinį plunksną ant 0,28 mm skersmens kietos boro konsolės, todėl AT-ART9XI pakeičia AT-ART9 ir yra "Audio-Technica" pavyzdinė magnetinės šerdies MC kasetė.

    • Dažnių juosta: 20-50,000 Hz.
    • Kanalų atskirtis: 30 dB (1 kHz).
    • Nude tipo kartridžas.

    An update of the AT-ART7, the AT-ART9XA non-magnetic core MC cartridge features a Shibata stylus on a 0.28 mm diameter solid boron cantilever.

    The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that we give only to our flagship phono cartridges. Compared with the magnetic core used in most MC cartridges, non-magnetic core cartridges are free from magnetic distortion, allowing for natural timbre and a precise sound field.
    • Non-magnetic core moving coil cartridge offers superior spatial representation

    • Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion

    • Shibata stylus ensures accurate high and mid-low range reproduction, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics

    • Neodymium magnet and permendur yoke significantly increase magnetic energy

    • Redesigned coil armature provides an output voltage of 0.2 mV (1 kHz, 5 cm/sec)

    • PCOCC coils ensure high-fidelity transmission

    • Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
    • Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance

    • Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm


      SPECIFIKACIJOS

      Cartridge & Stylus
      Frequency Response 20-50,000 Hz
      Channel Separation 30 (dB at 1 kHz)
      Vertical Tracking Angle 20°
      Vertical Tracking Force 1.6-2.0 g (1.8 g standard)
      Stylus Construction Nude
      Recommended Load Impedance Min. 100 ohms (when head amplifier connected)
      Coil Impedance 12 ohms (1 kHz)
      DC Resistance 12 ohms
      Coil Inductance 2.5 µH (1 kHz)
      Output Voltage 0.2 mV (1 kHz, 5 cm/sec.)
      Output Channel Balance 0.5 dB (1 kHz)
      Stylus Shape Shibata
      Cantilever 0.28 mm diameter solid boron
      Static Compliance 20 x 10-6 cm/dyne
      Dynamic Compliance 10 x 10-6 cm/dyne (100 Hz)
      Mounting Half-inch
      Cartridge Weight 8.5 g (0.30 oz)
      Dimensions 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
      Accessories Included Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
      Threaded Hole M2.6 x 2
      Notes Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
