Audio-Technica

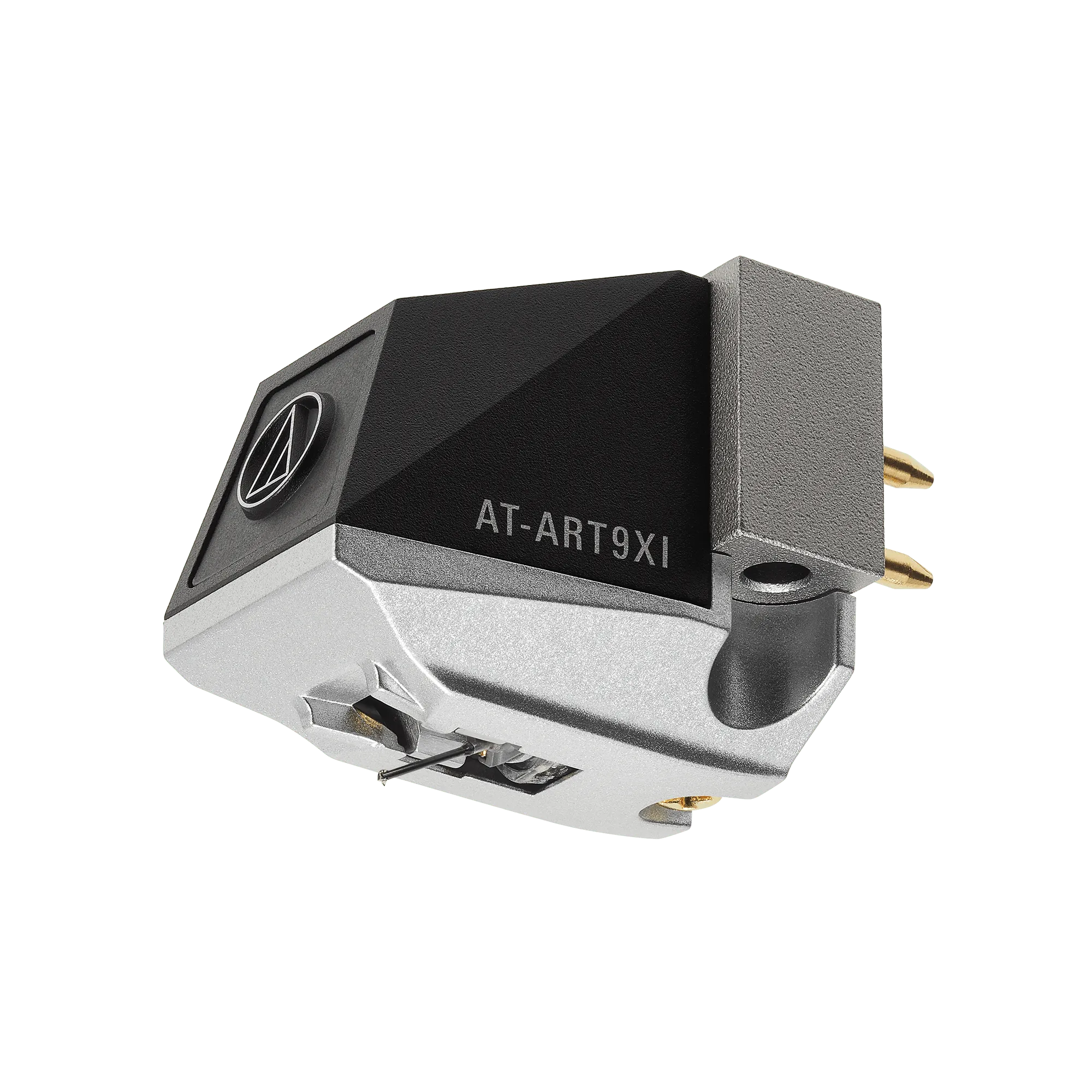

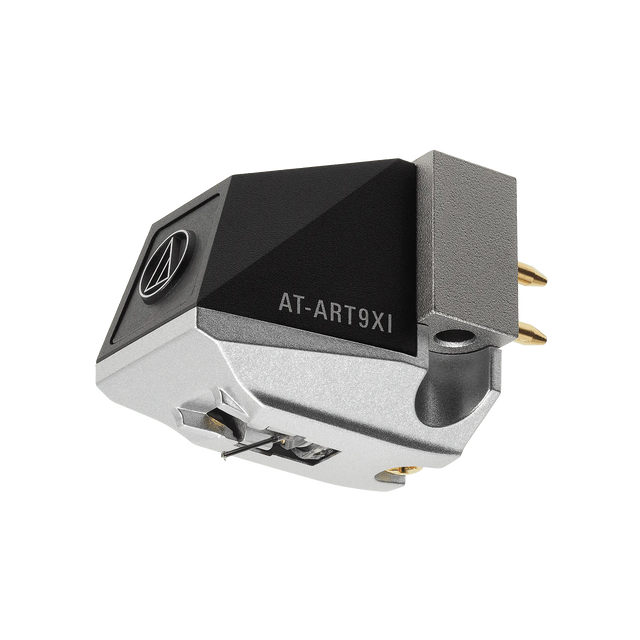

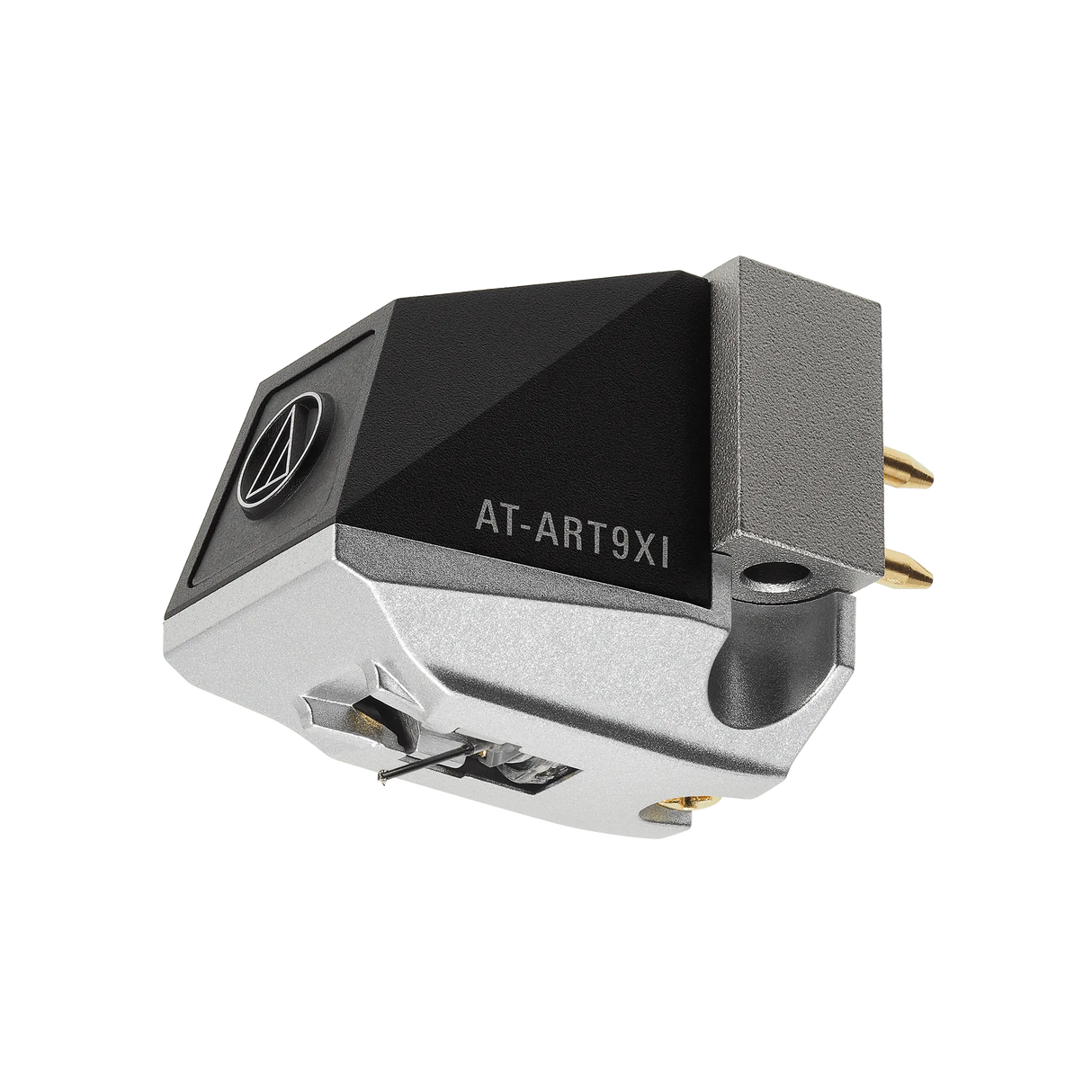

Audio-Technica AT-ART9XI, kartridžas

€1,549.00 EUR

Audio-Technica AT-ART9XI, kartridžas - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Nemokamas pristatymas Lietuvoje nuo 100 €

Lietuvoje Venipak kurjeriu pristatymas per 1-2 darbo dienas.
Pristatymas už Lietuvos ribų per 4-10 darbo dienų.

Atsiimkite prekes parduotuvėje už 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

AT-ART9XI turi specialų linijinį kontaktinį plunksną ant 0,28 mm skersmens kietos boro konsolės, todėl AT-ART9XI pakeičia AT-ART9 ir yra "Audio-Technica" pavyzdinė magnetinės šerdies MC kasetė.

  • Dažnių juosta: 20-50,000 Hz.
  • Kanalų atskirtis: 30 dB (1 kHz).
  • Nude tipo kartridžas.



 Featuring a special line contact stylus on a 0.28 mm diameter solid boron cantilever, the AT-ART9XI replaces the AT-ART9 as Audio-Technica’s flagship magnetic core MC cartridge.
  • Audio-Technica’s flagship magnetic core moving coil cartridge

  • Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion

  • Special line contact stylus ensures faithful reproduction of the music signal, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics

  • Neodymium magnet and permendur yoke significantly increase magnetic energy

  • Specially designed magnetic circuit provides an output voltage of 0.5 mV (1 kHz, 5 cm/sec)

  • PCOCC coils ensure high-fidelity transmission

  • Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability

  • Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance

  • Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm


    SPECIFIKACIJOS

    Cartridge & Stylus
    Frequency Response 20-50,000 Hz
    Channel Separation 30 (dB at 1 kHz)
    Vertical Tracking Angle 20°
    Vertical Tracking Force 1.6-2.0 g (1.8 g standard)
    Stylus Construction Nude
    Recommended Load Impedance Min. 100 ohms (when head amplifier connected)
    Coil Impedance 12 ohms (1 kHz)
    DC Resistance 12 ohms
    Coil Inductance 25 µH (1 kHz)
    Output Voltage 0.5 mV (1 kHz, 5 cm/sec.)
    Output Channel Balance 0.5 dB (1 kHz)
    Stylus Shape Special line contact
    Cantilever 0.28 mm diameter solid boron
    Static Compliance 25 x 10-6 cm/dyne
    Dynamic Compliance 15 x 10-6 cm/dyne (100 Hz)
    Mounting Half-inch
    Cartridge Weight 8.5 g (0.30 oz)
    Dimensions 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
    Accessories Included Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
    Threaded Hole M2.6 x 2
    Notes Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
