Audio-Technica

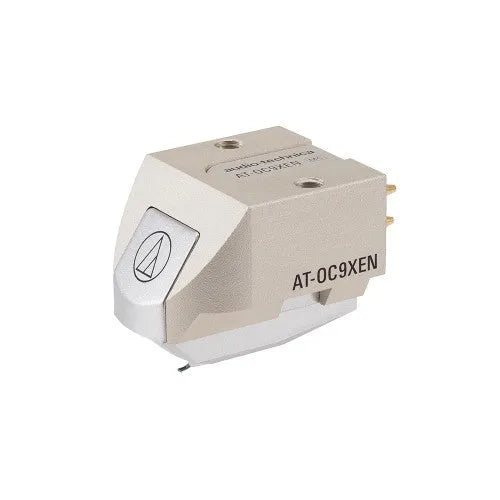

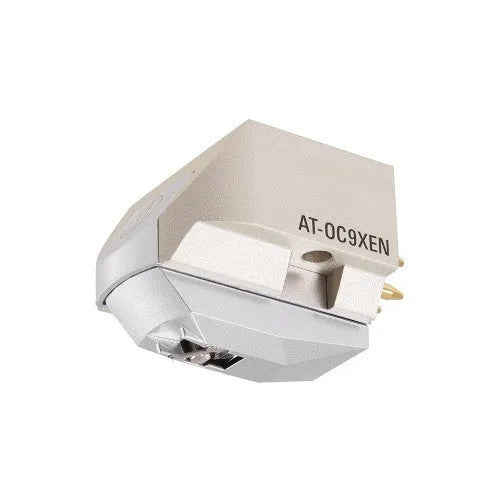

Audio-Technica AT-OC9XEN, kartridžas

€339.00 EUR

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Nemokamas pristatymas Lietuvoje nuo 100 €

Lietuvoje Venipak kurjeriu pristatymas per 1-2 darbo dienas.
Pristatymas už Lietuvos ribų per 4-10 darbo dienų.

Atsiimkite prekes parduotuvėje už 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Naujos kartos kartridžas iš legendinės OC9 serijos kartridžas su dviguba judančia rite ir dangteliu.

  • Dažnių juosta: 20 - 30,000 Hz.
  • Kantileveris: Aliuminis.
  • Kanalų atskirtis: 25 dB (1 kHz).
  • DC varža: 12 omų.



Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. Featuring a square shank for accurate stylus alignment and nude diamond for increased fine detail retrieval.

  • Features low mass nude elliptical stylus and aluminium cantilever
  • A neodymium magnet and pure iron yoke provide increased magnetic energy
  • Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
  • Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
  • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve the purest signal possible



        SPECIFIKACIJOS

        Model AT-OC9XEN
        Mounting 1/2” centers / Threaded inserts
        Frequency Response 20 - 30,000 Hz
        Body Material Aluminium
        Channel Separation 25 dB (1 kHz)
        Output Channel Balance 1.5 dB (1 kHz)
        Output Voltage 0.35 mV (@ 1 kHz, 5 cm/sec)
        Vertical Tracking Angle 20 degrees
        Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g)
        Stylus Shape Elliptical Nude
        Stylus Size 0.3 x 0.7 mil
        Stylus Construction Nude square shank
        Cantilever Aluminium pipe
        Coil Impedance 12 Ohms (1 kHz)
        Coil Inductance 25 μH (1 kHz)
        DC Resistance 12 Ohms
        Static Compliance 20 x 10 – 6 cm / dyne
        Dynamic Compliance 9 x 10 – 6 cm / dyne (100 Hz)
        Terminal Pins Brass
        Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
        Recommended Load Impedance Min 100 Ohms
        Cartridge Weight 7.6 g
        Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm

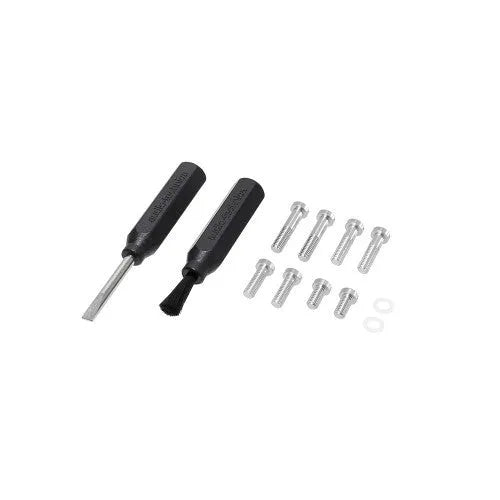

        Accessories Included 1 non magnetic screw driver
        1 brush
        2 washers
        4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
        1 plastic protector



        Atgal į viršų

        Naujos kartos kartridžas iš legendinės OC9 serijos kartridžas su dviguba judančia rite ir dangteliu.

        • Dažnių juosta: 20 - 30,000 Hz.
        • Kantileveris: Aliuminis.
        • Kanalų atskirtis: 25 dB (1 kHz).
        • DC varža: 12 omų.



        Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. Featuring a square shank for accurate stylus alignment and nude diamond for increased fine detail retrieval.

        • Features low mass nude elliptical stylus and aluminium cantilever
        • A neodymium magnet and pure iron yoke provide increased magnetic energy
        • Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
        • Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
        • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve the purest signal possible



              SPECIFIKACIJOS

              Model AT-OC9XEN
              Mounting 1/2” centers / Threaded inserts
              Frequency Response 20 - 30,000 Hz
              Body Material Aluminium
              Channel Separation 25 dB (1 kHz)
              Output Channel Balance 1.5 dB (1 kHz)
              Output Voltage 0.35 mV (@ 1 kHz, 5 cm/sec)
              Vertical Tracking Angle 20 degrees
              Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g)
              Stylus Shape Elliptical Nude
              Stylus Size 0.3 x 0.7 mil
              Stylus Construction Nude square shank
              Cantilever Aluminium pipe
              Coil Impedance 12 Ohms (1 kHz)
              Coil Inductance 25 μH (1 kHz)
              DC Resistance 12 Ohms
              Static Compliance 20 x 10 – 6 cm / dyne
              Dynamic Compliance 9 x 10 – 6 cm / dyne (100 Hz)
              Terminal Pins Brass
              Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
              Recommended Load Impedance Min 100 Ohms
              Cartridge Weight 7.6 g
              Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm
              Accessories Included 1 non magnetic screw driver
              1 brush
              2 washers
              4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
              1 plastic protector
