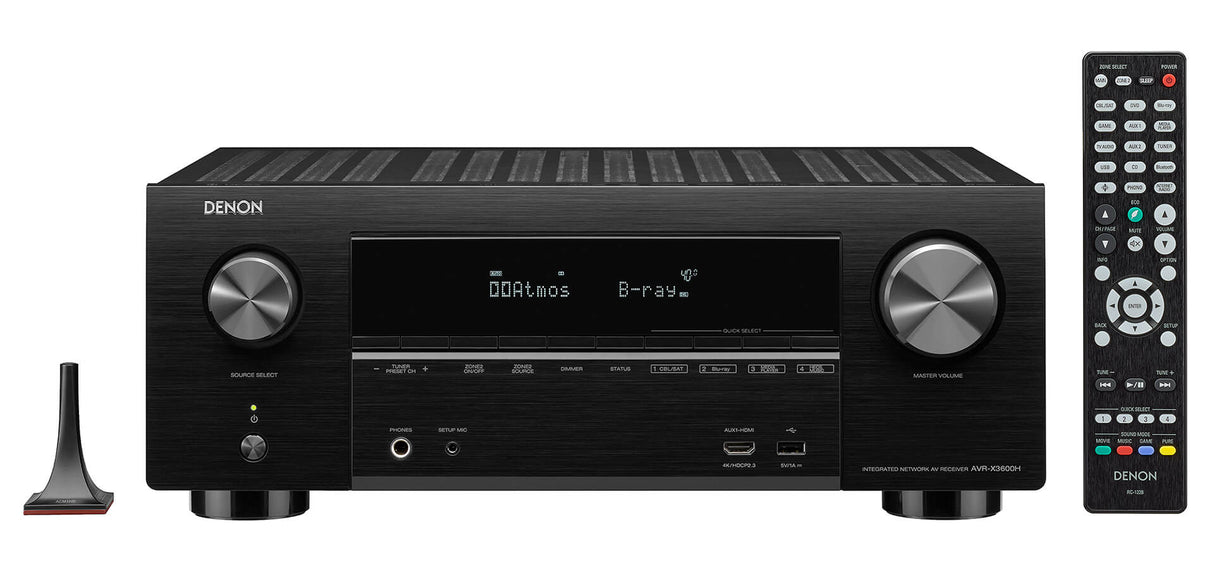

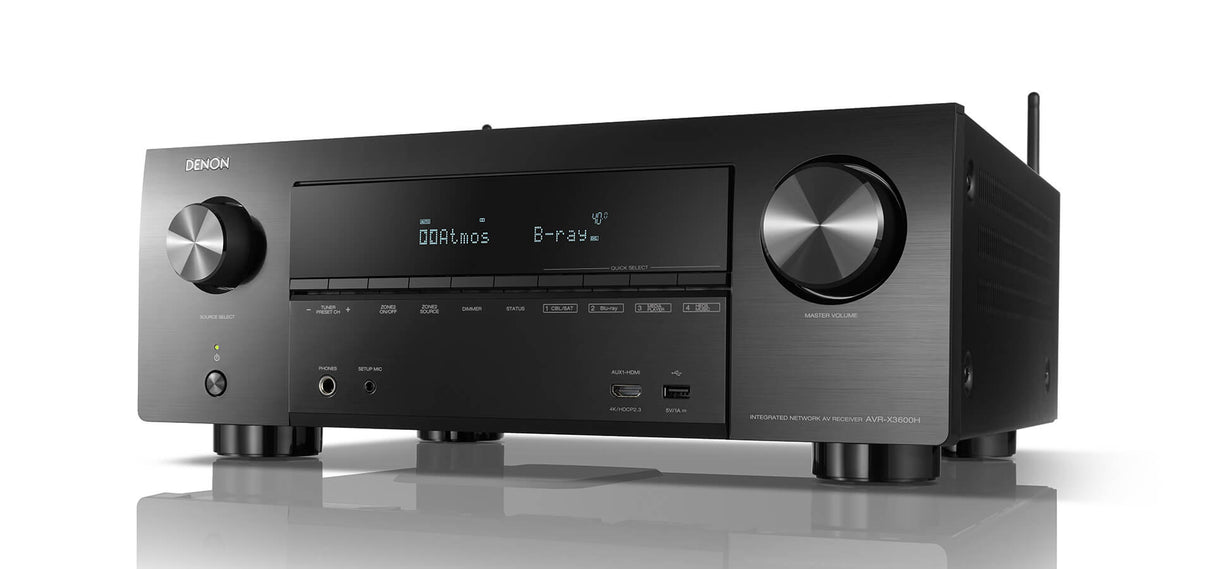

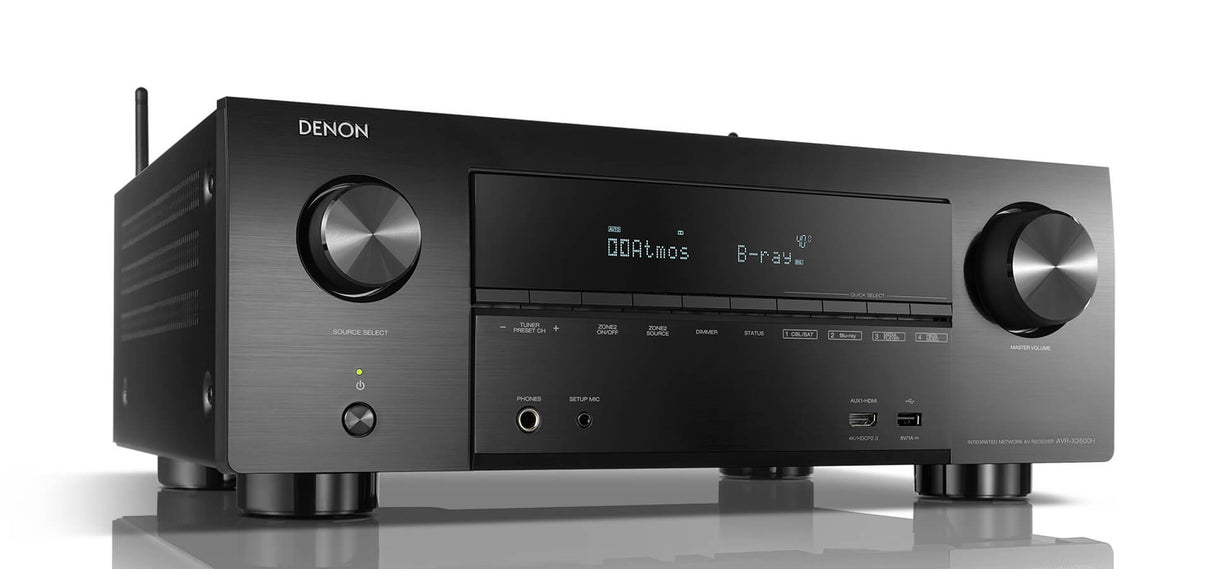

AV resyveris Denon AVR-X3600H 7.2 kanalo namų kino stiprintuvas 7x105W

€999.00 EUR 1,199.00 €

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.


Nemokamas pristatymas Lietuvoje nuo 100 €

Lietuvoje Venipak kurjeriu pristatymas per 1-2 darbo dienas.
Pristatymas už Lietuvos ribų per 4-10 darbo dienų.

Atsiimkite prekes parduotuvėje už 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

7.2 kanalų namų kino imtuvas – stiprintuvas AVR-X3600H, siūlo nepakartojamą namų kino įspūdį kartu su Dolby Atmos ir DTS:X ir daugybę muzikos transliavimo galimybių, dėka integruotos HEOS multi-room sistemos valdymo.

Immerse yourself in high-power home theater with the Denon AVR-X3600H. With 180W per channel, the performance-tuned Denon amplifier delivers an amazing 3D audio experience with support for Dolby Atmos®, DTS:X™, DTS Virtual:X®, Dolby Atmos Height Virtualization Technology and new IMAX Enhanced. Supports the latest 4K video technologies — including Dolby Vision™ Compatable, HDR10, and HLG as well as 4K video upscaling— to ensure your TV or projector powers the ultimate in picture brightness, contrast and clarity. ALLM is supported for the best gaming experience.

The 8 HDMI inputs and 3 outputs with eARC and full HDCP 2.3 support on all ports are compatible with the latest HD and Ultra HD TVs, Blu-ray players and game consoles. The front-panel USB offers convenient audio playback of MP3 and Hi-Res audio formats (WAV, FLAC, ALAC and DSD 2.8/5.6MHz files). Stream popular music services like Spotify® Premium and free, Amazon Music, Tidal, Deezer and more wirelessly via Bluetooth, Apple AirPlay 2 and Wi-Fi with HEOS Built-in. Works with Amazon Alexa, Google Assistant and Apple Siri for effortless voice control. The powerful DSP is capable of 11.2 channel processing, allowing you to extend the system with an additional power amplifier.

By visually guiding you through each step in the setup process, the award-winning Denon Setup Assistant ensures you get set up right the first time. Every home theater is different — that’s why Denon uses the premium MultEQ XT32 room calibration technology from Audyssey that automatically measures your room acoustic and optimizes your AV receiver to provide a truly immersive 3D audio experience custom-tailored to your unique listening environment.

BLOCKBUSTING 3D-SOUND
Immerse yourself in multi-dimensional audio with Dolby Atmos, DTS:X, Dolby Atmos Height Virtualization, DTS Virtual:X and IMAX Enhanced.

IMAX ENHANCED TECHNOLOGY
Get the most premium at-home entertainment experience with IMAX Enhanced — the latest technology from DTS that sets a new standard for home theater imaging, sound, scale and clarity. Watch clearer pictures and brighter images. Feel immersive, heart-pounding audio and experience premium content digitally remastered by IMAX.

DRIVE IMMERSIVE SURROUND SOUND
Immerse yourself in multi-dimensional audio with Dolby Atmos. Using the 9 powered channels, set up a 5.2.4 or 7.2.2 Dolby Atmos surround sound system.

Take advantage of the two AVR-X3600H pre-outs to set up a 7.2.4 Dolby Atmos surround system – use nine channels of amplification built-in to the AVR-X3600H and add a two-channel amplifier to power 2 additional surround speakers, Dolby Atmos elevation speakers, or dedicated overhead speakers for the ultimate home theater experience.

Dolby Atmos Height Virtualization Technology provides immersive audio without height channels, creating virtual height effects in a 7.2, 5.2 or 2.2 speaker arrangement.

GET CLOSER TO THE ACTION
DTS:X™ immersive audio places sound where it would occur naturally in space, creating a lifelike, multi-dimensional audio experience in the home. The improved immersion and heightened realism draw you into the world of your favourite movies. DTS:X gives your movies, games and music a realism unmatched by traditional surround sound.

DTS Virtual:X provides immersive audio without height channels, creating virtual height effects in a 7.2, 5.2 or 2.2 speaker arrangement, giving all of your entertainment elevated surround sound.

GEARED UP FOR 4K ULTRA HD
Enjoy your favourite movies, shows and games with the best picture quality available.

ADVANCED HDMI VIDEO SECTION WITH EARC
The AVR-X3600H features 8 HDMI inputs and 3 outputs that support 4K Ultra HD 60Hz video, 4:4:4 Pure Color sub sampling, Dolby Vision Compatible, High Dynamic Range (HDR10), Hybrid Log-Gamma (HLG), eARC, 3D and BT.2020 pass-through support for exceptional colour, clarity and contrast.

eARC (Enhanced Audio Return Channel) supports the transmission of uncompressed immersive audio from your TV with a single HDMI cable for the simplest setup.

ADVANCED VIDEO CONTROLS
HDCP 2.3 processing is available on all HDMI ports, letting you enjoy copy-protected content totally uninhibited. Certified by the Imaging Science Foundation, the AVR-X3600H features a full suite of video calibration controls (for use by an ISF technician), along with ISF Day and ISF Night video modes. Enjoy seamless compatibility with the latest HD and Ultra HD TVs, Blu-ray players and game consoles.

BRILLIANT PICTURE QUALITY
The AVR-X3600H supports High Dynamic Range (HDR10) video format, Dolby Vision Compatible and HLG (Hybrid Log Gamma). Dolby Vision transforms the viewing experiences with astonishing brightness, contrast and colour, and HLG offers HDR10 technology over broadcast content.

EASY SETUP EXPERIENCE
The included AVR-X3600H Quick Start Guide provides simple, clear instructions for how to get started. Once you connect your TV to the AVR-X3600H via HDMI, the exclusive Denon Setup Assistant appears on your TV screen to walk you through setup, step-by-step. A row of color-coded speaker connections is laid out horizontally, making organizing and connecting speaker wires fast and easy.

BUILT-IN BLUETOOTH AND WI-FI CONNECTIVITY
The heart of your wireless network. For Bluetooth, Wi-Fi and AirPlay 2 wireless streaming connectivity, the Denon AVR-X3600H is equipped with an advanced dual antenna transceiver system for robust streaming even in congested urban environments. Enjoy listening to your favourite audio content wirelessly from your smart devices.

With HEOS Built-in technology play the same song in every room or select a different song for each connected room — the choice is yours. HEOS works with Amazon Alexa and Google Assistant, providing effortless voice control.

HEOS supports free and premium Spotify, Amazon Music, TuneIn, Sound Cloud, Tidal and more.

YOU’RE IN CONTROL
Better control in your back pocket. The free Denon AVR Remote app for iOS and Android makes using the AVR-X3600H even easier — adjust volume, turn it on or off, mute the music, select a source or switch to the HEOS app for wireless music streaming. Download the Denon AVR Remote app and the HEOS app to your smartphone today. Available for both iOS and Android.

Use Amazon Alexa, Siri, or Google Assistant to control your music.

QUICK SELECTS FOR USER-FRIENDLY AUDIO TUNING
The Denon AVR-X3600H front panel features four Quick Select buttons that store your preferred audio settings for each source. Switch between TV audio, Blu-ray, media players and more, and the AVR-X3600H adjusts the EQ settings to your preferences for that media source. Use the buttons on the front panel or opt for the same Quick Selects on the AV receiver remote for faster control. Now allows for one-push all zone stereo mode via Quick Select.

SMART TV CONNECTIVITY
Control the Denon AVR-X3600H with your TV remote via the HDMI CEC functionality associated with your TV. The Smart Menu home screen provides you quick access to source and surround mode selections, the AV receiver setup menu and four Quick Selects.

ADVANCED SOUND PROCESSING
For optimum fidelity and the widest dynamic range with lowest distortion, the Denon AVR-X3600H features advanced reference-class 32-bit AKM AK4458/VN D/A converters on all channels. Enjoy consistent high-fidelity and precise channel matching across all channels for the ultimate listening experience.

DSP POWER PROCESSING
Incredible power for your music and movie needs. The AVR-X3600H includes an advanced DSP (Digital Sound Processor) chip for tremendous power processing. With four 300MHz DSP cores that are capable of processing over one billion computations per second, the AVR-X3600H supports the latest video, sound and processing needs.

MULTI-SOURCE, MULTI-ROOM
With the Denon AVR-X3600H, it’s possible to enjoy 9.2 channel surround sound in one room and a separate source or music stream in another. Watch a movie in one room while another family member listens to music in a different zone without interruption. Make use of the internal amps to power the speaker or use the zone-pre-outs.

HIGH-RESOLUTION AUDIO
Enjoy superb audio fidelity with your favourite high-resolution audio tracks. The AVR-X3600H with AKM AK4458 32-bit D/A converters features high-resolution audio decoding with multiple lossless file types, including ALAC, FLAC and WAV at up to 24-bit/192-kHz. It’s also compatible with 2.8/5.6-MHz DSD files (DSD is the audio coding format of SACD). Play them from memory devices via the front panel USB, or over network sources. The AVR-X3600H also supports other file types such as MP3 and WMA.

PHONO INPUT FOR TURNTABLE/VINYL SUPPORT
With the included phono input, the AVR-X3600H lets you connect your turntable and play vinyl records. Enjoy your collection with exceptional quality and sound.

DUAL SUBWOOFER OUTPUTS
Immerse yourself in evenly distributed, accurate bass. The AVR-X3600H features two subwoofer outputs to smooth out low frequencies and provide better dispersion. No audible peaks or dips — just powerful, room-filling bass.

WORKS WITH LATEST VOICE ASSISTANTS
Enjoy effortless voice control and total flexibility from the leading voice services. Using a smart speaker or your phone, speak commands with Amazon Alexa, Google Assistant and Apple Siri. Ask to play your favourite music, turn the volume up, skip to the next track, switch inputs and more. Switch between voice services or pick a favourite to use — the choice is yours. Functionality varies by voice agent.

WORKS WITH GOOGLE ASSISTANT
Start music in the HEOS app, then ask your Google Assistant to control volume, play, pause, skip tracks and more.

AIRPLAY 2 + APPLE SIRI VOICE CONTROL
Use AirPlay 2 to stream music wirelessly to the AV receiver, or group with other AirPlay compatible speakers to fill your home with music.

Stream audio from your favourite music services like Apple Music and Spotify or watch videos from services like YouTube and Netflix on any iPhone, iPad, Mac or Apple TV and stream the audio perfectly synced to your speakers.

AirPlay 2 also supports multi-room audio – wirelessly stream content to multiple AirPlay 2 compatible devices simultaneously with improved audio buffering to ensure smooth audio playback. AirPlay 2 provides control and grouping of compatible audio devices within the Apple Music or Home app. Use AirPlay 2 in-app or with your voice via Siri.

HEOS BUILT-IN FOR WIRELESS MUSIC STREAMING
Stream your favourite music from anywhere and everywhere around your home with HEOS Built-in technology. Enjoy high quality music from a wide range of streaming services including Spotify® Premium and free, TuneIn, Amazon Music, Soundcloud®, Tidal, Napster, Deezer or local music sources. Control it all seamlessly with the free HEOS app.

Amplifier

Channels 9.2
11.2 with Additional Amplifier
Output Power 105 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD
135 W per Channel @ 6 Ohms, 1 kHz, 0.7% THD
Object-Based Audio Support Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X, DTS Virtual:X
Output Impedance 4 to 16 Ohms
Frequency Response Not Specified by Manufacturer
Signal to Noise Ratio Not Specified by Manufacturer
Video
Pass-Through 4K, HDR10, HLG, Dolby Vision, ALLM
HDCP Version 2.3

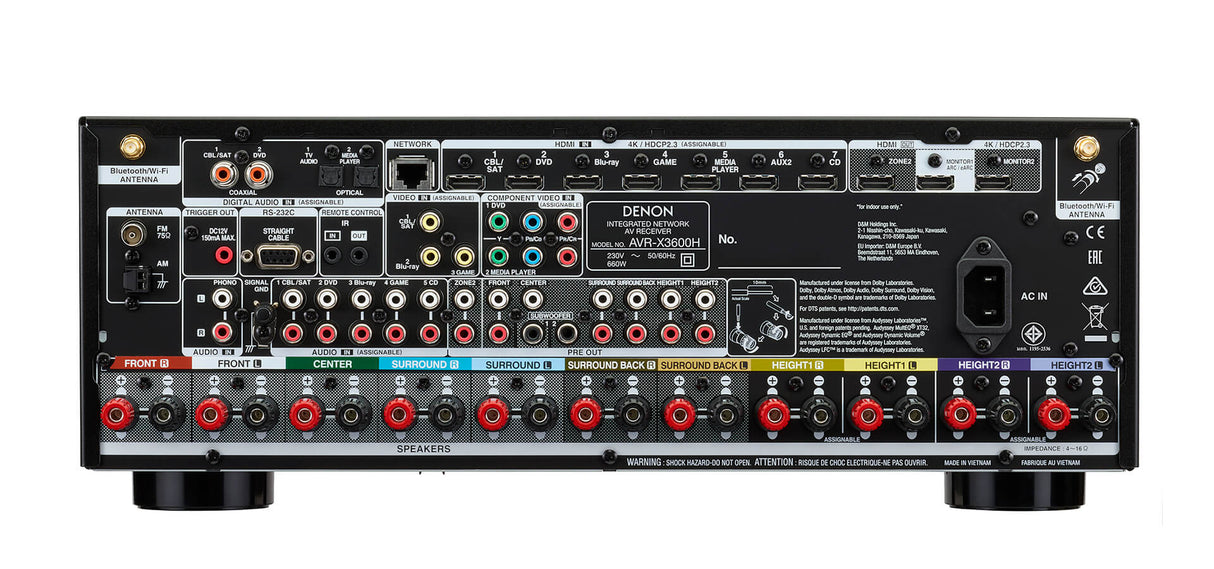

Connectivity
Tuner AM / FM
Wireless Connectivity Bluetooth, Wi-Fi, Apple AirPlay 2
Inputs 8 x HDMI (1 Front)
2 x Optical TOSLINK
2 x RCA Digital Coaxial
2 x 3RCA Component Video
3 x RCA Composite Video
6 x Stereo RCA Audio (1 Phono with Ground Screw)
Outputs 3 x HDMI
1 x 3RCA Component Video
2 x Subwoofer Pre-Out
1 x 11-Channel RCA Pre-Out
1 x Zone 2 Stereo RCA Pre-Out
1 x 1/4" / 6.35 mm Headphone (Front)
Other Ports 1 x USB (Front)
1 x 1/8" / 3.5 mm Setup Microphone Input (Front)
1 x FM Antenna
1 x AM Antenna
1 x RJ45 Ethernet LAN
1 x 1/8" / 3.5 mm IR Remote In
1 x 1/8" / 3.5 mm IR Remote Out
1 x 1/8" / 3.5 mm 12 VDC Trigger Out
1 x DE-9 RS-232C
2 x Bluetooth / Wi-Fi Antenna Terminals
Speaker Connectors 11 x Color-Coded Binding Post Pairs
Physical Specifications
Operating Temperature 41 to 95°F / 5 to 35°C
Power Requirements 120 VAC, 60 Hz
Power Consumption (Active) 660 W
Power Consumption (Standby) CEC Standby: 0.5 W
No Networking: 0.1 W
Dimensions (W x H x D) 17.09 x 9.33 x 15.39" / 434 x 237 x 391 mm with Antennas Up
17.09 x 6.58 x 15.39" / 434 x 167 x 391 mm with Antennas Down
Weight 26.68 lb / 12.1 kg
Packaging Info
Package Weight 32.62 lb
Box Dimensions (LxWxH) 20.5 x 19.1 x 9.9"
