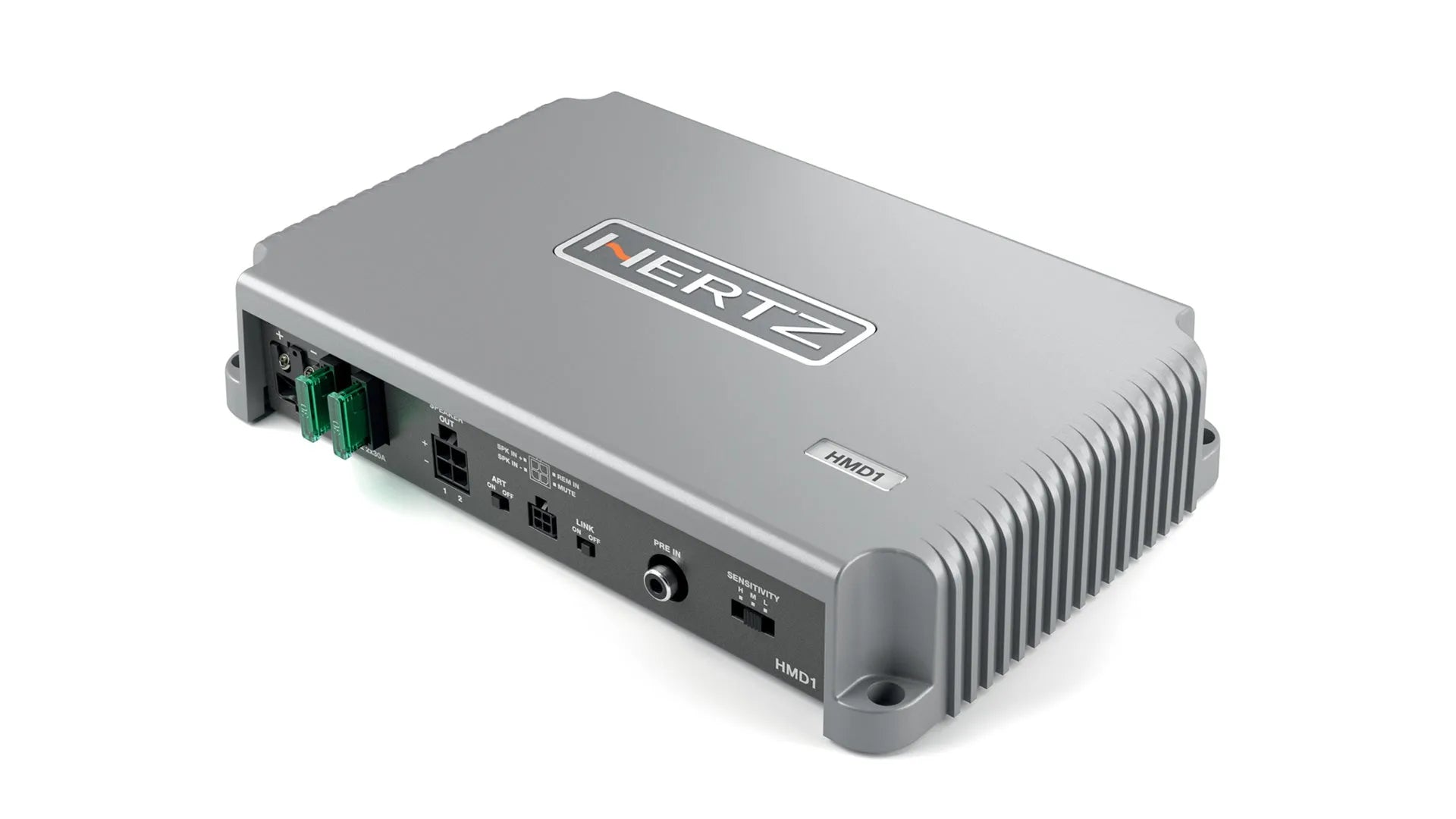

Hertz HMD1 24V Vandens transportui skirtas MONO garso stiprintuvas

Name: Hertz HMD1 24V Vandens transportui skirtas MONO garso stiprintuvas
Brand: Hertz
SKU: HMD1 24V
Price: 677.00 EUR
Availability: InStock

€677.00 EUR

Hertz HMD1 24V Vandens transportui skirtas MONO garso stiprintuvas - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Nemokamas pristatymas Lietuvoje nuo 100 €

Lietuvoje Venipak kurjeriu pristatymas per 1-2 darbo dienas.
Pristatymas už Lietuvos ribų per 4-10 darbo dienų.

Atsiimkite prekes parduotuvėje už 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

INFORMACIJA
APRAŠYMAS
TECHNINIAI DUOMENYS
DOKUMENTAI

INFORMACIJA

Vandens transportui skirtas MONO garso stiprintuvas, kuris užtikrins kokybišką garsą Jūsų kateryje ar jachtoje.

Galia: 1000W (1 Ω).
THD: 0.1 %.
S/N dažnis: 110 dBA.
D klasės stiprintuvas.

APRAŠYMAS

ULTRA POWER IN COMPACT SIZE

HMD1 24V mono amplifier is the perfect solution to add one or more marine subwoofer to your vassel, being the ideal power extension of HMD8 DSP. At 1 Ohms it is stable and can supply up to 1000 W of power with extremely compact dimension.

Technologies

ADVANCE D-CLASS

Thanks to the Hertz advanced D-CLASS output stage, HMD1 joins maximum sound quality with unmatched efficiency to be very compact and easily installed in any position of the boat.

CORROSION PROTECTION

Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated Marine grade (epoxy coated) PCB boards.

SALT FOG PROOF

To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

WATER JET TESTED

The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

AMPLIFIER STAGE
Distortion – THD @ 1 kHz, 4Ω, 70% Rated Power	0.1%
Damping factor @ 1 kHz, 4Ω, 2 VRMS	140
Bandwidth @ -1.5 dB	10 Hz ÷ 500 Hz
S/N ratio (A weighted @ 1 V Input) Master Input	110 dBA
Input sensitivity Pre-In	Selectable: 0.6 – 2.0 – 6.0 VRMS
Input sensitivity Speaker-In	Selectable: 2.0 – 6.5 – 20 VRMS
Minimum load impedance	1Ω

OUTPUT POWER (RMS) @28.8 VDC, 1% THD:
1Ch @ 4Ω	500 W
1Ch @ 2Ω	800 W
1Ch @ 1Ω	1000 W
INPUTS / OUTPUTS
Pre-In Inputs	RCA
Speaker-In Inputs	Wired
SIZE
Max size W x H x D (mm/inch)	243 x 48 x 159 / 9.56 x 1.8 x 6.25
Weight (kg/lbs)	1,98 / 4.36

DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).

SPECIFIKACIJOS

AMPLIFIER STAGE

Distortion – THD @ 1 kHz, 4Ω, 70% Rated Power

0.1%

Damping factor @ 1 kHz, 4Ω, 2 VRMS

140

Bandwidth @ -1.5 dB

10 Hz ÷ 500 Hz

S/N ratio (A weighted @ 1 V Input) Master Input

110 dBA

Input sensitivity Pre-In

Selectable: 0.6 – 2.0 – 6.0 VRMS

Input sensitivity Speaker-In

Selectable: 2.0 – 6.5 – 20 VRMS

Minimum load impedance

1Ω

OUTPUT POWER (RMS) @28.8 VDC, 1% THD:

1Ch @ 4Ω

500 W

1Ch @ 2Ω

800 W

1Ch @ 1Ω

1000 W

INPUTS / OUTPUTS

Pre-In Inputs

RCA

Speaker-In Inputs

Wired

SIZE

Max size W x H x D (mm/inch)

243 x 48 x 159 / 9.56 x 1.8 x 6.25

Weight (kg/lbs)

1,98 / 4.36
