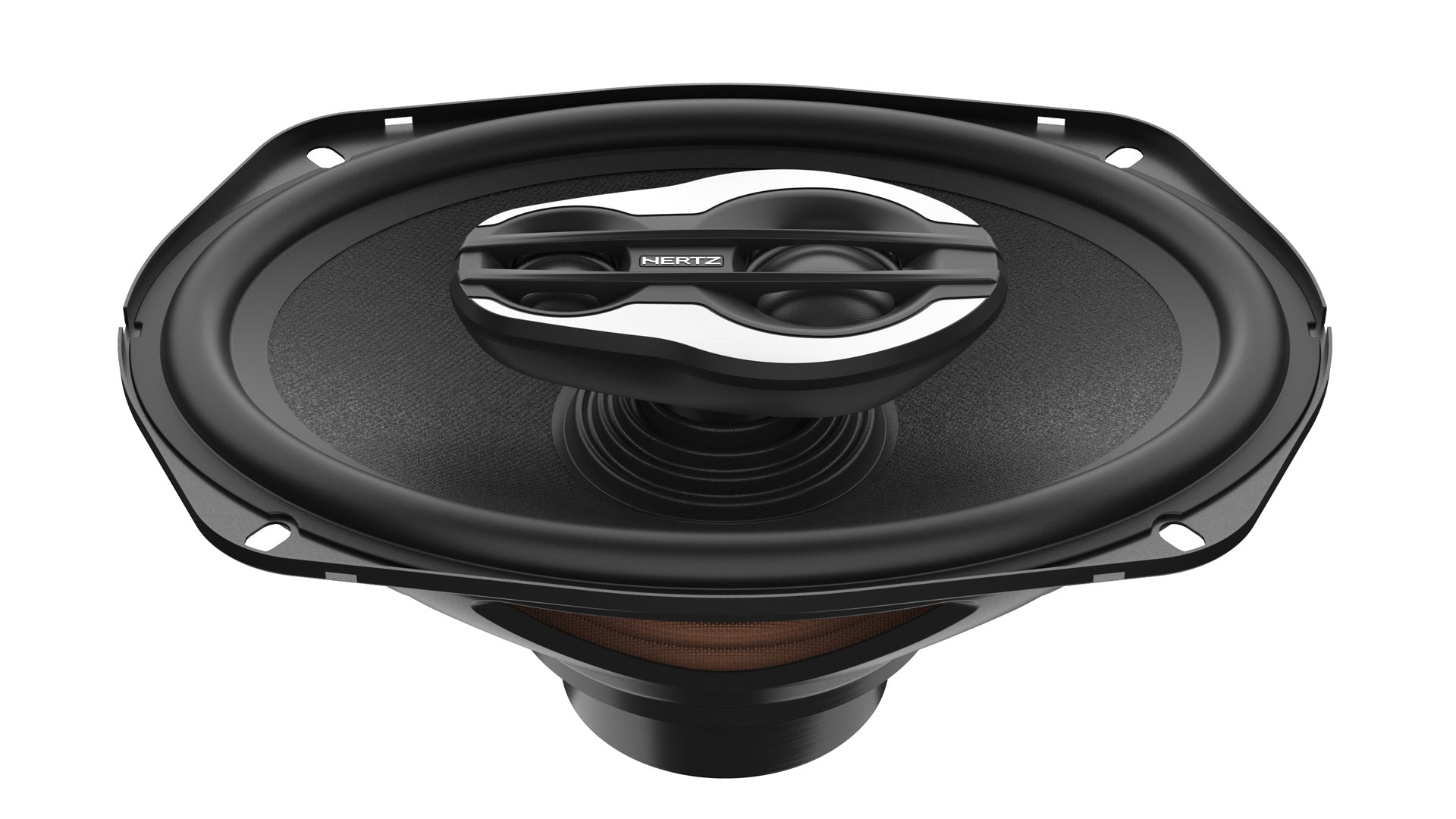

Hertz SX 690 NEO.1, koaksialinis garsiakalbis, 260 W

Hertz SX 690 NEO.1 - tai 6x9 colių aukšto efektyvumo (SPL) koaksialiniai garsiakalbiai,  jie užtikrina 260 W galią, todėl suteikia stiprų, aiškų ir dinamišką garsą net važiuojant dideliu greičiu. Dėl atsparumo drėgmei, UV spinduliams ir vibracijoms, šie garsiakalbiai yra itin patikimi ir ilgaamžiai.

Galingas garsas – 260 W maksimali galia, 4 omai varža
Dvigubas tweeteris – 1.4” kupolinis tweeteris + 1” super tweeteris
Atsparumas aplinkai – Drėgmei ir UV spinduliams atspari presuoto popieriaus membrana
Lengvas ir kompaktiškas – Neodimio N38 H magnetas užtikrina mažą svorį
Lengvas prijungimas – Dvigubi „faston“ gnybtai leidžia jungti kelis garsiakalbius
Apsauginė grotelė – Aukštos atsparumo ABS plastiko konstrukcija su metaline apsauga

SX 690 NEO.1 is a real beast with a Hi-SPL Mid-Hi unit based on a 1.4” dome tweeter and a 1” dome super tweeter with a resettable solid-state protection circuit. The cone is made with nature-proof high-stiffness pressed paper featuring innovative water/humidity resistance and anti-UV treatments. The double-layer copper voice coil wound on a polyimide former ensures unparalleled power handling. New motor units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.

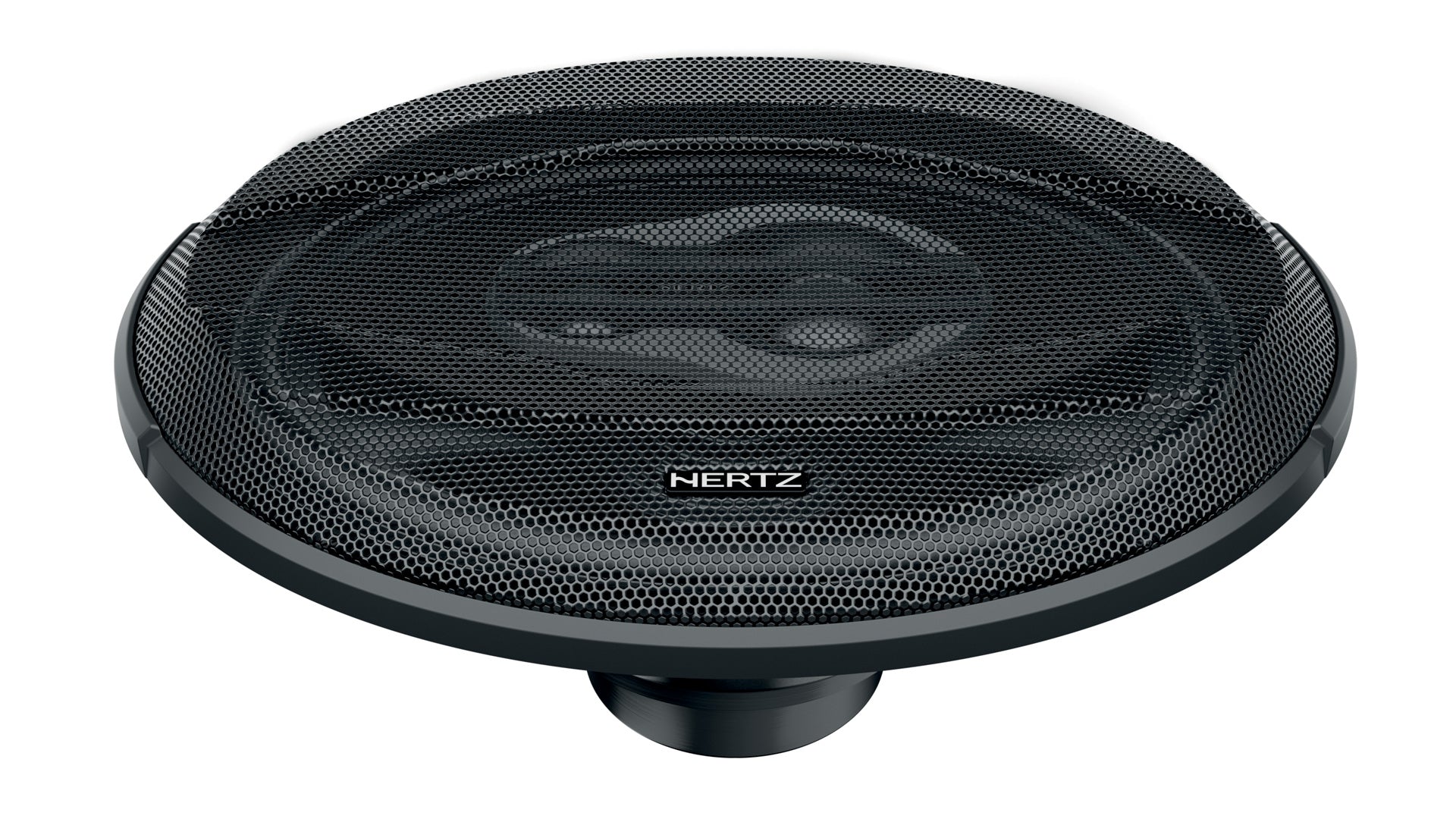

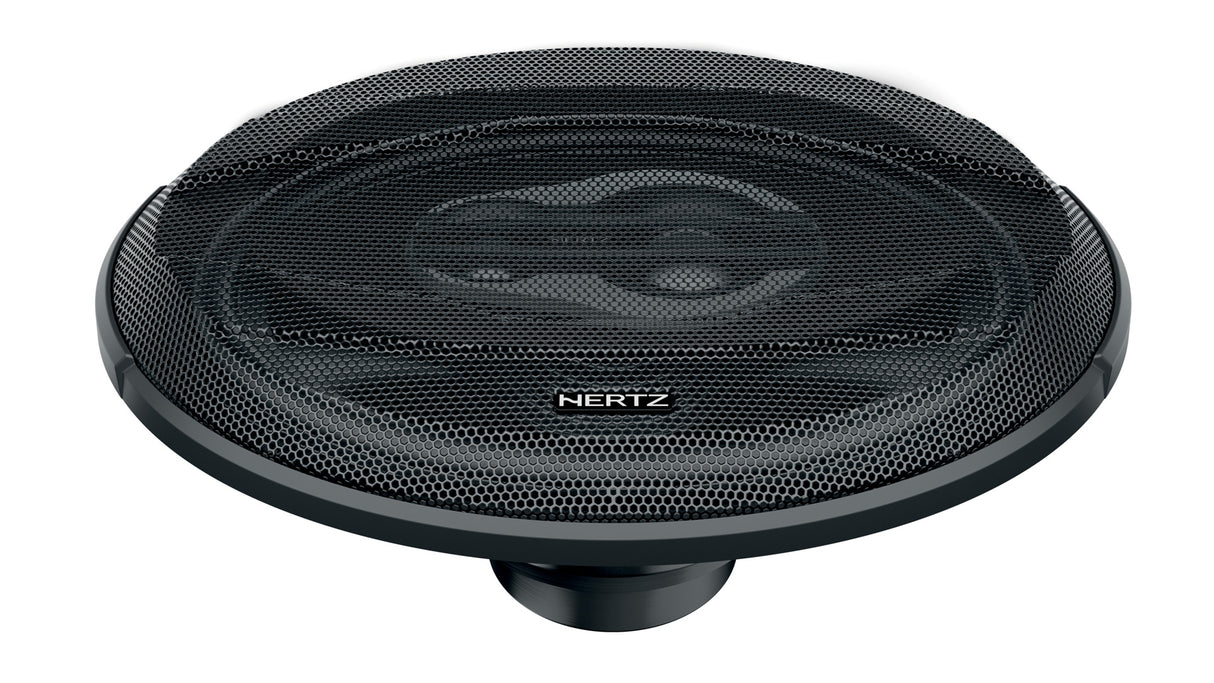

The provided MPG 690 grille is made of a high-resistance ABS plastic structure with a metallic finish and a protective metal mesh.

1. Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.

2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.

3. Unparalleled power handling delivered by the double-layer copper voice coil, wound on polyimide former.

4. Hi-SPL Mid-Hi unit based on 1.4” dome tweeter and 1” dome super tweeter with resettable solid-state tweeter protection circuit.

5. Double faston terminals allow daisy-chaining of multiple units and provide compatibility with the most common motorcycle connections.

6. Provided elegant grille made with a high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.

Technologies

Compact and lightweight, the new spl neo systems are extremely loud and do not fear nature elements for an unlimited fun in every condition!

Component    SPL COAXIAL
Size mm (in.)    in. 6 x 9
Power Handling - Continuous W    130
Power Handling - Peak W    260
Impedance Ohm    4
Tweeter diaphragm mm (in.)    29 (1.14)
Woofer Voice Coil Ø mm (in.)    38 (1.5)
Tweeter Voice Coil Ø mm (in.)    25 (1)
Frequency Response Hz    65 ÷ 24k
Woofer Magnet size D x d x h mm (in.)    110 x 45 x 20 (4.33 x 1.77 x 0.79)
Tweeter Magnet size D x h mm (in.)    24,5 x 6 x 3,5 (0.96 x 0.24 x 0.14)
Weight of one speaker kg (lb.)    1,69 (3.73)
Woofer Magnet    Special Neodymium N38 H
Tweeter Magnet    Special Neodymium N38 H
Cone    Water repellent pressed paper
Dome    Tetolon
Technical Specs
D mm    169
Xmax mm    5,5
Re Ohm    3
Fs Hz    65
Le mH    0,4
Vas I    11,29
Mms g    36,1
Cms mm/N    0,16
BL T*m    7,665
Qts    0,62
Qes    0,78
Qms    2,9
Spl dB    94

Physical Specs

A    237,5 mm    9.35 in.
B    225 mm    8.86 in.
C    93 mm    3.66 in.
D    85 mm    3.35 in.
E    163 mm    6.42 in.
F    154 mm    6.06 in.
Frequency response
