JVC KW-M695DBW, automobilinė multimedija su 6.8" ekranu, Bluet...

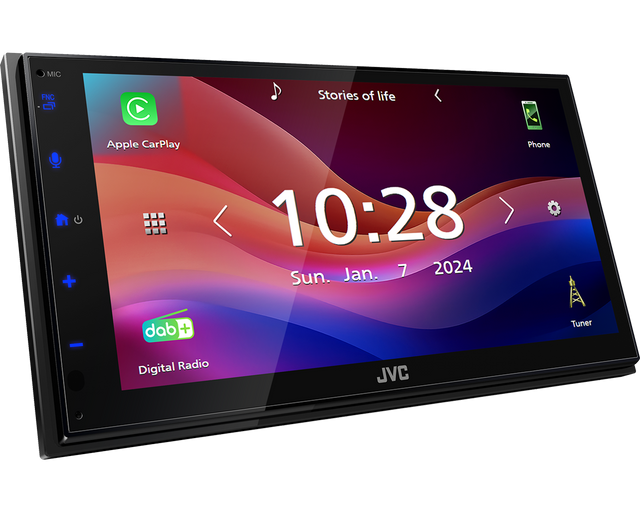

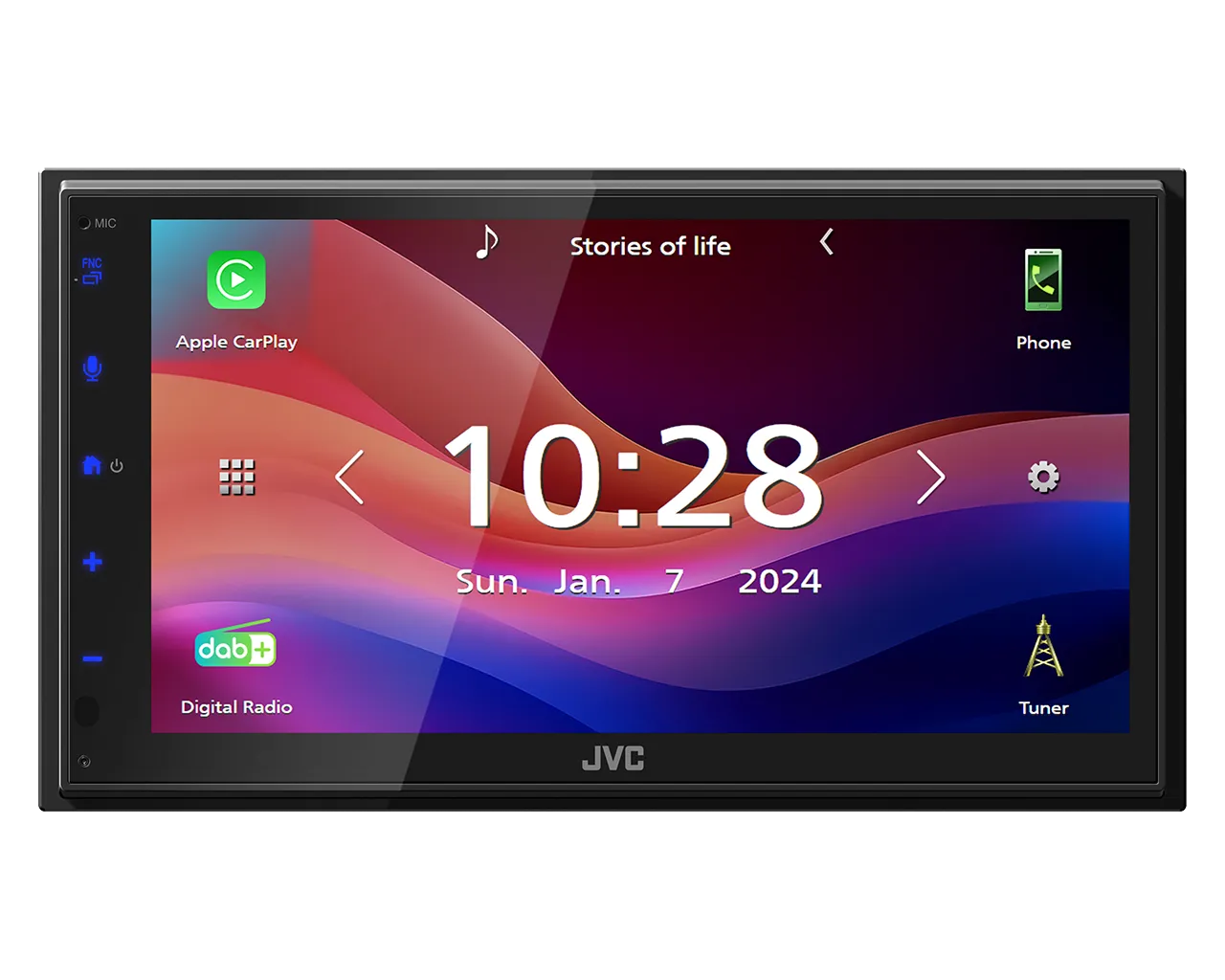

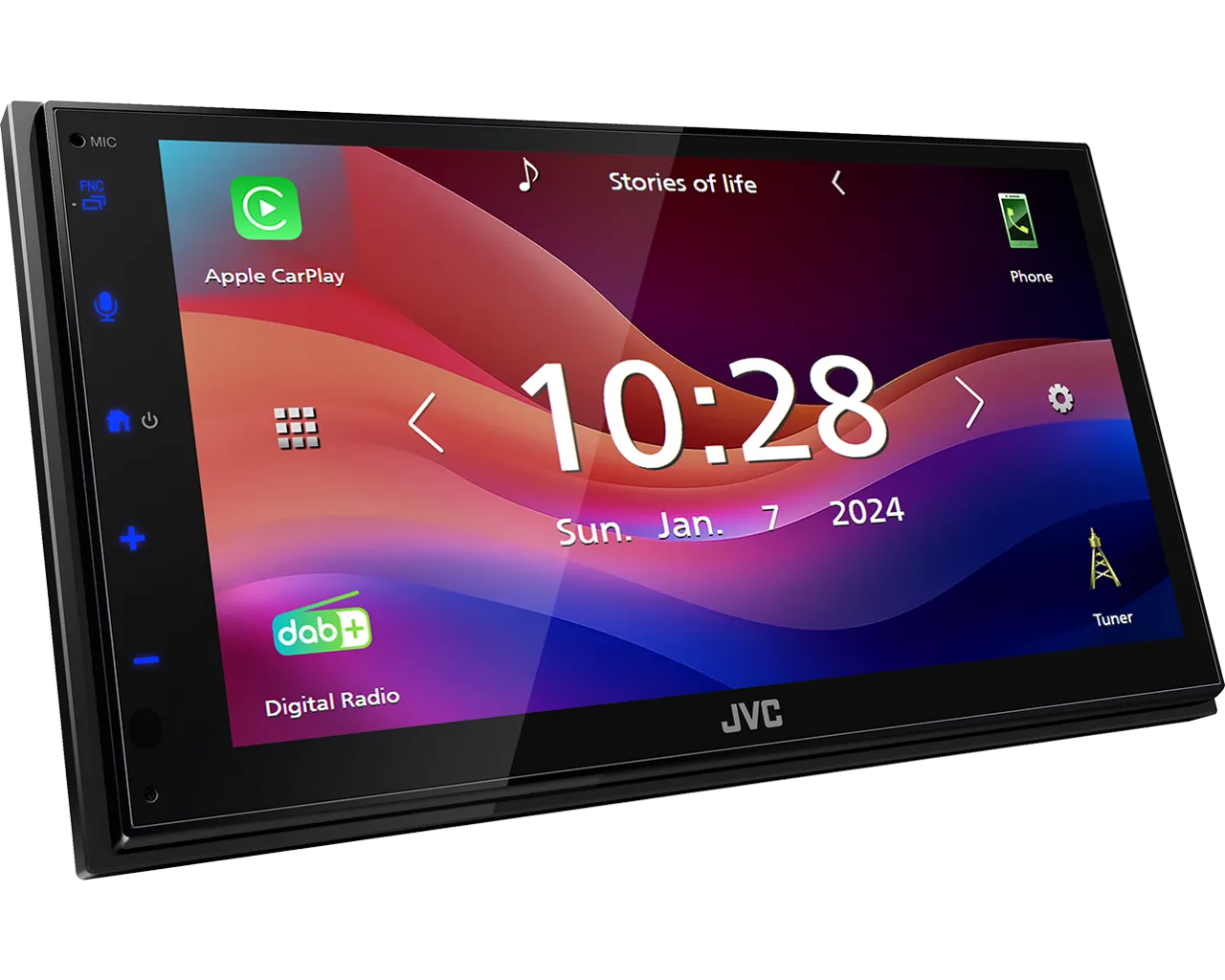

JVC KW-M695DBW - moderni 6.8 colių WSVGA (1024 x 600 px) jutiklinio ekrano multimedija, palaikanti tiek Android Auto™, tiek Apple CarPlay™ – laidiniu arba belaidžiu būdu. Sukurtas saugiam ir patogiam valdymui, šis įrenginys leidžia naudotis navigacija, muzika, skambučiais bei kitomis programėlėmis su balso komandomis ar paprastu prisilietimu.

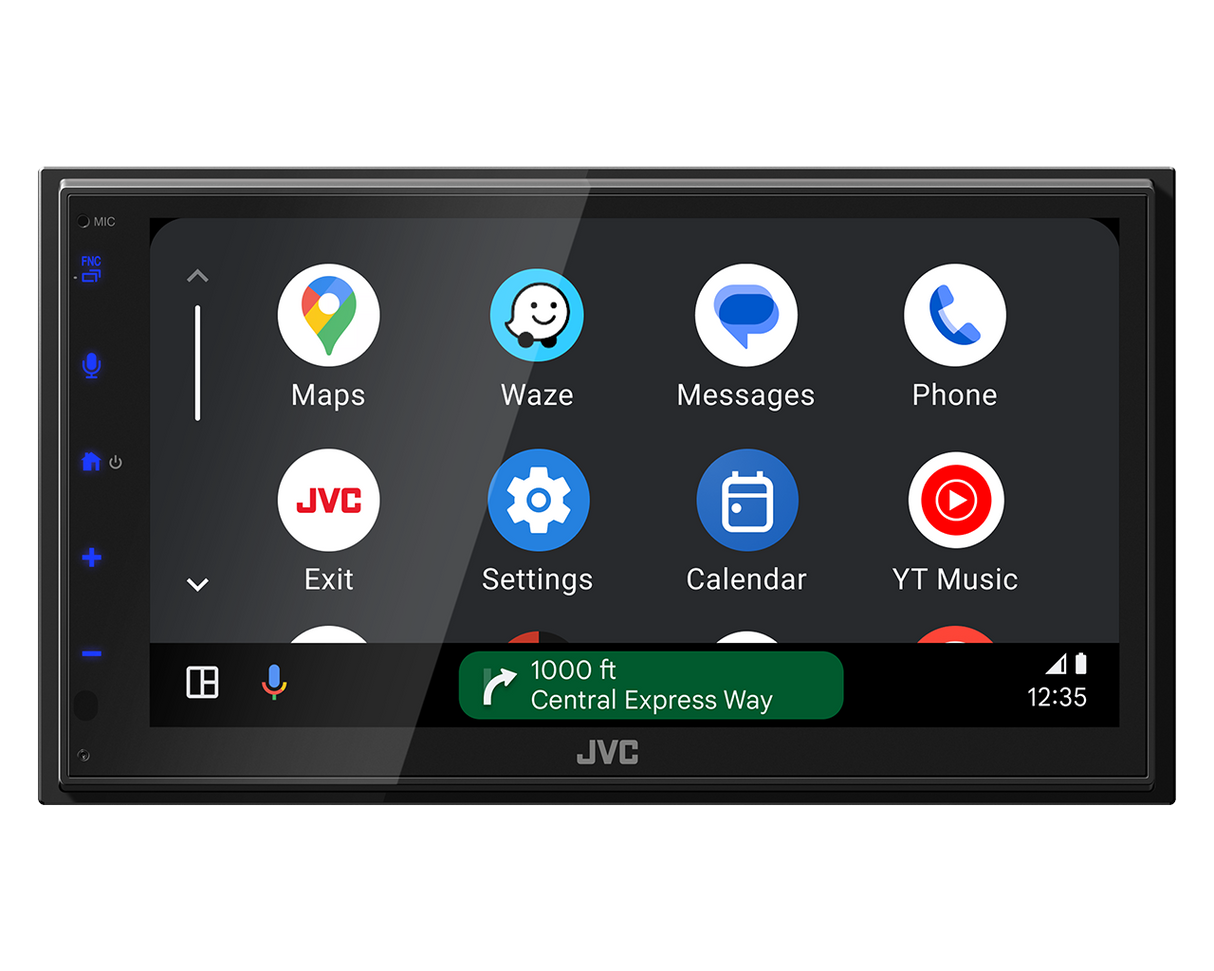

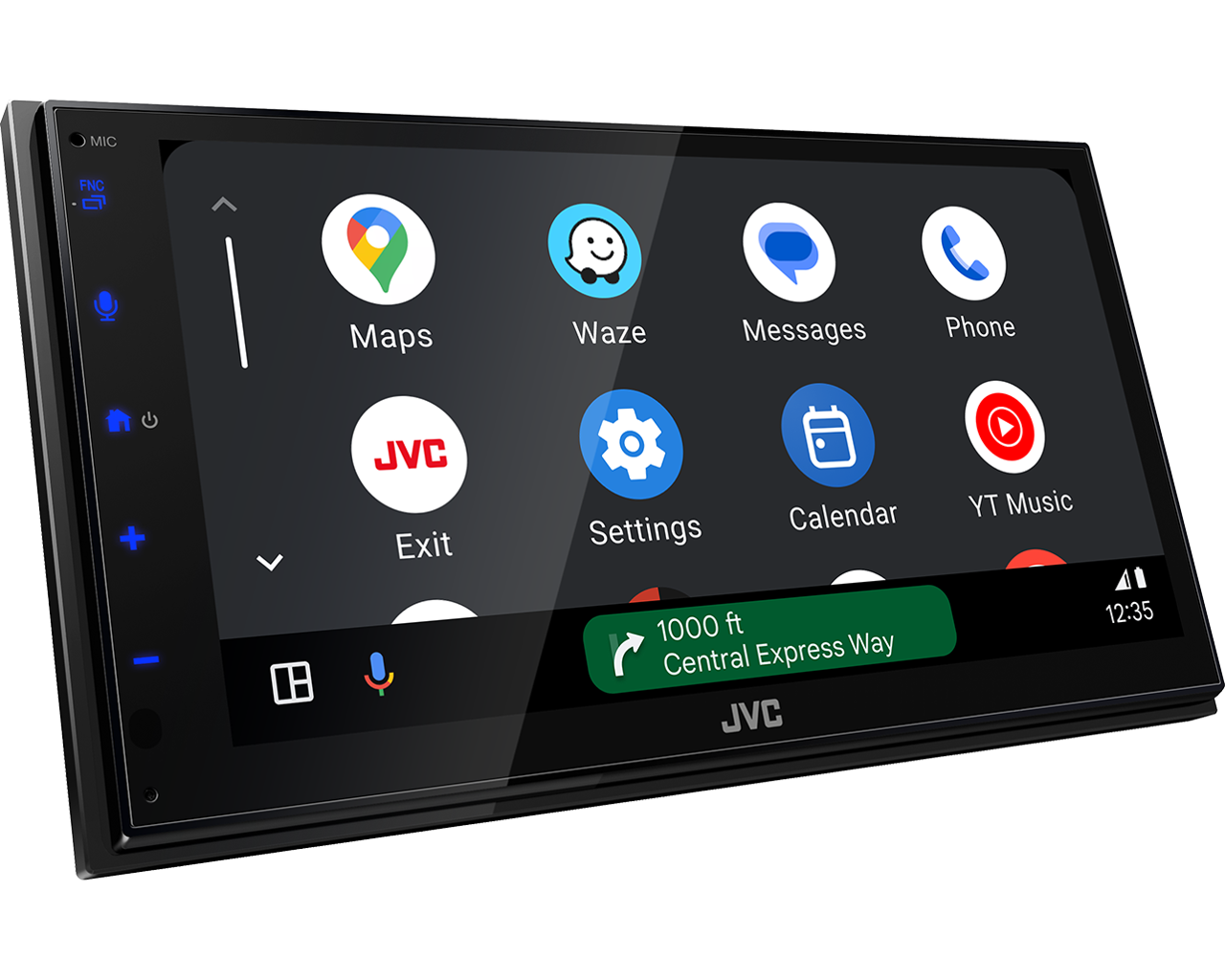

Belaidis ir laidinis Apple CarPlay® bei Android Auto™ palaikymas – leidžia integruoti išmanųjį telefoną su automobilio multimedijos sistema.
Belaidis iPhone ir Android ekranų atspindėjimas – patogus būdas naudotis išmaniosiomis programėlėmis.
DAB+ radijo imtuvas – užtikrina aukštos kokybės skaitmeninį radijo signalą be trukdžių.
6,8 colio WSVGA LCD ekranas – 1024 x 600 pikselių raiškos talpinis jutiklinis ekranas.
Trumpas korpusas – tik 86 mm gylio, lengvai montuojamas daugelyje automobilių.

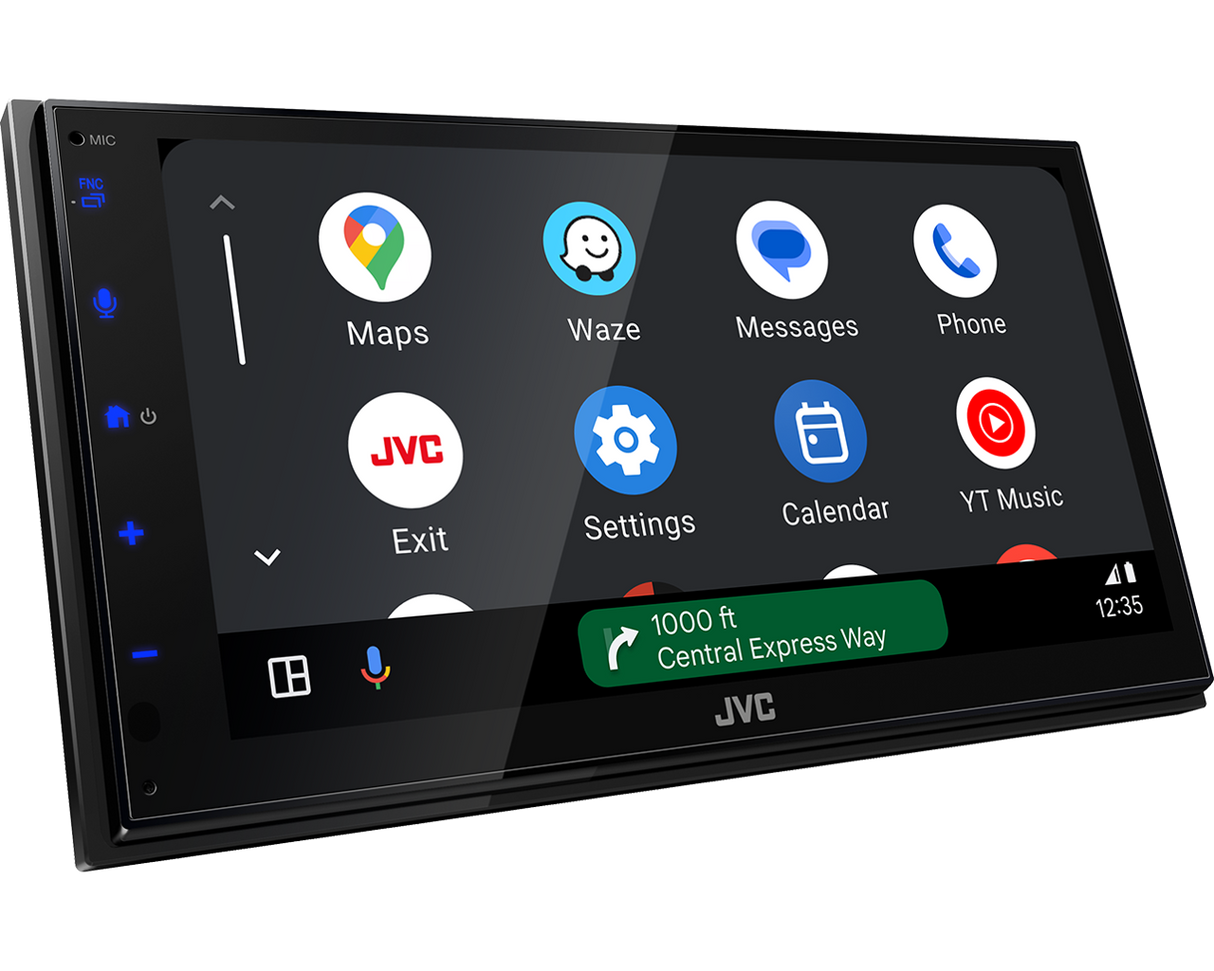

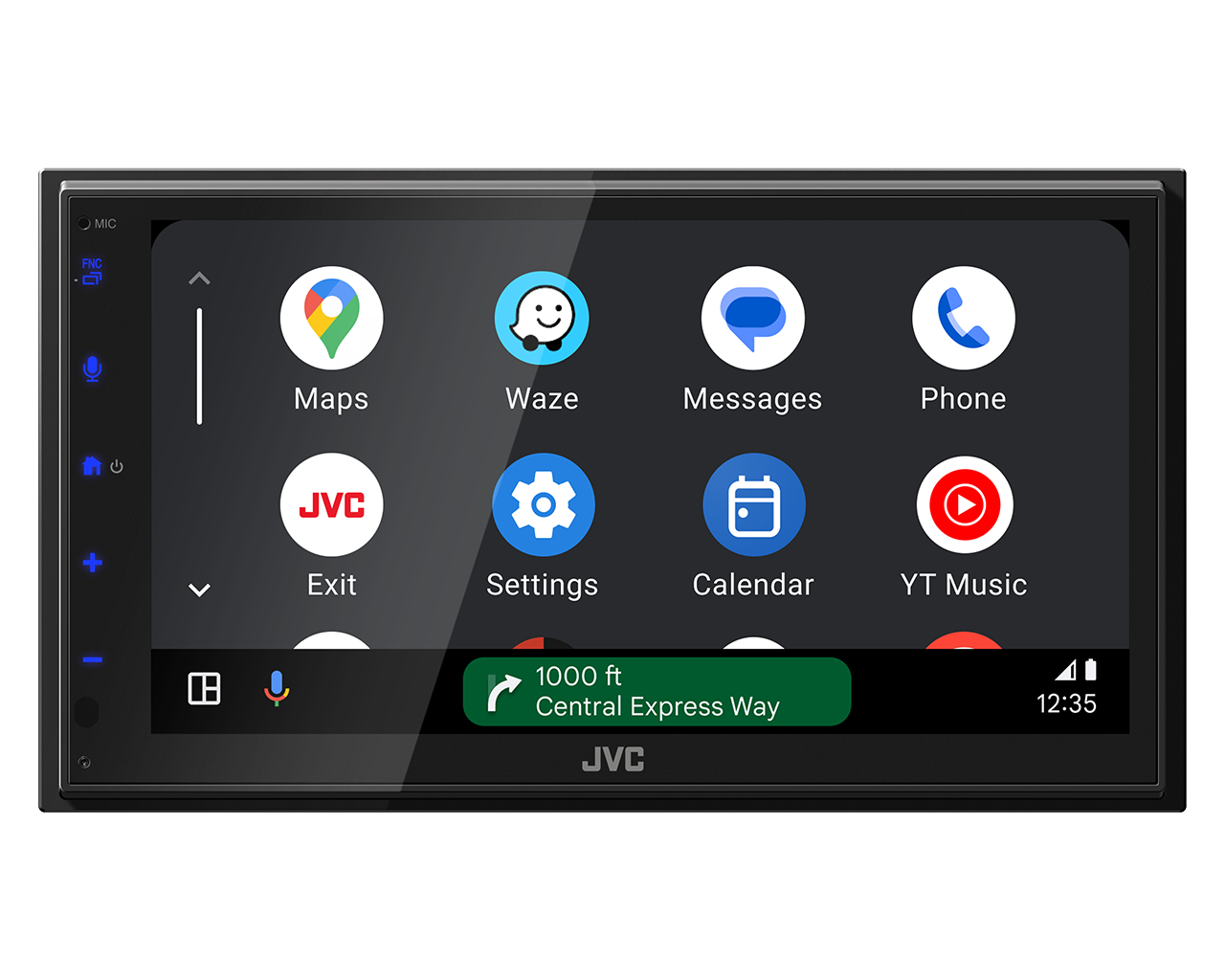

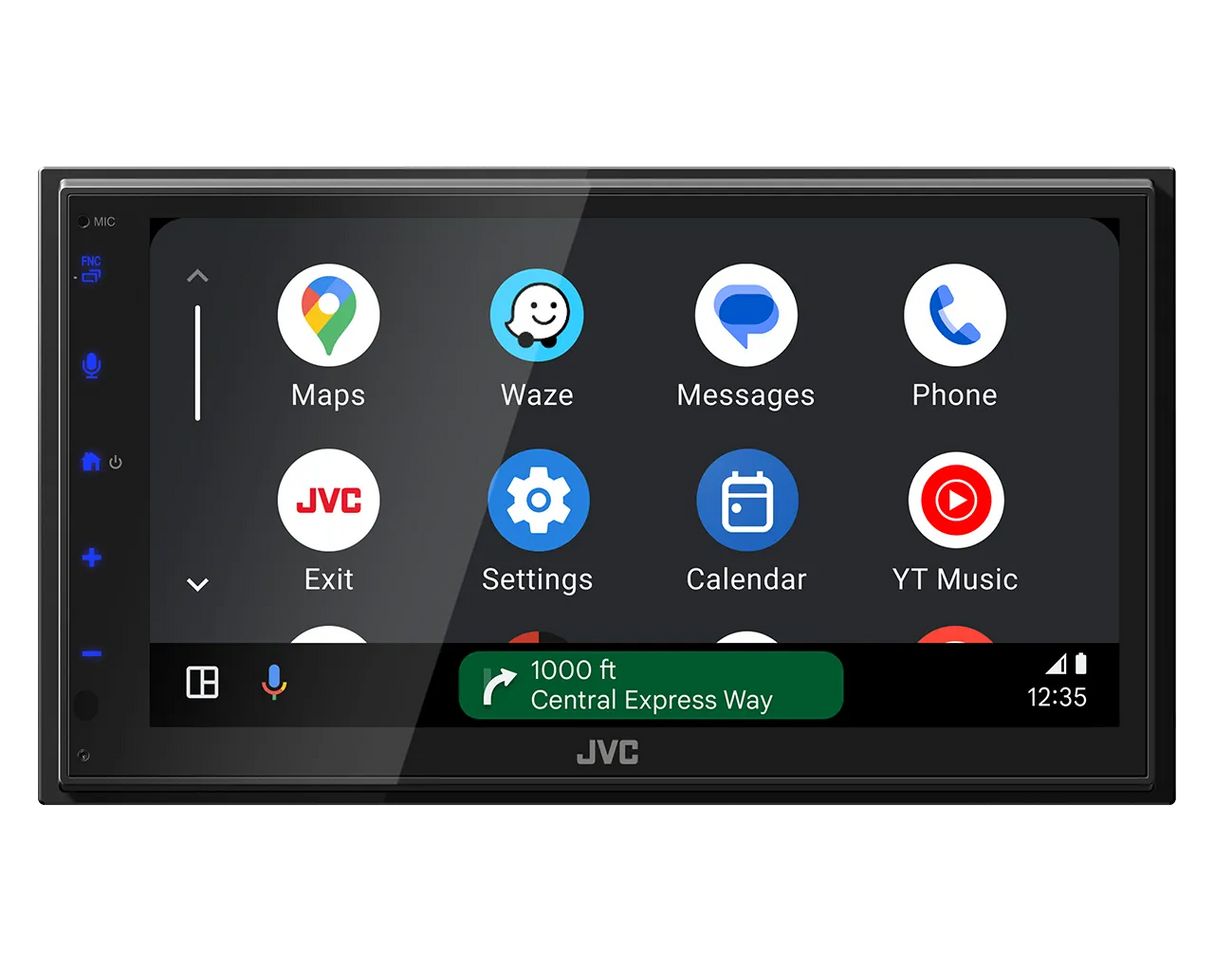

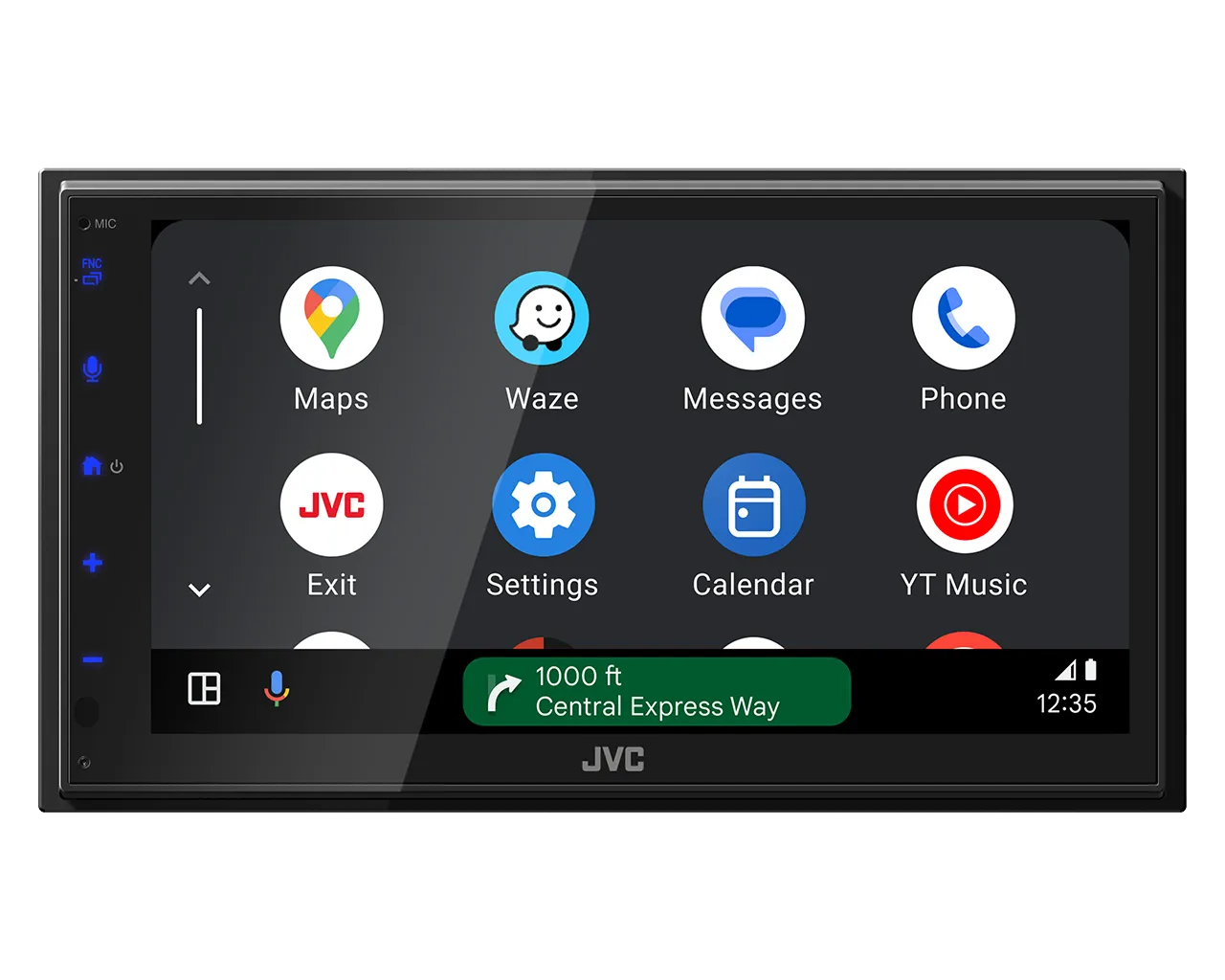

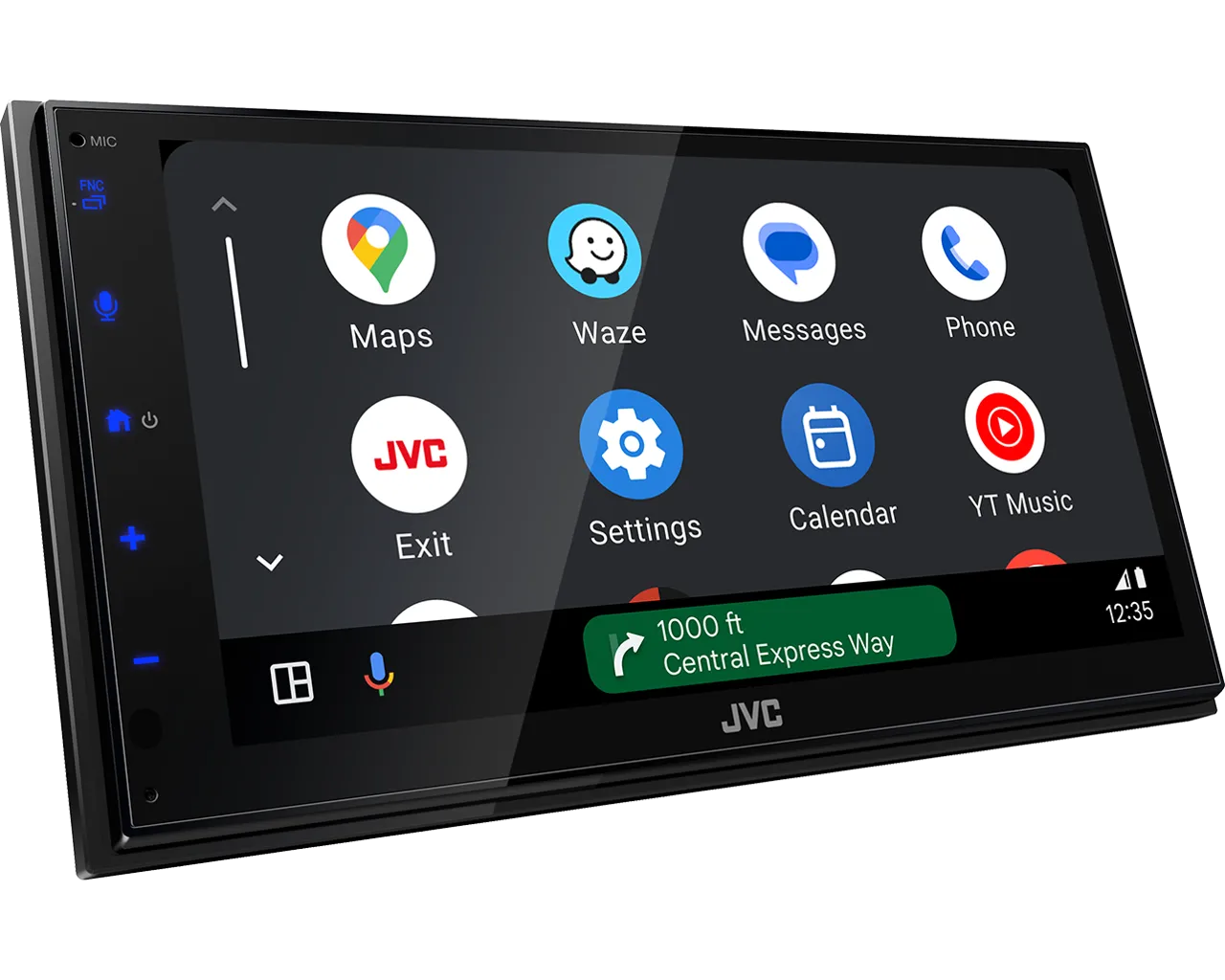

Android Auto™ – Draadloos of via USB
Android Auto is ontworpen met het oog op veiligheid. Met een eenvoudige en intuïtieve interface en krachtige spraakacties, is het ontworpen om afleiding te minimaliseren, zodat u zich op de weg kunt concentreren.
Sommige functies, toepassingen en services zijn niet in alle gebieden beschikbaar.
Zie voor details:www/android.com/auto

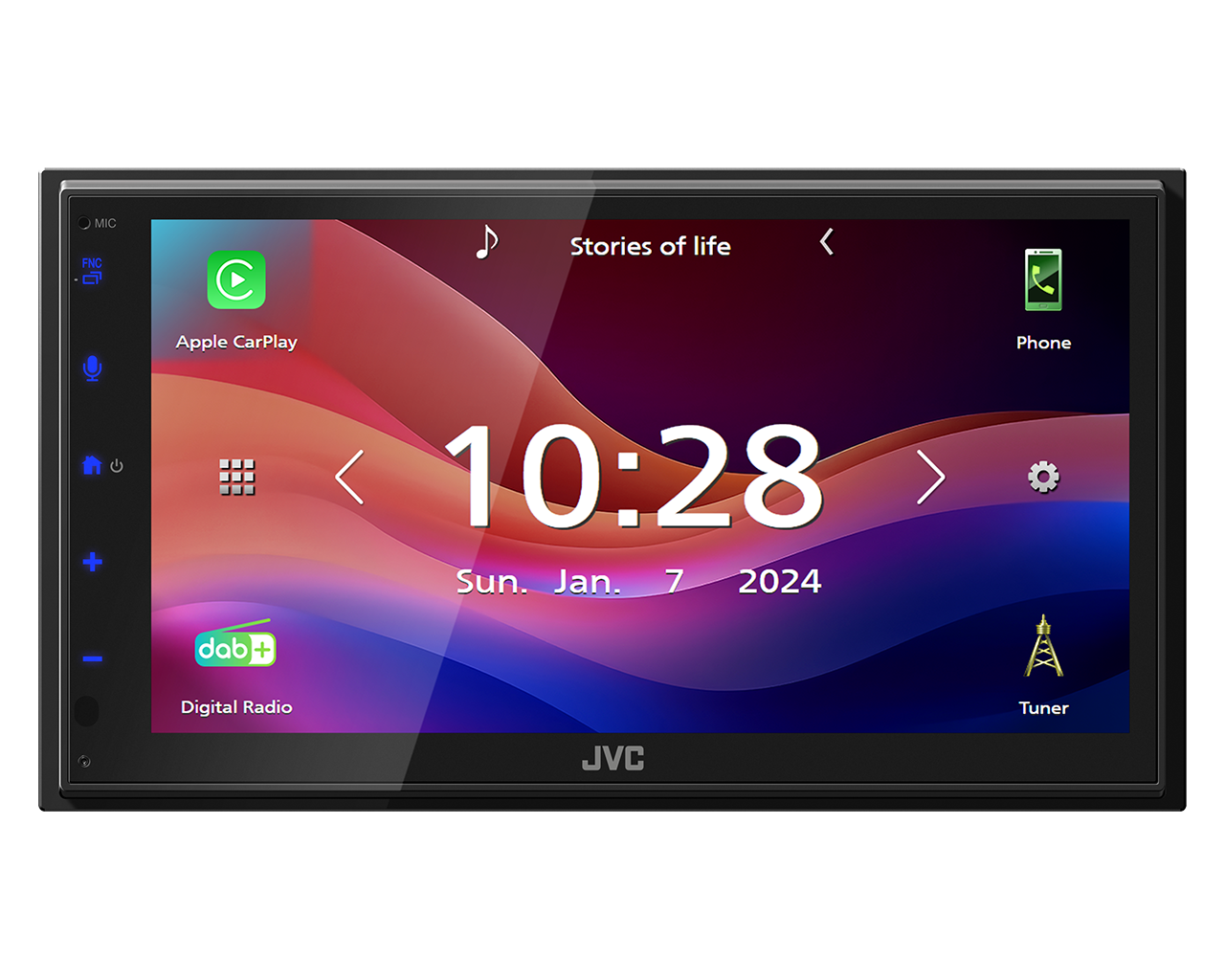

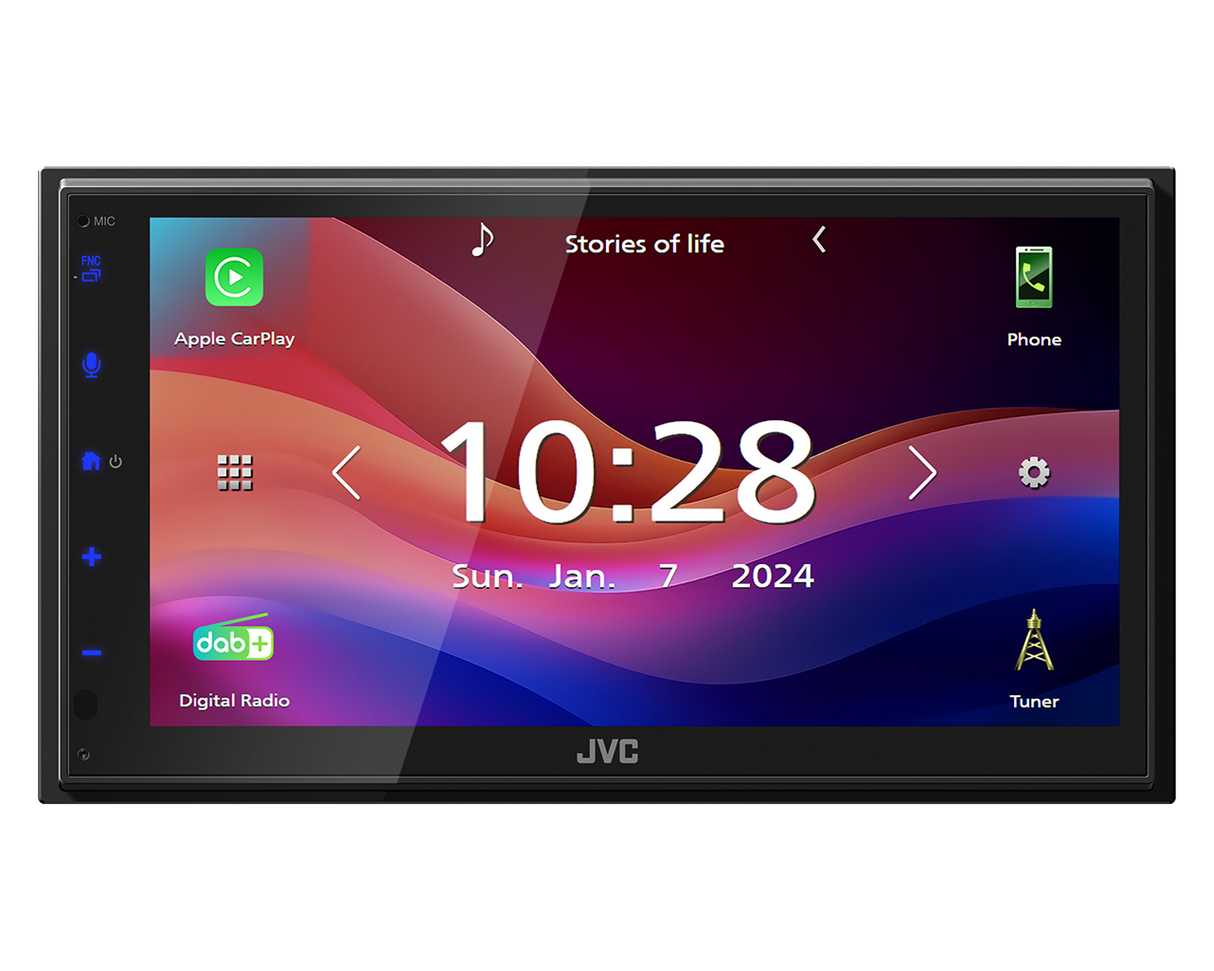

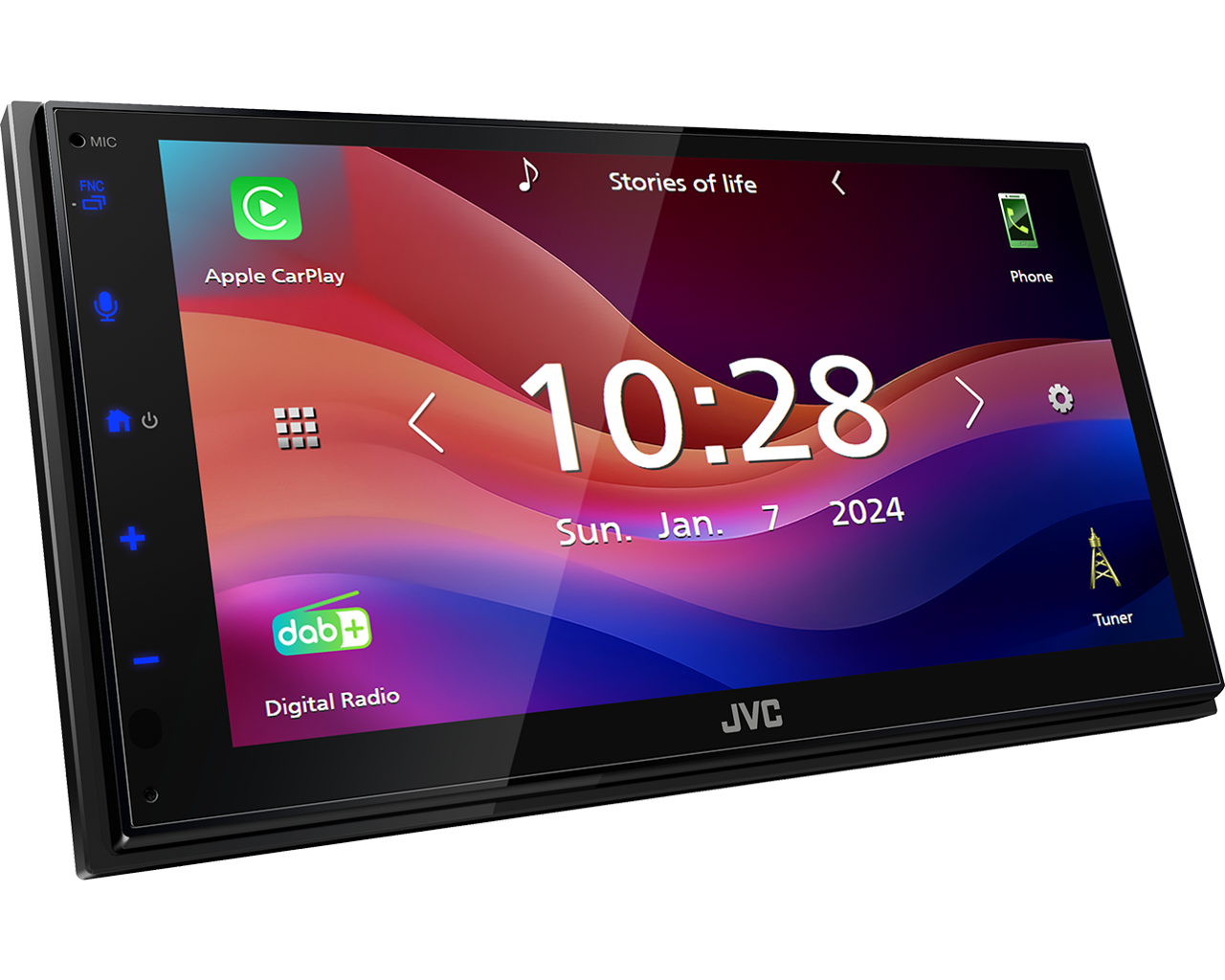

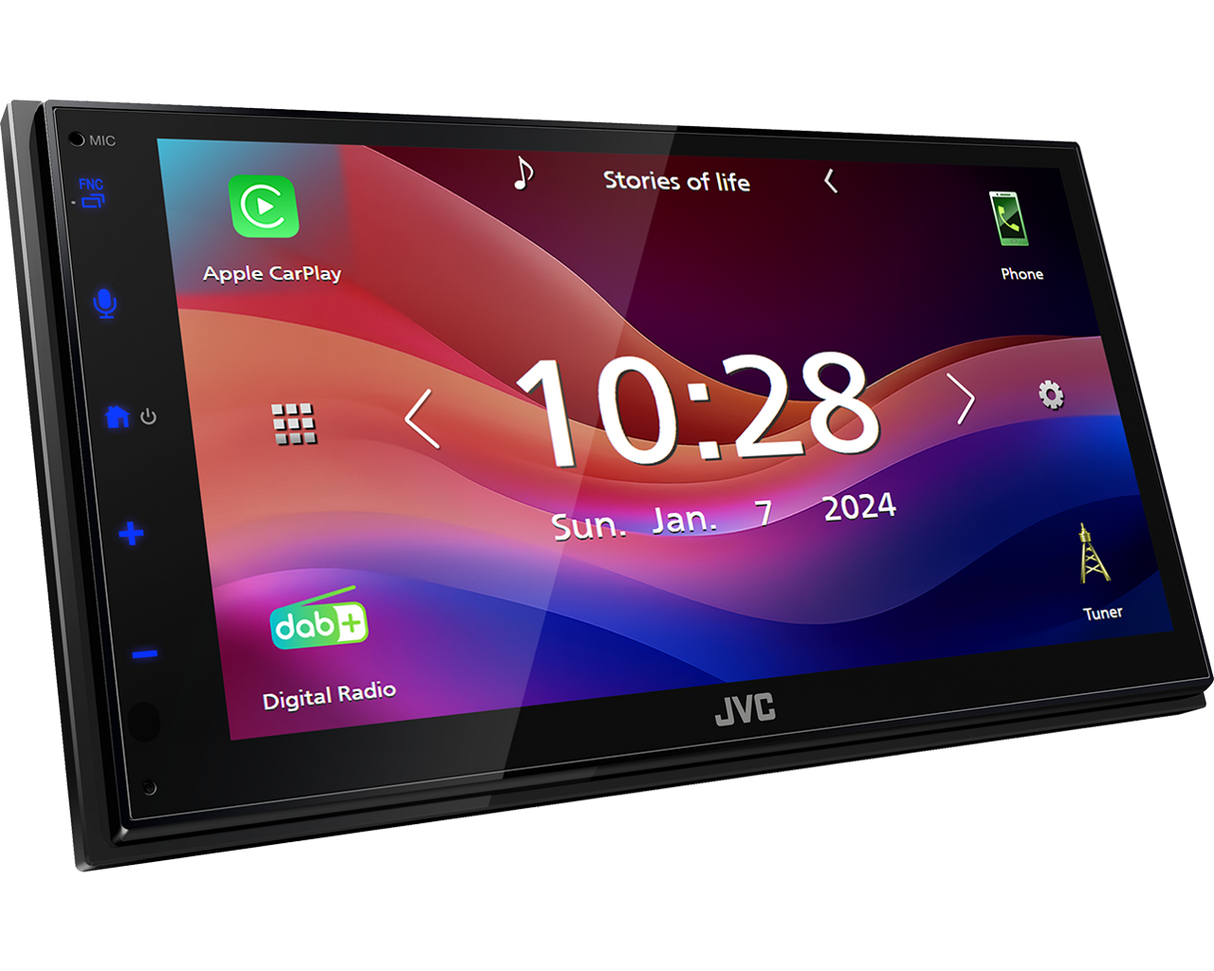

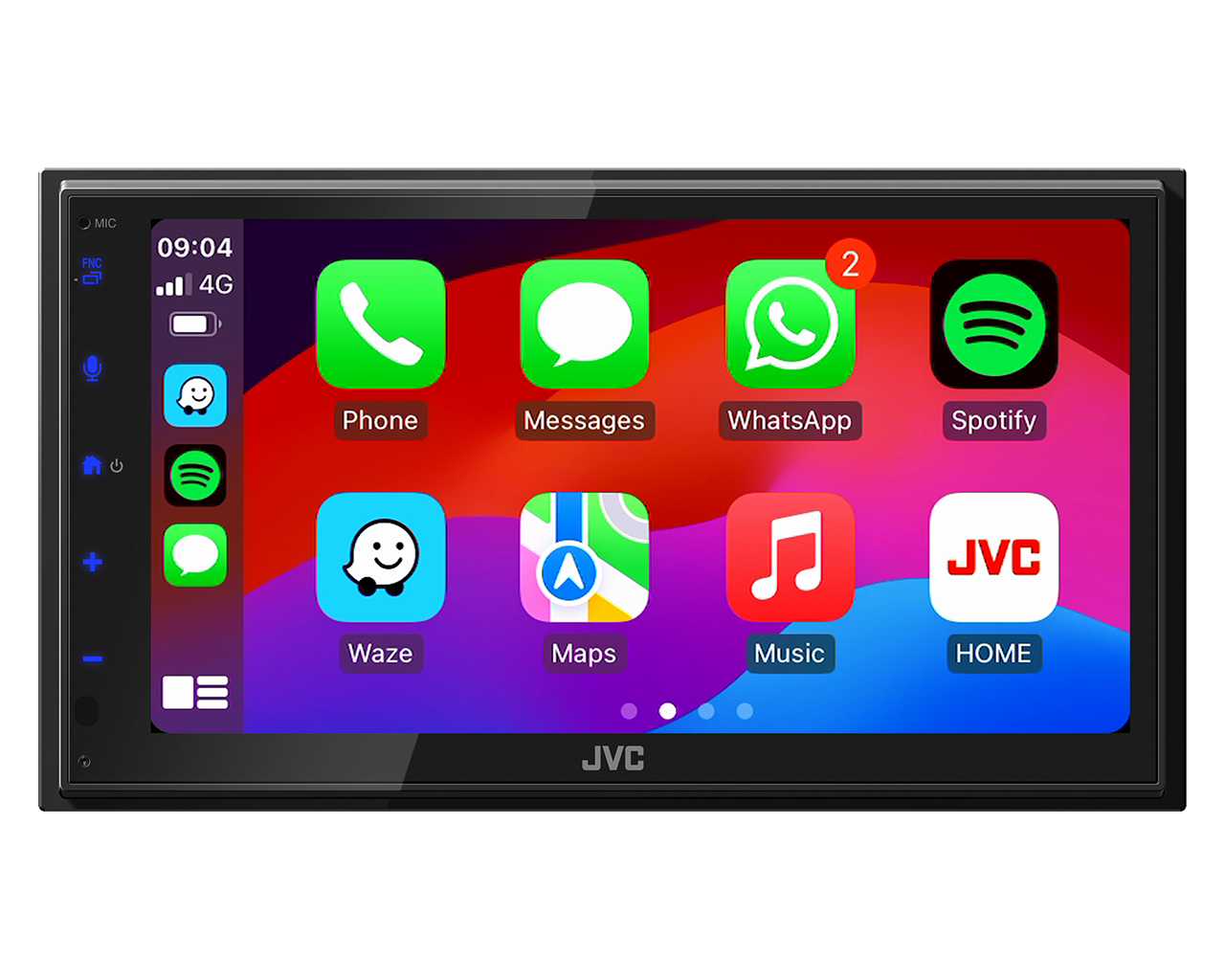

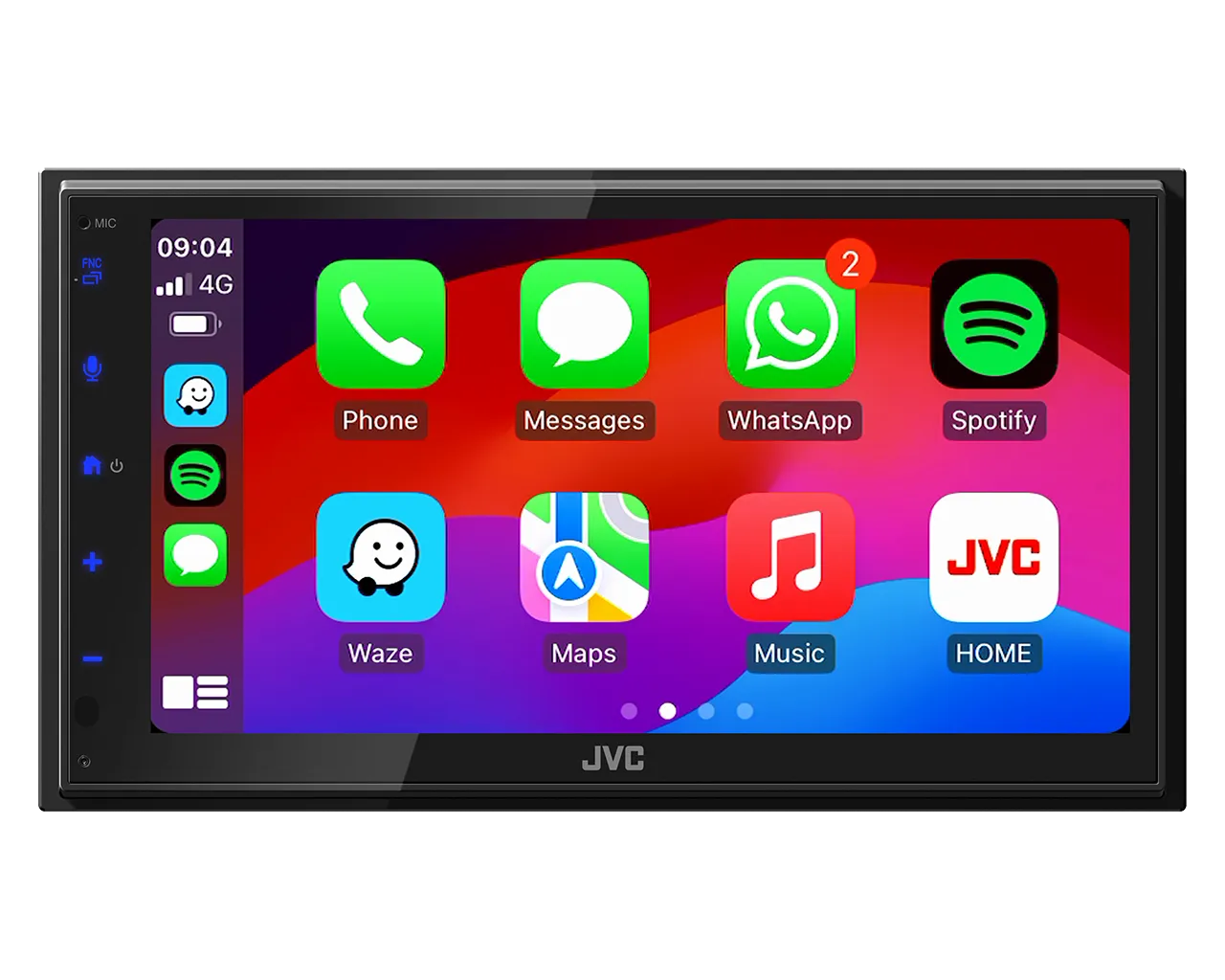

Apple CarPlay – Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
With the latest iOS version (iOS 13.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are supported.
Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability//#applecarplay-applecarplay
Wide Super VGA LCD Display
The 1024x600px Wide Super VGA (WSVGA) display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

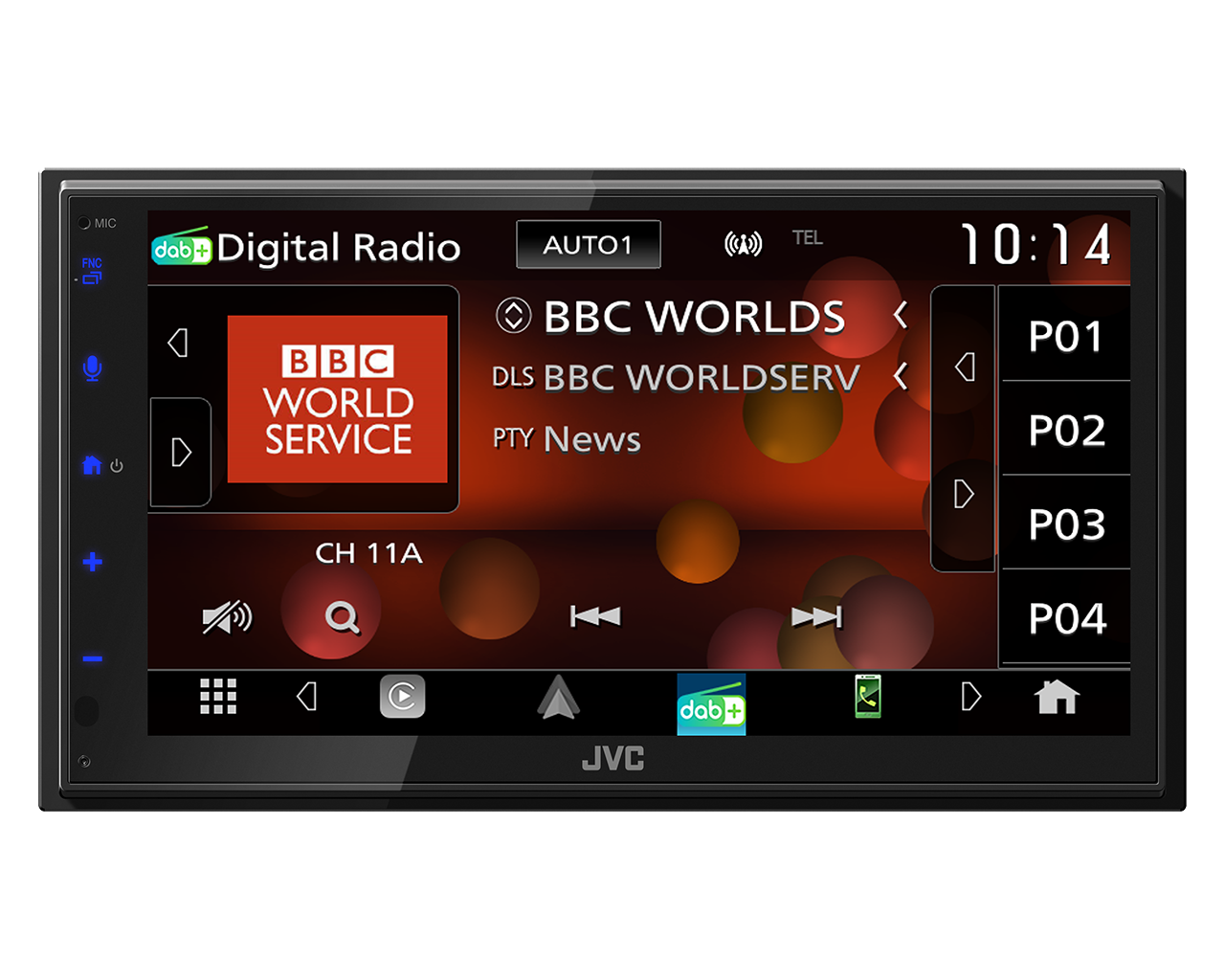

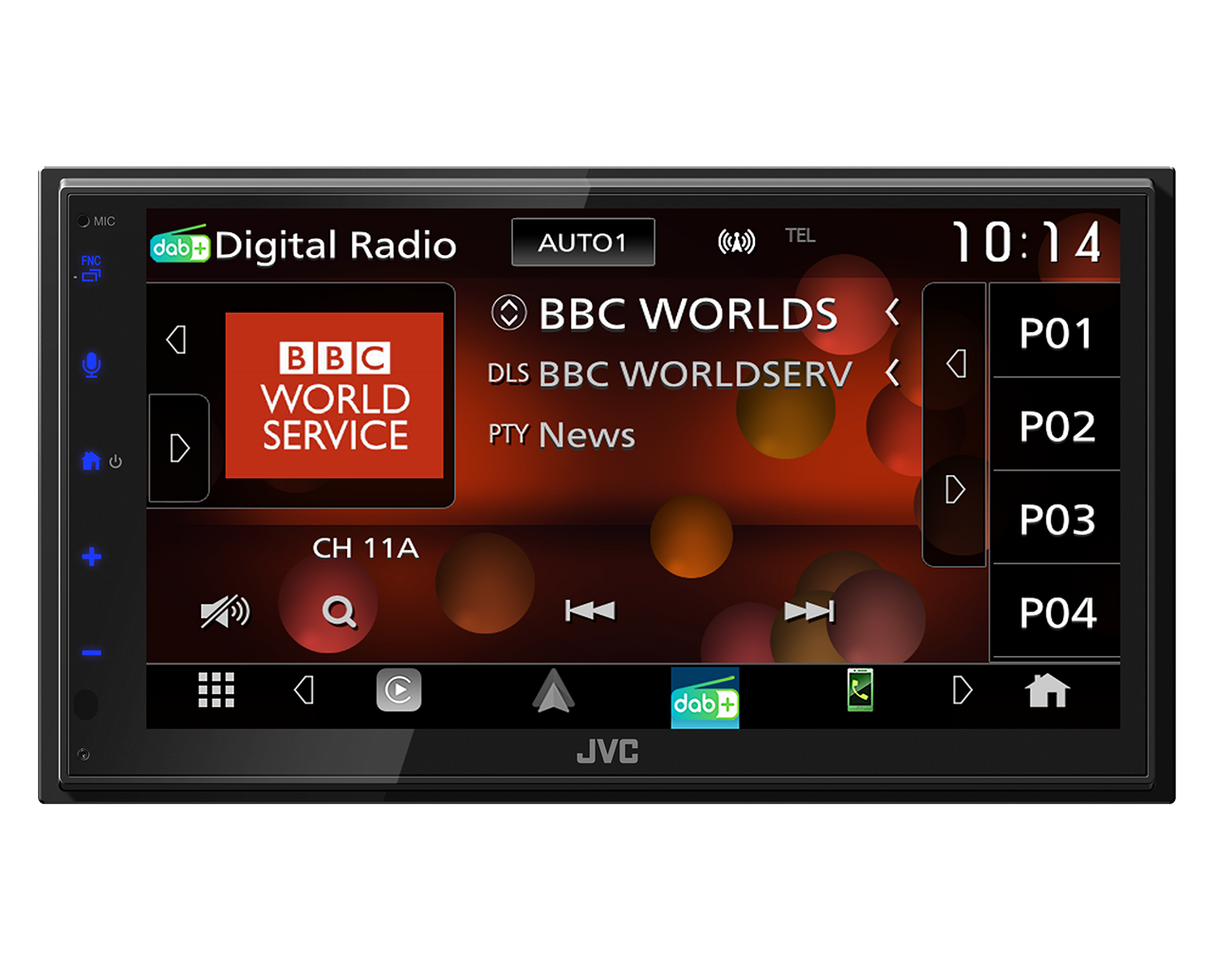

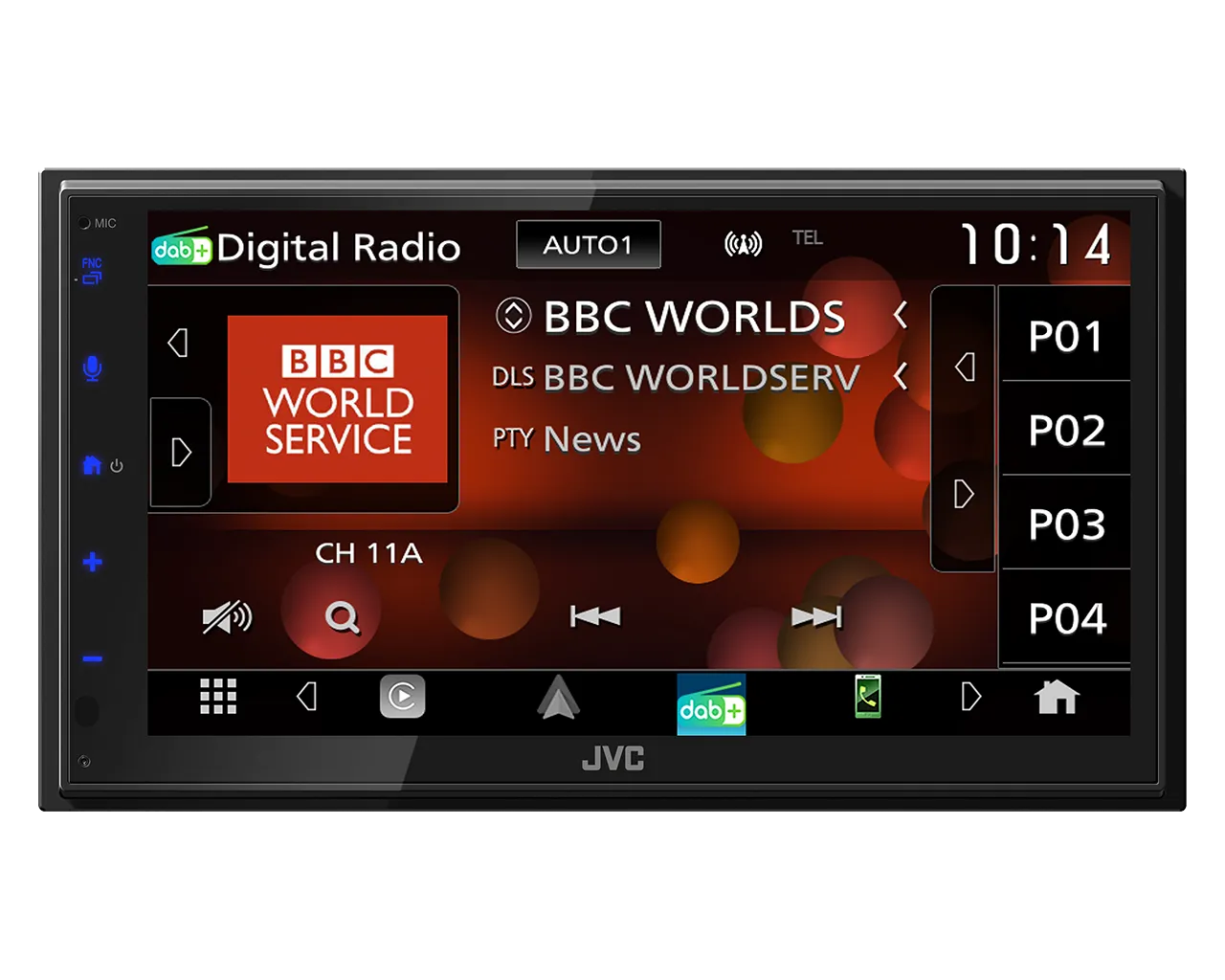

DAB+ Tuner
DAB+ is short for Digital Audio Broadcasting, meaning the digital transmission of sound. DAB+ radios are digital radios that are the successors of classic FM radios. DAB+ delivers CD-quality crystal clear sound and doesn't suffer from the same types of interference or static issues than with analogue AM/FM radio. Tuning is also easier: simply select your favourite radio station from the alphabetical station list.
Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

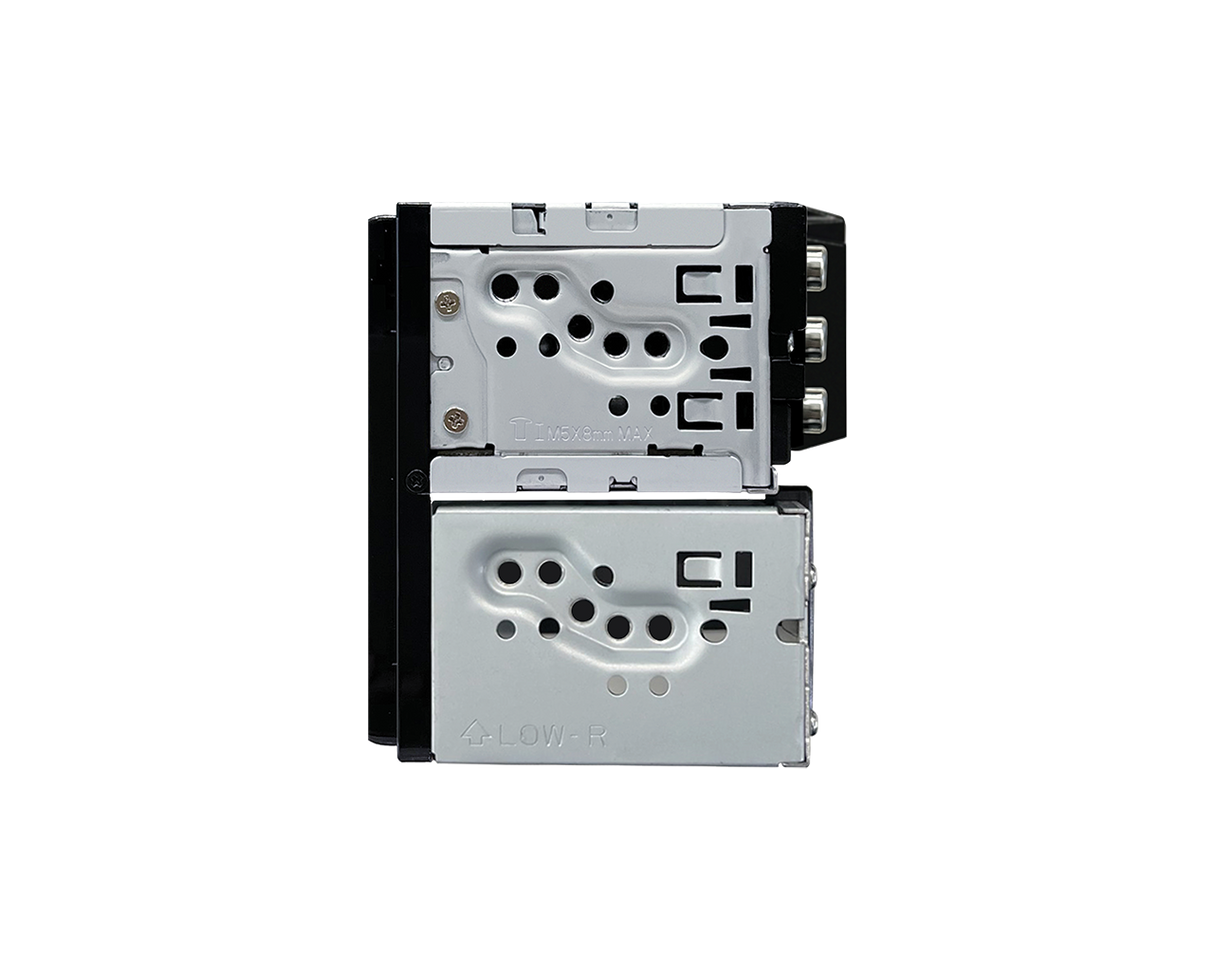

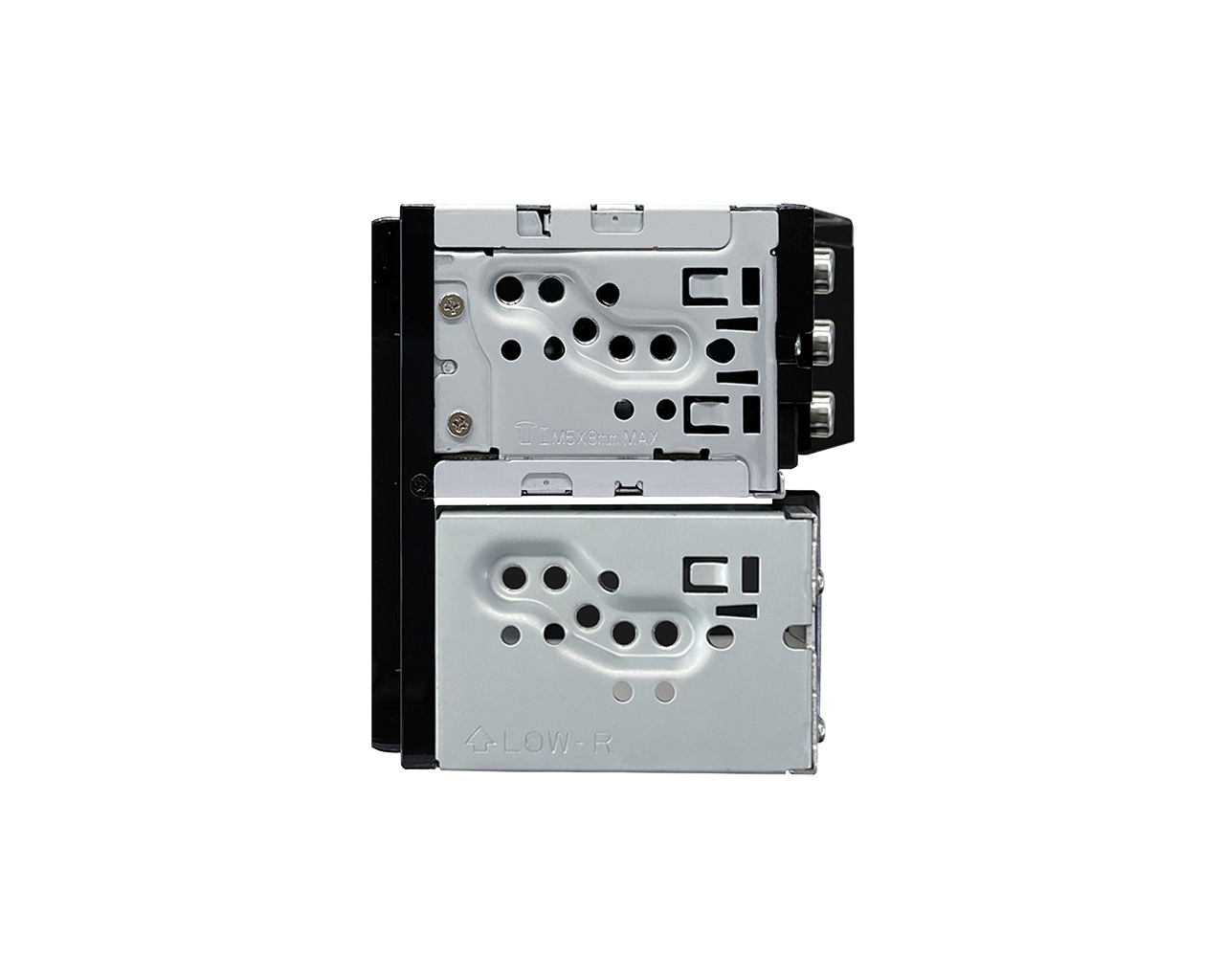

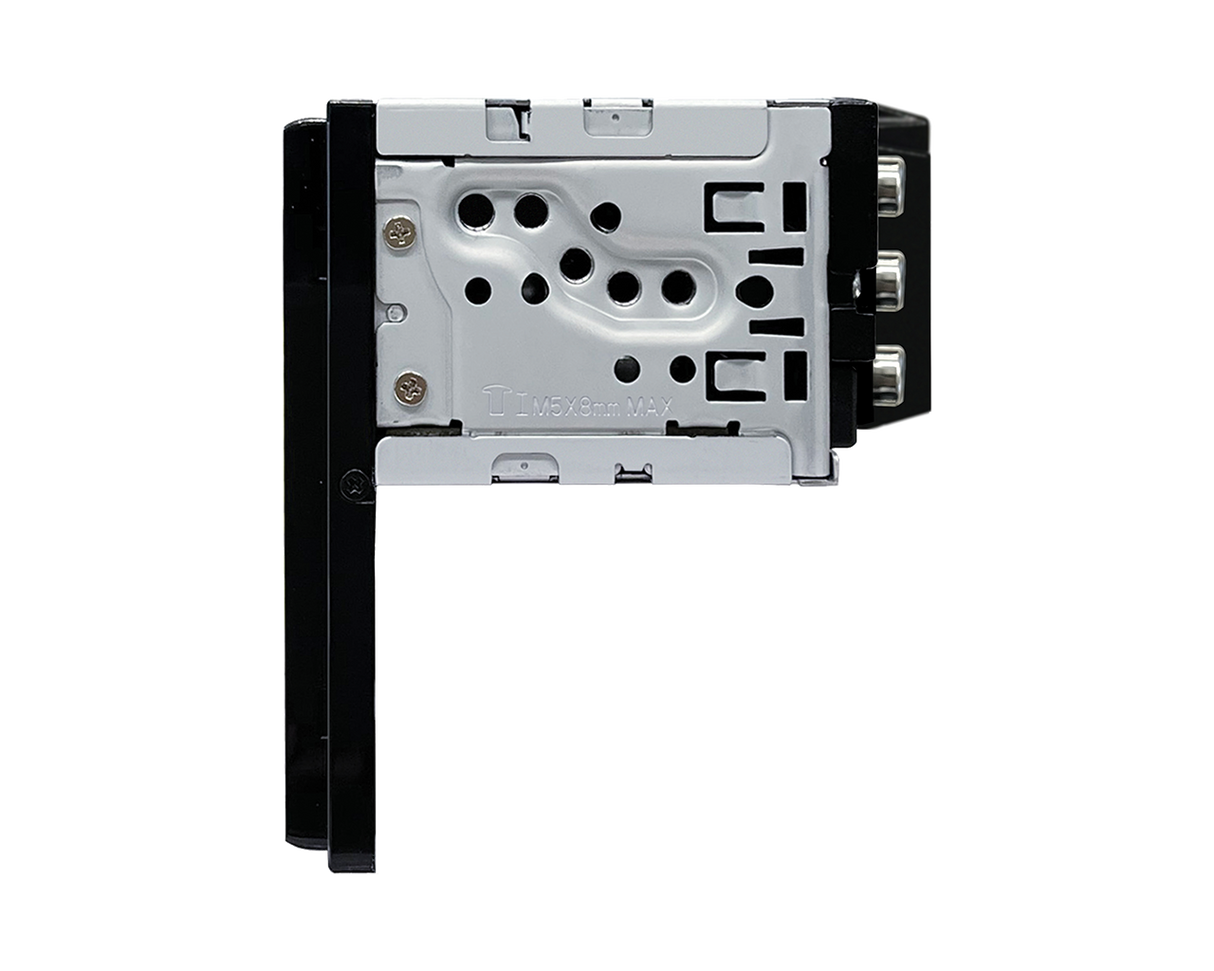

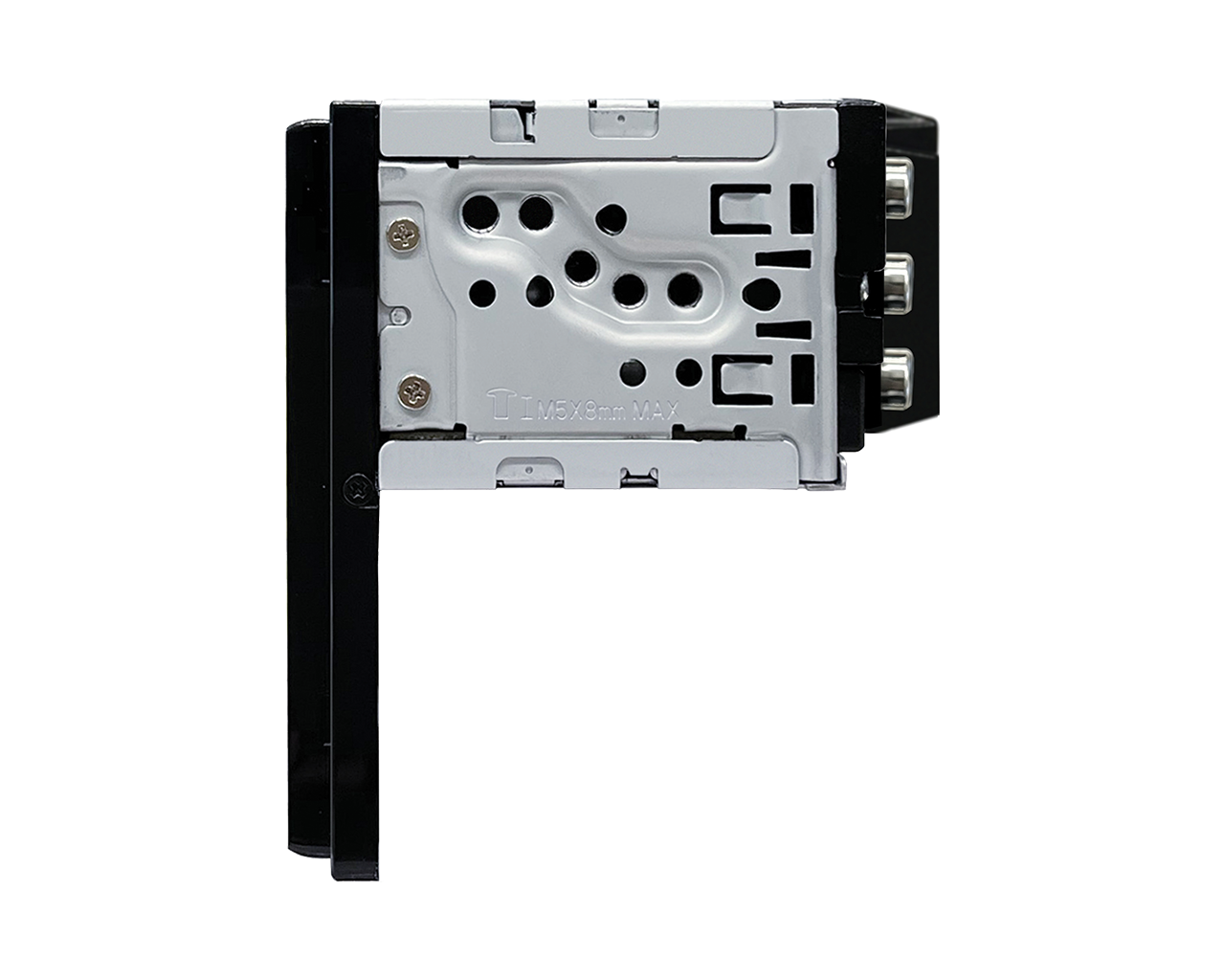

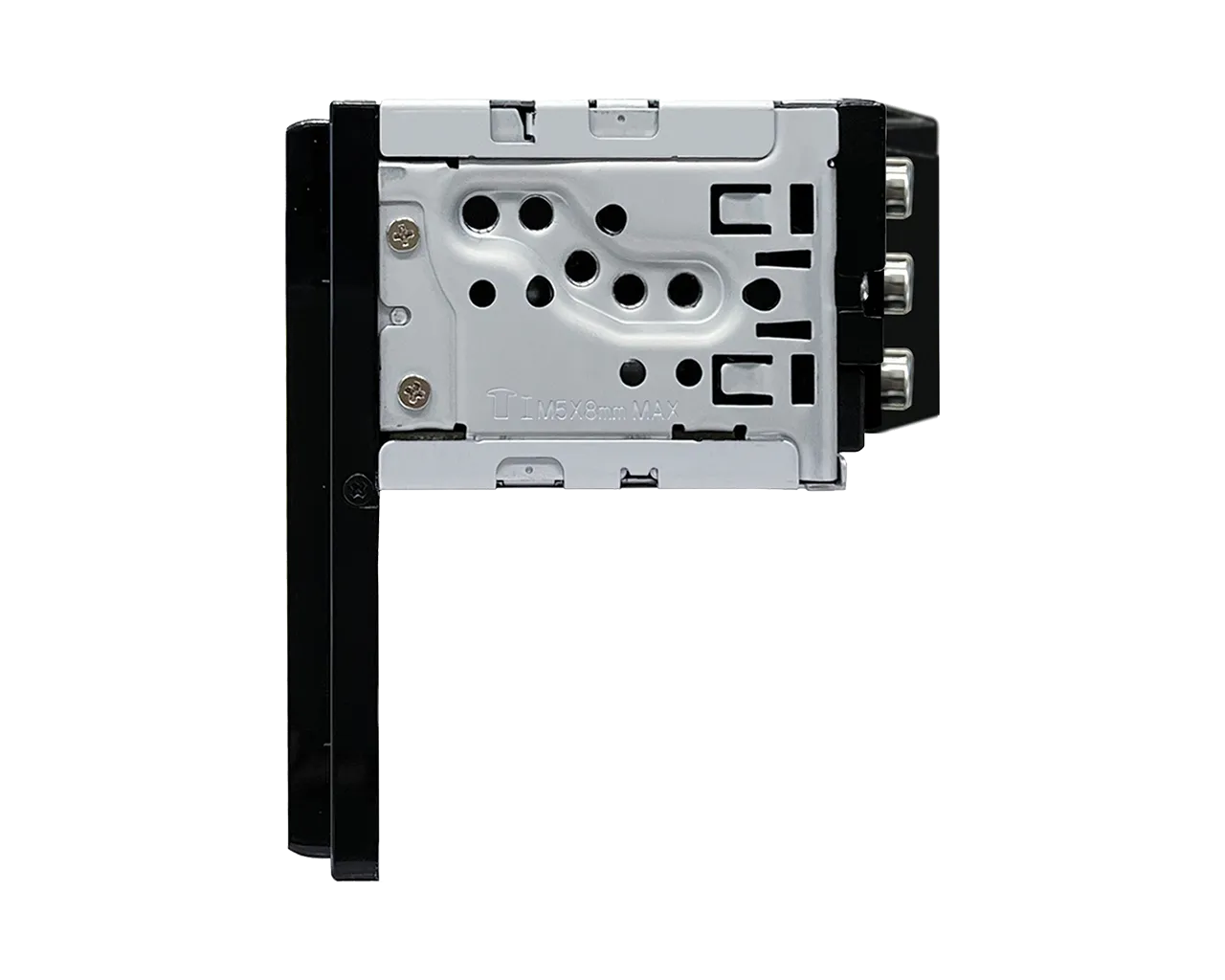

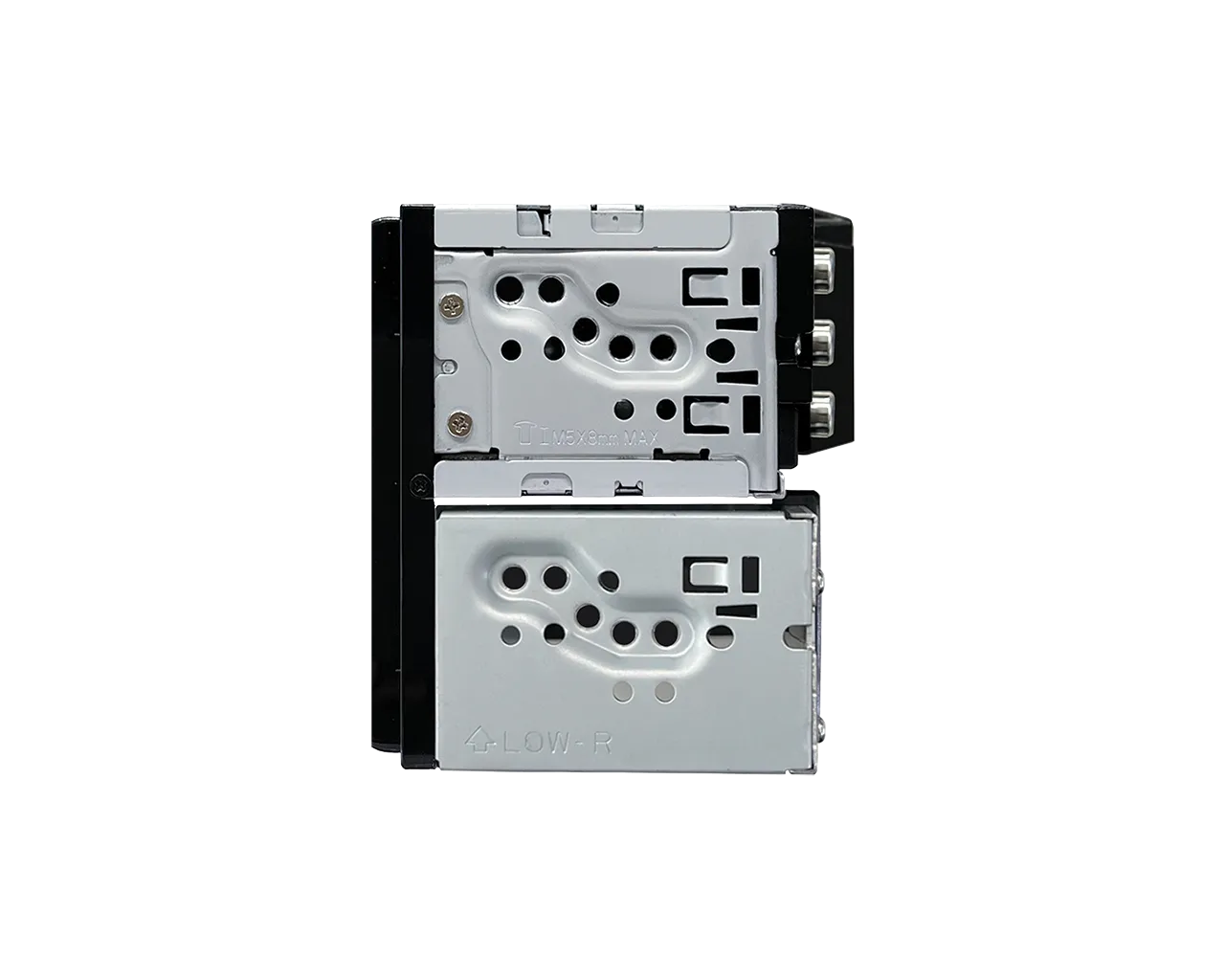

Short Chassis Design
The reduced depth and the P-shape of the chassis contributes to a weight reduction and facilitates easier installation.
Screen Size 6.8 inches (diagonal) wide
High Definition Monitor WSVGA (1024 x 600px)
Touch Panel Type Capacitive
Display System TN LCD panel
Drive System TFT active matrix system
Number of Pixels 1.843.200 (1024H x 600V x RGB)
Effective Pixels 99.99 %
Pixel Arrangement RGB striped arrangment
Back Lighting LED
Touch Control Yes
Key Illumination Colour Blue
Dimmer Yes, Manual/Sync (Auto/On/Off)
Customizable GUI Yes
Multilanguage Display Yes, 14 languages: English(UK(Default) / English US / Spanish / French / German / Italian / Dutch / Portuguese / Arabic / Hebrew / Greek / Polish / Czech / Hungarian.
Radio Tuner
DAB+ Tuner Yes
Digital Radio Certification Mark Yes
DAB+ Frequency Band III 174.928MHz to 239.2MHz
DAB-DAB / DAB-FM Auto Switch Yes
Seamless DAB-FM Blending Yes
ASW Select Yes
DLS (Dynamic Label) Yes
Slide Show Yes
Softlink Yes
FM Tuner Yes
Radio Data System (RDS) Yes
FM Frequency Range 87.5 ~108.0 MHz (50kHz Step)
AM Tuner yes
AM Frequency Range 531kHz ~ 1611kHz (9kHz Frequency Step)
Preset Stations DAB: 15 / FM: 24 / AM: 12 presets
Traffic Information DAB / RDS
PTY Search DAB / RDS
PTY Watch DAB
Automatic Preset / SSM (FM only) Yes
Media Playback
Audio Decoder
MP3 Compatible with Tag USB
WMA Compatible with Tag USB
WAV Compatible with Tag USB
AAC Compatible with Tag USB
FLAC Compatible with Tag USB
Video Decoder
MPEG-1 / MPEG-2 Compatible USB
MPEG-4 Compatible USB
WMV Compatible USB
H.264 Compatible USB
MKV Compatible USB
JPEG File Playback USB (For user background only)
BMP File Playback USB (For user background only)
PNG File Playback USB (For user background only)
USB
USB Port(s) x 1
Location Rear
USB Standard High Speed
File System FAT16 / FAT32 / exFAT / NTFS
USB Mass Storage Class Yes
Drive Change Mode for Mass Storage Class Yes
Tag Information Display Yes
Album Art Display Yes
List Access Yes
Category search Yes
Link Search Yes
Random / Repeat Play Yes
Skip Yes
Time Code Display Yes
Last Position Memory / Resume Yes
Digital / Analog Converter (DAC) 24 bit
Signal-to-Noise Ratio (S/N) 75 dB
2.1A Max Power Supply Current Yes
Bluetooth®
Bluetooth Technology V 5.0
Hands Free Call (HFP) Yes (HFP1.8)
Advanced Audio Distribution Profile (A2DP) V1.3
Audio/Video Remote Control Profile (AVRCP) V 1.6
Phone Book Access Profile (PBAP) Yes
Alphabetical Search for Phone Book Yes
Secure Simple Pairing (SSP) Yes
Audio Codec AAC / SBC
Noise Canceller Yes (Auto)
Echo Canceller Yes (Auto)
Built-in BT Microphone Yes
Wi-Fi Control
Built-in Wi-Fi Yes
Frequency Range 5 GHz
Android Control
ANDROID AUTO
Android Auto wired Yes, (via USB)
Android Auto wireless Yes
USB mirroring for Android Yes
Wireless mirroring for Android Yes
Android Music Playback [1] Yes (via Bluetooth(R))
iPod/iPhone Control
CARPLAY
CarPlay wired Yes, (via USB)
CarPlay wireless Yes
Mirroring for iPhone Yes (via USB) *Need mirroring App
iPhone Music Playback Yes (via USB or Bluetooth®)
Random/Repeat Play Yes
App(s)
MirrorApp+ via USB
App Store https://apps.apple.com/us/app/mirrorapp/id1560645614
Google Play https://play.google.com/store/apps/details?id=hk.com.soundmax.mirrorapp&hl=en
Audio
Maximum Power Output (Front & Rear) 50W x 4
Full Bandwidth Power (at less than 1%THD) 22W x 4
Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
Output Frequency Band 20 - 20,000Hz
EQUALIZER
13-Band Graphic EQ
Preset EQ Preset x 7 + User set x 3 / All SRC
High-Pass Filter/Low-Pass Filter Yes/Yes
Digital Sound Processor (DSP) yes
Time Alignment Yes
Loudness Control Yes (Off/Low/High)
Bass Boost (Hyper Bass System) Yes (on/off)

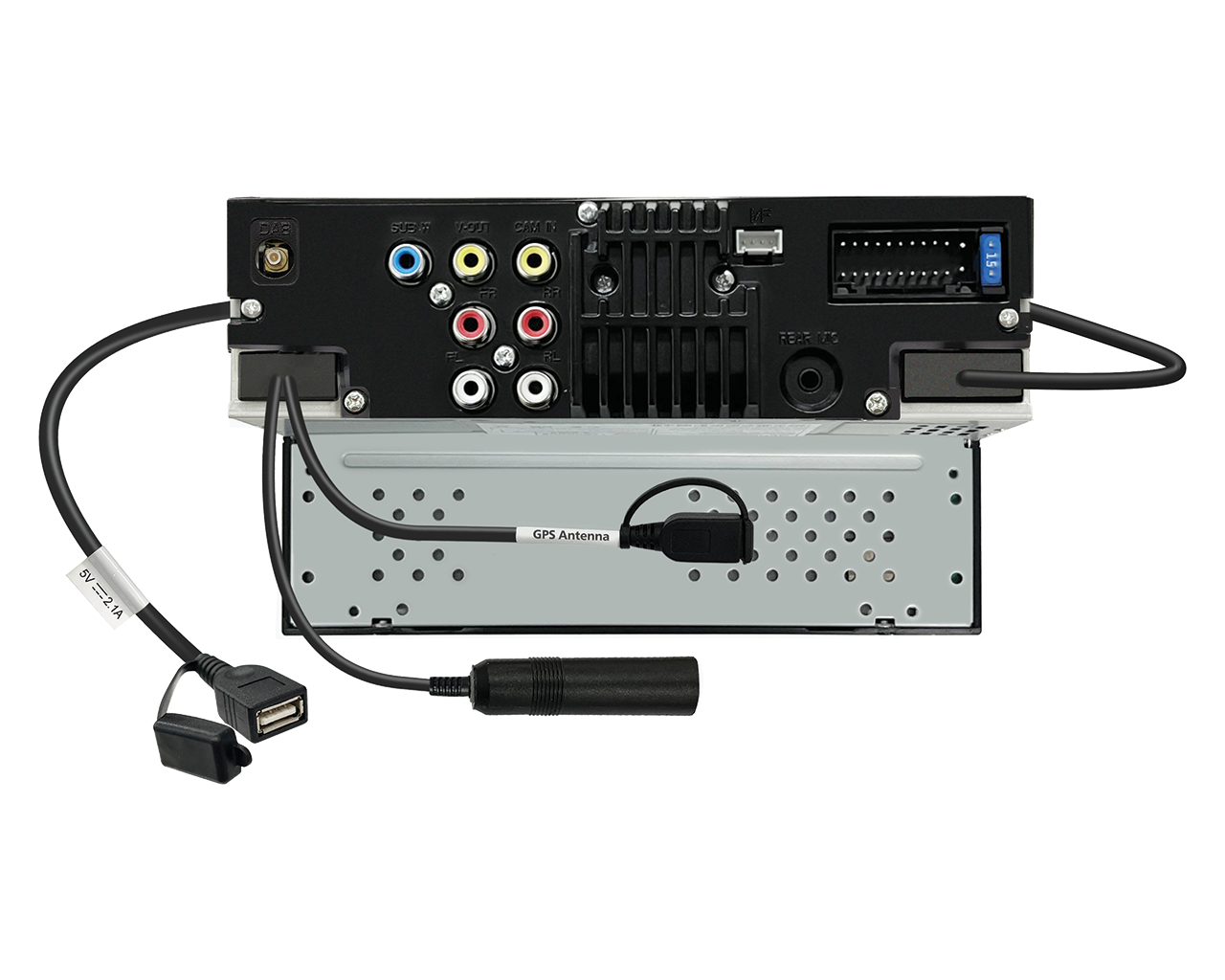

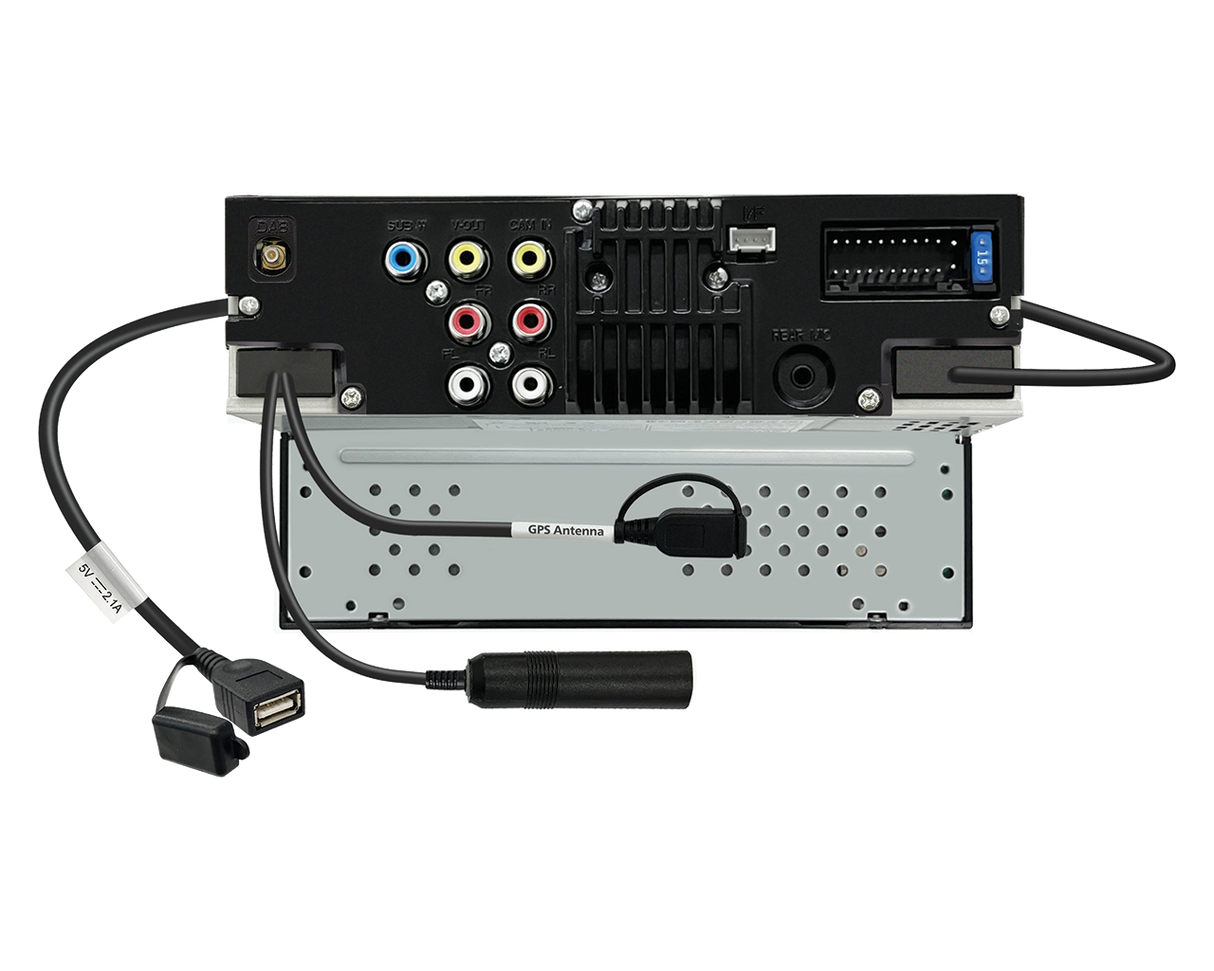

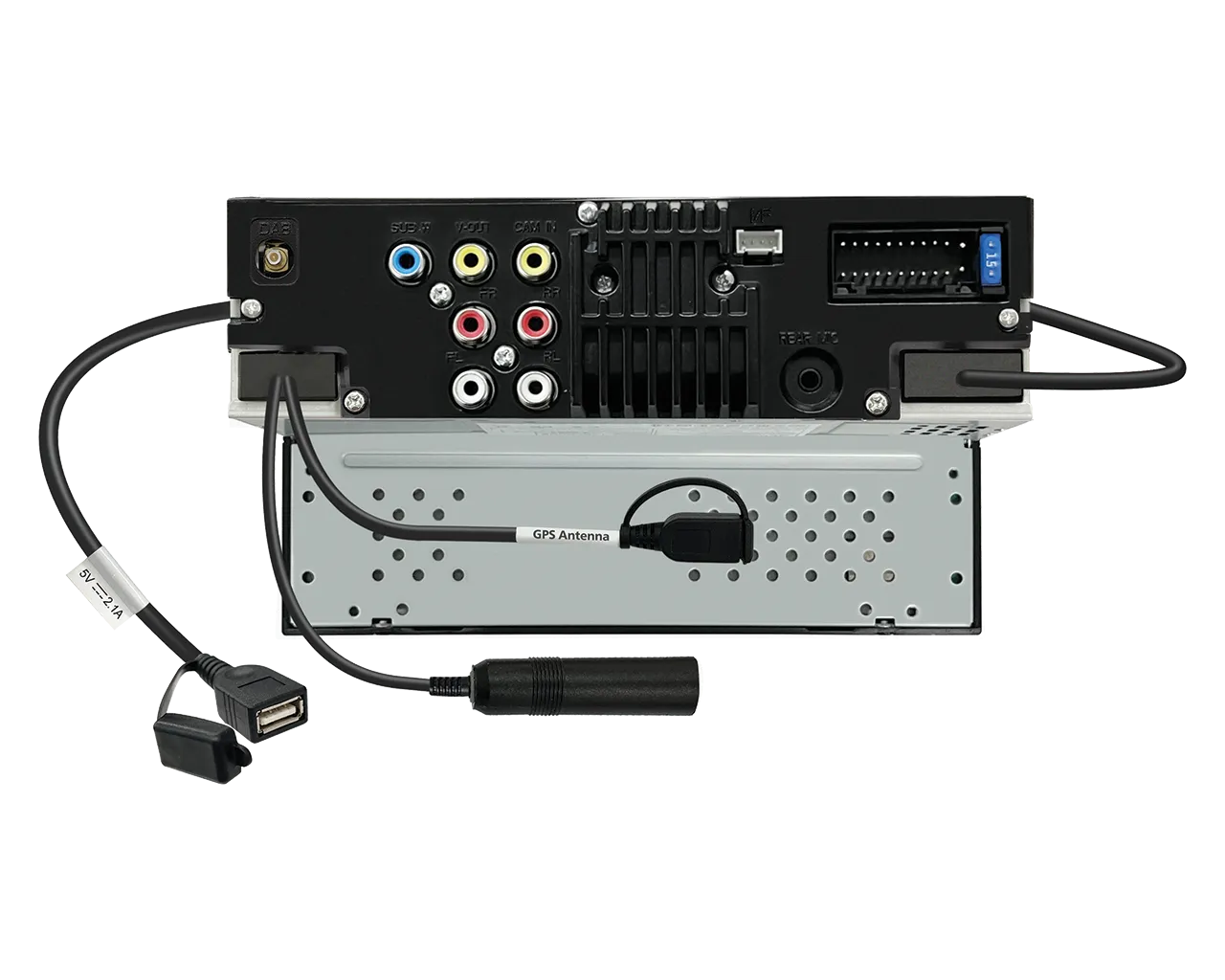

Inputs and Outputs
Audio Inputs and Outputs
Pre-Out Terminals Front (L+R), Rear (L+R), Subwoofer (mono)
Pre-Output Level 2.5V
Pre-Out Impedance 1,4 kΩ
Video Inputs and Outputs
Video Out x 1 (V:RCA)
Colour System NTSC/PAL
Video Output Level/Impedance 1Vp-p / 75 ohms
Camera inputs
Rear view camera Input Yes
General
Back Up Memory Yes
GPS Antenna Input Yes
DAB Antenna Input Yes
Wireless Remote Control Ready
Wired Steering Remote Control Ready Yes
Learning Direct OEM Remote Yes (Resistive protocol only)
ISO Connector 22pin (New Type) to ISO Wiring harness
Short Chassis Yes (86mm)
Operation Voltage 12 VDC
Installation Size (W x H x D) 182 x 112 x 86mm
Weight, inlcuding sleeve and escutcheon 1.27 kg
