Ortofon

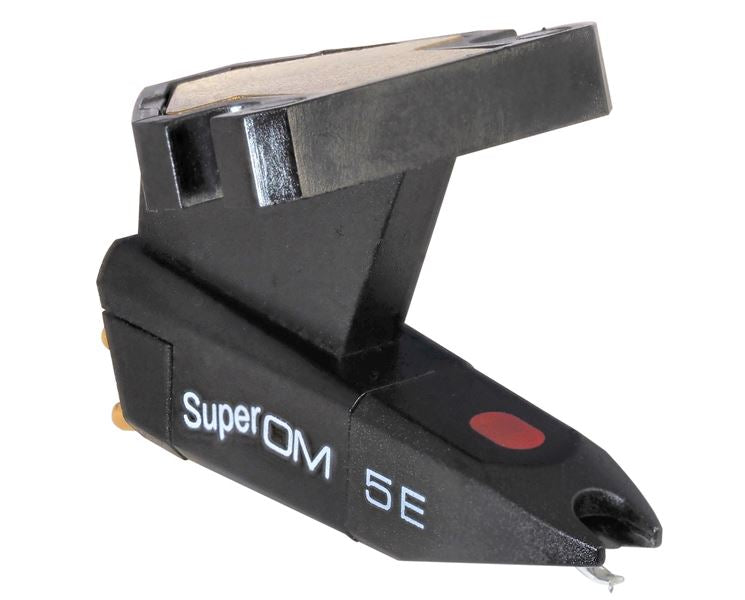

Ortofon Super OM 5E, patefono galvutė

€85.00 EUR

Ortofon Super OM 5E, patefono galvutė - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Nemokamas pristatymas Lietuvoje nuo 100 €

Lietuvoje Venipak kurjeriu pristatymas per 1-2 darbo dienas.
Pristatymas už Lietuvos ribų per 4-10 darbo dienų.

Atsiimkite prekes parduotuvėje už 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

OM 5 serijos patefono galvutė iš Ortofon.

  • Stylus tipas: Eliptinis.
  • Dažnių juosta: - 20-20.000 Hz + 3 / -3.
  • Spaudimo galia: 1.5-2.0 g (15-20 mN)

The Super OM 5E major improvements:

1. By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation and reduced distortion.

2. OM Super cartridges models have split pole PINs which reduces magnetic losses at the treble end. This technology extends the frequency range and improves phase linearity.

3. OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound) which ensures high rigidity and freedom from resonances.



Optimal fit and sound reproduction

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.

Super OM 5E features Elliptical stylus that provides balanced and distortion-free playback. Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.

SPECIFIKACIJOS

  • Output voltage at 1000 Hz, 5cm/sec. - 4 mV
  • Channel balance at 1 kHz  -  1.5 dB
  • Channel separation at 1 kHz  -  22 dB
  • Channel separation at 15 kHz  -  15 dB
  • Frequency response  -  20-20.000 Hz + 3 / -3
  • Tracking ability at 315Hz at recommended tracking force - 60 µm
  • Compliance, dynamic, lateral  -  20 µm/mN
  • Stylus type  -  Elliptical
  • Stylus tip radius  -  r/R 8/18 µm
  • Tracking force range  -  1.5-2.0 g (15-20 mN)
  • Tracking force, recommended  -  1.75 g (17.5 mN)
  • Tracking angle  - 20°
  • Internal impedance, DC resistance  -  1 kOhm
  • Internal inductance  -  580 mH
  • Recommended load resistance   -  47 kOhm
  • Recommended load capacitance -   200-500 pF
  • Cartridge colour, body/stylus - Black/Black
  • Cartridge weight incl. extra weight -  5 g
  • Cartridge weight excl. extra weight -  2.5 g

INSTRUKCIJOS

User Manual (EN).
