NEBEGAMINAMA

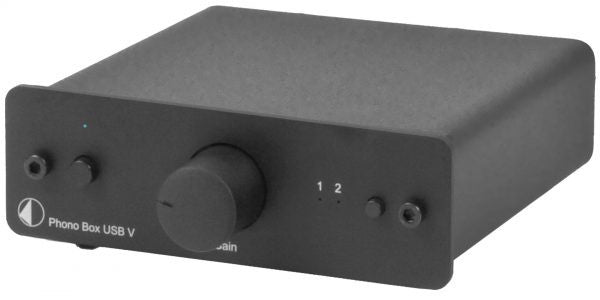

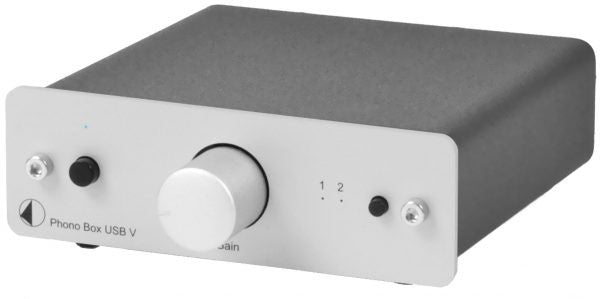

Pro-Ject PHONO BOX USB, MM/MC Pradinis Stiprintuvas (įvairių spalvų)

€149.00 EUR

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Nemokamas pristatymas Lietuvoje nuo 100 €

Lietuvoje Venipak kurjeriu pristatymas per 1-2 darbo dienas.
Pristatymas už Lietuvos ribų per 4-10 darbo dienų.

Atsiimkite prekes parduotuvėje už 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

PHONO BOX USB yra pradinis Phono stiprintuvas su USB išėjimais, kuris pasižymi aukštu funkcionalumu bei našumu.

  • Tiksli RIAA ekvalizacija.
  • Aukštos klasės A/D konversija.
  • Perjungiamas Sub-soninis filtras: –18 dB @ 20Hz.
  • THD MM/MC: 0.01% / 0.05%.


MM/MC pradinis stiprintuvas su USB išėjimais

Phono Box USB V: Top specialist for recording vinyl & line level sources and listening pleasure!

Phono Box USB V is an ideal phono preamplifier for both your hifi system and vinyl or line-level recording to PC or Mac. MM and MC cartridges will be welcome. Input volume can be set to avoid override. The analogue output of Phono Box USB V can easily be connected to a line-input (AUX,…) of your hifi and digitally via USB to your computer. Both outputs can be used simultaneously. Any professional recording software will give best results on Windows and Mac computer systems.

Savybės

  • Preamplifier for MM or MC with switch on rear panel
  • Precise RIAA equalisation
  • Phono/line selector on front
  • Record level adjustment
  • High quality A/D conversion with USB out to PC/Mac
  • Compatible with Windows®, MacOS® & Linux
  • SMD technology for shortest signal paths
  • Output stage with ultra-low impedance
  • DC power supply (< 1 watt standby power)
  • Faceplate available in black and silver



          Specifikacijos

          Load capacitance / impedance MM: 47K ohms / 120pF MC: 100 ohms / 120pF
          Gain, MM 40 dB
          Output voltage typically 300 mV / 1 kHz @ 3 mV / 1 kHz (MM input)
          Gain, MC 60 dB
          Gain, line level input 11 dB
          Max. output 9.5 Vrms (1kHz)
          Noise floor, MM 94 dB (94 dB - A weighted)
          Noise floor, MC 75 dB (75 dB - A weighted)
          THD, MM/ MC 0.01% / 0.05%
          RIAA-equalisation curve accuracy 20 Hz - 20 kHz / max. 0.5 dB
          Phono Input / line output 1 pair RCA phono sockets
          Line input 3.5mm jack
          Output voltage 0.775 Veff
          A/D converter 16-Bit Delta Sigma
          Sampling rate 32, 44, 1 and 48 kHz
          USB output digital serial data protocol USB 1.1
          Operating systems Windows®, MacOS® & Linux
          Standby power consumption < 1 Watt
          Dimensions W x H x D 103 x 36 x 104 (115 mm with sockets)
          Weight 580 g

          INSTRUKCIJOS

          User Manual (EN).
