Rega Exact MC, kartridžas

EXACT MC yra rankų darbo kartridžas su labai tiksliai šlifuotu elipsės formos deimantu. Kokybiškas skambesys su garantuotas!

• Vital tipo deimantinis kartridžas.
• Kartridžas pagamintas rankomis.
• Rekomenduojamas prispaudimo svoris: 1.75 g.
• Varža: 47 kOmai.

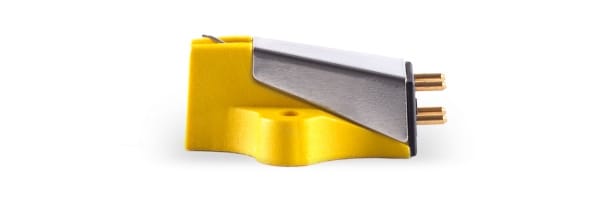

The Exact is the top tier of our handmade moving magnet range of cartridges. Built to the tightest achievable tolerances and using an advanced ‘Vital’ profile, (a complex fine line micro-ground from a rectangular diamond billet). This advanced profile is guaranteed to extract more music from your vinyl by using its unique profile to track the grooves with greater accuracy. Available factory fitted to the Planar 6, and an ideal moving magnet partner for Planar 3 and Planar 8.

To be Exact

Each Exact uses a pair of the highest grade in house wound parallel coils. The selected coil-set is carefully assembled in a custom jig to create the tightest possible pole gap in the moving magnet range. Achieving an incredible fine channel balance figure of ±0.1 mV the Exact delivers the best stereo image and highest output available from our magnet range. This testing process can take three time longer than other magnet models but the increased accuracy is worth the effort as you will experience taut bass and incisive treble. The addition of the unique Rega three point mounting system (which automatically sets overhang and improves the rigidity of mounting to the tonearm head-shell on Rega arms) is what makes the Exact our top moving magnet cartridge.

The unique pivot pad design of Rega cartridges improves performance by eliminating the mechanical joint between the stylus housing and the main body. This vastly improves tracking ability and stability of the stylus. If you should damage or wear your Rega cartridge, simply return it to you Rega dealer and they will supply you with a rebuild cartridge fitted with a new cantilever, stylus and pivot pad. Each rebuild is fully tested over two days as a new cartridge would be. The rebuild is sold at a reduced price once you trade in your worn or damaged cartridge that is equivalent to a replacement stylus offered by other manufacturers.

SPECIFIAKCIJOS

TECHNICAL SPECIFICATIONS

Output

6.8 - 7.2 mV

Stylus

‘Vital’ - Complex fine line micro-ground from a rectangular diamond billet

Fixing

​Rega 3 point fixing

Coils

High spec parallel wound coils

Colour

​Yellow

Tracking Pressure

​1.75 g

Impedance

47 k

Capacitance

100 pF

INSTRUKCIJOS

User Manual (EN).
