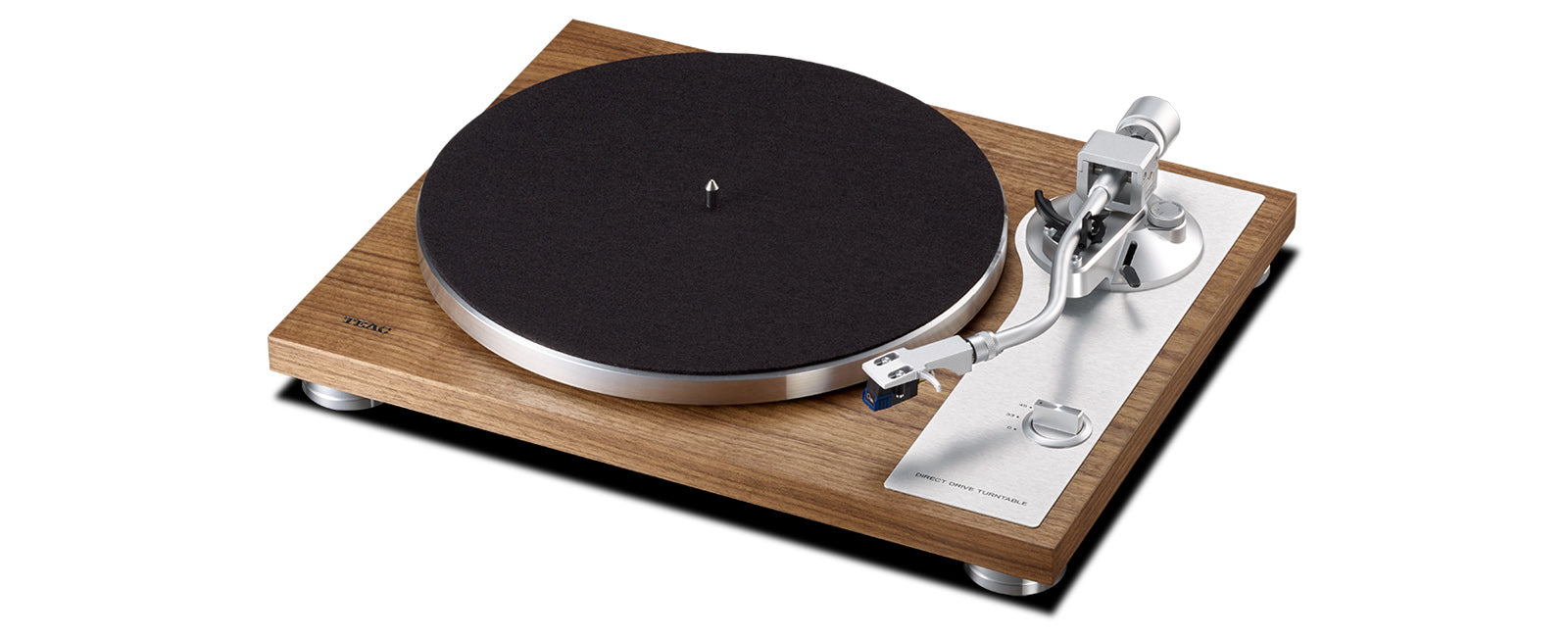

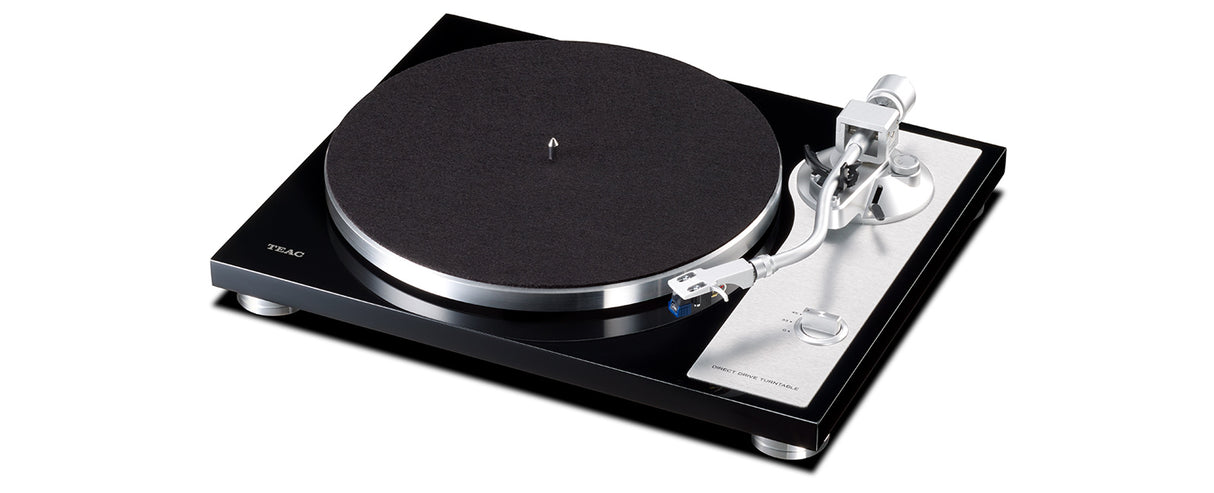

Naudojamas itin stabilus tiesioginės pavaros variklis,
klasikinės konstrukcijos patefonas su peilio briaunų guoliais
APRAŠYMAS
Sleek Direct-Drive Motor
The TN-4D-SE is powered by an advanced brushless DC motor, developed exclusively for direct-drive turntables. This motor provides crystal-locked speed accuracy, regulated by a computer-controlled feedback circuit to achieve low wow-and-flutter levels—a rare achievement for such a stylish, low-profile design.
Knife-Edge, Pivot-Point Tonearm Bearings
In collaboration with SAEC Corporation, a world-renowned manufacturer of high-end tonearms, the TN-4D-SE uses knife-edge, pivot-point bearings in its tonearm. Unlike conventional tonearm bearings, these fine vertical movements enhance dynamic sound quality, delivering excellent resolution. The S-shaped tonearm also features a universal headshell fitting, enabling quick and easy cartridge/headshell swaps and supporting a wide range of cartridge weights (14 - 23g / 0.5 - 0.8 oz.).
Precision Anti-Skating & Stylus-Pressure Adjustment
The tonearm comes equipped with a counterweight for precise stylus-pressure adjustment and an anti-skating mechanism, ensuring optimal tracking across your records.
Pre-Installed SUMIKO Oyster Cartridge
The TN-4D-SE includes a highly regarded Oyster MM cartridge by SUMIKO, a legendary American cartridge manufacturer. Whether you’re listening to rock, jazz, or classical, the Oyster cartridge delivers a powerful yet nuanced performance.
Built-In PHONO EQ Amplifier
This turntable comes with a built-in PHONO EQ amplifier, supporting MM cartridges. It allows you to connect the TN-4D-SE directly to the line-level inputs of your existing hi-fi system. The NJM8080 IC from New Japan Radio Corporation is employed as the operational amplifier, amplifying the tiny signals from the cartridge to LINE level without compromising sound quality.
Die-Cast Aluminium Platter
Paired with the newly developed motor, the die-cast aluminium platter with high inertia ensures improved speed stability, reducing rotational inconsistencies.
Insulating Feet with Shock Absorption
The TN-4D-SE’s insulating feet feature a machined aluminium shell topped with a rubber cushion, attached to a high-density MDF plinth. These feet provide excellent shock absorption, protecting the turntable from unwanted vibrations and acoustic feedback.
2-Speed Turntable for 33-⅓ and 45 RPM
The TN-4D-SE supports playback speeds of 33-⅓ and 45 rpm, perfect for both LP and EP records. The rotary control for startup and speed selection is crafted from machined aluminium, reflecting the turntable’s high-quality construction and engineering.
TECHINIAI DUOMENYS
Turntable Section
Type:
Direct Drive
Motor:
Brushless DC Motor
Rotation Speeds:
33-⅓ rpm, 45 rpm
Wow-and-Flutters:
0.1%
Signal-to-Noise (S/N) Ratio:
67dB or higher (A-weighted, 20kHz LPF)
Turntable Platter
Material:
Aluminium Die-cast
Diameter:
30 cm
Tonearm Section
Type:
S-shaped, Static-balanced
Effective Length:
223 mm
Needle Pressure Range:
0g to 5.0g
Compatible Cartridge Weight:
3.0g to 12.0g
14g to 23g (including head-shell)
Head-Shell and Cartridge Sections
Type:
MM-type (pre-installed SUMIKO Oyster cartridge)
Output Voltage:
4.0mV (1kHz)
Needle Pressure:
1.5 to 2.5g (recommended: 2.3g)
Cartridge Weight:
5.3g
Head-Shell Weight:
11g (including nuts, screws, and wires)
Compatible Stylus:
Styluses for SUMIKO Oyster
Analog Outputs
Connector:
RCA Pin Jack × 1 pair (PHONO/LINE switchable)
Output Voltage:
PHONO: 4.0mV (1kHz)
LINE: 224mV (–13dBV)
Power and Dimensions
Operating Power:
AC 100 to 240V, 50/60Hz
Power Consumption:
2W
Standby Power:
0.5W or less
Dimensions (W×H×D):
420 × 117 × 356 mm
16.5" × 4.6" × 14.0"
Weight:
Approx. 6.1 kg / 13.5 lbs
DOKUMENTAI
Vartotojo vadovas (EN)
