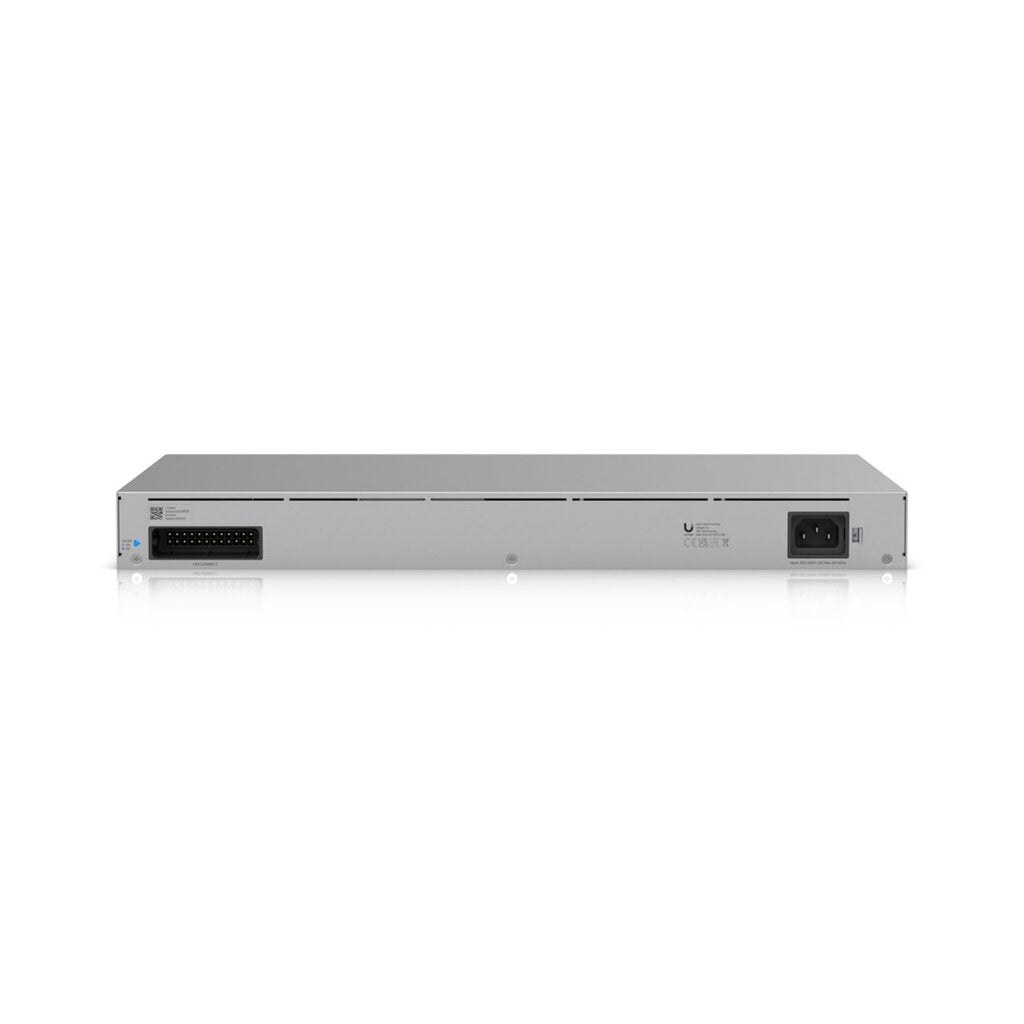

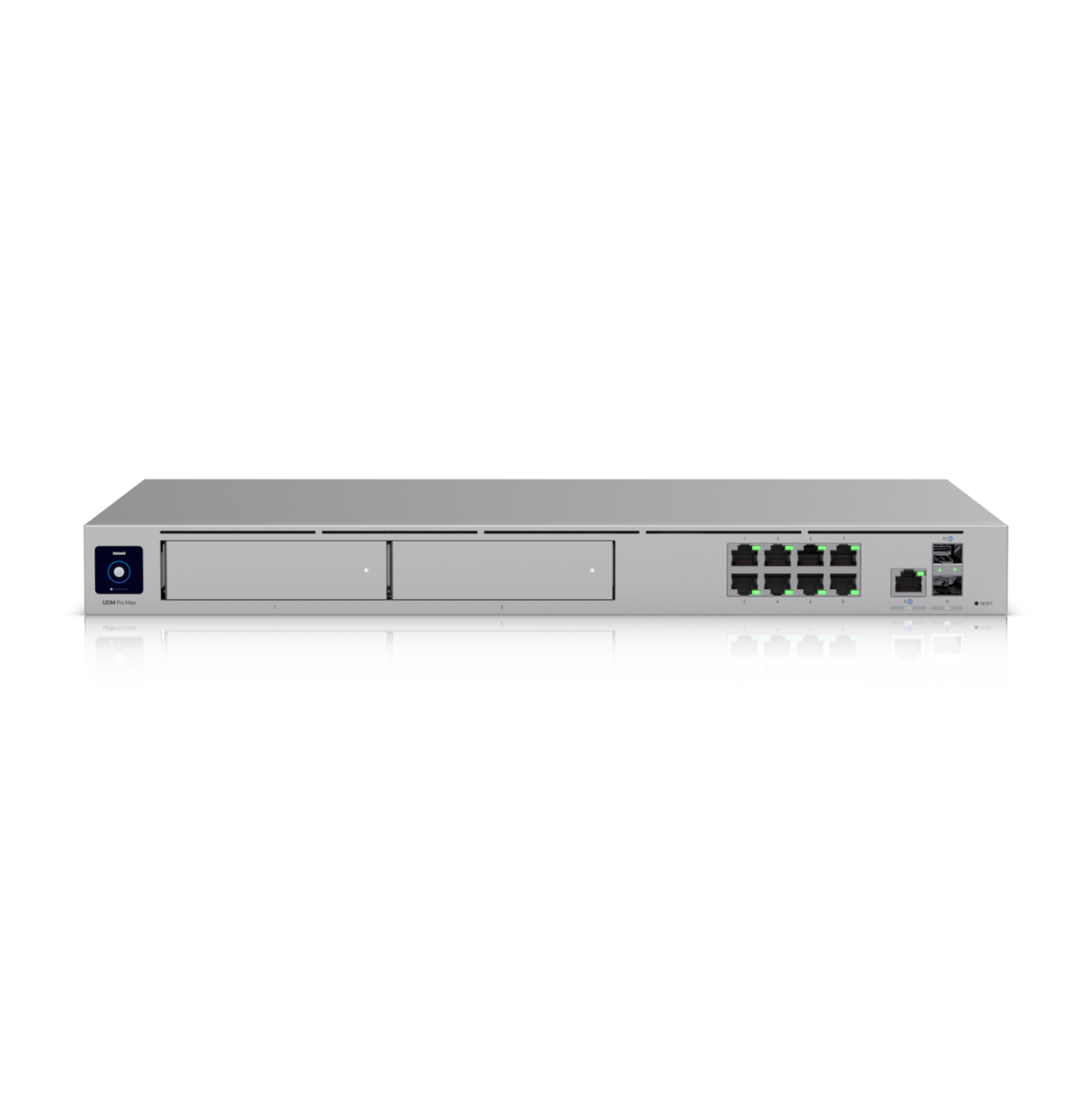

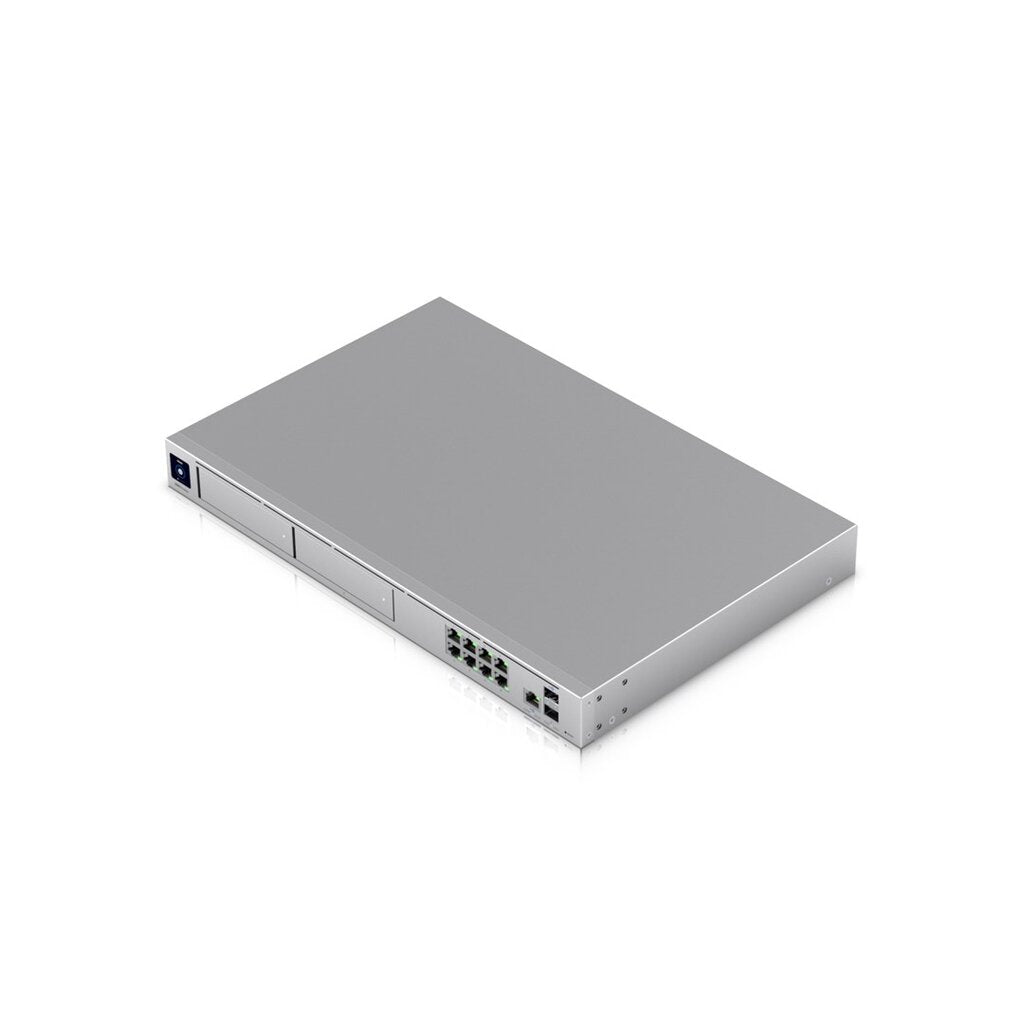

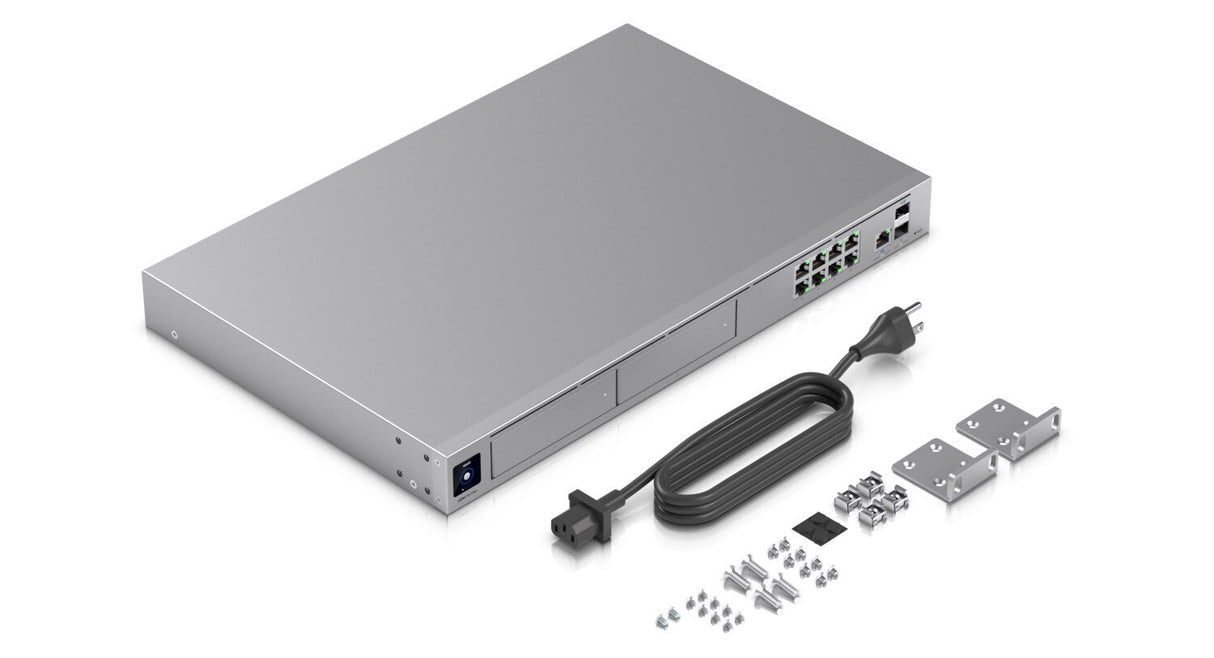

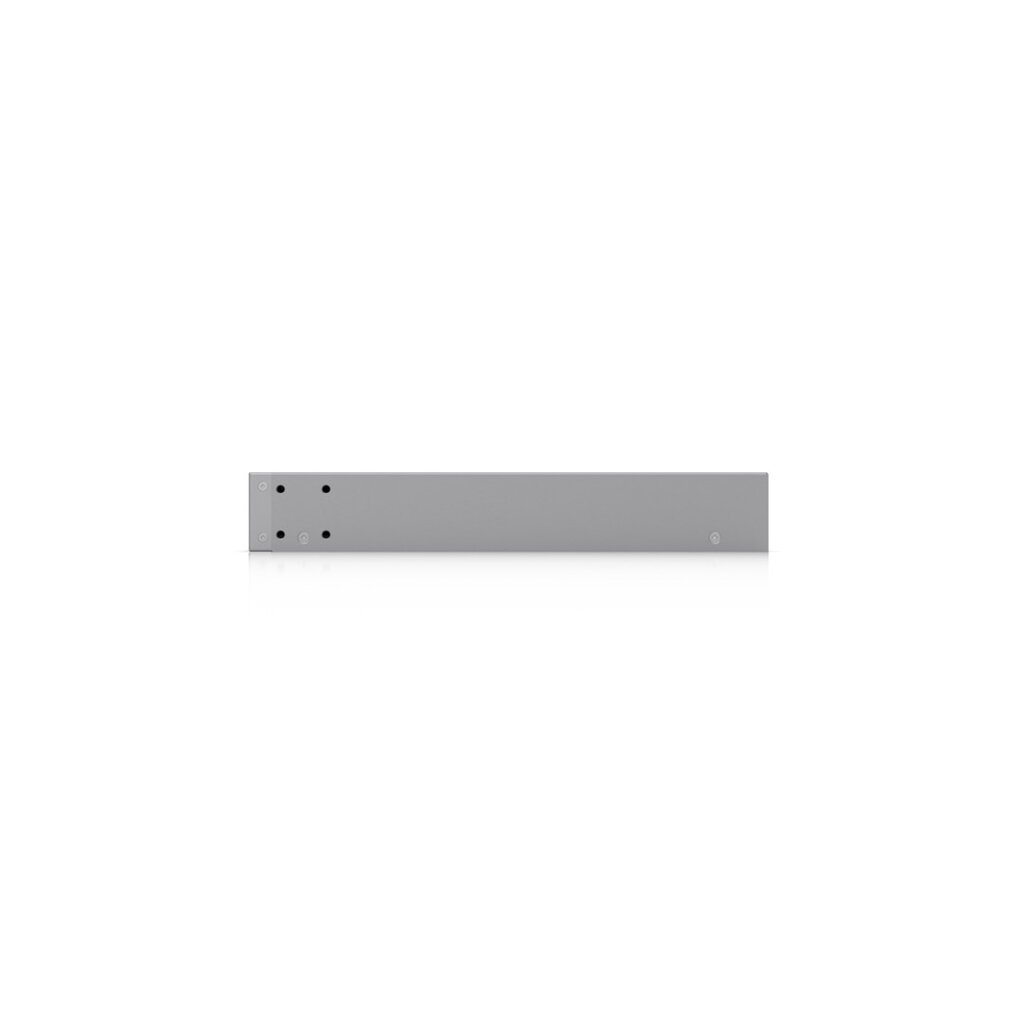

UBIQUITI Dream Machine Pro Max, išmanusis tinklo valdymo centras

Dream Machine Pro Max (UDM-Pro-Max) – tai itin našus 10G tinklo valdiklis, skirtas didelėms įmonėms ir tinklams, kuriuose naudojama daug įrenginių ir klientų.

Šis įrenginys siūlo moderniausias funkcijas, didelę spartos pralaidą bei duomenų apsaugą su RAID technologija.

• 5 Gbps IDS/IPS pralaida – nepriekaištinga tinklo apsauga ir sparta.
• 200+ UniFi įrenginių ir 2,000+ klientų palaikymas – dvigubai daugiau galios nei Dream Machine Pro/SE.
• RAID apsauga:
  • 2x 3.5" HDD lizdai – duomenų saugojimui ir apsaugai.
• Išmanioji saugumo sistema:
  • Pažangi ugniasienė.
  • IDS/IPS grėsmių aptikimas.
  • Turinio, šalies, domenų ir reklamų filtravimas.
• Platus jungčių pasirinkimas:
  • LAN: 8 GbE RJ45 prievadai, 1 x 10G SFP+ prievadas.
  • WAN: 1 x 2.5 GbE RJ45 prievadas, 1 x 10G SFP+ prievadas.

Dimensions
442.4 x 43.7 x 285.6 mm
(17.4 x 1.7 x 11.2")
UniFi Application Suite
Network
Yes
Protect
Yes
Access
Yes
Talk
Yes
Connect
Yes
Managed UniFi Devices
200+
Managed Cameras
(50) HD
(25) 2K
(15) 4K
Simultaneous Users Connected
2,000+
Default WAN Ports
(1) 10G SFP+
(1) 2.5 GbE RJ45
LAN Ports
(1) 10G SFP+
(8) GbE RJ45
IDS/IPS Throughput
5 Gbps
Form Factor
Rack Mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover
DC Power Backup
Security
Stateful Firewall
Yes
Application-Aware Layer 7 Firewall
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Content Filtering
Yes
Intrusion Prevention (IPS/IDS)
Yes
Ad Blocking
Yes
IDS/IPS Signatures
55,000+
with CyberSecure
VLAN/Subnet-based Traffic Segmentation
Yes
VPN & SD-WAN
License-Free SD-WAN
Yes
Site-to-Site VPN
Site Magic
Yes
IPsec
Yes
OpenVPN
Yes
VPN Server
Identity Endpoint One-Click VPN
Yes
Teleport Zero-Configuration VPN
Yes
WireGuard
Yes
OpenVPN
Yes
L2TP
Yes
VPN Client
OpenVPN
Yes
WireGuard
Yes
Networking
Multi-WAN Load Balancing
Yes
Shadow Mode (VRRP) High Availability
Yes
Dynamic Routing
OSPF
Yes
BGP
Yes
Advanced QoS
Yes
Multicast DNS (mDNS)
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
MAC Address Table Size
4,000
Policy-based WAN and VPN Routing
Yes
Customizable DHCP Server
Yes
IPv6 ISP Support
Yes
IGMP Proxy
Yes
Hardware
NVR Storage
(2) 3.5" NVR HDD bays
Built-in 128 GB SSD for Faster Experience
Max. Power Consumption
60W
Power Method
(1) Universal AC input, 100-240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A
Power Supply
AC/DC, internal, 100W
Supported Voltage Range
100—240V AC
Processor
Quad-core ARM® Cortex®-A57 at 2.0 GHz
System Memory
8 GB
On-board Storage
32 GB eMMC
128 GB SSD (Integrated)
Weight
4.7 kg (10.4 lb)
Enclosure Material
Aluminium CNC, SGCC steel
Mount Material
SGCC steel
LCM Display
1.3" touchscreen
Management
Ethernet
Bluetooth
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
LEDs
Ethernet
Yes
SFP+
Yes
RPS
Yes
PSU
Yes
HDD
Yes
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Button
(1) Factory-reset
