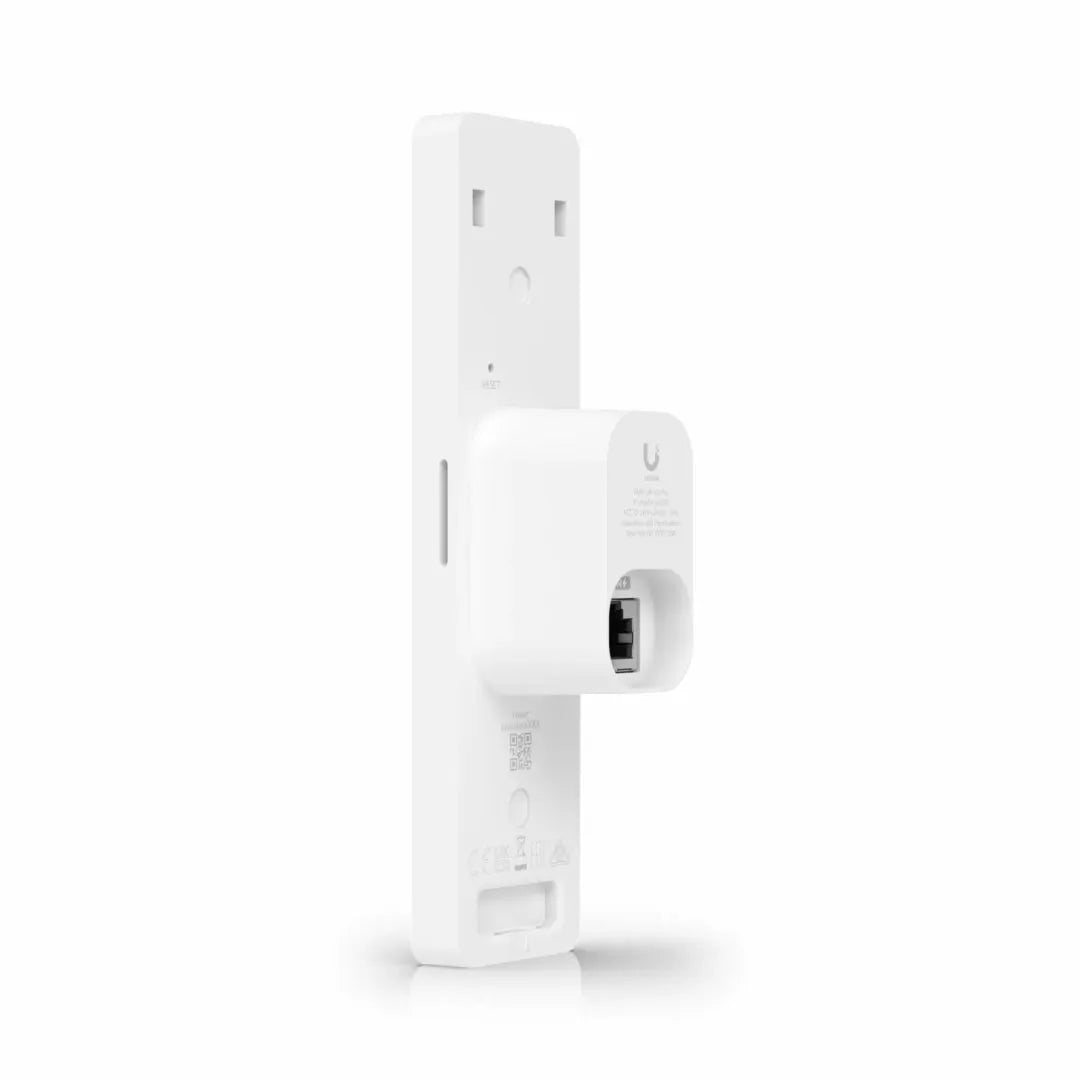

UBIQUITI UniFi G2 Reader Pro, NFC Skaitytuvas ir Vaizdo Telefonspynė

UniFi G2 Reader Pro – tai naujos kartos NFC skaitytuvas ir vaizdo telefonspynė, skirta naudoti tiek viduje, tiek lauke.

Įrenginys pasižymi pažangiomis funkcijomis, tokiomis kaip veido atpažinimas, durų atrakinimas per NFC kortelę, PIN kodą arba mobiliąją programėlę.

• Atrakinimo būdai:
  • NFC kortelė.
  • PIN kodas.
  • Veido atpažinimas.
  • UniFi Identity mobilioji programėlė.
• Telefonspynės funkcionalumas:
  • Vaizdo įrašai lankytojams.
  • Dvipusis balso ryšys.
• Montavimas: ADA standartą atitinkantis aukštis.
• Atsparumas: IP55 apsauga nuo oro sąlygų.
• Maitinimas: PoE (Power over Ethernet).

• Mechanical
  Dimensions    160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
  Weight    136 g (4.8 oz)
  Enclosure material    Polycarbonate, glass
  Mount material    Aluminum alloy
  Mounting    Wall, gang box
  Weatherproofing    IP55
  Hardware
  Networking interface    (1) GbE RJ45 port
  Connectivity    BLE 4.2
  NFC
  Power method    PoE
  UL 294 Power-limited Class 2 PSU
  UL 60950-1/62368-1 LPS/PS2 PSU
  Supported voltage range    48V DC
  Max. power consumption    6W
  ESD/EMP protection    Air: ±15kV, contact: ±8kV
  Sensor    Proximity sensor
  Camera view angle    H: 96.67°, V: 123.15°, D: 153.11°
  Microphone    Yes
  Speaker    (1) 4 ohm, 1.5W
  LEDs    R/G/B/W/Amber (Learn more)
  Button    (1) Factory-reset
  NFC frequency    13.56 MHz
  NFC read range    < 30 mm
  NFC technology    ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
  MIFARE Classic / MIFARE DESFIRE
  Sony FeliCa™ (ID only)
  NFC Forum tags T1T, T2T, T3T, T4T and T5T
  Operating environment    Outdoor use
  Ambient operating temperature    Device: -30 to 45° C (-22 to 113° F)
  Display:* -10 to 45° C (14 to 113° F)
  *The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v1.3.28)
  Ambient operating humidity    5 to 90% noncondensing
  Software information    The software version of a product can be checked at https://unifi.ui.com
  UL 294 level    Destructive attack: Level I
  Line security: Level I
  Endurance: Level I
  Standby power: Level I
  UL 294 statement    Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
  The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
  PoE cabling requirements    Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
  The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
  CAN/ULC-60839-11-1 Grade    Grade assignment: I
  Certifications    CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
  Document number, and issue date and/or revision level    UA-G2-Pro/UA-G2-Pro-Black, V02
  Software
  Management application    UniFi Access: Version 1.5.9 and later
