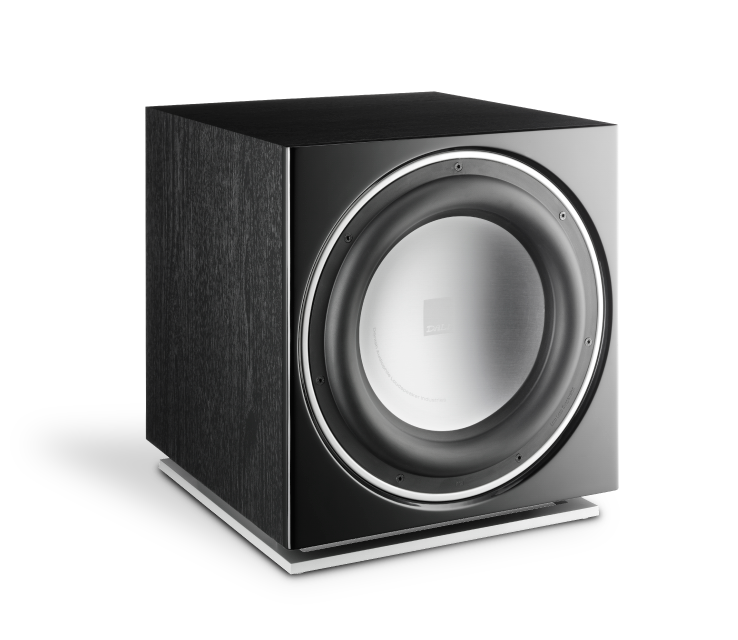

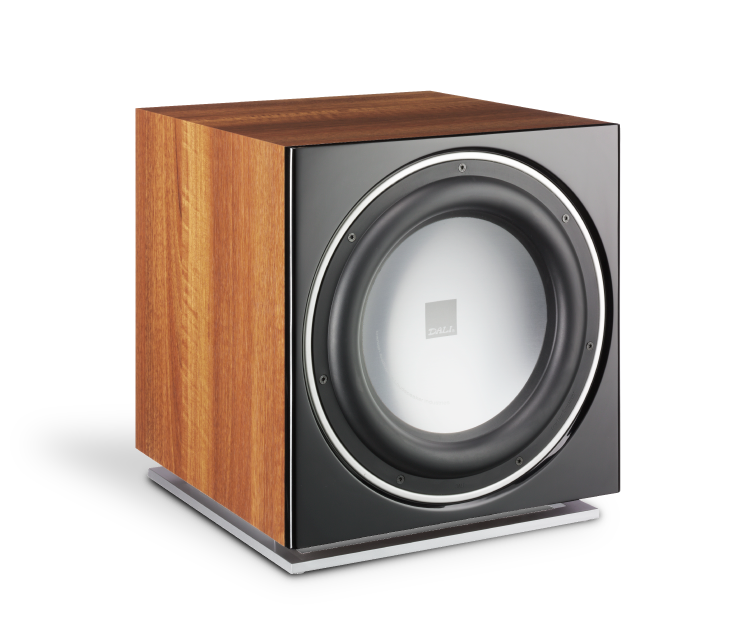

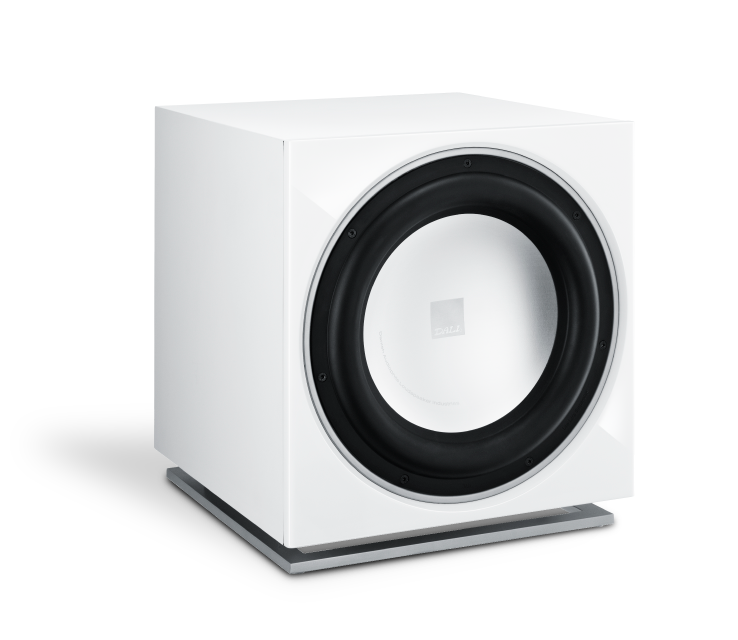

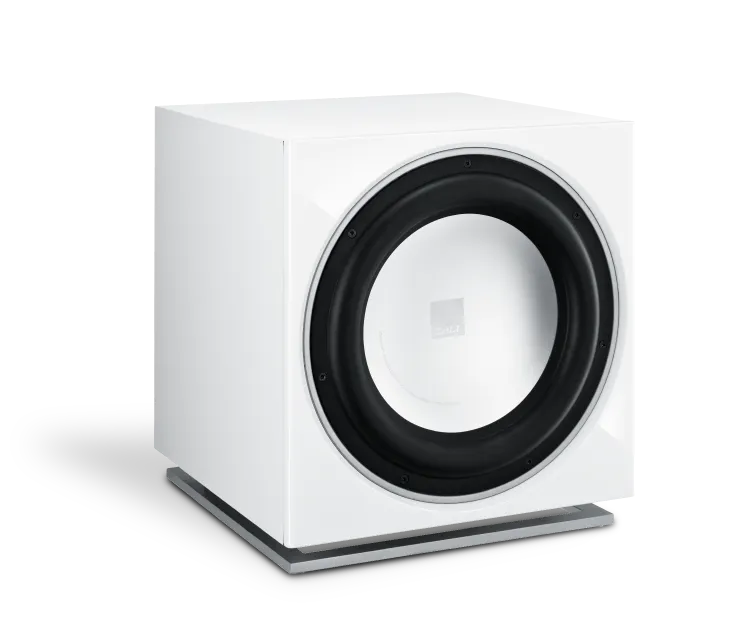

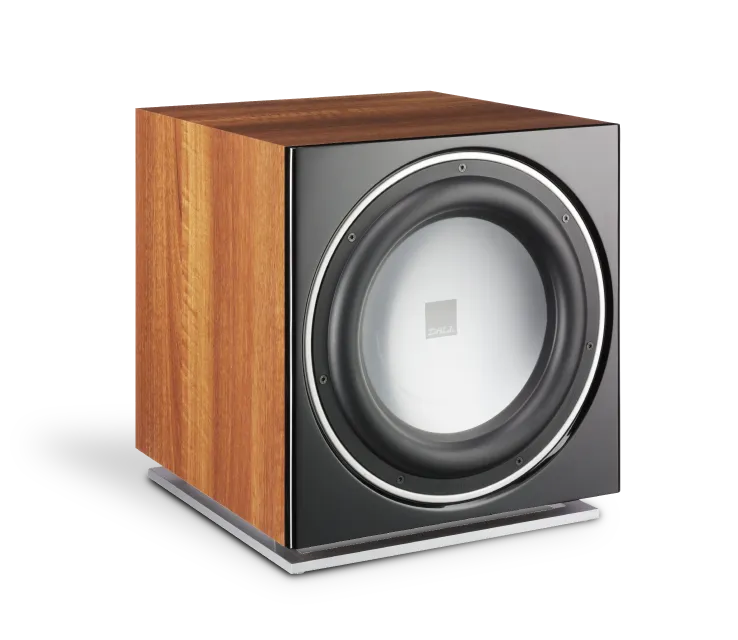

Žemų dažnių kolonėlė Dali SUB E-12 F, 220W

• Galia: RMS 170W  /  MAX 220W
• Dažnių diapazonas: 28 - 190 Hz
• Matmenys: 370 x 340 x 380
• Svoris: 14.7 kg

The DALI SUB E-12 F is an elegant subwoofer strong enough for most purposes, whether there is music or movies on the program. The SUB E-12 features a 12” woofer, capable of moving plenty of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior.

ALUMINIUM BASE

Giving the illusion that the subwoofer is floating on air, the elegant aluminium base decouples the subwoofer from the floor and integrate seamlessly to the room.

ELEGANT AND SIMPLE DESIGN

The cabinet is designed to fit perfectly to the size of the woofer, but without forgoing the inner volume that is needed to produce a powerful bass performance.

HIGH-YIELD AMPLIFIER

All the amplifiers in the DALI subwoofers have the stamina to keep a high-yield performance and the headroom to draw out that little extra when needed.

FLEXIBLE CONNECTIVITY

All DALI subwoofers are compatible with almost any amplifier, receiver or processor due to the choice of LFE or LINE inputs.

The launch of the DALI SUB E-12 F marks a new stage of what is possible at this level of subwoofers.

The SUB E-12 features a 12” woofer, capable of moving plenty of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior. Furthermore, the heavy magnet system wields a massive 4-layer, long-stroke voice coil. All in all, the heavy-duty abilities of this “motor system” ensure that the woofer always follows the signal from the amplifier!

The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, well-balanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading.

The back plate of SUB E-12 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.

The DALI SUB E-12 F is recommended as compliment to the ZENSOR series and is compatible with all DALI loudspeakers as the perfect completion of a DALI surround set up.

AMPLIFIER

The integrated 170 Watt RMS Class D amplifier is a highly linear construction. The DALI SUB E-12 F will follow and render the required signal with an absolute minimum of bias. Designed not only for continuous power, but also for peak power, this subwoofer is able to deliver 220 Watt Peak Power. This is very relevant when it comes to both movie and music signals.

Switchmode power supply is part of the reason for very low power consumption - only 0.4 Watt in stand-by mode. And the amplifier displays an impressive efficiency of 70%. In unison the high efficiency amplifier section and power supply construction generate an absolute minimum of heat loss. For that reason you will find no external heat sink on this subwoofer.

To improve sound reproduction in general, and to ensure that this subwoofer is able to perform under difficult circumstances, a limiter has been incorporated in the amplifier section.

The integrated limiter works in two areas: It compares the input signal amplitude to the potential output signal level, and it compares the available supply voltage from the power supply to the expected output signal. If any of these comparisons show that there will be a problem then the limiter will cut the signal in a soft manner and without affecting peak power.

Fitted with controls for gain, cut-off frequency, and phase, the DALI SUB E-12 F will adapt to any front speaker and room acoustics. And with a choice of LFE and LINE inputs it can be connected to almost any amplifier, receiver or processor.

• Maximum SPL [dB] 112
• Crossover Frequency [Hz] 40 - 120
• Low frequency driver, Quantity 1 x 12" long stroke
• Low frequency driver, Diaphragm type Polymere Aluminimum
• Enclosure type Bass Reflex
• Bass Reflex Tuning Frequency [Hz] 36.0
• Input Impedance [ohms] 25k
• Connection Input:
  Mono Line Level (LFE)
  RCA
  Stereo Line Level (low pass filtered)
• Magnetic Shielding No
• Recommended Placement Floor
• Recommended Distance From Wall [cm] > 5
• Functions:
  Crossover Frequency
  Phase Switch
  Standby (Auto Power) On/Off Switch
  Volume (Gain)
• Max. Power Consumption [W] 250
• Dimensions With Base (HxWxD) [mm] 370 x 340 x 380
• Weight [kg] 14.7
• Accessories:
  Included Manual
  Rubber Bumpers
  Spikes M6
