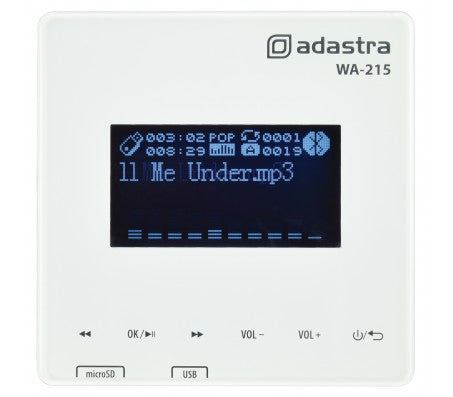

Adastra WA-215, wall-mounted audio amplifier

The compact sound amplifier is mounted on the wall. Remote control included.

• Power: 2 x 15W.
• Frequency band: 20Hz - 20kHz.
• Bluetooth connection support.
• USB connection, SD card support.
• THD: <0.03% @1kHz 1W.
• SNR: >98dB.

Compact audio controller with 2 x 15W digital amplifier built into a single gang wall plate. Powered directly from 100-240Vac mains supply, the unit can be installed into a partition wall or 47mm back box and provides a minimal yet fully functional control surface. The WA-215 has an inbuilt USB/MicroSD audio player, an FM tuner and a Bluetooth receiver. Key functions are operated from the front touch panel or by using the supplied IR remote control. Connections for 2 speakers, mains power, FM antenna and an external line input are provided at the rear on screw terminal Euroblock connectors. Trigger contacts are also included for media playback and internal doorbell sound. A complete and versatile audio solution for wall or ceiling background music speakers in the home or commercial premises.

PROPERTIES

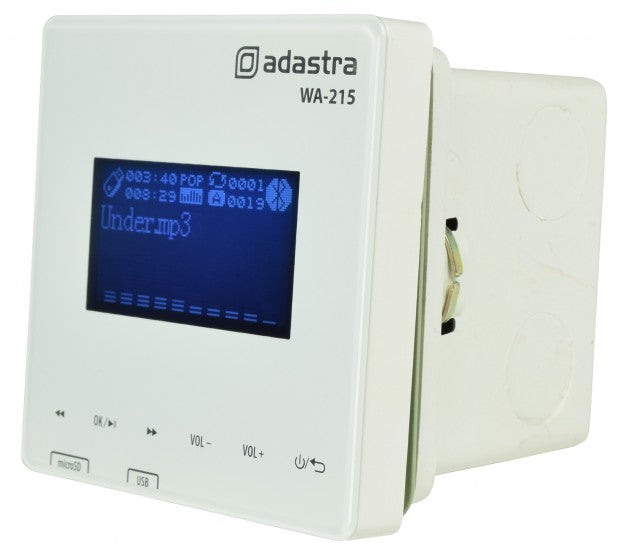

• Supplied with 57mm back box and IR remote control handset.
• 60mm backlit LCD display

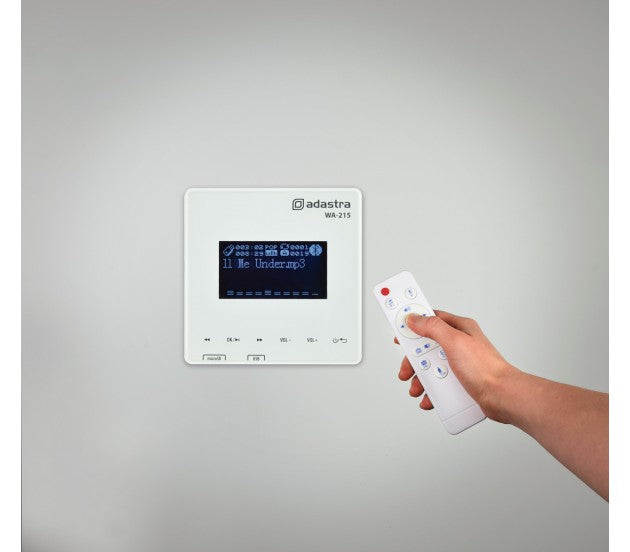

• Wipe clean touch control panel
• Built-in USB/microSD player and FM tuner
• Bluetooth connectivity

SPECIFICATIONS

• Power supply: 100-240Vac, 50/60Hz (euroblock terminals)
• Output: 2 x 15W @ 8 ohms (euroblock terminals)
• Audio source: USB / microSD player, FM tuner and Bluetooth receiver
• Auxiliary input: Left + right line in (euroblock terminals)
• Audio format: mp3, wma, wav
• FM: tuning range: 87.5 - 108MHz
• Bluetooth range: Up to 10m
• Bluetooth version: 4.1
• Frequency response: 20Hz - 20kHz (±3dB)
• THD: <0.03% at 1kHz, 1W
• S/N ratio: >98dB
• Trigger: Remote playback and door bell (euroblock terminals)
• Mounting depth: 47mm (with adequate ventilation), 57mm back box supplied
• Dimensions: 86 x 86 x 50mm
• Weight: 150g

What's in the package?

• WA-215 wall mount amplifier + media player
• IR remote control handset
