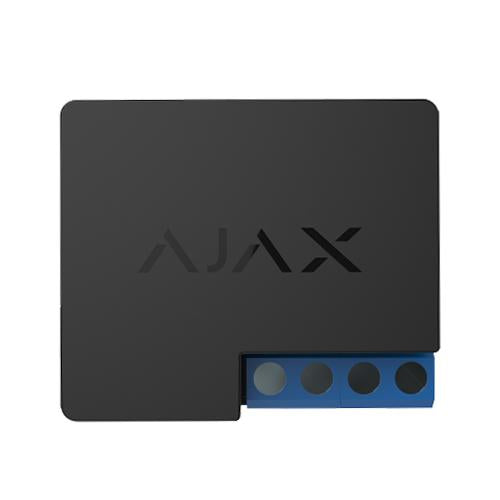

Ajax DoorProtect Plus, relay Dry Contact

Wireless dry contact relay for switching on and off the devices used. Powered by a 7-24V DC source.

• Energy consumption: less than 1 Wh.
• Communication protocol: Jeweler (868.0-868.6 MHz).
• Modulation: GFSK.
• Output power: up to 3 kW.

Long distance is not an obstacle:

Works up to 1000 meters from the Ajax Hub smart center in open space and over several floors. Allows devices to be turned on or off remotely. With pulse equipment control function.

Technical data

• 100% Protection: Protects against voltage spikes and overheating.
• Effective and reliable:
• Uses a remote antenna. Operating voltage 7-24V. Saves technical parameter information after overheating.
• Technical data:
• Color: black
• Place of use: interior
• Device: electromagnetic relay
• Relay life: 200,000 switches
• Supply voltage range: 7-24 V (DC)
• Voltage protection: yes, min - 6.5 V, max - 36.5 V
• Maximum current load: 5 A at 36 V DC, 13 A at 230 V AC
• Maximum current protection: no
• Maximum temperature protection: yes, above 65°C at the installation site or above 85°C at the relay.
• Output power: up to 3 kW
• Parameter control: Yes
• Energy consumption: less than 1 Wh
• Communication protocol: Jeweler (868.0-868.6 MHz)
• Modulation: GFSK
• The maximum distance between the relay and the smart control unit: 1000 m
• Radio signal power: 25 mW
• Works at temperatures: from 0°C to +64°C
• Moisture resistance: up to 75%
• Dimensions: 38x25x18 mm
• Weight: 32 g

The set consists of :

• Relay
• Instruction
• Double-sided adhesive tape
