Alpine  |  Barcode: 4958043721467

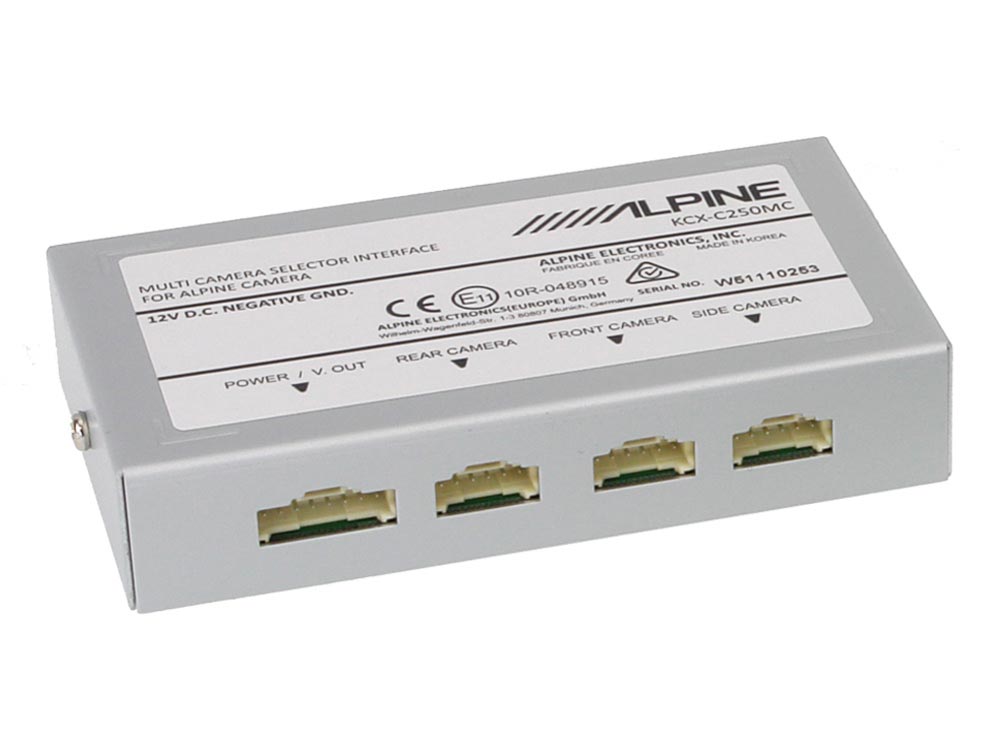

Alpine KCX-C250MC, camera switching interface

€115.00 EUR

Alpine KCX-C250MC, camera switching interface is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

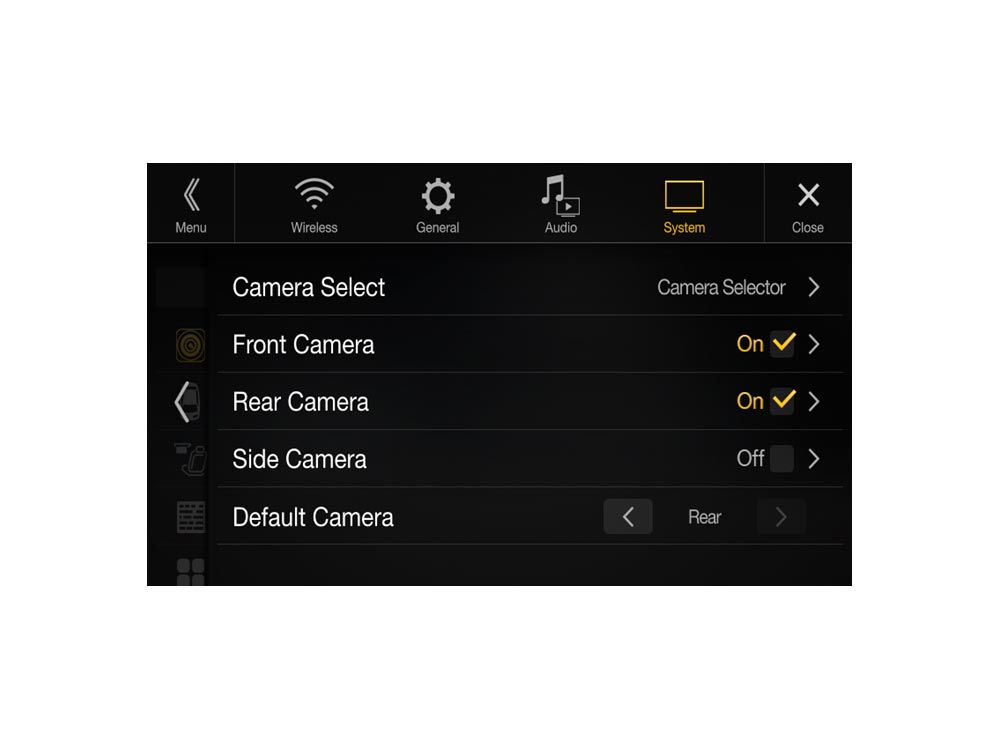

Allows you to connect up to three Alpine direct connect cameras. Alpine's front, rear and side view cameras can be controlled with the player's touch screen.

  • Output image: normal image, CVBS (NTSC video signal).
  • 16:9 video output for widescreen.
  • Power supply cable: 3 m.

SPECIFICATIONS

Features

General

  • Enables connection for up to three Alpine cameras with Direct Camera Connection
  • Supports power supply for direct cameras
  • Supports Alpine Multiview Cameras, you can switch between up to 4 different camera views - depending on the camera: Panorama-, Back-, Corner- and Top-view.
  • Required for using front, rear and side cameras at once

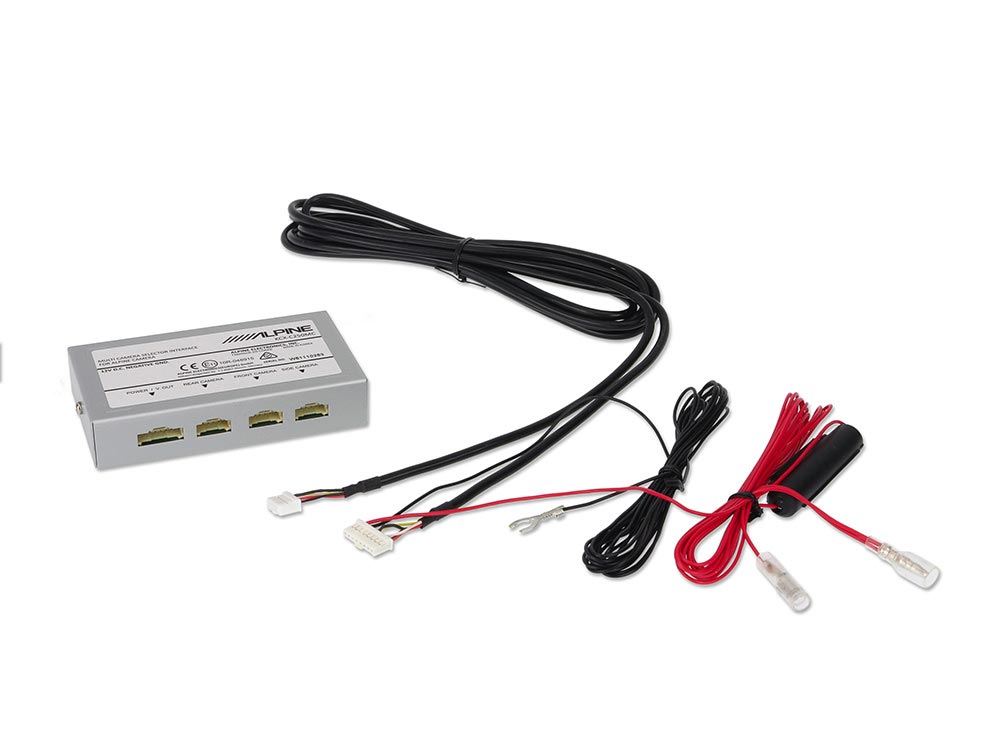

  • Includes required video and power cables
  • Compatible with INE-W997D, X701D-A4R, X701D-A5, X701D-Q5, X801D-U, X901D-G7 (required Software: 2.xxx or higher)

Specifications

General

  • Input / output: 3x Input / 1x Output
  • Output Image: Normal image, CVBS (NTSC Video signal) 16:9 Image output for wide-screen
  • Image Output impedance: 75 Ohm (1Vp-p)
  • Power Requirement: 9.0 to 15.6 V DC
  • Power Consumption: Less than 0.6W (12V)
  • Output voltage: 6V ( DC )
  • Operating Temperature: -30°C - +70°C
  • Weight Power Section: 172g (box only)

Dimensions:

  • Power Unit: 106 x 60 x 22mm
  • Power Unit Cable: 3m


    INSTRUCTIONS

    User Manual (EN).
