Alpine  |  Barcode: 4958043888658

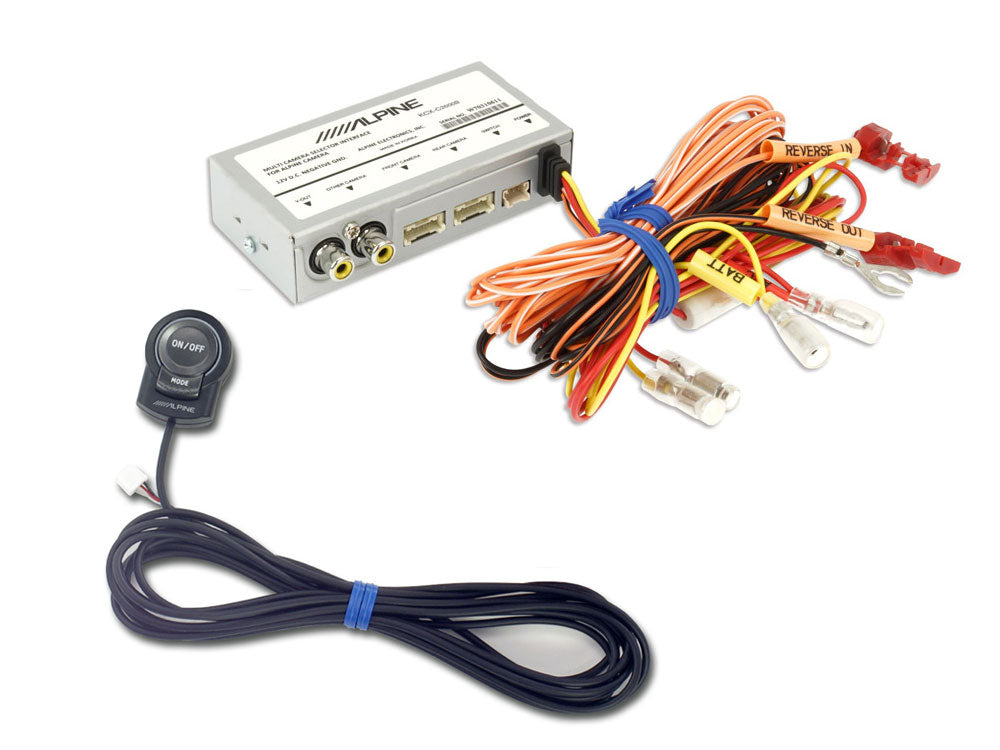

Alpine KCX-C2600B, Dual Multi-Camera interface

€85.00 EUR

Alpine KCX-C2600B, Dual Multi-Camera interface is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Allows you to connect one or two Multi-View cameras to a monitor with an RCA connector.

  • Output image: normal image, CVBS (NTSC video signal).
  • 16:9 video output for widescreen.
  • Power supply unit cable: 2m / 6m.
  • RCA extension: 2 m.
  • Switch cable: 3 m.

SPECIFICATIONS

Features

General

  • Camera accessory for direct connection cameras
  • Enables connection of one or two Multi-View cameras to screens with RCA input
  • Supports power supply for direct cameras
  • Required if you want front and rear camera
  • Includes camera view on/off of front camera and view mode select switch

Specifications

General

  • Output Image: Normal image, CVBS (NTSC Video signal) 16:9 Image output for wide-screen
  • Image Output impedance: 75 Ohm (1Vp-p)
  • Power Requirement: 12 V.DC
  • Negative Ground
  • Power Consumption: Less than 1.7W (12V)
  • Operating Temperature: -30°C - +80°C
  • Weight Power Section: 109g (including cable)
  • Weight Switch Section: 50g (including cable)

Dimensions:

  • Power Unit: 100 x 50 x 25mm
  • Switch Section: 29 x 38.5 x 13.6 mm
  • Power Unit Cable: 2m / 6m
  • RCA Extension Cable: 2m
  • Switch Cable: 3m

INSTRUCTIONS

User Manual (EN).
