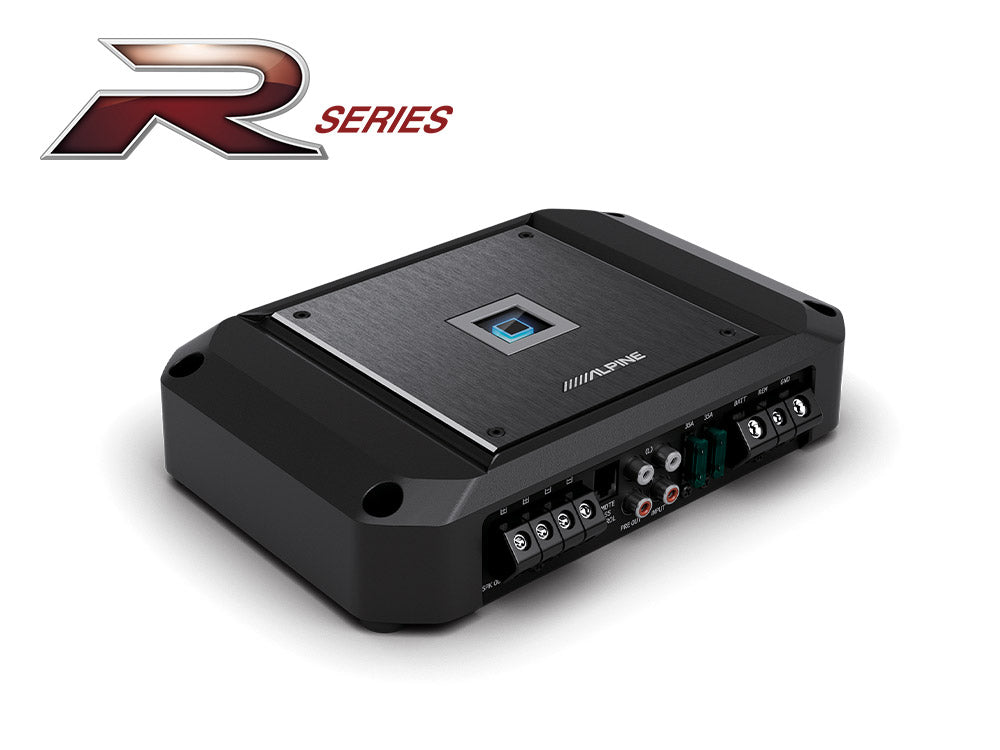

Alpine R2-A75M, Car Mono Audio Amplifier
Alpine R2-A75M, Car Mono Audio Amplifier is backordered and will ship as soon as it is back in stock.
▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.
Home delivery from €4.99
Home delivery from €4.99
Venipak courier within 1-2 working days.
Collect in store €0
Collect in store €0
Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00
Alpine R2-A75M, Car Mono Audio Amplifier
- INFORMACIJA
- DESCRIPTION
- TECHNICAL DATA
- DOCUMENTS
Alpine's R Series line of speakers, subwoofers and amplifiers deliver sound quality that can be heard a block away, and the new R Series amplifiers are no exception.
- Power: 1500W.
- Class D audio amplifier.
- Frequency band: 10Hz – 400Hz.
- THD+N (@ 10W into 4 Ohms): <0.04%
Elevate Your Audio
Elevate your audio with the Alpine R2-A75M Mono Amplifier - delivering powerful 750W performance @ 2 Ohms in a sleek, compact design. Built with Alpine's cutting-edge Class-D Amplifier Circuit, this next-generation R-Series amp offers exceptional sound quality and efficiency, making it the perfect addition to any car audio system.
Reduced Footprint
The R2-A75M features a reduced footprint that's 15% smaller than the previous model (R-A75M), making it easier than ever to install in most vehicle applications while still getting the same powerhouse performance.
Extensive Tuning Options

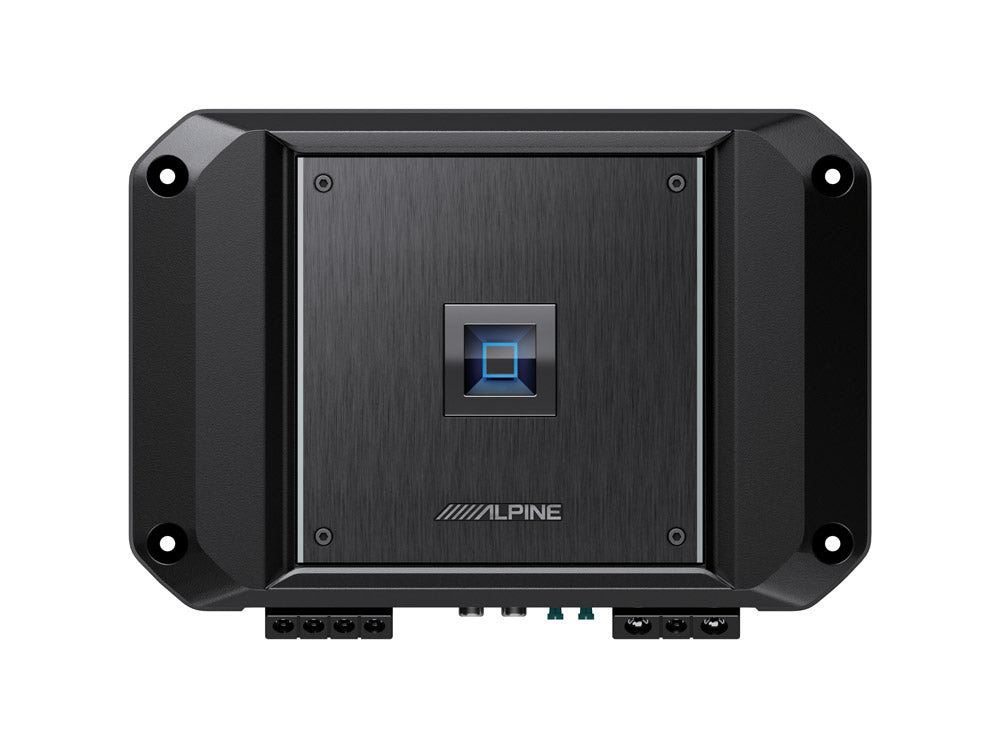

The R2-A75M features intentional design choices that prioritize convenience and simplicity. All speaker connections are consolidated on one side of the device for easy access, while the amplifier controls have been relocated to the top under a removable plate, allowing for quick adjustments to gain and crossover controls. The amplifier's chassis also includes integrated mounting "feet" to streamline the installation process.
Remote Bass Knob Ready
You can connect the RUX-KNOB2 remote bass knob (optionally available) to the R2-A75M to control the subwoofer level straight from your dash.
Simplified Installation
Intentional designs were made to the amplifier that consolidated all speaker connections to one side of the amplifier for easy access. Amplifier controls were relocated to the top of the amplifier under a removable plate for convenient access to gain and crossover controls. To simplify the installation process, mounting brackets are integrated onto the chassis of the amplifier.
Made for R-Series Speakers & Subs
The R-Series amplifiers are designed to perfectly match the Alpine R-Series speaker and subwoofer line for perfect system building. R-Series components are designed to be played loud, for a fun and great sounding experience including Hi-Res Audio capabilities.
SPECIFICATIONS
FEATURES
Installation

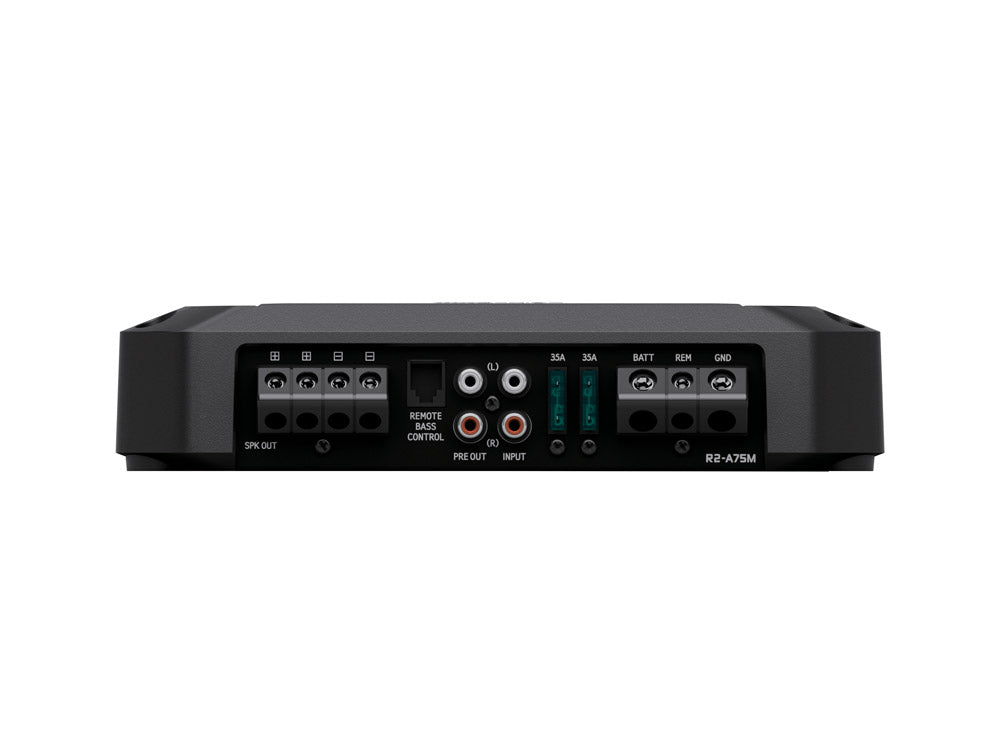

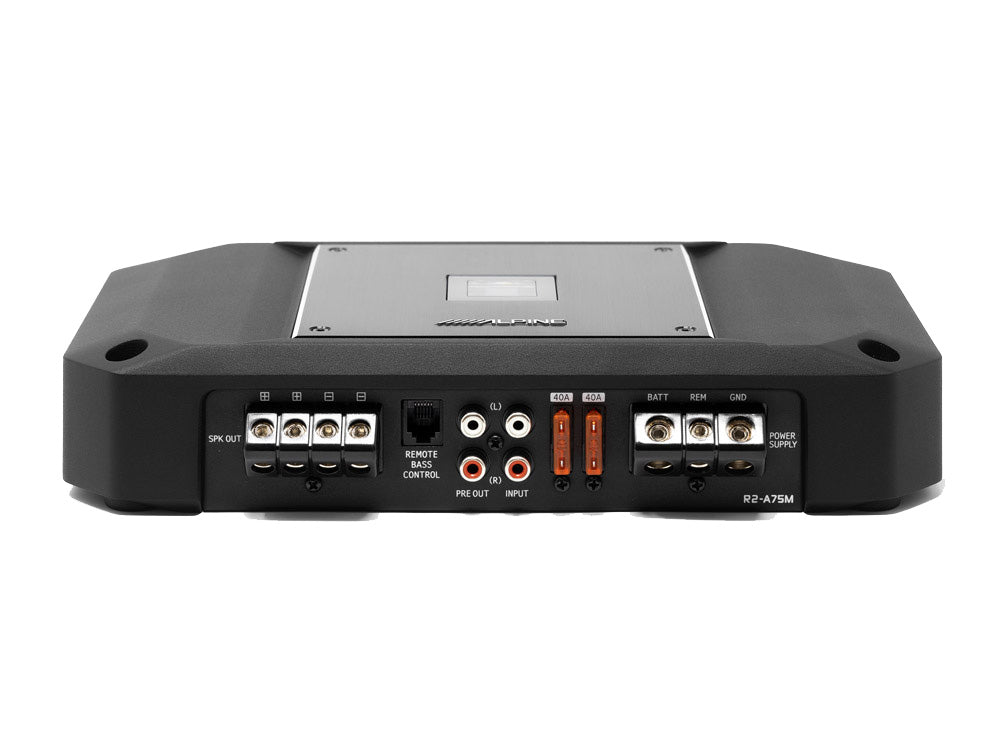

- Terminal Layout: One side
- Small footprint for easy installation
- Screw terminals (for speakers and power cables)
General
- Class-D Amplification (Digital)
- Channel Design: Mono Channel
- Top panel controls
- Thermal Management Control
- Top Mounted LED Power/Status Indicator
- Speaker Level Input with remote turn on
- Crossover: Adjustable Low-pass (LPF) and Variable Subsonic filter
- Adjustable Gain Control
- Bass EQ
- Remote Bass Control (RUX-KNOB2) Ready
SPECIFICATIONS
Max Power Output Ratings
- Total Max Power: 1500W
RMS Power Ratings
- Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 750W
- Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 500W
Sound Tuning
- Crossover: Variable LPF: 50-400Hz (-24dB/oct)
- Crossover: Variable Subsonic: 8Hz-40Hz (-24dB/oct)
General
- Power Requirements: 14.4 V.DC (9 - 16 V allowable)
- Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V
- High Level Input with automatic power on
- Cable size: Power Cable AWG 4, SPK Cable AWG 8
- Frequency Response: 10Hz - 400Hz
- THD+N (@ 10W into 4 Ohms): <0.04%
- Damping Factor: >250
- Weight: 3.5 kg
Dimensions
- Heat Sink (WxHxD) mm: 282 x 55 x 165
