Alpine  |  Barcode: 4958043888788

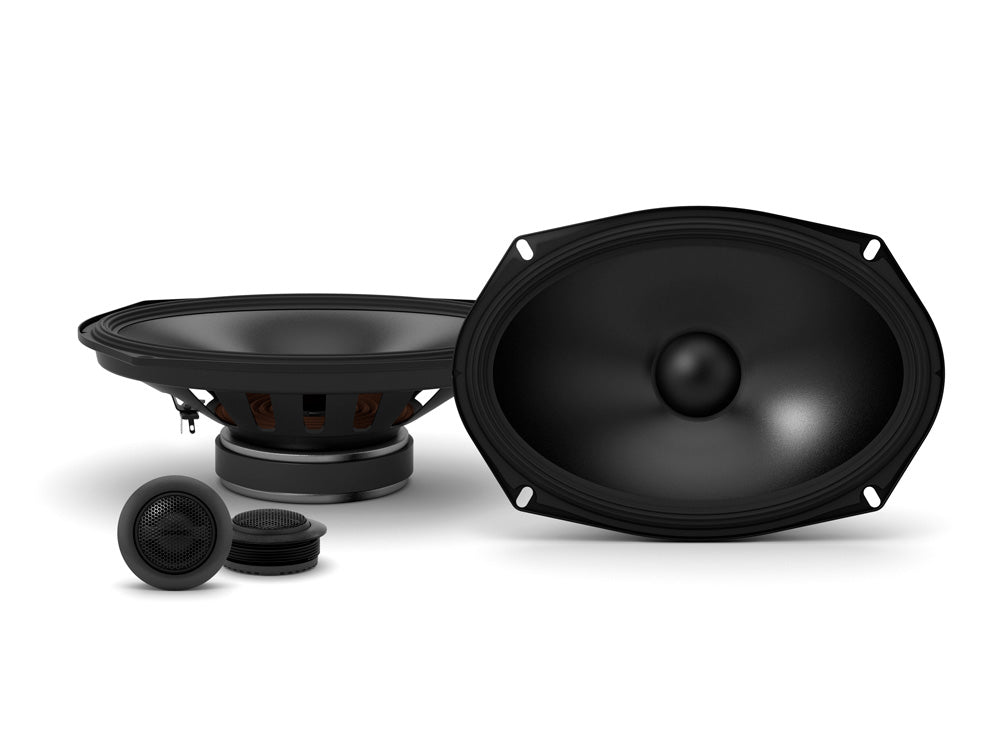

Alpine S-S69C, component car speakers

€120.00 EUR

Alpine S-S69C, component car speakers is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.


Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

The Alpine S series delivers incredibly high performance for speakers in this class. Excellent price-quality ratio guaranteed!

  • Recommended amplifier power: 85W.
  • Frequency range: 65 Hz - 22 kHz.
  • Sensitivity: 90 dB/W.
  • Resistance: 4 ohms.

Alpine S-Series speaker

Introducing the S-Series speaker line

The all-new Alpine S-Series speakers offer an amazing price vs. performance ratio and come in many configurations. They are perfect for OEM upgrades with many sizes to choose from to suit a wide variety of vehicles.

HAMR Surround Powerful Speaker Motor

HAMR Surround

Alpine's patented HAMR (High Amplitude Multi-Roll) surround is now found on the S-Series speakers. This proven technology increases excursion while maintaining accuracy and linearity. The multi-roll design allows an even unfolding of the surround, which creates incredible linearity and colorization rejection.

Powerful Speaker Motor

The S-Series speakers have a large voice coil. The 6.5-inch and 6x9-inch models for example feature a 35-mm voice coil, and this large voice coil size increases their driving power and control of the motor.

CFRP (Carbon Fiber Reinforced Plastic) Cone Protect Your Speakers

CFRP Cone

The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are normally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance.

Protect Your Speakers

Speaker grills are available for several of the S-Series speakers and are sold separately. The durable mesh grills are sold in pairs.

SPECIFICATIONS

FEATURES

Woofer

  • CFRP (Carbon Fiber Reinforced Plastic) cone with special rubber surround
  • HAMR (High Amplitude Multi-Roll) Surround
  • Large 35 mm Voice Coil
  • Magnet Material: Ferrite
  • Grill sold separately: KTE-S69G

Twitter

  • Tweeter Type: 1" Wide-Range Silk Dome
  • Magnet Material: Neodymium
  • Application Type: External/Swivel Tweeter Mounting Kit
  • Flush mount
  • Grill: Punched even

Crossover Network

  • Grade: In-line 2nd order Network Design

SPECIFICATIONS

Power Handling

  • Peak Power: 260 Watts
  • RMS Power: 85 Watts (CTA-2031 Compliant)

Dimensions Woofer

  • Frame 161 x 237 mm
  • Mounting depth: 74.4 mm
  • Mounting height: 7.4 mm
  • Magnet: 100.0 mm

Dimensions Tweeter

  • Frame: 37.8 mm
  • Dome: 26.6 mm
  • Height: 17.4 mm

General

  • Frequency Range: 65 Hz - 22 kHz
  • Impedance: 4 Ohms
  • Sensitivity: 90 dB/W

                The Alpine S series delivers incredibly high performance for speakers in this class. Excellent price-quality ratio guaranteed!

                • Recommended amplifier power: 85W.
                • Frequency range: 65 Hz - 22 kHz.
                • Sensitivity: 90 dB/W.
                • Resistance: 4 ohms.

                Alpine S-Series speaker

                Introducing the S-Series speaker line

                The all-new Alpine S-Series speakers offer an amazing price vs. performance ratio and come in many configurations. They are perfect for OEM upgrades with many sizes to choose from to suit a wide variety of vehicles.

                HAMR Surround Powerful Speaker Motor

                HAMR Surround

                Alpine's patented HAMR (High Amplitude Multi-Roll) surround is now found on the S-Series speakers. This proven technology increases excursion while maintaining accuracy and linearity. The multi-roll design allows an even unfolding of the surround, which creates incredible linearity and colorization rejection.

                Powerful Speaker Motor

                The S-Series speakers have a large voice coil. The 6.5-inch and 6x9-inch models for example feature a 35-mm voice coil, and this large voice coil size increases their driving power and control of the motor.

                CFRP (Carbon Fiber Reinforced Plastic) Cone Protect Your Speakers

                CFRP Cone

                The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are normally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance.

                Protect Your Speakers

                Speaker grills are available for several of the S-Series speakers and are sold separately. The durable mesh grills are sold in pairs.

                SPECIFICATIONS

                FEATURES

                Woofer

                • CFRP (Carbon Fiber Reinforced Plastic) cone with special rubber surround
                • HAMR (High Amplitude Multi-Roll) Surround
                • Large 35 mm Voice Coil
                • Magnet Material: Ferrite
                • Grill sold separately: KTE-S69G

                Twitter

                • Tweeter Type: 1" Wide-Range Silk Dome
                • Magnet Material: Neodymium
                • Application Type: External/Swivel Tweeter Mounting Kit
                • Flush mount
                • Grill: Punched even

                Crossover Network

                • Grade: In-line 2nd order Network Design

                SPECIFICATIONS

                Power Handling

                • Peak Power: 260 Watts
                • RMS Power: 85 Watts (CTA-2031 Compliant)

                Dimensions Woofer

                • Frame 161 x 237 mm
                • Mounting depth: 74.4 mm
                • Mounting height: 7.4 mm
                • Magnet: 100.0 mm

                Dimensions Tweeter

                • Frame: 37.8 mm
                • Dome: 26.6 mm
                • Height: 17.4 mm

                General

                • Frequency Range: 65 Hz - 22 kHz
                • Impedance: 4 Ohms
                • Sensitivity: 90 dB/W
