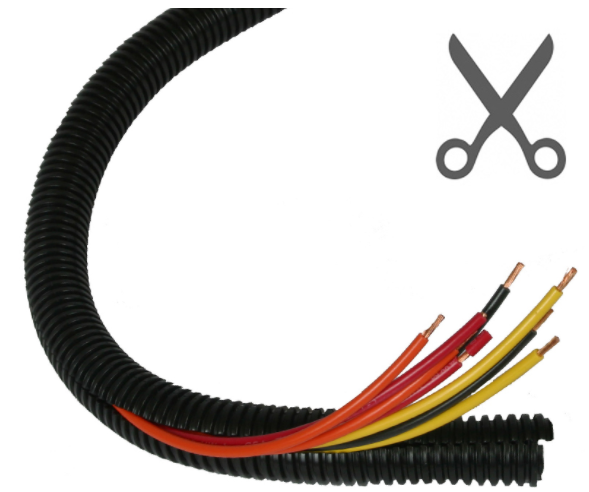

AMPIRE SCHLEMMER LOOM-084-LM, corrugated wire protection

High-quality corrugation is intended for cable protection and installation.

• Bending radius: 10 mm.
• Inner diameter: 8.4mm.
• Outer diameter: 11.7mm.
• Material: Polyamide 6

High-quality, slotted corrugated tube for the mechanical protection of wiring harnesses in the engine compartment and body in German OEM quality. Suitable for automotive, shipbuilding and mechanical engineering.

APPLICATION
- Engine compartment, body, vehicle interior, machine / apparatus construction, control cabinets.
- Protection of vehicle wiring from heat, moisture, chemicals and UV radiation.

SPECIFICATIONS

- Material: Polyamide 6
- Temperature range: -40 to +120 degrees C (240h), short-term +150 degrees C
- Flame retardant: UL 94: HB to FMVSS 302: <100 mm/min.
- Halogen free
- UV resistant to DIN EN ISO 8580
- Color: Black
- Length: 1 meter (as a running meter)
- Inner diameter: 8.4mm
- Outer diameter: 11.7mm
- Nominal diameter: NW 8.5
- Bending radius: > 10 mm
- Version: slotted
- Resistance to: alcohols, gasoline, diesel, fats, mineral oils
