Audio-Technica  |  Barcode: 4961310146016

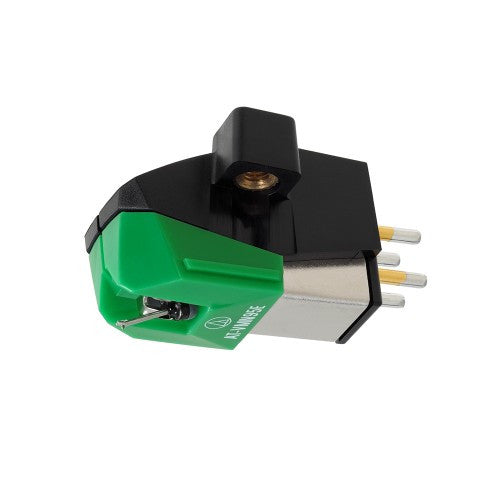

Audio-Technica AT-VM95E, cartridge

€59.00 EUR

▪️ Do you have any questions about this product? We can advise you by phone +370 683 90000 or come to our salon at Armatūrinininkų g. 1, Kaunas .

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

VM95 series elliptical stereo cartridge (with double magnet).

  • Frequency band: 20 - 20,000 Hz.
  • Cantilever: Aluminum.
  • Channel separation: 20 dB (1 kHz).
  • VM type cartridge.

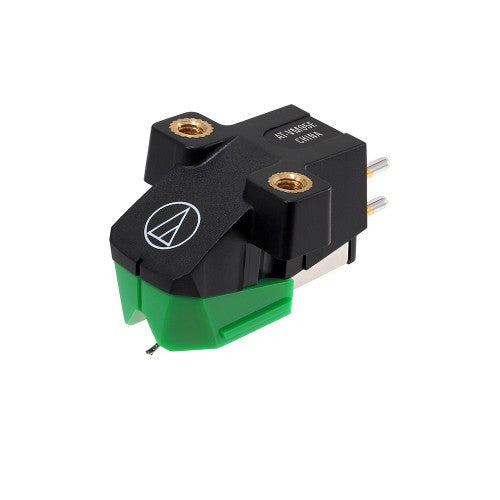

The AT-VM95E, the new Audio-Technica entry model Elliptical cartridge will replace the legendary AT95E and take advantage of the developments of the AT95EX introduced in 2015. The AT-VM95E features an improved and distinctive design resulting in a more rigid low resonance housing , and two threaded inserts in the cartridge body enabling it to be mounted to the headshell or on an integral tonearm with just two screws, no nuts.

  • Aluminum cantilever
  • 4.0mV output voltage
  • Compatible body with all VM95 Series stylus assemblies
  • Replacement for AT95E and AT95EX
  • 20 to 22,000Hz frequency response

VM95 Series - Stylish compatibility

Every cartridge diamond stylus becomes worn after a period of play.

Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styles are perfectly compatible.

AT-VM9E Series compatibility with the AT-XP Series DJ Cartridges

  • The electromagnetic engine-body of XP-Series, is fully compatible with all replacement styles of VM95 Series and will deliver more output voltage than VM95 Series cartridge. So providing improved compatibility with phono inputs of Professional DJ Mixers.
  • VM95 Series electromagnetic engine-body is also compatible with the three replacement styles of the DJ cartridge AT-XP Series, nevertheless, the electromagnetic engine-body of XP-Series, will deliver more output voltage than VM95 Series cartridge in order to provide better compatibility with phono inputs of Professional DJ Mixers.
  • Note that typical tracking force when using XP Series styli is three grams as opposed to two grams for VM95 Series styli.
  • The suspension design and compliance of XP-Series styles have been optimized for intensive DJ'ing, including possible manual cueing and back-cueing.
  • The VM95 Series suspension design and compliances of the VM95 Series have been designed for optimum audiophile reproduction.


      SPECIFICATIONS

      Model AT-VM95E
      Type VM Stereo Dual Magnet
      Mounting 1/2” centers
      Frequency Response 20 - 22,000 Hz
      Channel Separation 20dB (1kHz)
      Output Channel Balance 2.0dB (1kHz)
      Output Voltage 4.0 mV (@ 1 kHz, 5 cm/sec)
      Vertical Tracking Angle 23°
      Vertical Tracking Force Range 1.8 - 2.2g (standard 2.0g)
      Stylus Shape Elliptical
      Stylus Size 0.3 x 0.7 mil
      Stylus Construction Bonded Round Shank
      Cantilever Aluminum Pipe
      Coil Impedance 3.3 kΩ (1 kHz)
      Coil Inductance 550 mH (1 kHz)
      DC Resistance 485 Ω
      Static Compliance 17 x 10 - 6 cm / dyne
      Dynamic Compliance 7 x 10 - 6 cm / dyne (100 Hz)
      Wire Used for Coil TP Copper
      Recommended Load Impedance 47,000 Ω
      Recommended Load Capacitance 100-200 pF
      Cartridge Weight 6.1g
      Dimensions 17.2 x 18.9 x 28.3 (H x W x D mm)
      Replacement Stylus AT-VMN95E
      Accessories Included Two 11 mm installation screws;
      Two 8 mm installation screws;
      Two washers
