Audiolab

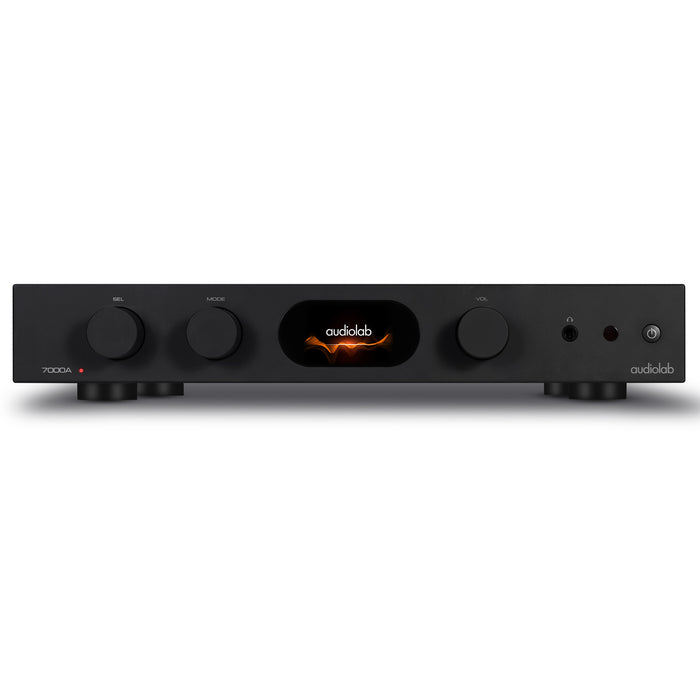

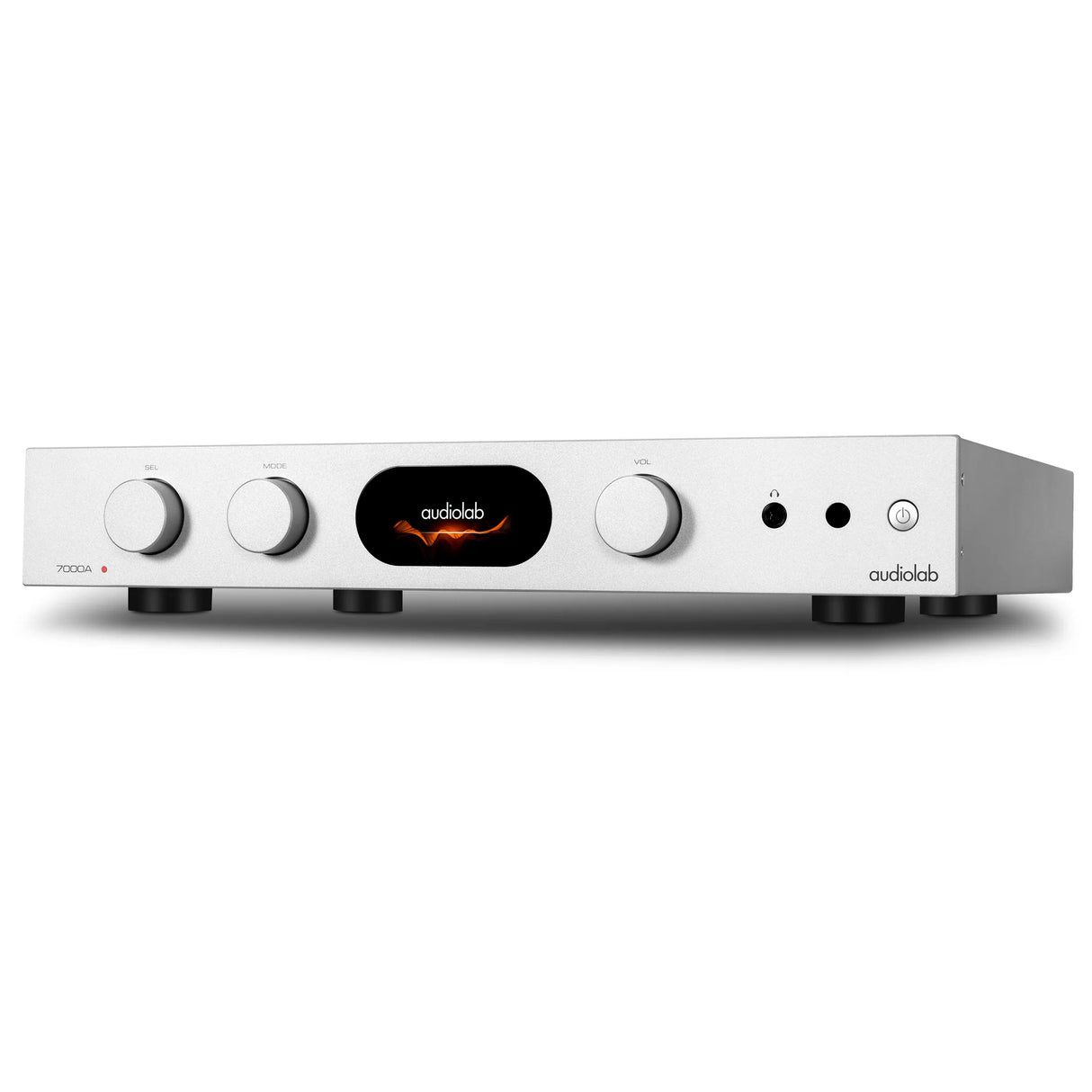

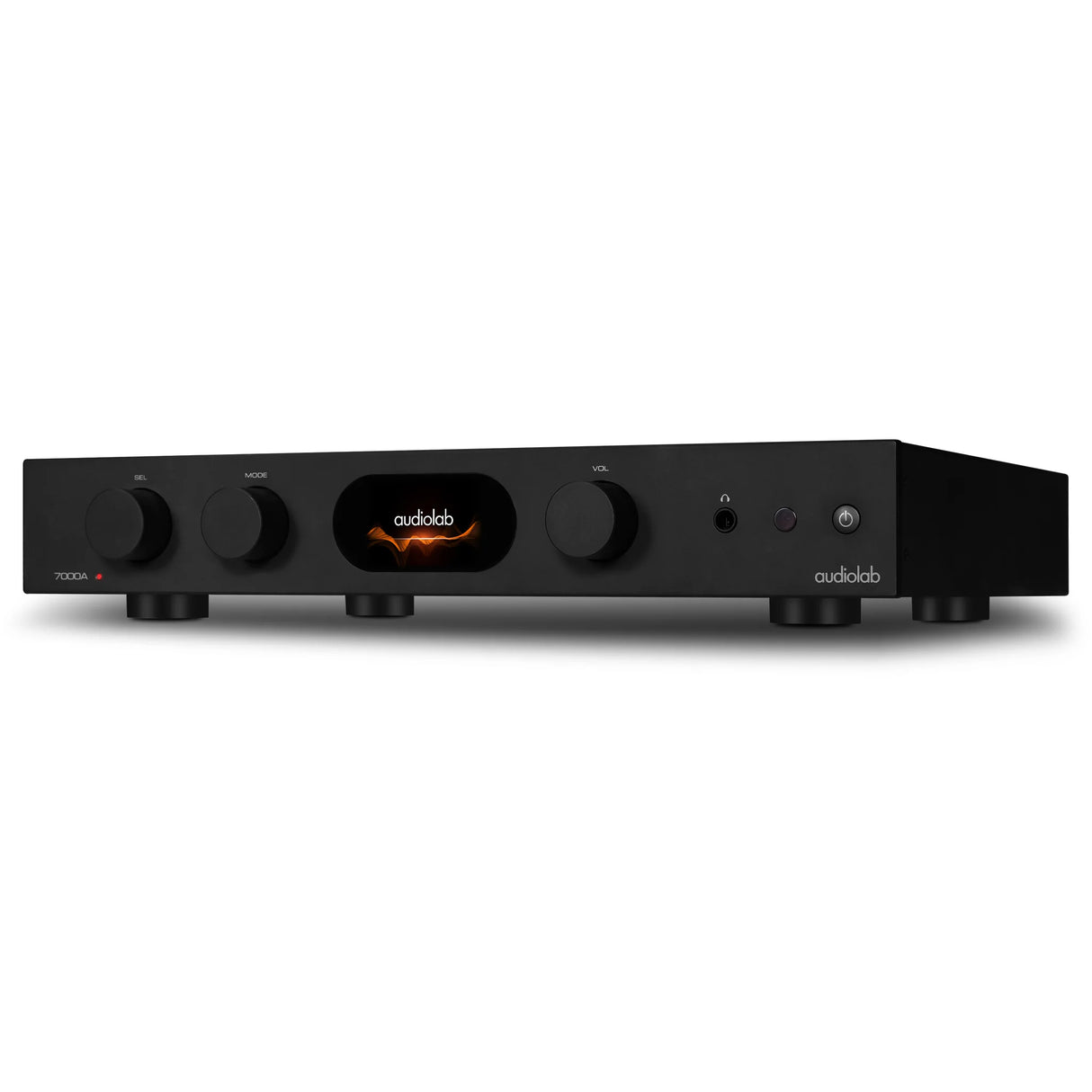

Audiolab 7000A, audio amplifier (various colors)

€1,299.00 EUR

Audiolab 7000A, audio amplifier (various colors) - Black is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Sandwiched between the 6000 and 9000 models, the 7000 combines top-of-the-line features in a price category with a mantra of class-leading performance.

  • Power: 2 x 110W.
  • Frequency band: 20Hz-20kHz (+/-0.1dB).
  • DAC: ES9038Q2M 32-bit.
  • Bluetooth: 5.0 (aptX / aptX LL) .
  • Resistance: 4 ohms.

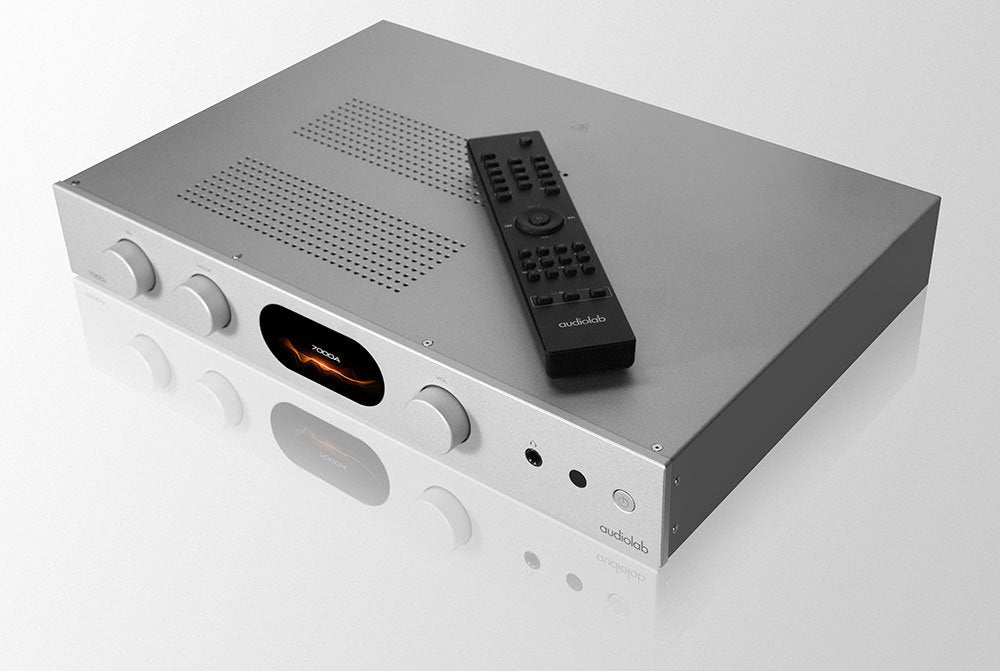

Audiolab 7000A, audio amplifier (various colors)

Classes of A and B

audiolab pulls no punches with the genuine nature of our power rating. The 7000A's discrete Class AB power amp stage delivers 70W per channel into eight ohms, with a maximum current delivery of 9A amps into difficult loads. A new standard in audiolab amplifiers, the output stage of the discrete power amp circuits uses a CFB (Complementary Feedback) topology, ensuring superior linearity and excellent thermal stability, as the idle current is kept independent of the temperature of the output transistors. Critically specified by Jan Ertner (lead engineer for the audiolab brand); the newly developed power supply features a substantial 250VA toroidal transformer, followed by 4x15000uF reservoir capacity (60000uF in total), helps the amp to maintain firm control of the music whilst enabling excellent dynamic range.

Name Your Source

Whatever the input source – analogue, digital, wireless or TV – the 7000A has been crafted to the same level of detail one has come to expect from audiolab, all with the latest tech to be fully equipped to cover many bases, yet it maintains a price point that keeps the audiolab brand at the forefront of quality home audio. Dual analogue inputs cater for CD players and line-level sources, dual Coax and SPDIF inputs expand this for the digital sources while a Bluetooth aptX receiver serves up a solution for wireless audio playback and smart devices. Following the growing trend for direct living room integration of premium audio electronics and there for more in tune as the centerpiece of your home audio system, the 7000A takes connectivity to a new dimension with a built-in Audio Return Channel (ARC) connection for use with screens – thus bringing the audiolab dynamic to TV-app based music playback and home theater. And let's not forget the direct-to-PC connection via USB.

Audiolab 7000A, audio amplifier (various colors)
Audiolab 7000A, audio amplifier (various colors)

Flagship DAC

As is standard with audiolab integrated amplifiers, the 7000A reaffirms the natural integration and synergy with an ESS ES9038Q2M chip. Improving on the 6000A with this latest iteration and taking lessons from the 9000A, the 7000A utilizes ESS Technology's 32-bit HyperStream architecture and Time Domain Jitter Eliminator. As with the 9000A, the 7000A uses a post-DAC filter based upon Class A topology and proprietary DC-coupled high-gain electronic amp designs to deliver ultra-low noise and high dynamic range for the digital audio connoisseur.

Streaming Technology

What's more, the 7000A also delivers full decoding of MQA, the hi-res streaming technology from a custom-engineered MQA-certified DAC solution. This means that the complete 'three unfold' decoding process is performed internally, as opposed to just the final unfold in the manner of an MQA 'renderer', which makes the 7000A an excellent system choice for subscribers to Tidal's 'HiFi Plus' tier where Tidal Masters (MQA) content can be found.

Audiolab 7000A, audio amplifier (various colors)
Audiolab 7000A, audio amplifier (various colors)

Tables Are Turning

The 6000A is applauded for its ability to offer an integrated phono pre-amp solution. The 7000A builds on this with a further improved phono stage for moving magnet phono cartridges – using an improved version of the high-quality, low noise MM Phono circuit and precise RIAA equalization that sets the benchmark in 'built-in' phono preamplifier solutions. Same with the dedicated headphone output. Enhancing the versatility claims of the 7000 series, the dedicated headphone amp with current-feedback circuitry caters for the head-fi that lurks in the audiophile! Its gain bandwidth and high slew rate ensure a dynamic, detailed and engaging performance with all manner of headphone types – more boxes ticked for this most integrated of integrated amplifiers.

ROON

Further to this, the audiolab 7000A is also Roon tested, thus opening up to the world of Roon. Roon's fundamental goal is to provide a consistently stellar user experience. This goal doesn't stop at the software... the experience extends all the way down to the audio playback hardware, regardless of manufacturer. As a Roon Tested partner, audiolab has provided equipment to Roon for testing with a variety of different operating systems and computers and shared information about its design and capabilities. We have a direct relationship with Roon and in many cases, the Roon support team has our devices on hand, so you can confidently choose to use audiolab hardware with Roon.

Audiolab 7000A, audio amplifier (various colors)
Audiolab 7000A, audio amplifier (various colors)

Roon transforms the experience of browsing music. Artist photos, credits, bios, reviews, lyrics, tour dates, and composers are located automatically, then interconnected by links to build a surfable, searchable digital magazine about your collection.

And Roon finds all the same links between your personal files and the millions of tracks available on TIDAL, so you can start with the music you know, then explore and discover new music from the world beyond your collection.

In addition to music browsing, Roon is a multi-room, multi-user networked audio platform built to the exacting standards of audiophiles. It offers features like bit-perfect playback, DSD and PCM upsampling, multichannel playback, and signal path display. Click here for more information on Roon .

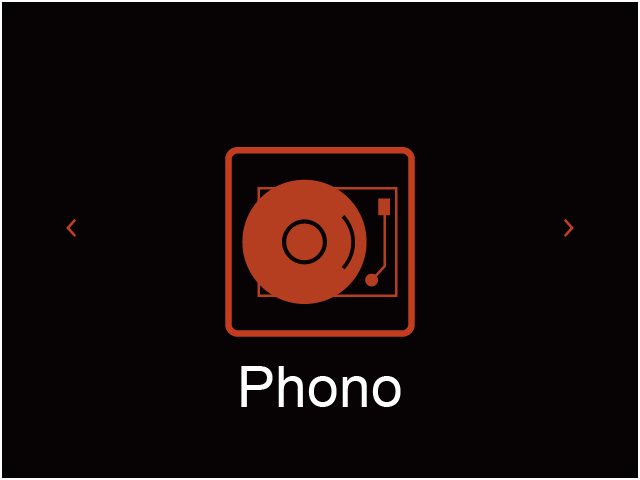

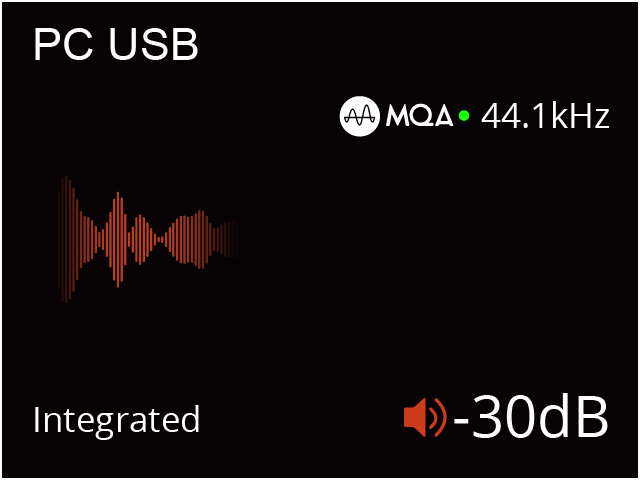

Improved Interface

As the engineers in the audiolab camp have learned with every model and series; greatness can be improved upon. Taking the 6000A as the standard, audiolab knows that the regular audio enthusiast's thirst for specification and features would mean that the eagerly anticipated linear upgrade from the 6000A would instinctively also offer an improved display and general user interface (GUI); hence the vibrant and visually informative 2.8″ (48 x 64mm) IPS display. The detailed but simple-to-use GUI also carries through a general theme of information and structure from the 9000A, just in a more compact style. The GUI includes settings for the digital phase lock loop of the D/C converter

Audiolab 7000A, audio amplifier (various colors)

SPECIFICATIONS

Model 7000A
General Description Integrated Amplifier
Design Philosophy and Core Technology - 2 x 70W (8 ohms) / 2 x 110W (4 ohms) Class AB
- ES9038Q2M 32-bit DAC
- 2.8" (480x640mm) Full View IPS LCD
- Built in Certified Hardware MQA Full Decoder (PC USB, Coax / Optical)
- Bluetooth 5.0 (aptX / aptX LL) Support
- Low Noise Moving Magnet Phono Stage
- Dedicated Current-Feedback Headphone amp
- Integrated / PRE-POWER / PRE only Modes
- VU Digital / VU Analogue Meter
- USB Upgrade Support

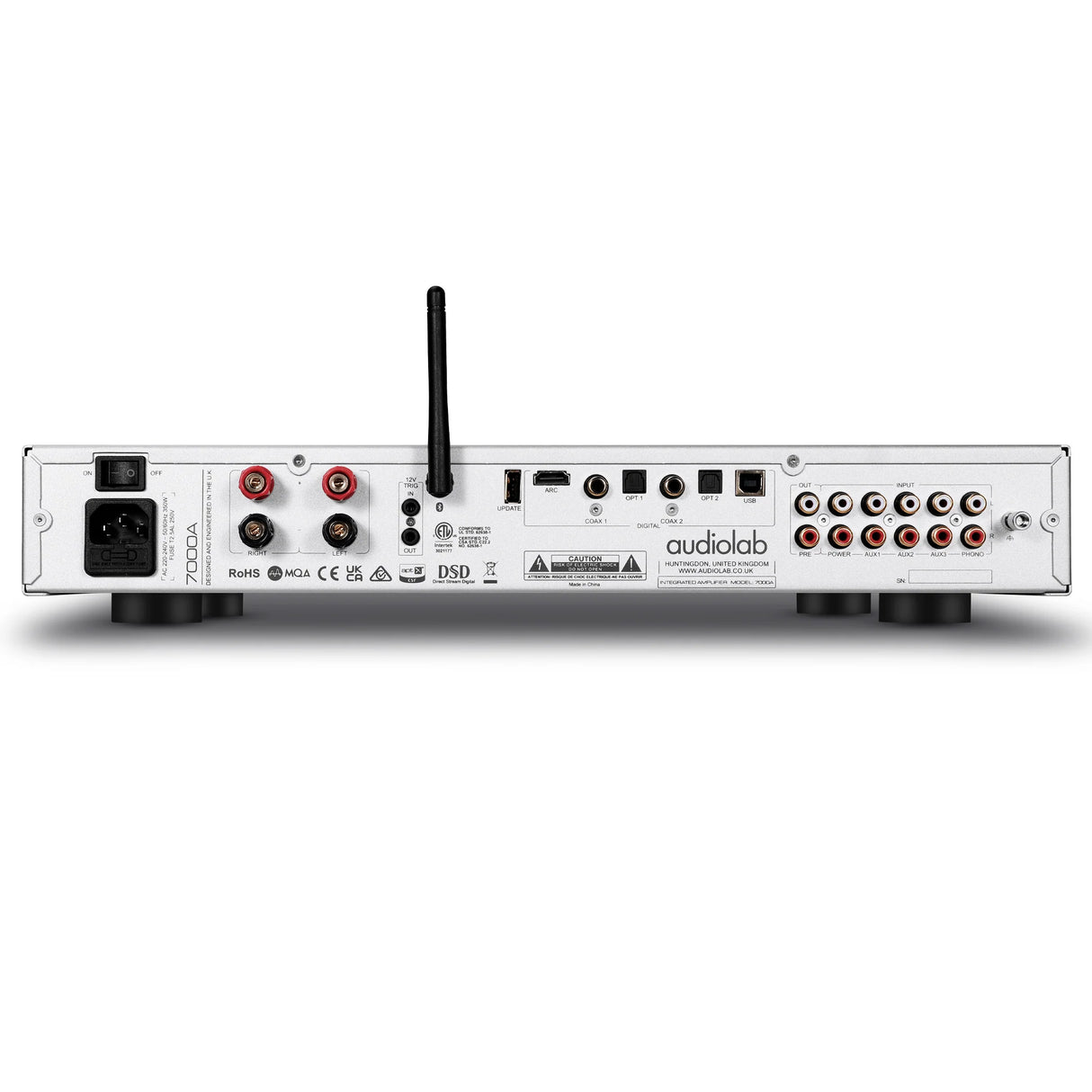

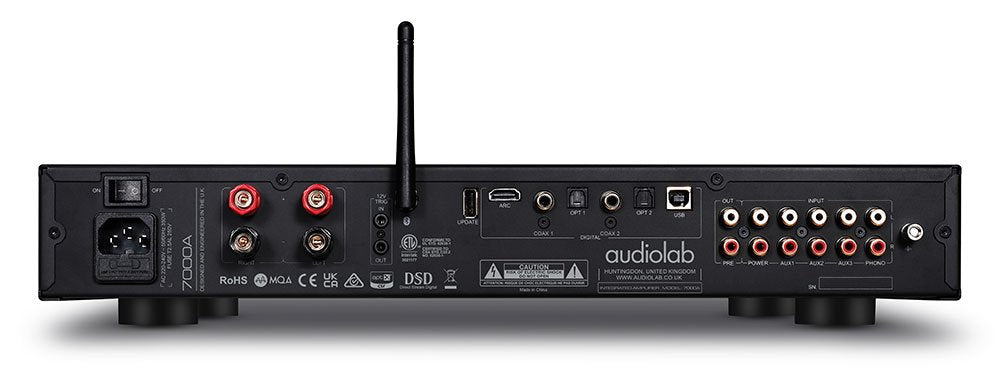

Inputs 3 x Analogue, 1 x Phono (MM), 1 x Power Amplifier,
2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x HDMI ARC,
1 x PC USB (USB B - Windows / mac OS only), 1 x Bluetooth (aptX/aptX LL), 1 x 12V Trigger
Outputs 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency Optical / Coaxial: 44.1kHz - 192kHz;
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Preamplifier Section
Good +6dB (Line); +55dB (Phono MM)
Input Sensitivity 820mV (Line, Volume = 0dB); 3.1mV (Phone MM, Volume = 0dB)
Input Impedance 10K (Line); 47K // 100pF (Phono MM)
Total Harmonic Distortion (THD) < 0.0005% (1kHz @ 2V, Volume = 0dB)
Frequency Response 20Hz-20kHz (+/-0.1dB)
Output Voltage 2.3V max. (Volume = 0dB)
Output Impedance 100 ohms
Signal-to-Noise Ratio > 110dB (Line, A-weighted); > 76dB (Phono MM, A-weighted
DAC
D to A Converter ES9038Q2M
Total Harmonic Distortion (THD) < 0.0005% (1KHz @ 0dBFS)
Output Level (0dBFS, 1kHz) 2.1Vrms
Max. Sampling Frequency Optical, Coaxial: 192kHz;
PC USB: PCM768kHz, DSD512
Power Amplifier Section
Good +29dB
Rated Power Output 2 x 70W (8 ohms, THD<1%); 2 x 110W (4 ohms, THD<1%)
Frequency Response 20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD) <0.003% (1kHz @ 40W / 8 ohms)
Input Sensitivity 720mV
Signal-to-Noise Ratio (S/N) > 110dB (A-weighted)
Max. Output Current 9A
Headphone Amplifier
Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW)
Output Impedance 10 ohms
Load Impedance 20-600 ohms
General
Standby Power Consumption <0.5W
Even Weight 8.4 kg
Gross Weight 10.7 kg
Dimensions (mm) (W x D x H) 444 x 340 x 78
Carton Size (mm) (W x D x H) 500 x 455 x 140
Finish Black / Silver
Power Requirements 220-240V ~ 50/60Hz;
(depending on region) 100-120V ~ 50/60Hz
Standard Accessories Power Cord, Remote Control, User Manual, Antennas, etc.

INSTRUCTIONS

User Manual (EN).

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

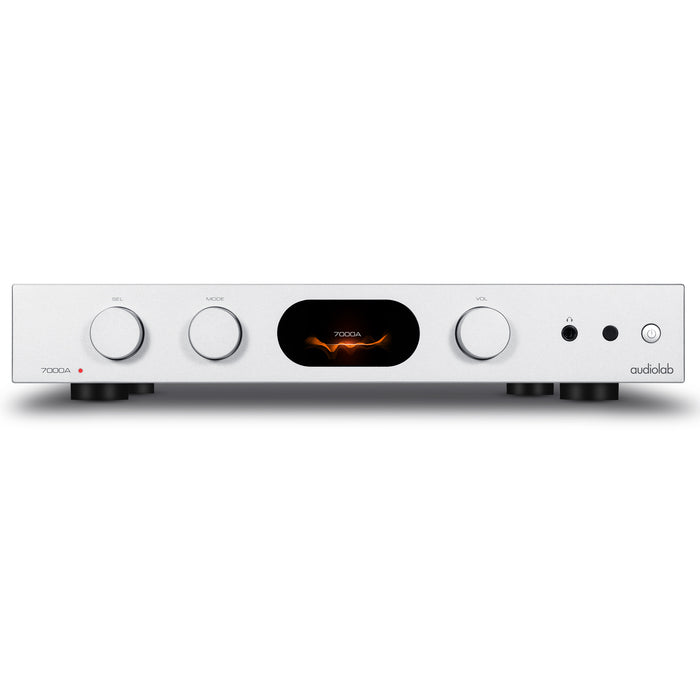

Audiolab 7000A, garso stiprintuvas (įvairių spalvų)- balta
