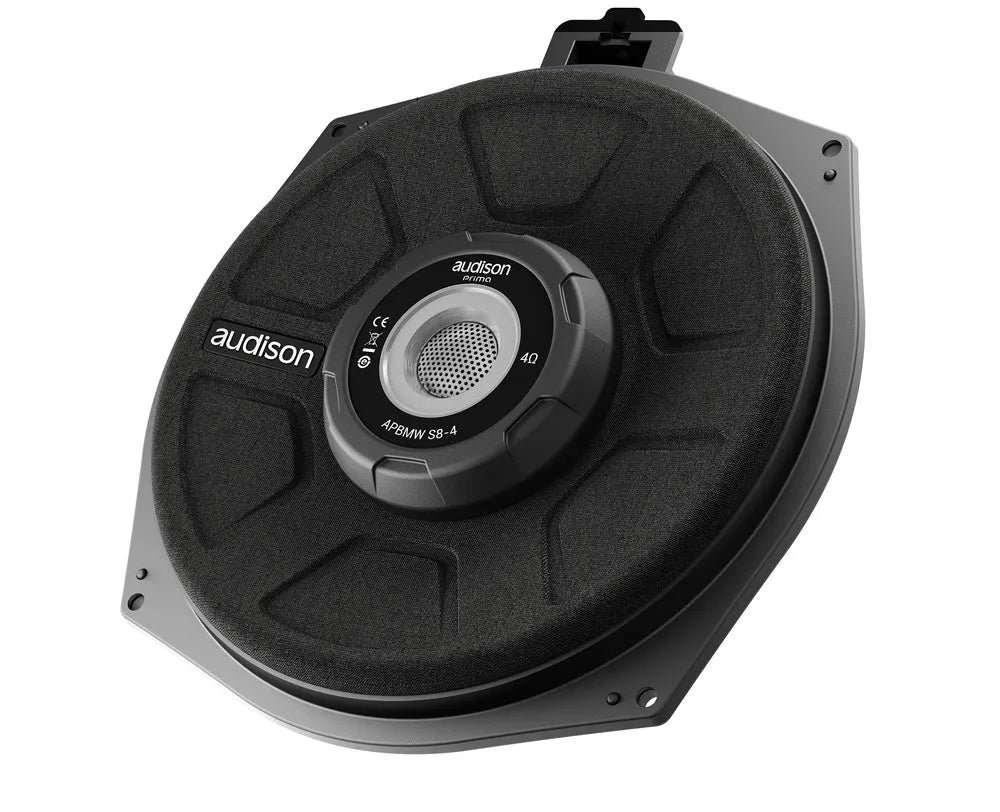

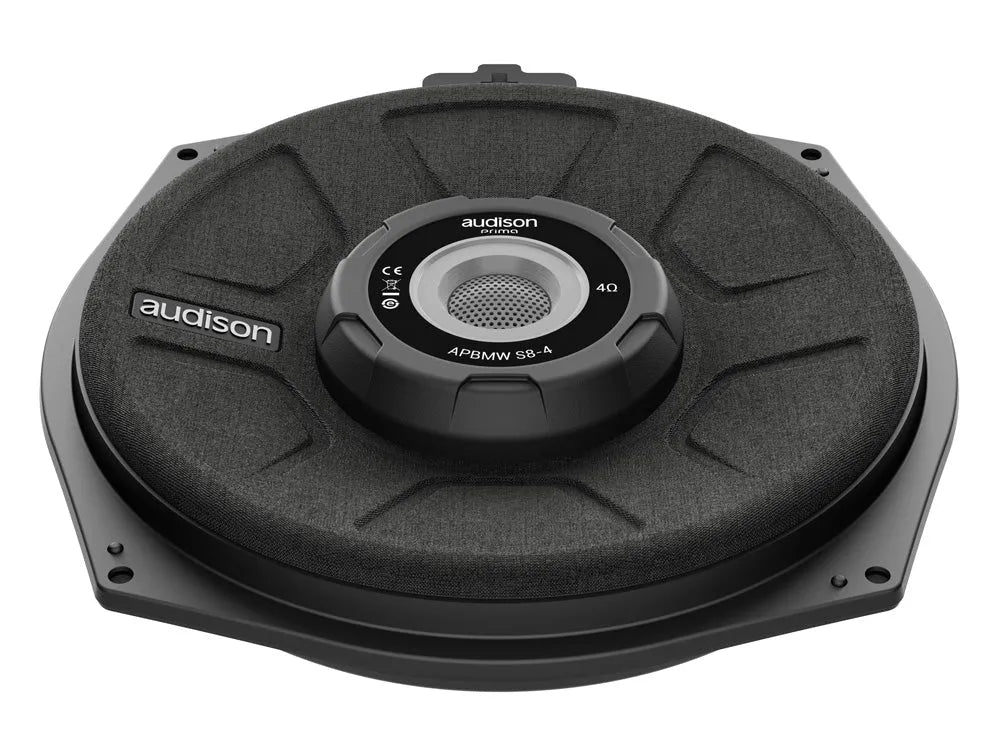

Audison APBMW S8-2 car subwoofer

Car subwoofer for BMW-Mini cars. The speaker has all the best sound characteristics typical of the manufacturer and is quick and easy to install.

• Power: 300W (2 ohms).
• Frequency band: 4 0 ÷ 500 Hz.
• All elements necessary for installation are included in the set.
• Neodymium magnet.

Subwoofers have been designed with electro-acoustic parameters that maximize performance for the factory box available below the seats. The ABS plastic basket, reinforced with fiberglass, and the acoustic structure featuring a front magnet, provide for a minimal installation depth for a perfect compatibility with the whole range. Two 5 mm polyurethane gaskets, supplied, allow the subwoofer to fit perfectly to the box, decoupling it from vibration.

The 200 mm (8″) APBMW S subwoofers allow a “direct replacement” of the OEM speakers underneath the front seats, making the most of the factory acoustic load and generating deep and crisp low frequencies. You can choose between S8-2 with 2 ohm impedance and S8-4 with 4 ohm impedance for improved system composition versatility. In fact, in the mid-high passive filtered system configuration, with the crossover provided, 4 of the 8-channels of the AP 8.9 bit can be configured in bridge mode delivering 130W rms to each S8-4 installed under the seat. The S8-2 can be used in a fully active, multi-amplified front system, maximizing the power of the AP 8.9 bit at 2 ohms, and employing additional 2 channels for the rear system. The Neodymium magnet used on S8-4 and S8-2 allows for greater power and control than ferrite, while maintaining the depth of installation unaltered.

PROPERTIES

Neodymium Magnetic group

To maximize performance while minimizing bulk and weight.

Developed with electroacoustic parameters customized for BMW-Mini

To increase listening engagement, through powerful and crisp low frequencies, exploiting the acoustic load provided by the factory box.

38 mm voice coil wound on aluminum support

For a considerable power dissipation and stability even during high excursions.

Two 5 mm gaskets provided

For OEM placements.

2 ohm configuration for maximum output

In combination with AP 8.9 bit in active multi-amplification.

SPECIFICATIONS

Component		Woofer
Size	mm (in.)	200 (8)
Power Handling	W peak W continuos	300 150
Impedance	Ω	2
Frequency Response	Hz	40 ÷ 500
Magnet size D x dxh	mm (in.)	48 (1.89) x 18 (0.71) x 7 (0.28)
Weight of one speaker	kg (lbs)	1.21 (2.67)
Voice Coil Ø	mm (in.)	50 (2)

INSTRUCTIONS

User Manual (EN).
