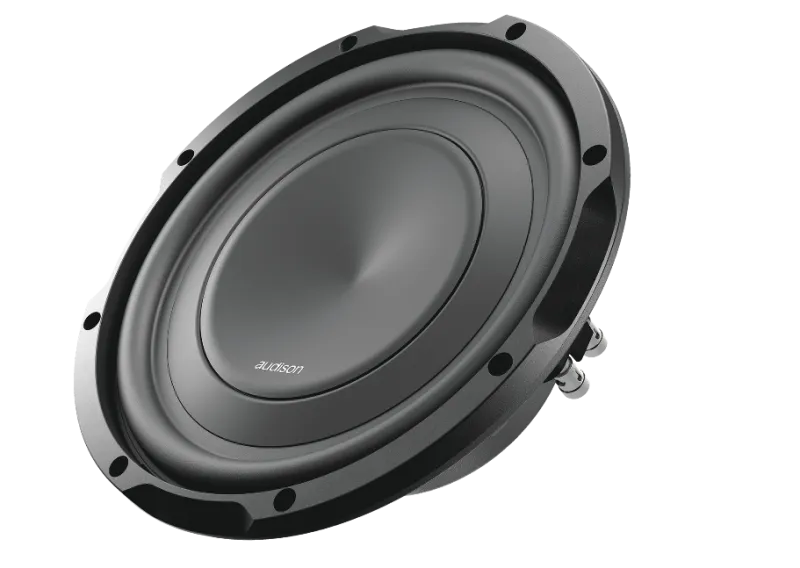

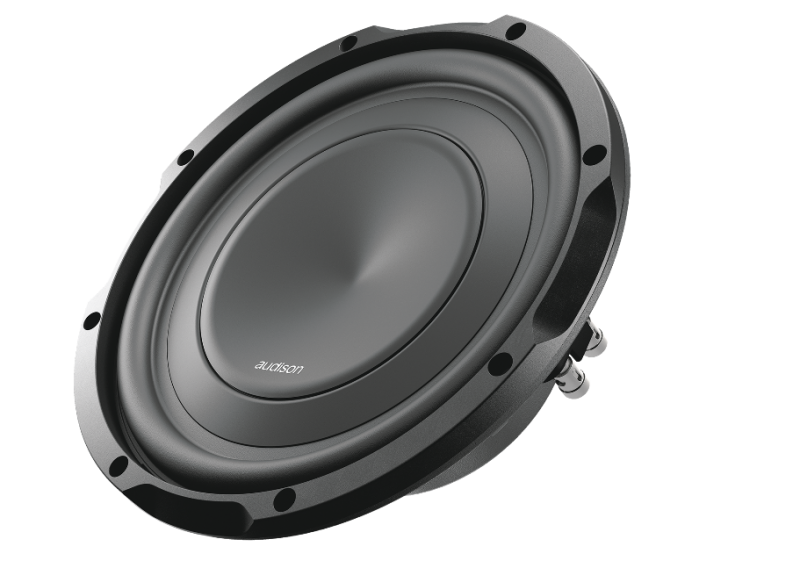

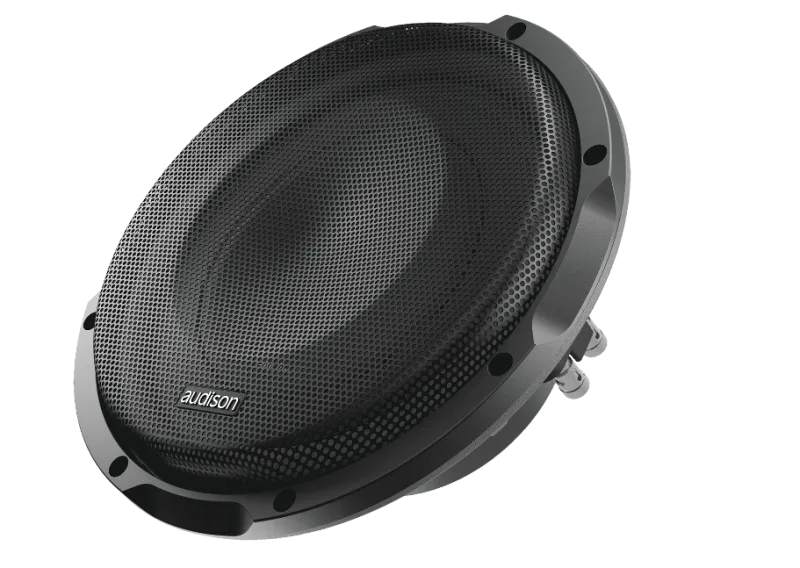

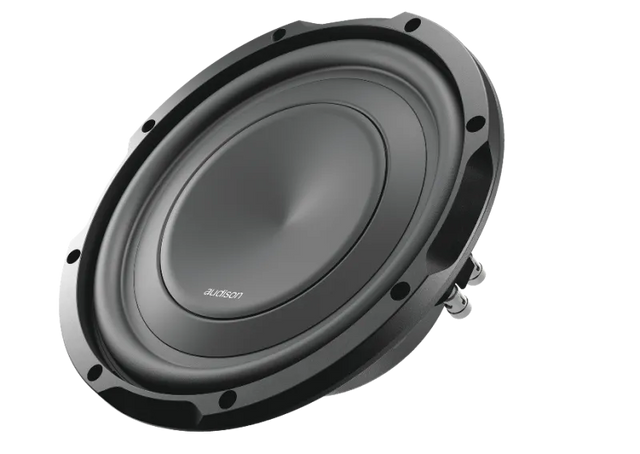

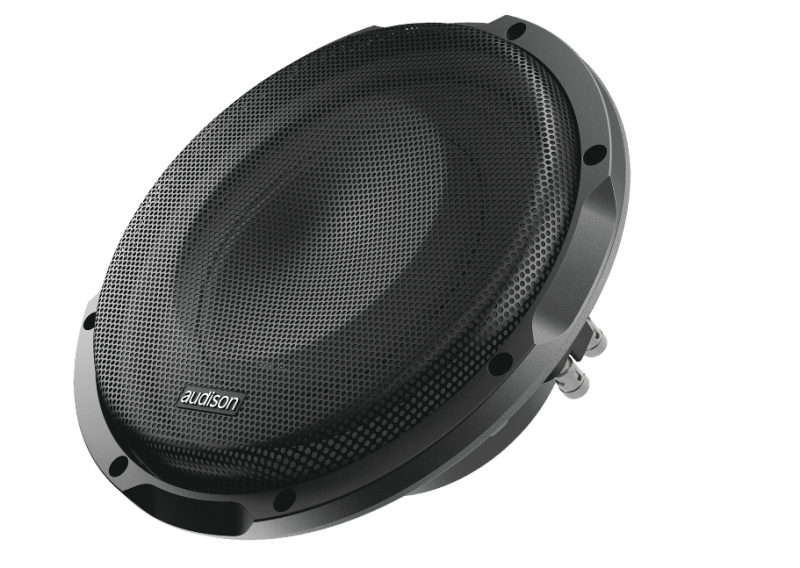

Audison APS 10 D, car subwoofer

A car subwoofer that will take your bass experience to the next level.

• Power: 800W (4+4 ohms).
• Sensitivity: 84 dB.
• High density flux ferrite magnet.

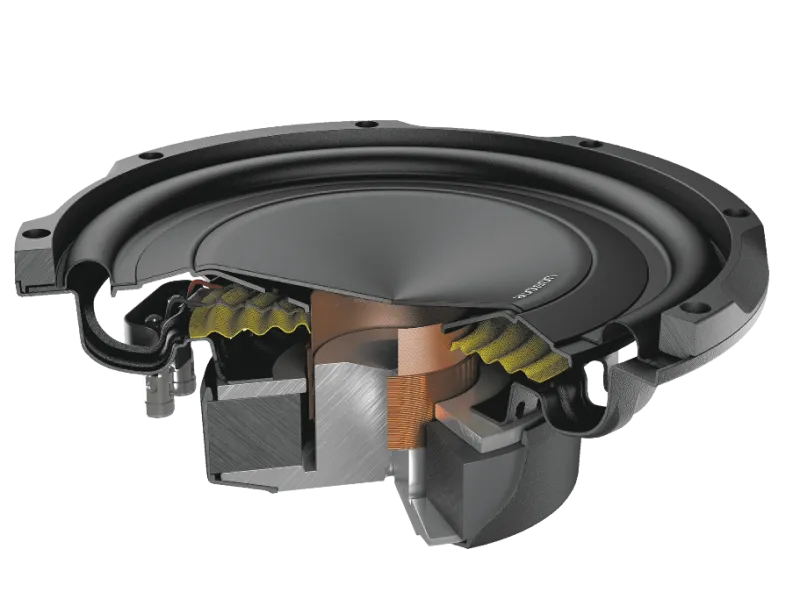

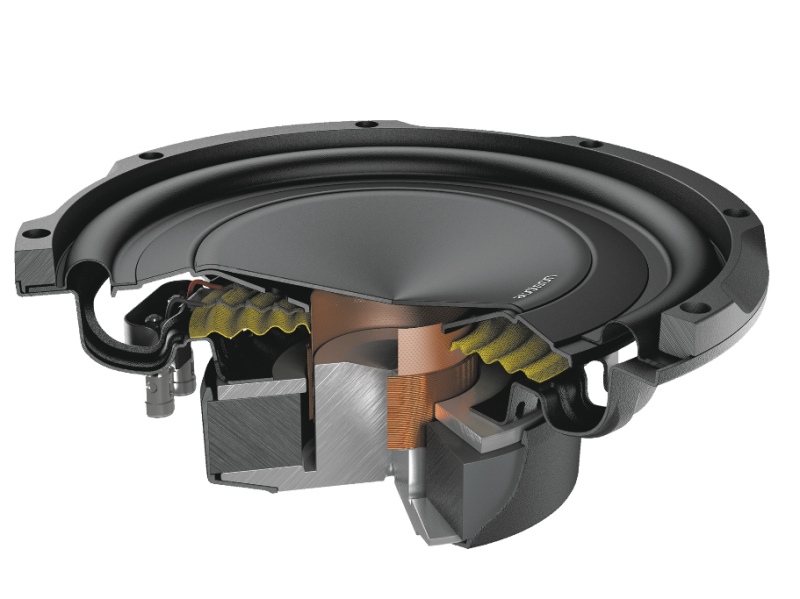

The APS 10 D is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes, from 10 lt. 12 lt. of that The dual voice-coil and single voice coil versions feature push connectors for ease of wiring and configurations. Prima subwoofer components have been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However, reduced mounting depth has traditionally meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the "rocking-mode" phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

SPECIFICATIONS

INSTRUCTIONS

User Manual (EN).
