Audison

Audison TH quattro, car audio amplifier

€3,099.00 EUR

Audison TH quattro, car audio amplifier is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Automotive, 4-channel audio amplifier. This sound amplifier embodies all the best sound qualities of the manufacturer.

  • Power: 150 W x 2 + 540 W x 1.
  • Resistance: 4 ohms.
  • Full DA HD technology.

Thesis amplifiers are born with the know-how and experience achieved with the HV venti, improved by the innovation of digital technology. The result is a perfect combination between the highest level of analog technology and the advanced features of digital technology in one unique product. The precious synergy with Full DA HD technology takes the in-car listening experience to a new level of excellence; the synthesis of a unique know-how employed in mobile audio reproduction.

TH quattro is a four-channel amplifier fully adjustable and entirely manageable by the internal microprocessor, for unlimited system configurations.

Hi-Res audio

According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), HV venti far exceed the above 40 kHz bandwidth analog requirement, providing an astonishing 5 ÷ 75k Hz (@ -3 dB, 2 VRMS, 4 Ω).

FULL DA HD

Pure digital signal transfer with a resolution up to 24 bit / 96 kHz

DIGITAL INPUTS AND OUTPUTS

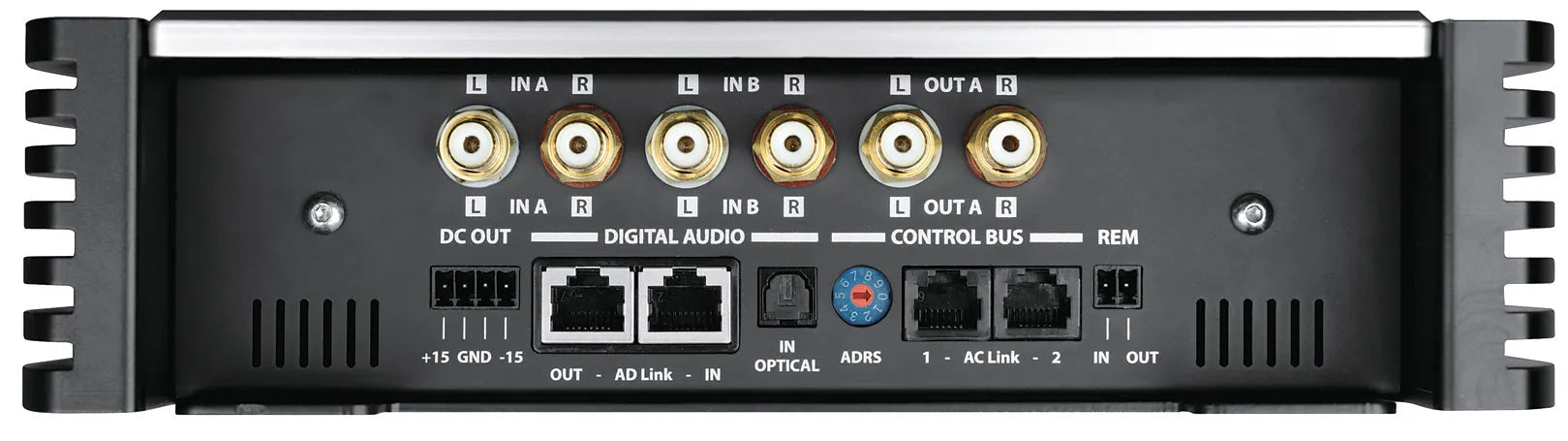

Innovation is at the heart of the state-of-the-art digital decoding section. The S/PDIF optical input allows direct connection to digital sources with the ability to re-launch the digital signal to other Thesis amplifiers through the AD Link (Audison DigitalLink) system. Each amplifier features 192 kHz/24 bit PCM D/A conversion through a very high quality converter.

BIAS CONTROL

Provides the selection of four possible presets: Energy Saving, Hi-Current, Hi-AB Class and full A Class operation.

REMOVABLE CROSSOVER

Inherited from the HV venti and making the most of TH's extreme versatility, the complete crossover circuit of the TH amplifier is removable; a high-end sound quality solution.

DUAL MONO CONSTRUCTION

Four Synchro-PWM power supplies allow for a very fast transient current response and to create a Dual Mono configuration.

SPECIFICATIONS

Dual Power - Hi-Current Load Imp. Stereo
4 Ohms 160W x 4
150 W x 2 + 540 W x 1
500W x 2
2 Ohms 260W x 4
250W x 2 + 650W x 1
700W x 2
1 Ohm 340W x 4
Dual Power - A Class Load Imp. Stereo
4 Ohms 55W x 4

INSTRUCTIONS

User Manual (EN).
