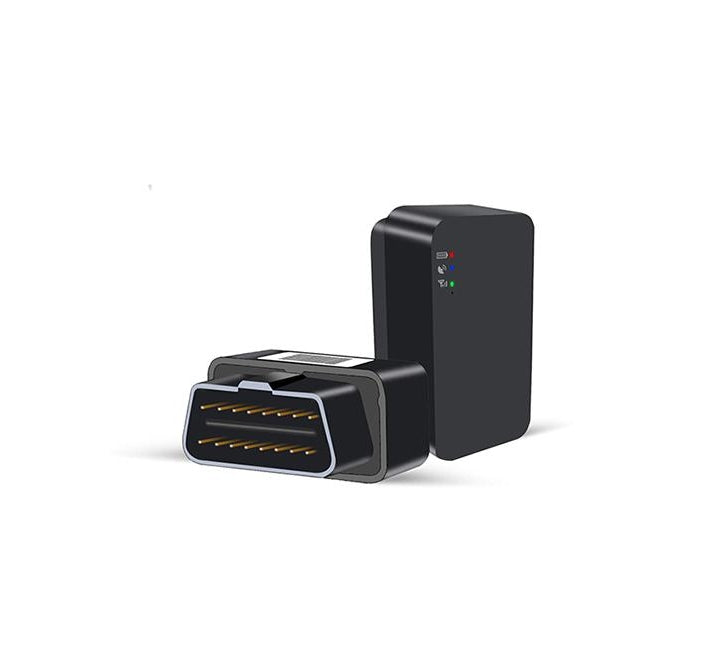

Car GPS tracker to OBD connector

Compact and reliable car GPS tracking device to OBD connector. Simple and easy to connect, no additional installations required.

• Integrated GPS antenna
• Battery: 50mAh/3.7v lithium polymer battery
• Operating voltage: 9-36VDC/32mA (12VDC)
• Connector: standard OBD computer diagnostic car connector (available in all cars)

Features:

• Positioning by GPS or LBS
• Disconnect alarm
• Listening function
• Combustion (ACC) detection
• Overspeed alarm
• Virtual fence (geo-fence, geo fence)
• The GSM card is not included in the package
• Mapping a location on Google Maps

SPECIFICATIONS

GSM technical data:

• GSM frequency: 850/900/1800/1900 MHz
• GPRS: Class 12, TCP/IP
• Memory: 32+32Mb
• Phase error: RMSPE<5,PPE<20
• Maximum frequency error: ±0.1ppm
• GPS chip: MTK
• Frequency: L1,1575.42MHz C/A code
• GPS channels: 66
• Location detection: <10 meters
• Tracking sensitivity: -165dBm
• Minimum signal level required for set point during cold start: -148dBm

Time to receive first coordinate (TTFF):

• Coordinate acquisition time when time and last location coordinate are known (hot start) <1 sec.
• Coordinate acquisition time when initial coordinate and time are not known (cold start) <32 sec.

Other technical data:

• Integrated GPS antenna
• Battery: 50mAh/3.7v lithium polymer battery
• Operating voltage: 9-36VDC/32mA (12VDC)
• Connector: standard OBD computer diagnostic car connector (available in all cars)
• Standby current = 5mA
• Operating temperature: -20C~ +70C
• Size: 45x22.5x30.0 mm
• Weight: 30g

Harmonized and tested operation with Tracksolid.com operating platform on Windows, Android, iOS systems.

Free use for one year. There is an option to purchase further use of the platform.
The app provides an opportunity to configure the device and monitor all collected information - location, time, condition, etc
