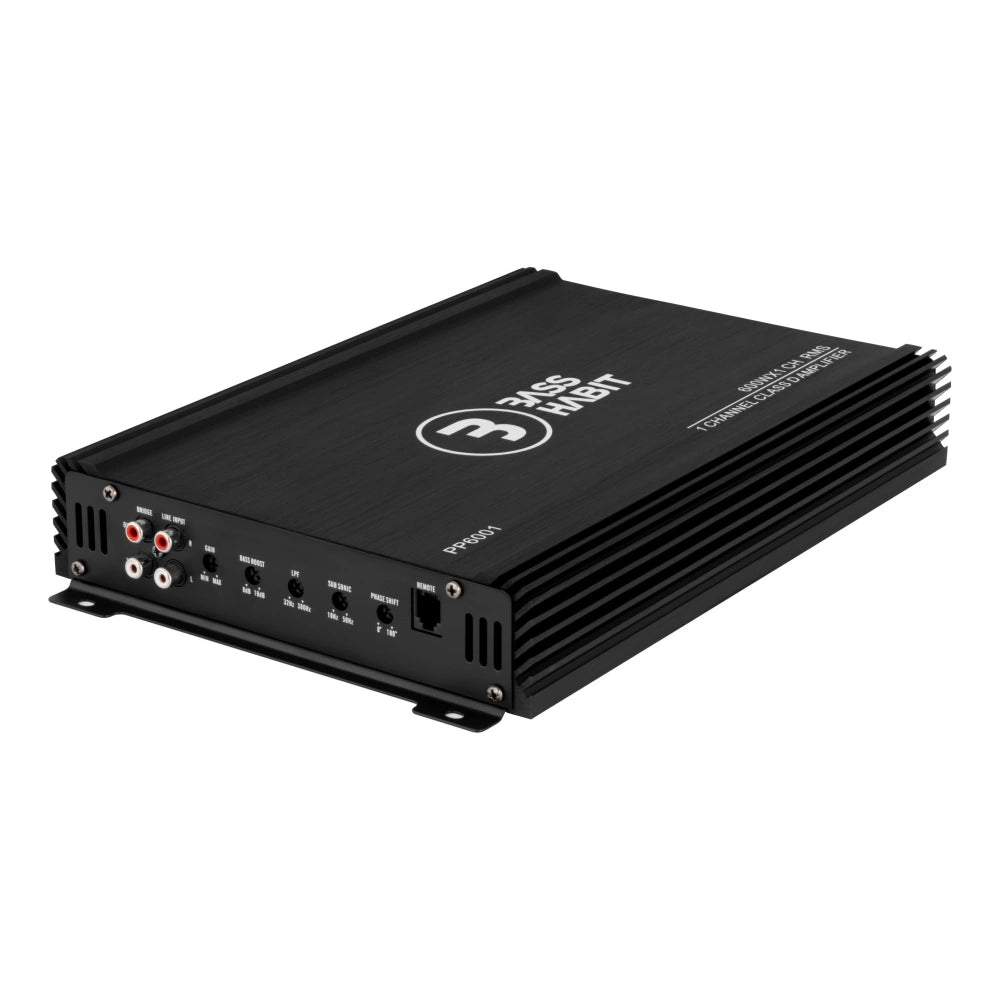

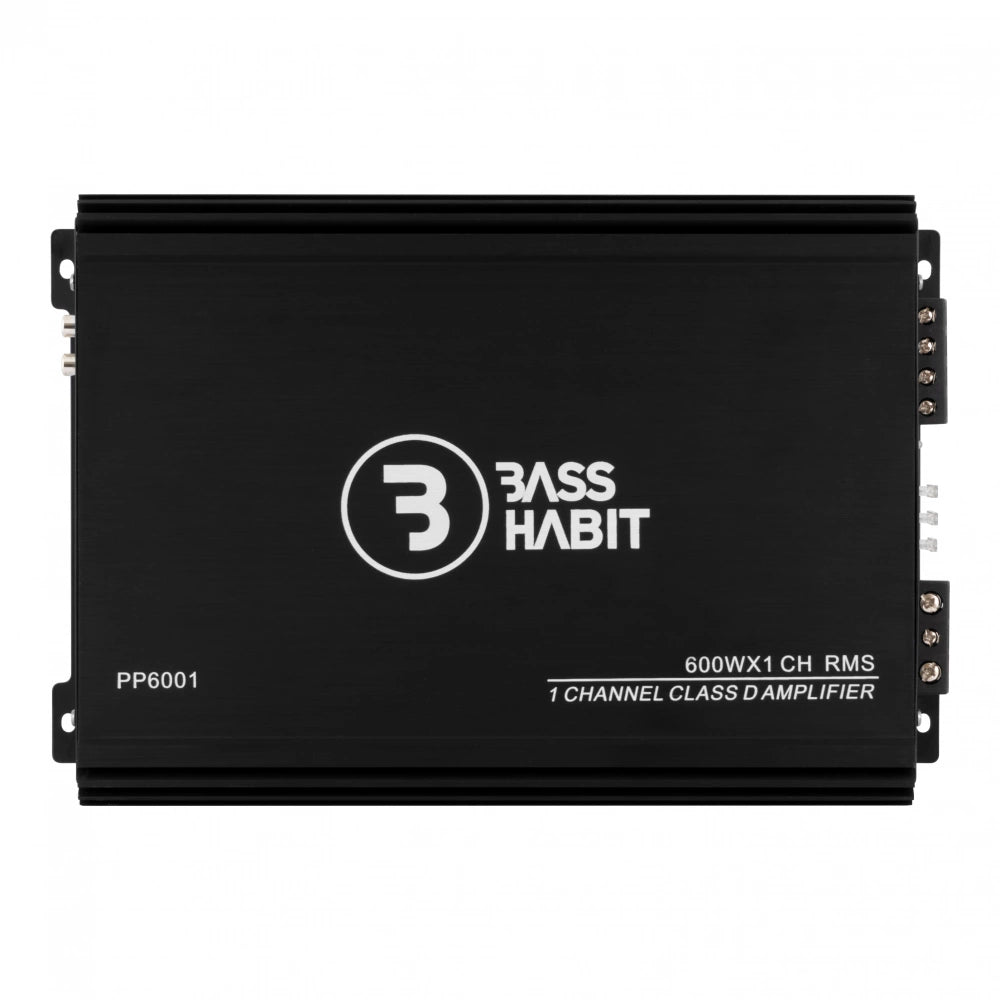

Bass Habit Play Power 600.1, car mono sound amplifier 600W RMS

Bass Habit Play Power 600.1 is a compact Class D monoblock from the popular Play series.

• Power: 1x 600W RMS @ 1 Ohm.
• Power 1x 350 W RMS 2 Ohms.
• Power 1x180 W RMS 4 Ohms.
• Frequency band: 20 Hz - 500 Hz .
• Subsonic filter: 10Hz-50Hz.
• Low-pass filter LP: 32 Hz - 300 Hz.

Bass Habit Play Power 600.1 is a compact class-D monoblock from the popular Play series. As the name suggests, this is a power amp that puts out a lot of power! Bass Habit has designed a well-built power amp at a great price, where the efficient Class-D design delivers more power with less power consumption.


600W (RMS) @ 1 ohm
Efficient & compact Class-D technology
Wide range of settings
Bass remote included
RCA output for forwarding to an additional output stage

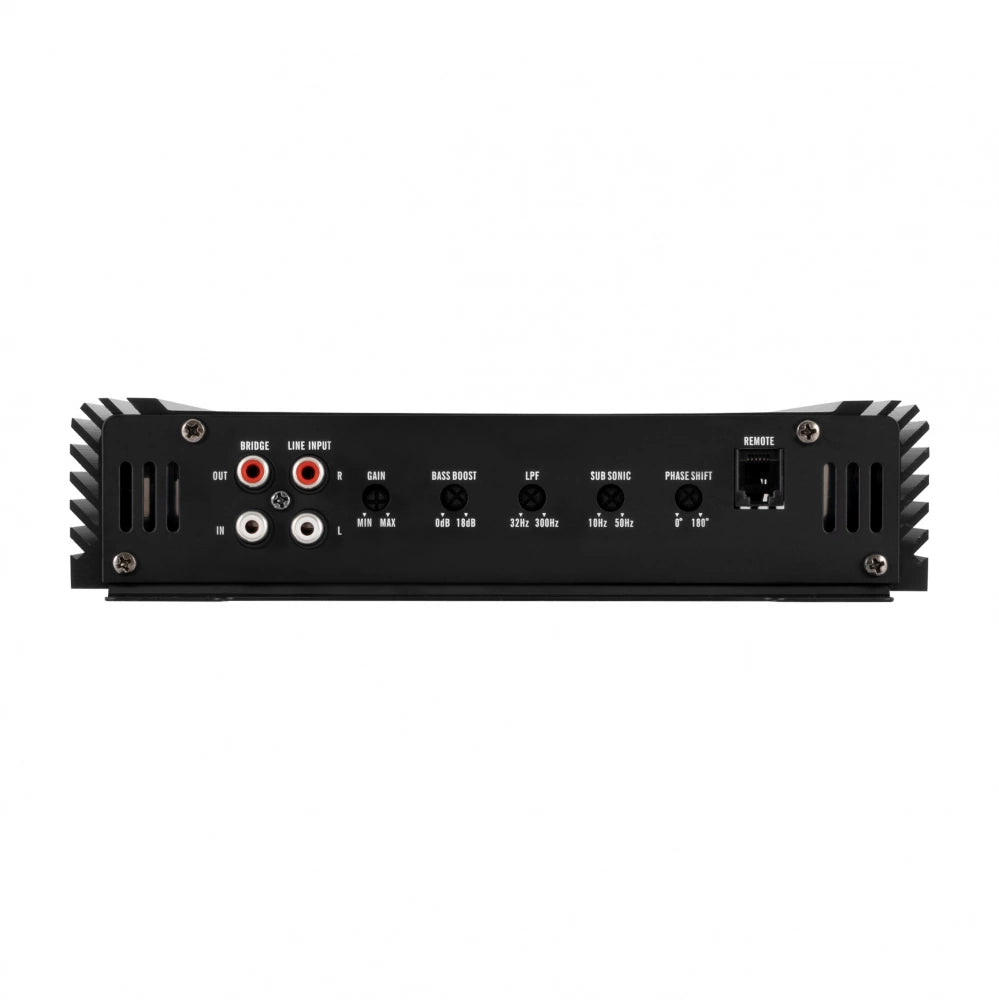

The Play Power 600.1 has variable splitting filters giving you the ability to put both a bottom and a top on the frequency curve, or in other words; a subsonic as well as a low pass filter. This allows you to save a great deal on the basses, making them both sound better and also last longer.

The Bass Habit Play series is designed to keep the price down for you, without sacrificing quality and performance. This has been made possible by cutting out all the middlemen, and instead going directly from factory to retailer. The result is a high quality product at a really good price.

SPECIFICATIONS

• Manufacturer: Bass Habit

• Model: Play

• Power (RMS): 1x180w into 4 ohms, 1x350W into 2 ohms, 1x600W into 1 ohm

• Frequency range: 20 Hz - 500 Hz

• Built-in crossover: low-pass filter 32 Hz - 300 Hz, subsonic 10Hz-50Hz

• Bass boost: Yes

• Other: Fuse 3x25A

• Dimensions (WxHxD): with terminal: 366 x 237 x 51 mm, without terminal: 336 x 237 x 51 mm


DOCUMENTS

User Guide
