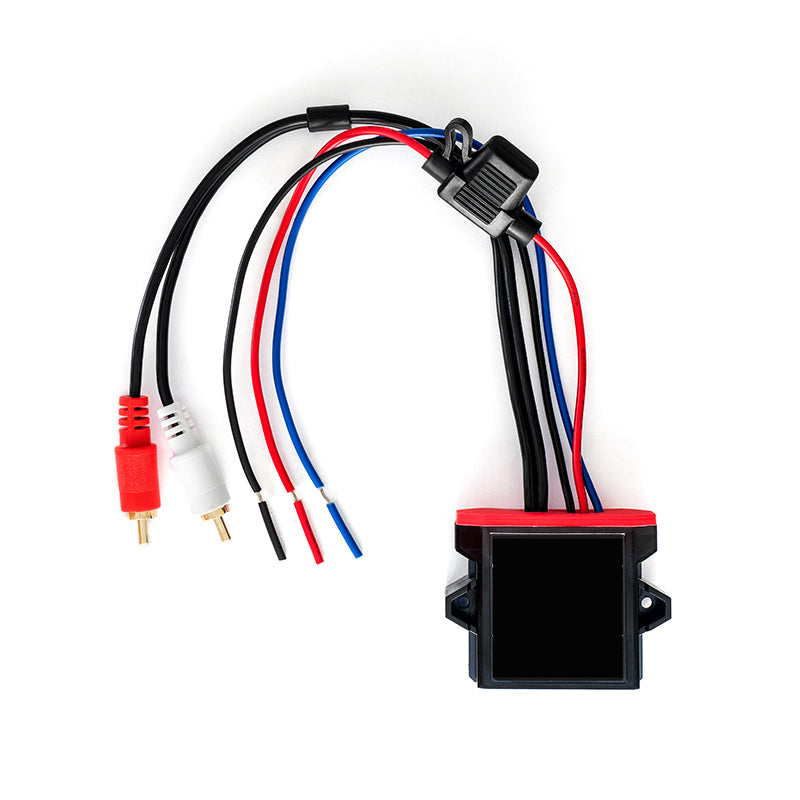

blueLOGiC & mObridge BTR-100, Bluetooth module

Name: blueLOGiC & mObridge BTR-100, Bluetooth module
Brand: blueLOGiC & mObridge
SKU: blueLOGiC & mObridge BTR-100, Bluetooth modulis
Price: 48.00 EUR
Availability: InStock

€48.00 EUR

blueLOGiC & mObridge BTR-100, Bluetooth module is backordered and will ship as soon as it is back in stock.

▪️ Do you have any questions about this product? We can advise you by phone +370 683 90000 or come to our salon at Armatūrinininkų g. 1, Kaunas .

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA

INFORMACIJA

A2DP Bluetooth Audio module with 2 x RCA connectors.

Sensor: 1/4 CMOS.
Viewing angle: 140 degrees.
Resistance standard IP68.
Video RCA connector.

DESCRIPTION

A2DP Bluetooth Audio receiver with 2x RCA-connector for connection to the factory AUX input. Suitable for vehicles and boats with 12 Volt on-board power supply.

TECHNICAL DATA

Product features

Connection of up to 9 devices (automatic connection to the last device)
Splashproof, Marine certified
Automatic switch-on
Automatic remote output
QDL licensed Bluetooth 4.0 CRS I9chip
A2DP in highest EDR specification
BT Audio Streaming also to lossless files like Wave, Flac, Lossless, etc.
RCA output with 1.0V signal output

Connections

Remote output +12V/20mA, powered during music playback
+12V ignition (ACC), Fuse 2A
Ground
2x Male RCA connector

Specifications

Power +12V DC
Current consumption 40mA max
Bluetooth 4.0
Frequency range 20Hz-20kHz
Output level 1V RMS
