Bowers & Wilkins | Bar code: 0714346310005

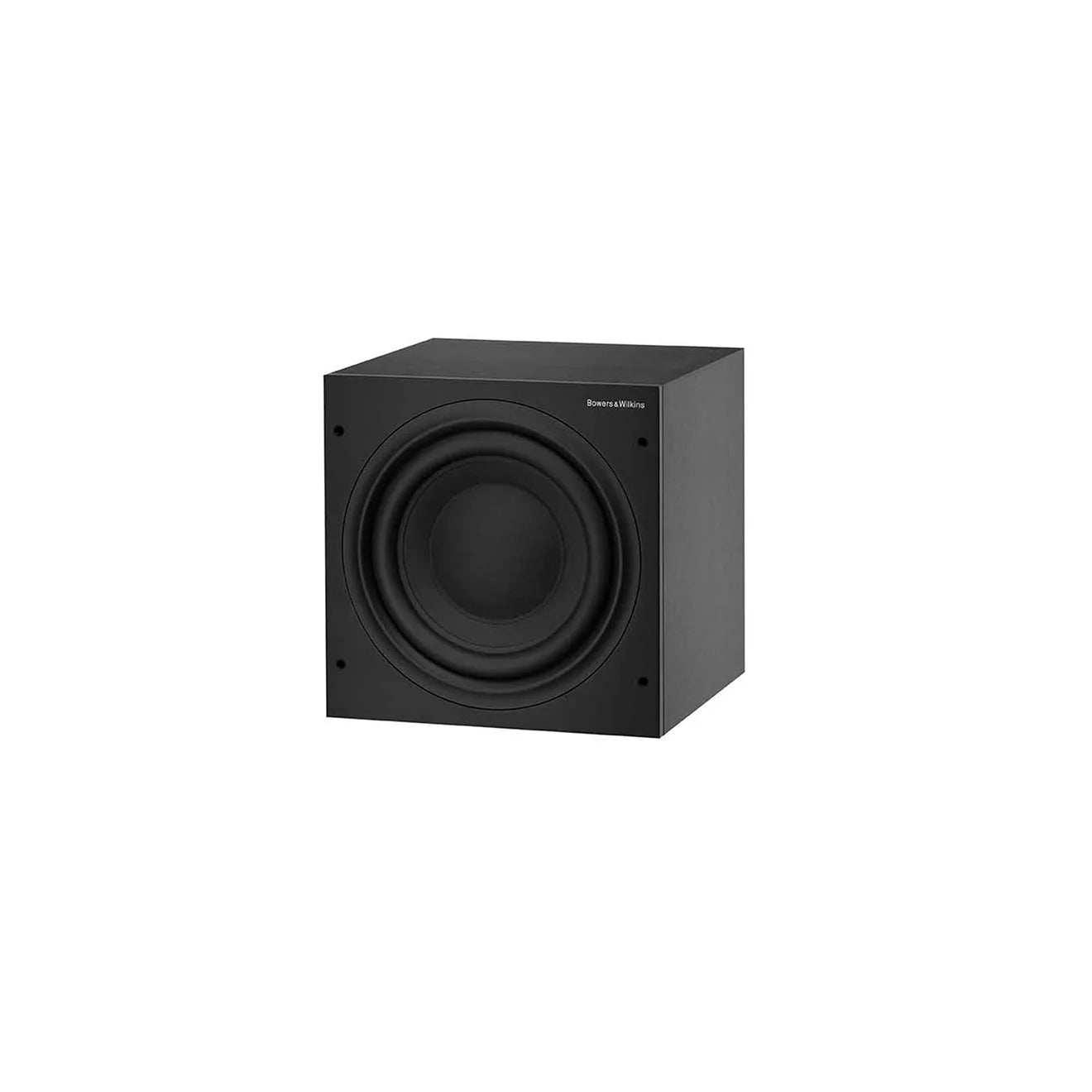

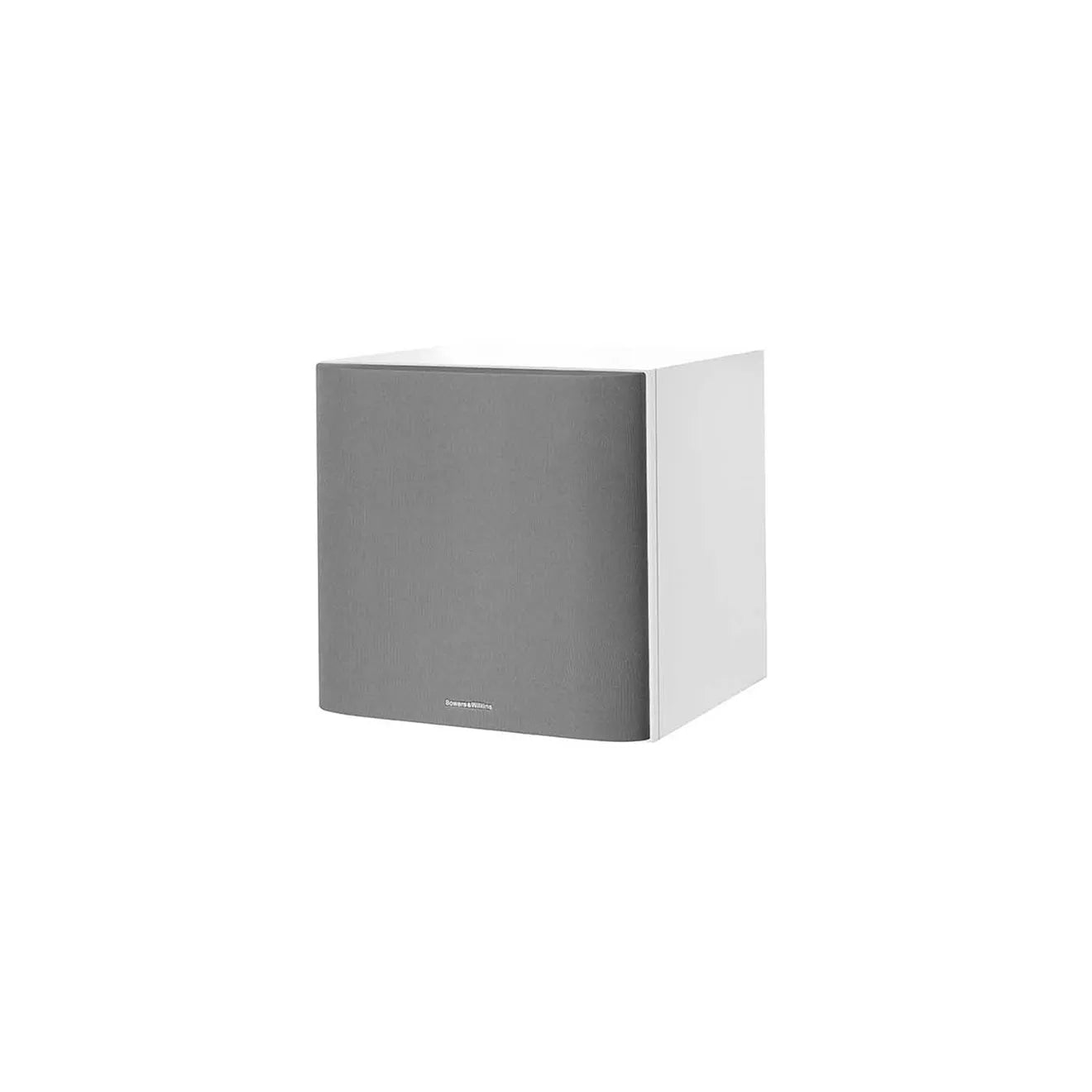

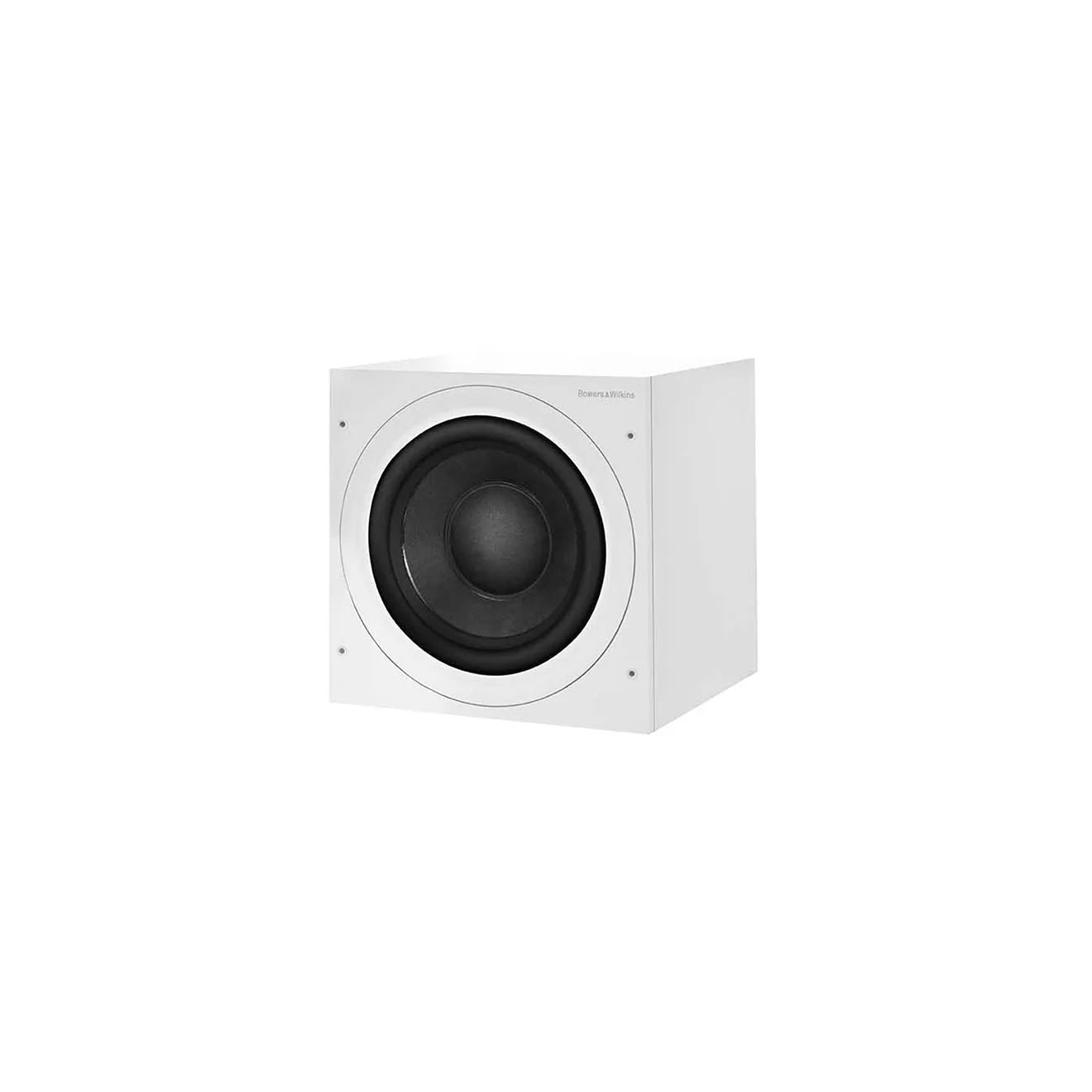

Bowers & Wilkins ASW610XP Subwoofer (Various Colors)

€1,100.00 EUR

Color

Product variants

Bowers & Wilkins ASW610XP Subwoofer (Various Colors) - Black - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

You do not collect sound columns ?

We have a solution for you! We invite you to come ➡️for audio equipment listening to our salon.

Delivery home from € 4.99

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA
DOCUMENTS

INFORMACIJA

A powerful bass speaker that delivers sound without compromise.

Power: 500 W.
Frequency range: ±3dB 25Hz – 40 / 140Hz.
Active Closed-Box housing.
Resistance: 33kΩ.

DESCRIPTION

ASW610XP

Boost your bass

ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch – or finishing thump – to a hi-fi or home theater system for larger rooms.

TECHNICAL DATA

SPECIFICATIONS

Features
Input level (line in)
Input level (speaker in)
Low-pass filter frequency (line in only)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on / standby
Phase switch

Description
Active closed-box subwoofer system

Drive unit
ø250mm (10 in) paper / Aramid fiber cone long-throw

Frequency range
-6dB at 18Hz and 25 / 140Hz adjustable (EQ at A)

Frequency response
±3dB 25Hz – 40 / 140Hz adjustable (EQ at A)

Bass extension
-6dB at 18Hz (position A)
-6dB at 23Hz (position B)
-6dB at 28Hz (position C)

Amplifier
Power output: 500W

Rated power consumption
98W / 1W standby

Input impedance
33 kΩ

Signal / noise
>90dB

Inputs
Line in (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequency

Dimensions
Height: 325mm (12.8in) not including feet or spikes
337mm (13.3in) including feet
353mm (13.9in) including spikes
Width: 325mm (12.8in)
Depth: 348mm (13.68in) not including grills
375mm (14.8in) including grills and controls

Even weight
18.65kg (41.12lb)

Cabinet finishes
Black
White

Grille finishes
Black
Grey

DOCUMENTS

User Manual (EN).
