Bowers & Wilkins

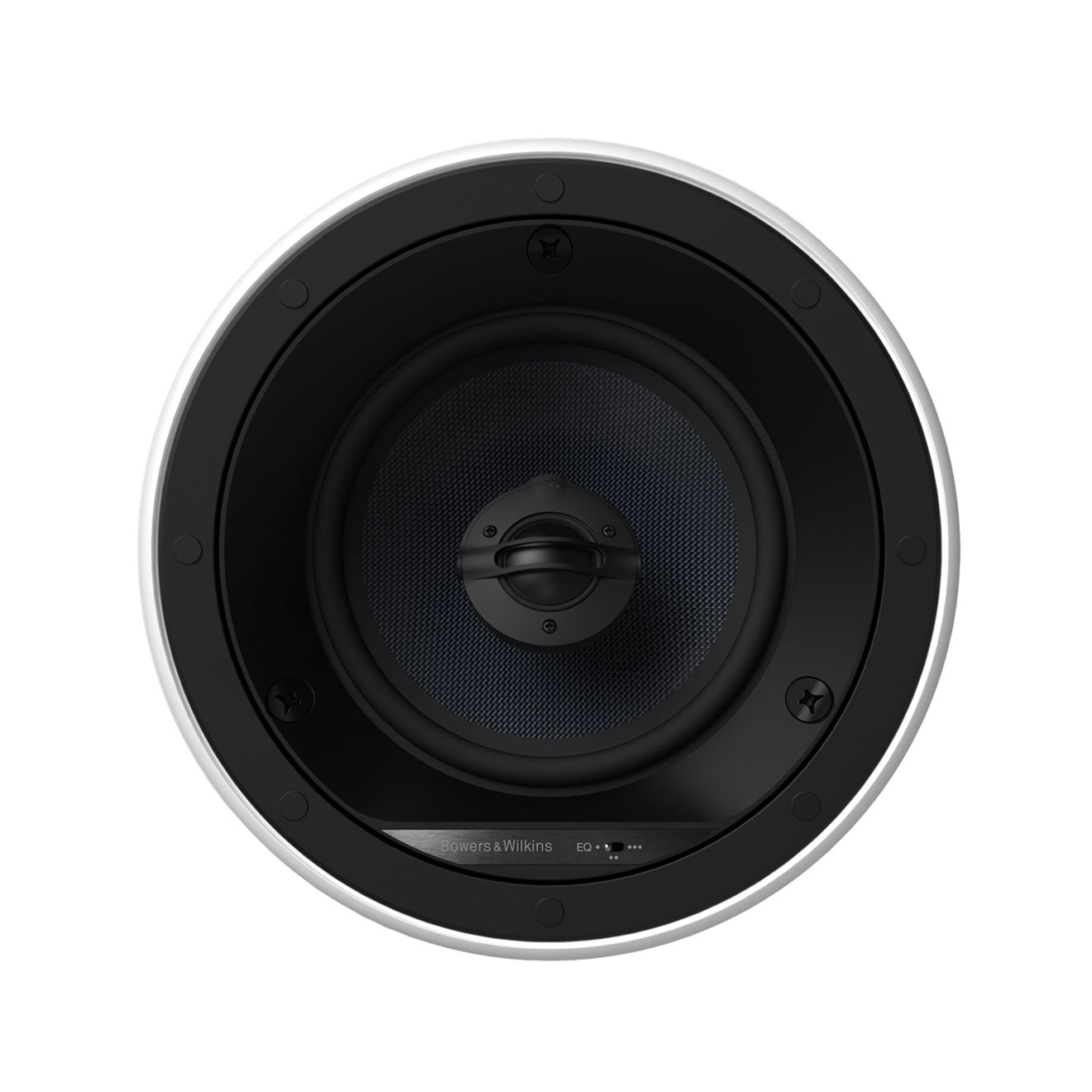

BOWERS & WILKINS CCM663RD in-ceiling speaker

€479.00 EUR

BOWERS & WILKINS CCM663RD in-ceiling speaker - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

You do not collect sound columns ?

We have a solution for you! We invite you to come ➡️for audio equipment listening to our salon.

Delivery home from € 4.99

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

A loudspeaker is installed in the ceiling. Excellent price-quality ratio for those who want high-quality sound at a reasonable price.

  • Power: 130W.
  • Frequency band: 45 - 50000 Hz.
  • Sensitivity: 88 dB.
  • Resistance: 8 ohms.

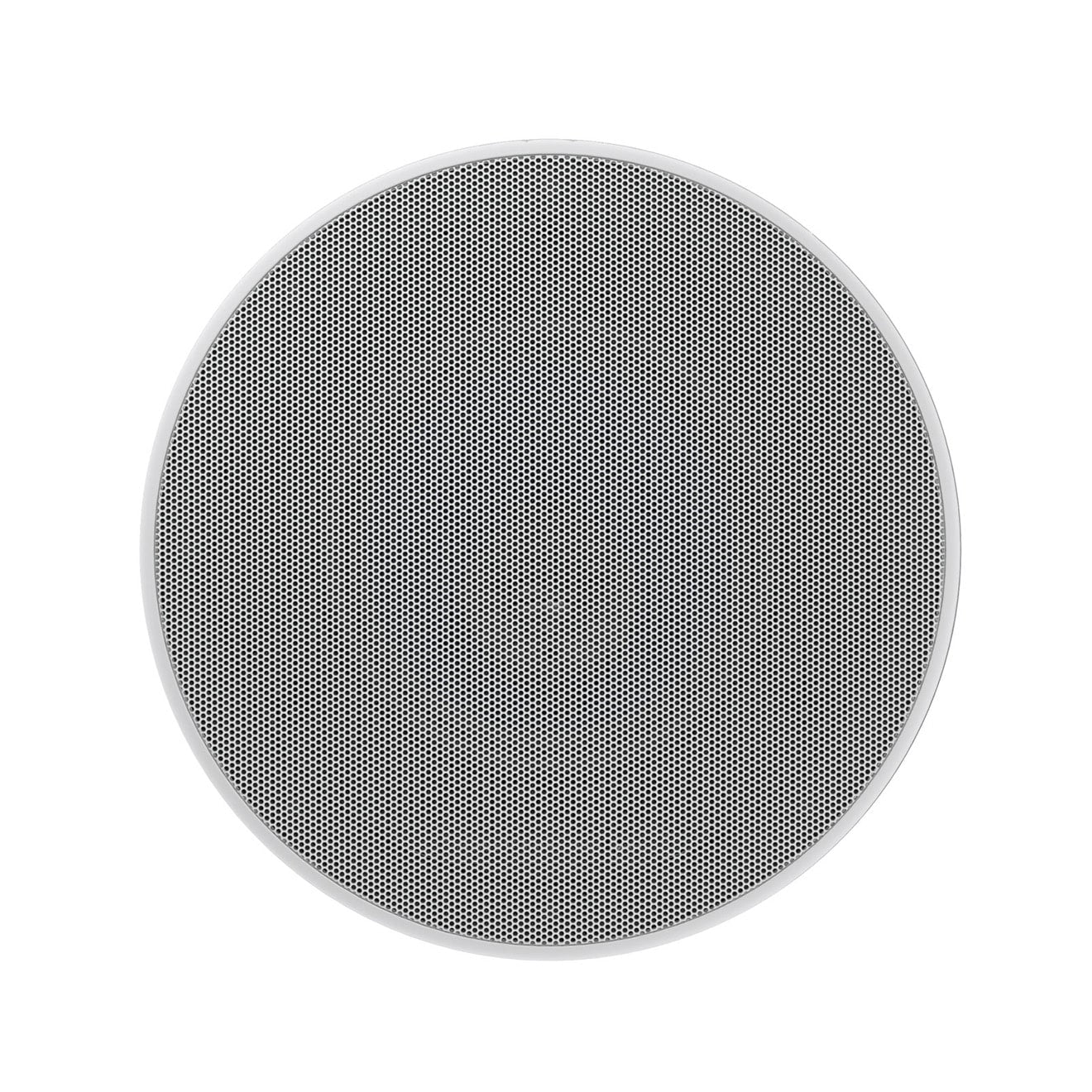

RD stands for Reduced Depth - so this speaker will fit into tighter spaces than the standard CCM663. A shallower cone and a redesign of the easy-fi QuickDogs™ frame reduce depth to a more usable 92mm, while retaining everything that makes the CCM663 such a great inceiling speaker. The familiar, yet discreet, dark blue Kevlar® cone of the bass/midrange driver delivers a stunningly clean, detailed response. This, combined with the pivoting aluminum dome tweeter for adjustable off-axis treble response and three-position EQ, make this one of the most versatile custom speakers around. If preferred, the supplied round grille can be replaced with an optional, square CCM663 grille

SPECIFICATIONS

Description 2-way in-ceiling system
Drive Units 1x ø25mm (1in) Nautilus™ swirl loaded aluminum dome tweeter, 1x ø150mm (6in) blue Kevlar® cone bass/midrange
Frequency Range (-6dB) 35Hz - 50kHz
Recommended Amp Power 25 - 100w
Sensitivity SPL (2.83V, 1m) 86dB
Impedance Nominal (min) 8Ω (4.5Ω)
Frame diameter 240mm (9.4in)
Cut-out diameter 202mm (8in)
Depth behind surface 92mm (3.6in)
Protrusion 7mm (0.3in)
Pre-mount Kit PMK C6
Back Box BB6W or BB125C

User Manual (EN).
