BOWERS & WILKINS CCM683 in-ceiling speaker

2-way in-ceiling loudspeaker. Excellent price-quality ratio for those who want high-quality sound at a reasonable price.

• Power: 130W.
• Frequency band: 35 - 50,000 Hz.
• Sensitivity: 88 dB.
• Resistance: 8 ohms.

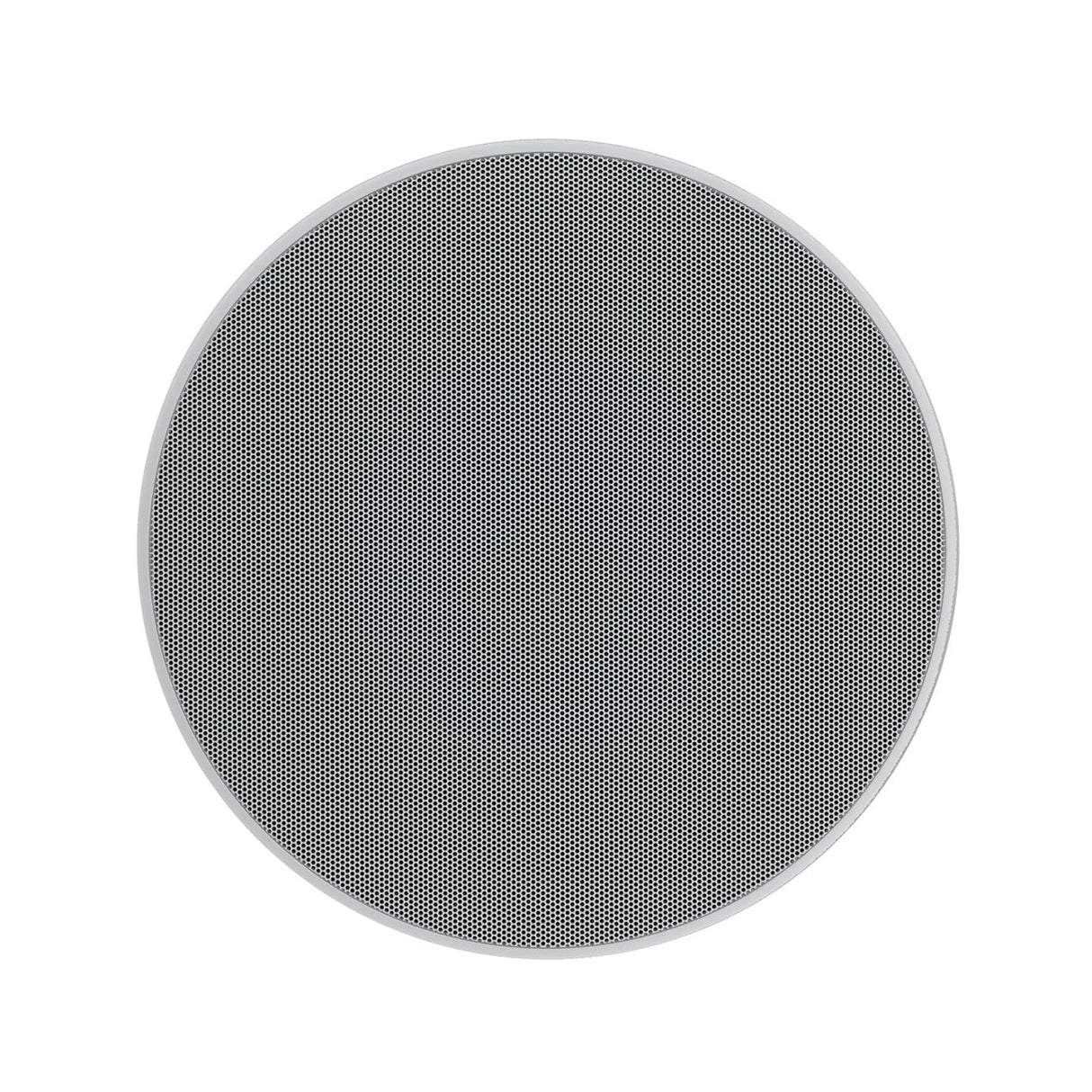

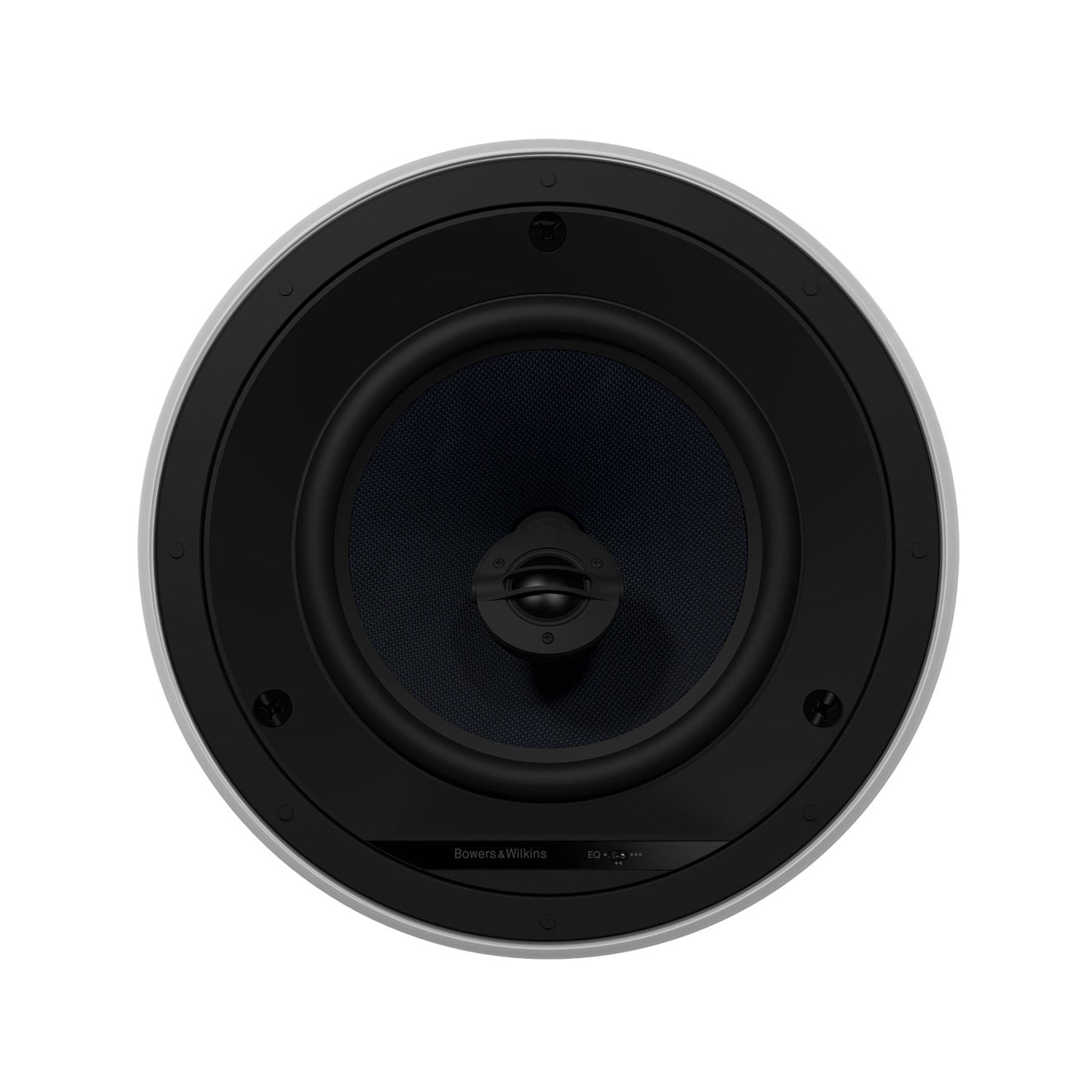

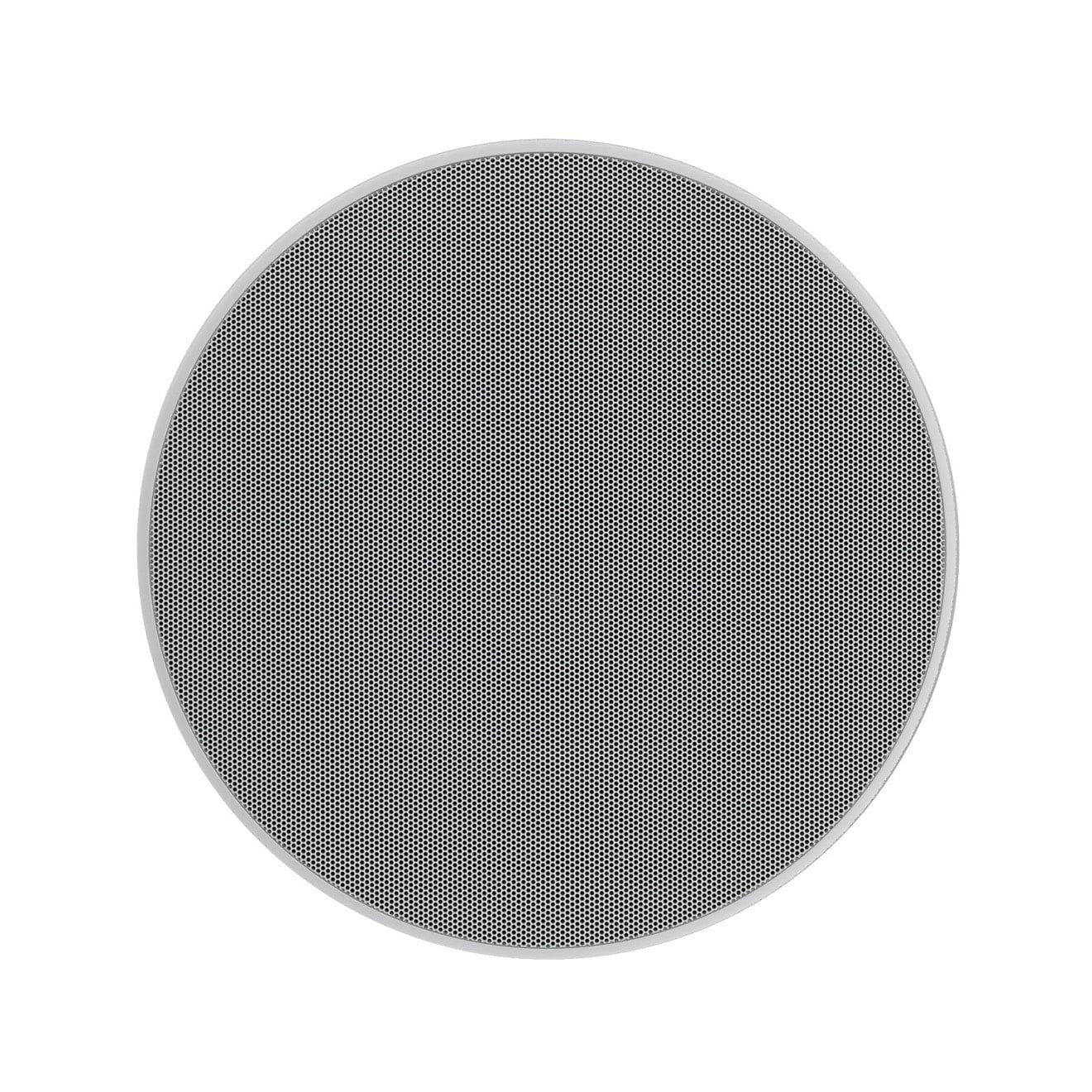

The CCM683 is a true high performance ceiling-mount speaker. The speaker features a 200mm (8in) woven blue Aramid Fiber cone bass/midrange driver and an aluminum tweeter in a neat circular die-cast chassis. The tweeter's housing pivots for adjustable off-axis treble response and the die-cast chassis provides extra rigidity that results in a cleaner, faster bass. The speaker also has a three-position EQ switch for a better off-axis response. The blue Aramid Fiber cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound

SPECIFICATIONS

• Guarantee Period (Months): 60
• Output: Mono
• Power Type: Passive
• Home Cinema
• Stereo Music
• Visible Color: White
• Visible Shape: Circular
• Cutout Diameter (mm): 250
• Mounting Depth (mm): 133
• Overall Depth (mm): 137
• Overall Diameter (mm): 290
• Compatible Amplifier (Watts RMS): 25 - 130
• Frequency range (Hz): 35 - 50000
• Impedance (Ohms): 4.5 - 8
• Sensitivity (dB): 88
• Bass: 1
• Biggest Driver Size (mm): 200
• Twitter: 1

User Manual (EN).
