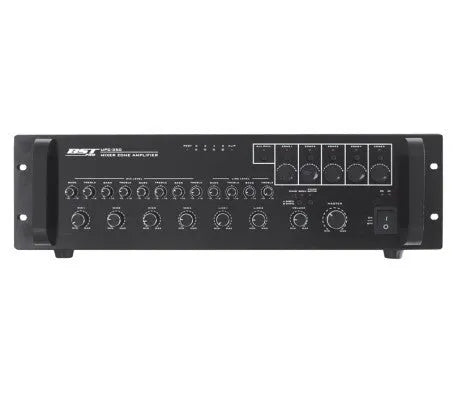

BST UPC350, amplifier with mixer

Powerful 100V amplifier with 5-zone, 350W mixer.

• Power: 350W.
• Frequency band: 80Hz - 15Khz.
• Power supply: 220V / 50Hz or 24V DC.
• RCA connections.

PROPERTIES

• Power rating: 350W

• 70W attenuator for each of the 5 zones

• Chime and siren (2 or 4 tones)

• Phantom power on the mic inputs

• Auto-switch to 24Vdc power in case of power failure

• Priority function on mic (adjustable attenuation)

• Phone & emergency input

• Input for the zone controller MC-33 (optional)

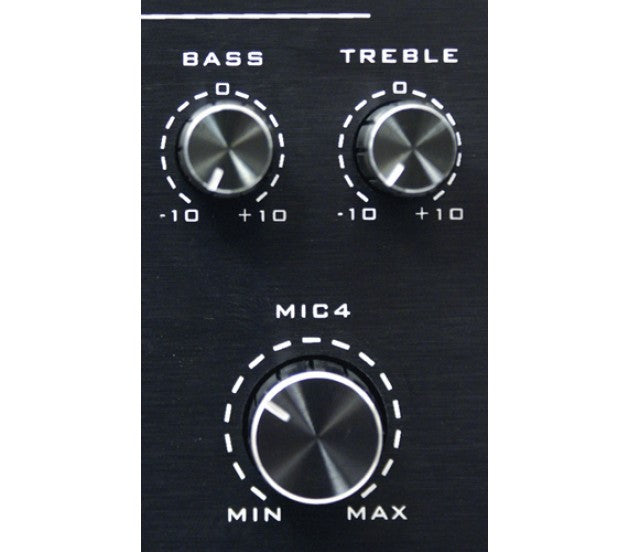

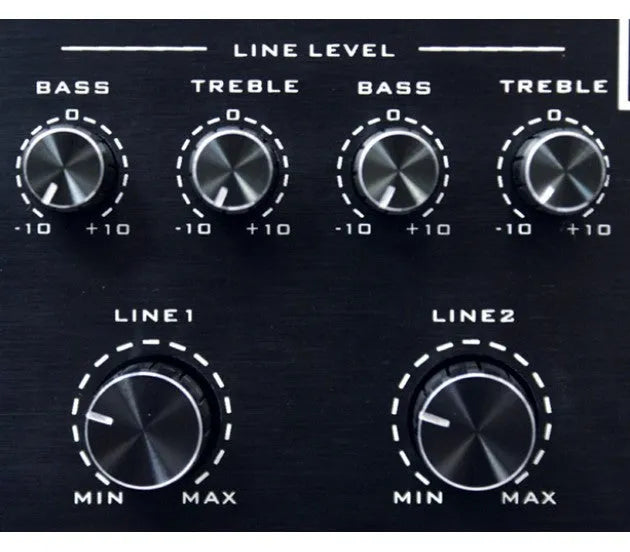

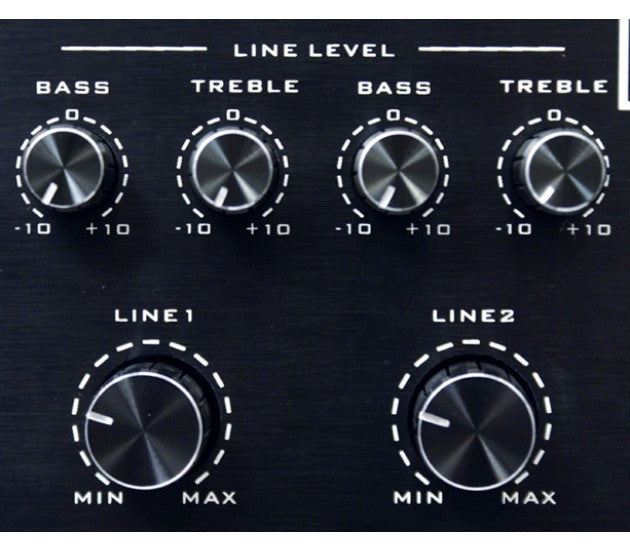

• 2-band EQ on every input

• Brushed aluminum front panel 5mm

• Aluminum buttons

• 2x handles

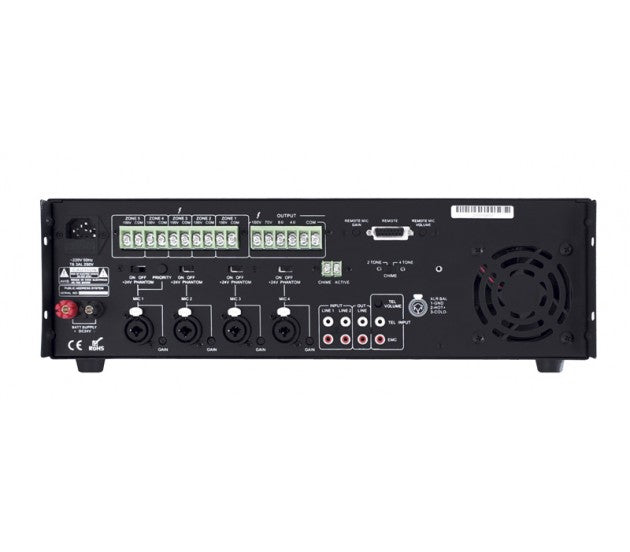

• Inputs: 4x mic (XLR/Jack combo) + 2x line (RCA) + 1x phone (RCA) + emergency (RCA)

• Outputs: 1x line (RCA) + 100V / 70V / 4 a 8 Ohms / 5 zones ( terminals )

SPECIFICATIONS

• Frequency response: 80Hz - 15Khz

• Dimensions: 482x132x450mm (rackable 19 / 3U)

• Power supply: 220V / 50Hz or 24V DC

• Weight: 24.5 kg
