Chord Mojo 2, DAC mobile converter with headphone amplifier

The Mojo 2 is the world's most advanced DAC and headphone amplifier. It reproduces your favorite music with premium detail and clarity, right up to studio level.

• Output power 1% distortion.
• 90 mW into 300 ohms (5.2 V RMS).
• 600mW into 30 ohms (4.2V RMS).
• 0.06 ohm output impedance.
• 118 dB stereo separation at 1 kHz into 300 ohms at 2.5 V.

Distinctly different from all other devices, Mojo 2 uses proprietary British digital audio technology perfected over more than two decades, coupled to a powerful 'FPGA' processor. The result is class-leading sound quality both on the move or at home, with the power to effortlessly drive any headphones. For music just as the artist intended, Mojo 2 brings you closer to the music than any other portable.

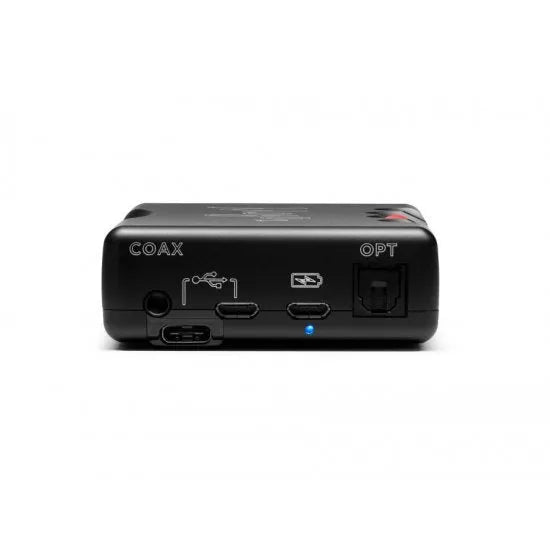

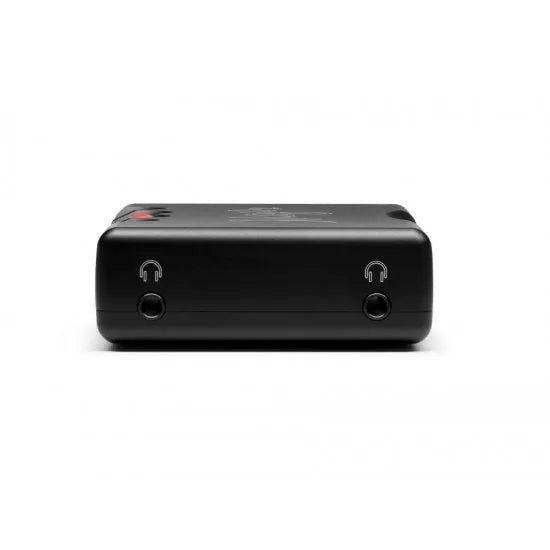

Mojo 2 offers several ways to connect to digital devices, including smartphones, tablets and laptops, plus two 3.5 mm headphone outputs, meaning two can listen simultaneously. Digital inputs include fast-transfer USB-C, Micro-USB, optical and coaxial, with charging via a separate dedicated Micro-USB input.

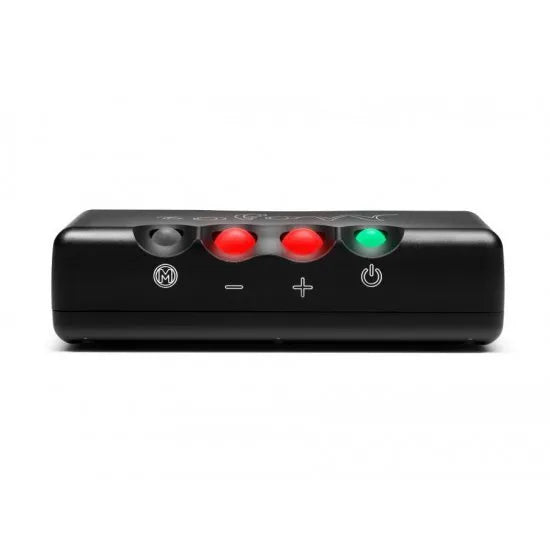

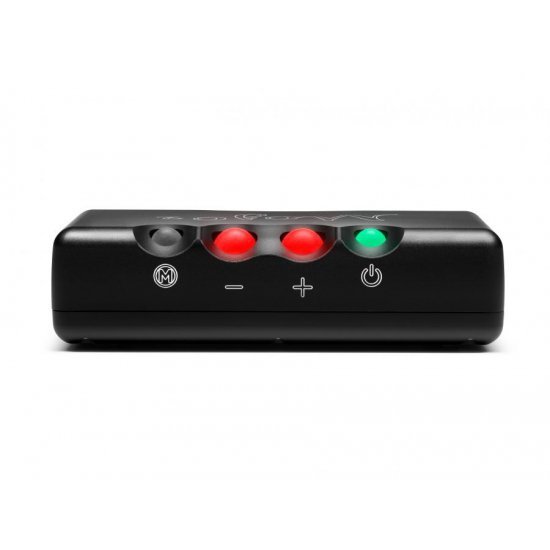

Mojo's polychromatic light-up buttons offer simple control with an additional visual guide to the device's settings. A new menu button offers navigation through a new range of features, including the all-important completely transparent UHD DSP function.

SPECIFICATIONS

• Five digital inputs: coaxial, dual-data coax, optical, Micro-USB and USB-C
• Dynamic range 125 dB A wt.
• Noise 2.7 uV A wt., no measurable noise floor modulation
• Distortion and noise 0.0003% at 2.5 V 300 ohms
• Power output 1% distortion:
• 90 mW 300 ohms (5.2 V RMS)
• 600 mW 30 ohms (4.2 V RMS)
• 0.06 ohms output impedance
• 118 dB stereo separation 1 kHz 300 ohms 2.5 V

INSTRUCTIONS

User Manual (EN).
