Classé

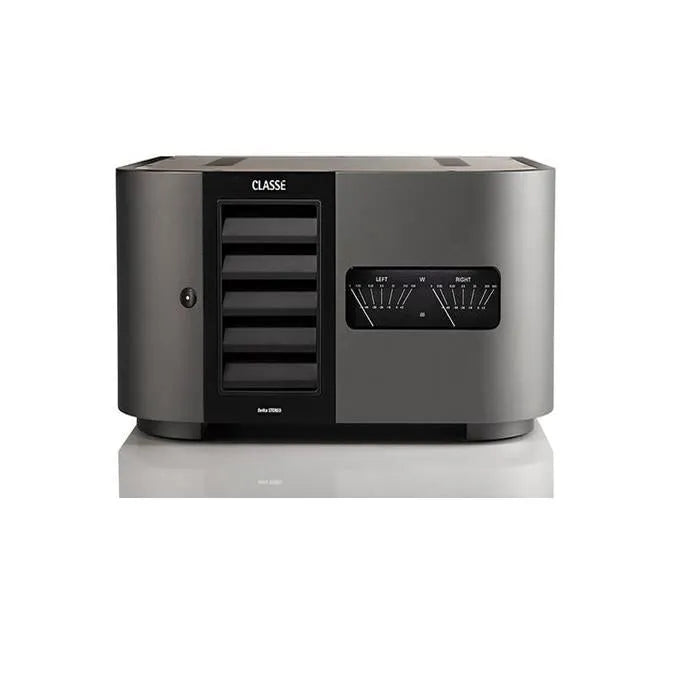

Classé Delta Stereo, power amplifier

€24,000.00 EUR

Classé Delta Stereo, power amplifier is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Delta STEREO brings all the innovations and know-how of Classé into a compact, high-quality stereo amplifier. Where dual mono amplifiers cannot be installed, the Delta STEREO offers uncompromising single-component performance.

  • Frequency range: 1Hz - 650kHz.
  • Resistance: 82kΩ.
  • Vibration resistant base based on Navcom® technology.
  • Furutech® coated RCA contacts.

 

AMPLIFICATION

The first 12.5W of power output are pure Class A, and with a total of 250W per channel at its command (over 350W/Ch @ 2Ω), this compact, powerful amplifier drives loudspeakers with utmost confidence.

  • Up to 12.5W per Channel delivered in pure Class A operation
  • 250W per Channel total
  • Massive, high-quality power supply
  • Custom toroidal transformer

CLARITY

Delta STEREO delivers exceptional clarity. Every effort has been made to preserve complete separation between channels, delivering the natural, expansive sound that Classé is legendary for.

  • Hand-laid circuit boards
  • 6-layer circuit boards provide for shortened signal and power pathways with the lowest noise
  • 22 4-pole Mundorf® capacitors
  • Custom-made Navcom® feet to absorb vibrations
  • Furutech® rhodium-plated RCA and torque-guard speaker connectors

DESIGN

Delta STEREO has presence. Its capabilities are expressed through design and it looks fantastic in any room or installation.

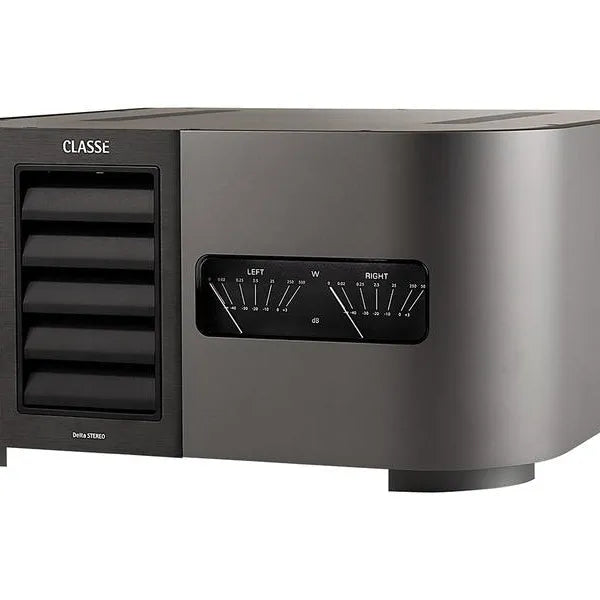

Superb material finishes and a pair of custom-designed illuminated VU meters display power output for both channels beautifully.

Delta Series design concept is to create a monument to sound. This amplifier looks every bit as capable as it sounds.

SPECIFICATIONS

OVERALL DIMENSIONS

Width
17.50 in (444 mm)
Depth
19.37 in (492 mm)
Height
8.74 in (222 mm)

WEIGHT

Gross Weight
116.4 lbs (52.8 kg)
Even Weight
102.3 lbs (46.4 kg)

GENERAL

Frequency Response
(-3dB, 50Ω source impedance)
1Hz - 650kHz
Continuous Output Power
(at 1kHz, 0.1% THD+N)
12.5W / 8Ω delivered in pure class A operation
250W / 8Ω
500W / 4Ω (with AC line held constant)
350W / 2Ω (with AC line held constant)
Harmonic Distortion
(measurement bandwidth:
500kHz, 25Vrms in 4Ω or 8Ω)
<0.0016% at 1kHz
<0.002% at 10kHz
<0.003% at 20kHz
Harmonic Distortion
(measurement bandwidth:
90kHz, 25Vrms in 4Ω or 8Ω)
<0.0007% at 1kHz
<0.001% at 10kHz
<0.0025% at 20kHz
Peak Output Voltage
(nominal AC line)
129Vp-p into 8Ω
138Vp-p no load
Input Impedance
(at 1kHz, BAL/SE)
82 kΩ
Voltage Gain
(at 1kHz, BAL/SE)
29dB
Intermodulation Distortion
(SMPTE 4:1) (8Ω or 4Ω, BAL / SE)
<0.0018%
Intermodulation Distortion
(CCIF) (8Ω or 4Ω, BAL / SE)
<0.004%
Signal-to-Noise Ratio
(A wtd in parenthesis) (22kHz BW)
118dB (120dBA)
Crosstalk
(one channel driven to 250W / 8Ω)
124dB (100Hz), 107dB (1kHz),
90dB (10kHz)
Slew Rate
75V/μs
Output Impedance
0.009Ω (100Hz), 0.009Ω (1kHz),
0.012Ω (10kHz)
Damping Factor
(at 1kHz, ref 8Ω)
850
