Clearaudio

Clearaudio balance reference phono, phono korektorius

€7,900.00 EUR

Clearaudio balance reference phono, phono korektorius - Black - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

Clearaudio balance reference phono -  tai aukščiausios klasės phono korektorius, sukurtas analogo entuziastams, siūlantis nepriklausomus įėjimus tiek MM (Moving Magnet), tiek MC (Moving Coil) foninėms galvutėms.

Nepriklausomi įėjimai: Galima pasirinkti subalansuotus (XLR) arba nesubalansuotus (RCA) įėjimus ir išėjimus.
Lankstus varžos reguliavimas: Tinka daugeliui foninių galvučių.
Garso ir įėjimo reguliavimas: Pasiekiama naudojant nuotolinio valdymo pultą.
Aukščiausios kokybės dizainas: 2 ausinių jungtys, dual-mono maitinimo šaltinis su atskiru aliuminio korpusu, užtikrinantis aukščiausią garso kokybę.

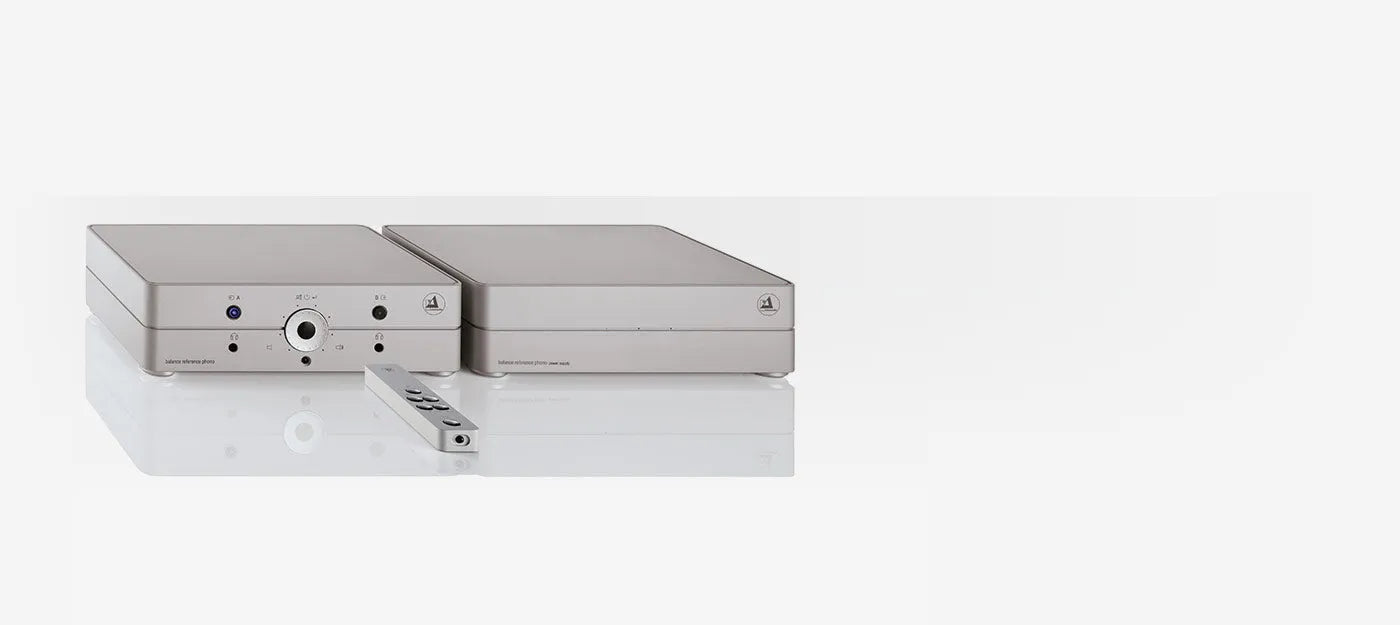

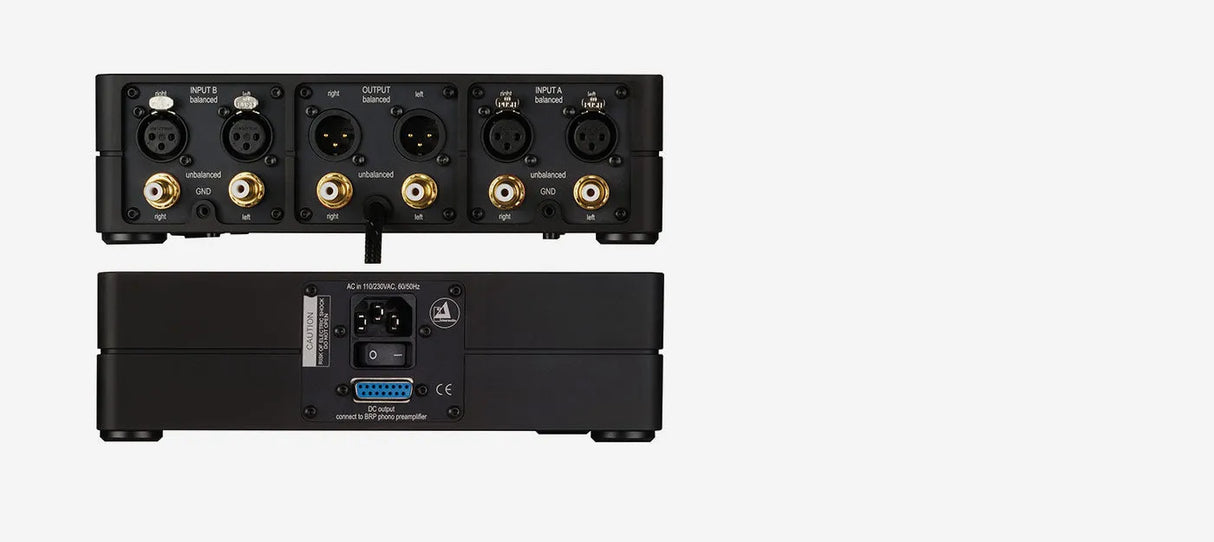

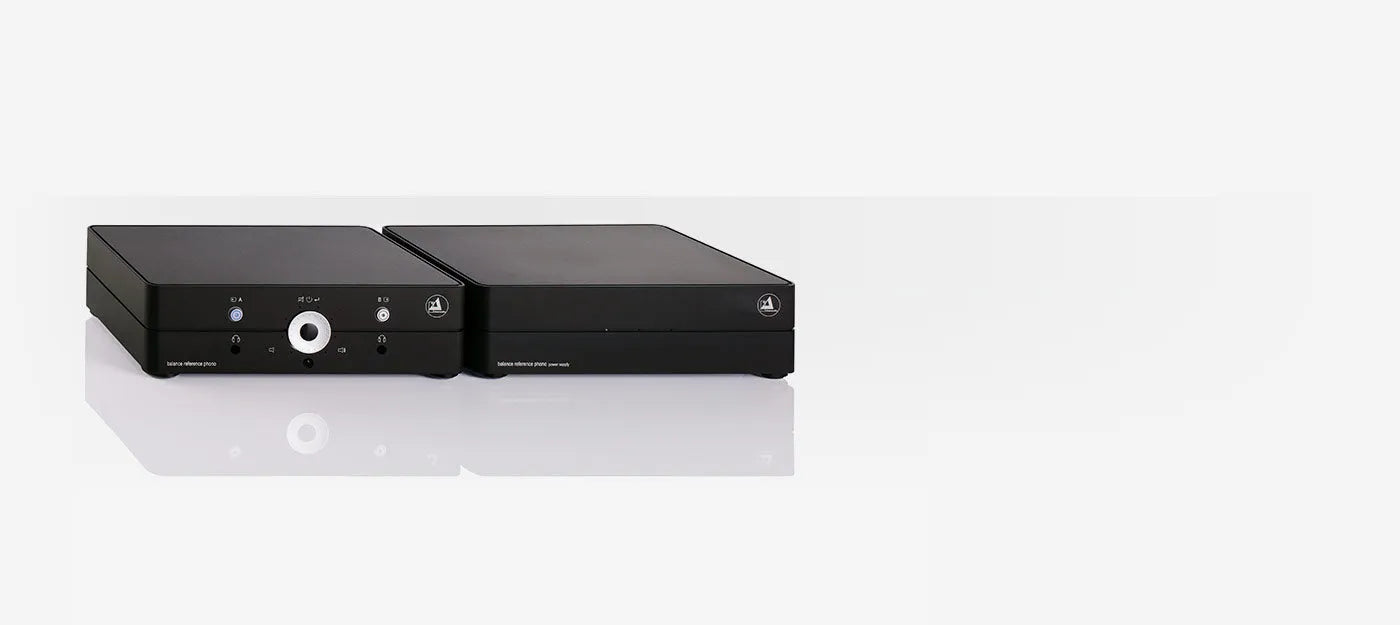

The new balance reference phono was developed especially for the phono enthusiast, featuring completely independent phono inputs for connecting moving coil and moving magnet phono cartridges. It provides total freedom in selecting balanced (XLR) or single-ended (RCA) inputs and outputs with the total flexibility of adjusting the input impedance for most cartridges.

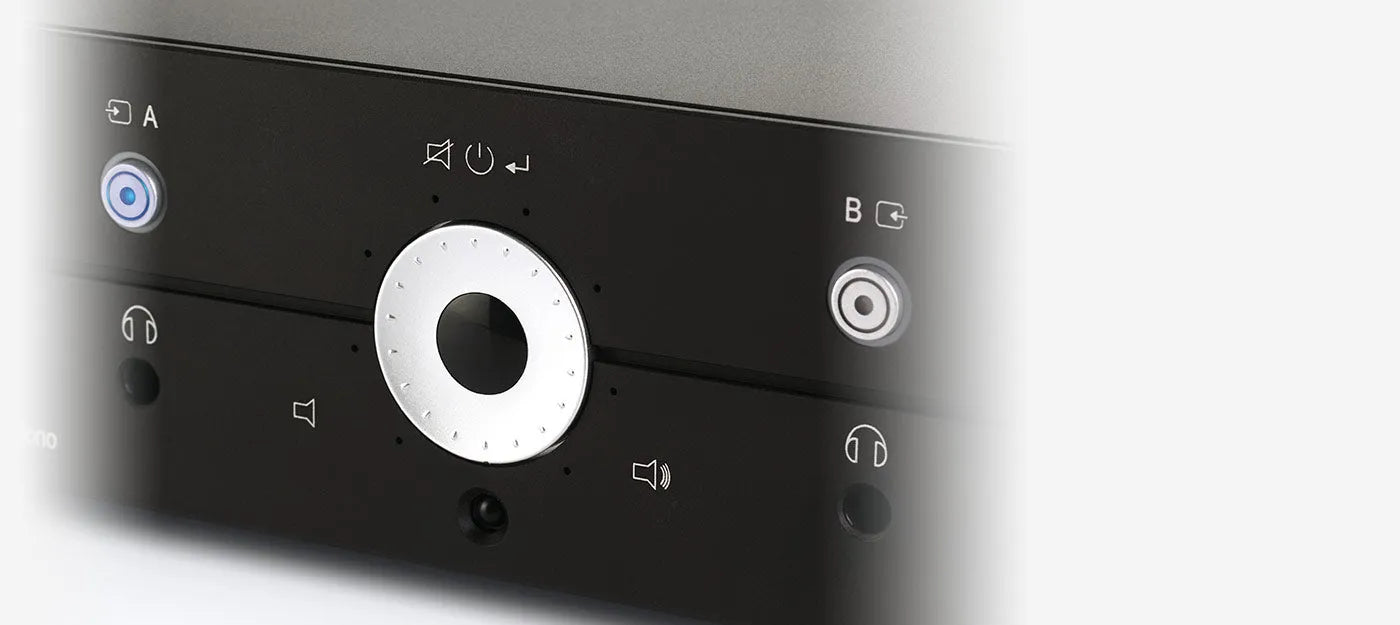

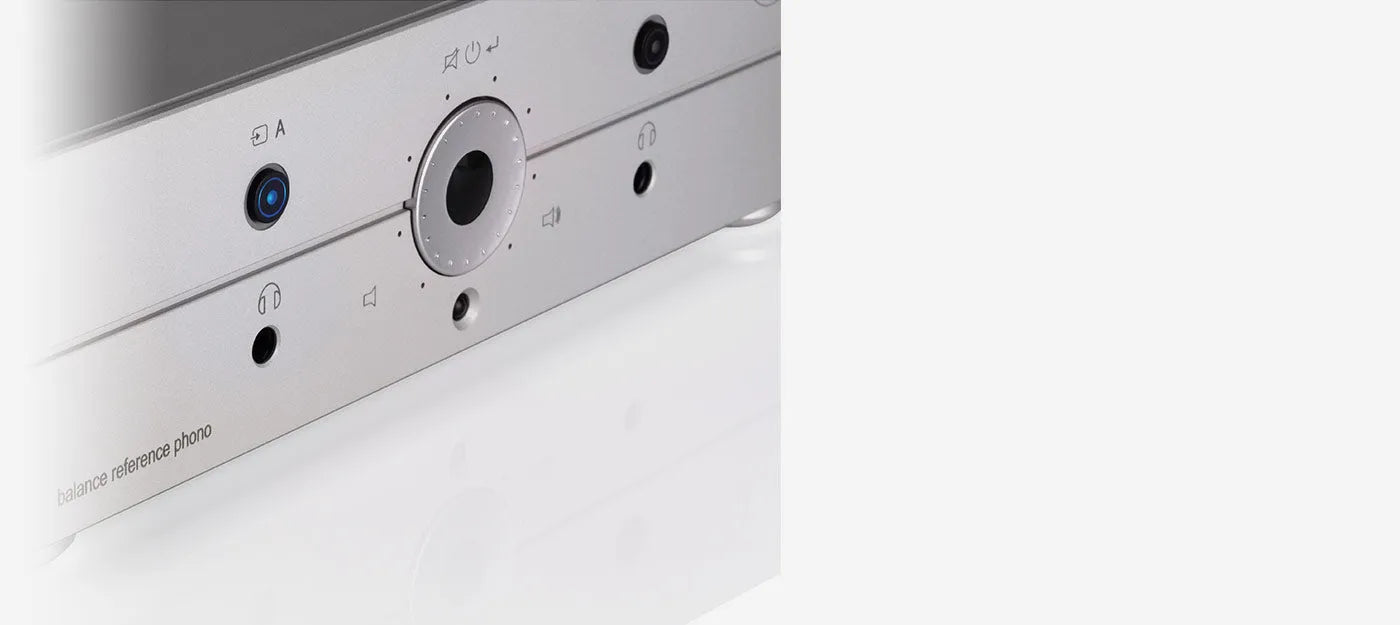

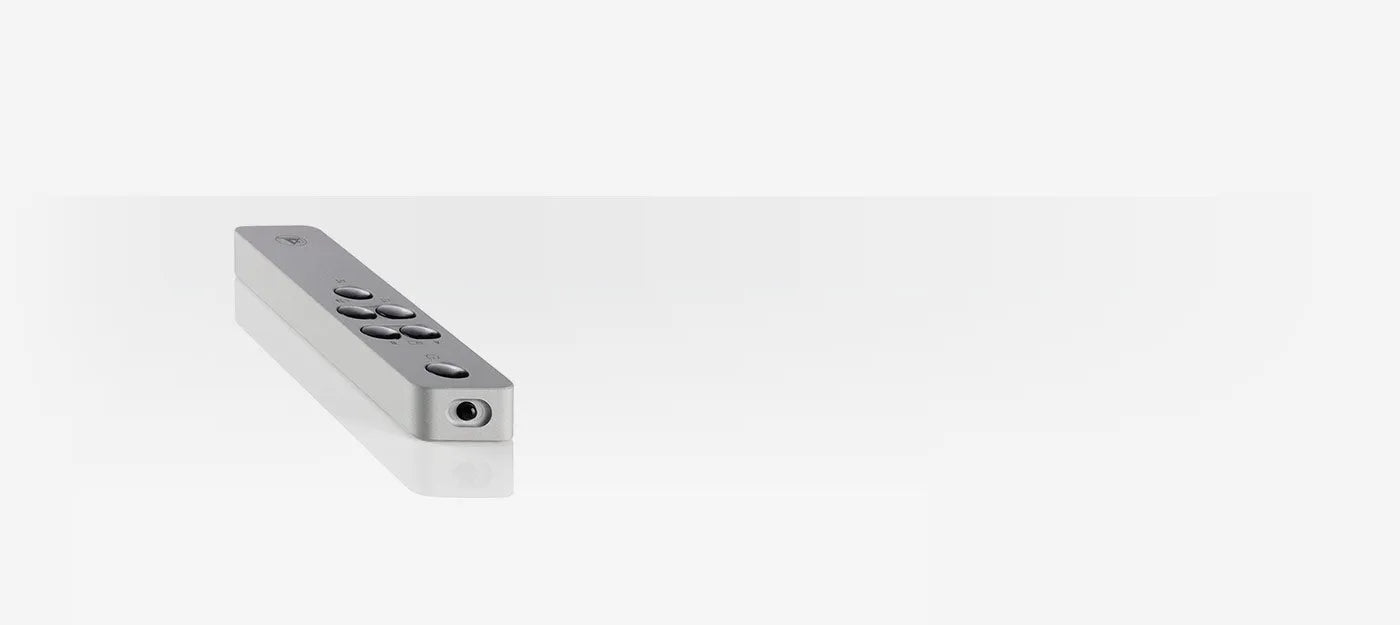

The sophisticated volume and input circuitry are accessible with the supplied remote control. The high-performance design provides 2 headphone connections. A dual-mono power supply housed in its own dedicated aluminium chassis assures the highest sound quality.

The balance reference phono is truly a world-class phono stage for analog aficionados.

Mode     MM / MC switchable (at bottom)
Subsonic filter switchable @20Hz (-18dB / Oct) (at bottom)
Stereo / Mono switchable
Amplification     + 46dB (MM mode)
+ 66dB (MC mode)

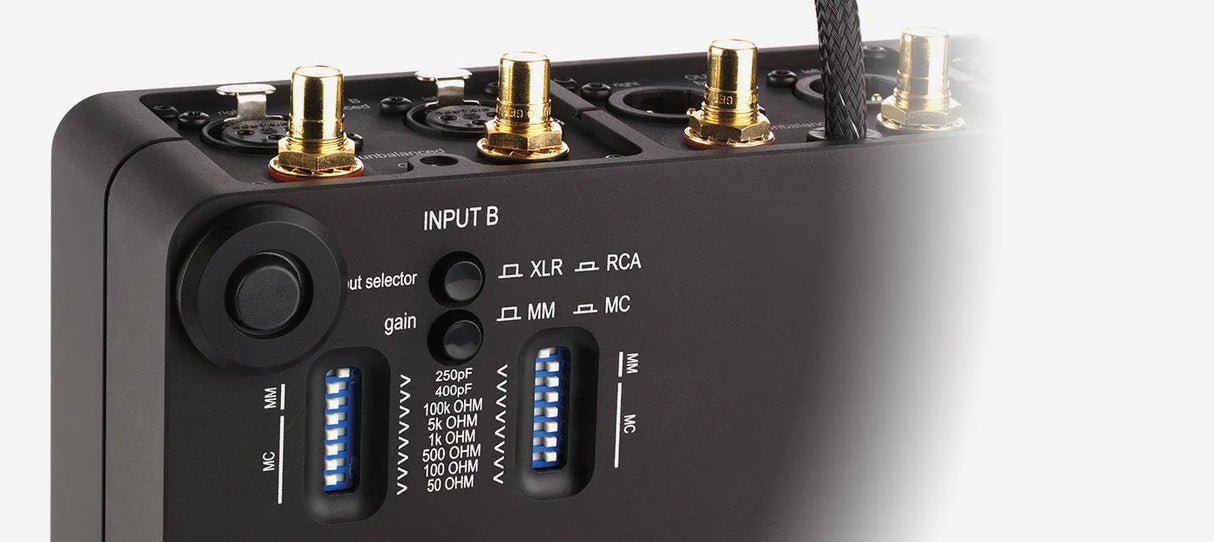

Input load     50kΩ / 50pF (MM mode and MC mode)
+150pF, +270pF, +400pF (MM mode)
10kΩ, 5kΩ, 1000Ω, 500Ω, 100Ω, 50Ω (MC mode)
RIAA accuracy     ± 0.1dB @ 20Hz - 100kHz
THD     < 0.001% (IEC A)
Signal to noise ratio     - 89dB @ 5mV / MM mode (IEC A)
- 79dB @ 500uV / MC mode(IEC A)
Headroom     > + 21dB @ 1kHz
Max. output voltage     > 12V
RIAA     75μs / 318μs / 3180μs, 2 passive filter
Channel seperation     > 95dB @ 1kHz (IEC A)
Output impedance     150Ω (balanced XLR)
75Ω (unbalanced RCA)
Inputs     unbalanced (RCA)
balanced (XLR)
Outputs     unbalanced (RCA)
balanced (XLR)
headphone output (2 × Jack: 6.3mm)
Power consumption     Max. consumption: 12 watts
Standby mode: < 0.5 watts
Off mode: 0.0 watts (by switching off at the rear of the machine)
Power supply     2x ± 18V DC
(external power supply 2x ± 21V DC), 1.4m cable length
Total weight preamplifier     Approx. 2.9kg
Total weight power supply     Approx. 2.2kg
Dimensions preamplifier (W/D/H)     Approx. 240 × 145 × 78mm
(158mm deepth with RCA)
Dimensions preamplifier (W/D/H)     Approx. 9.45 × 5.71 × 3.07 inches
(6.22 inches deepth with RCA)
Dimensions power supply (W/D/H)     Approx. 240 × 145 x 78mm
Dimensions power supply (W/D/H):     Approx. 9.45 × 5.71 × 3.07 inches

Vartotojo vadovas (EN)
