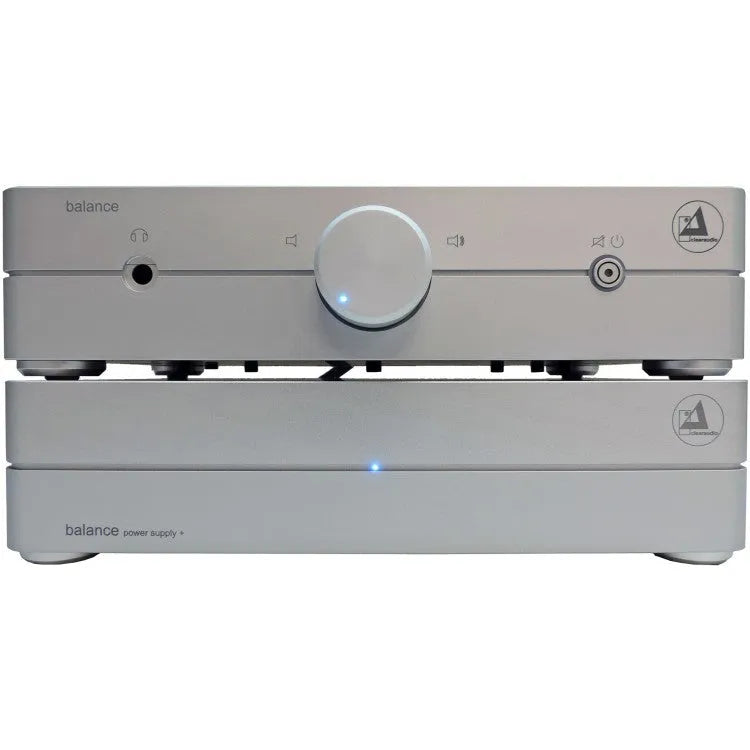

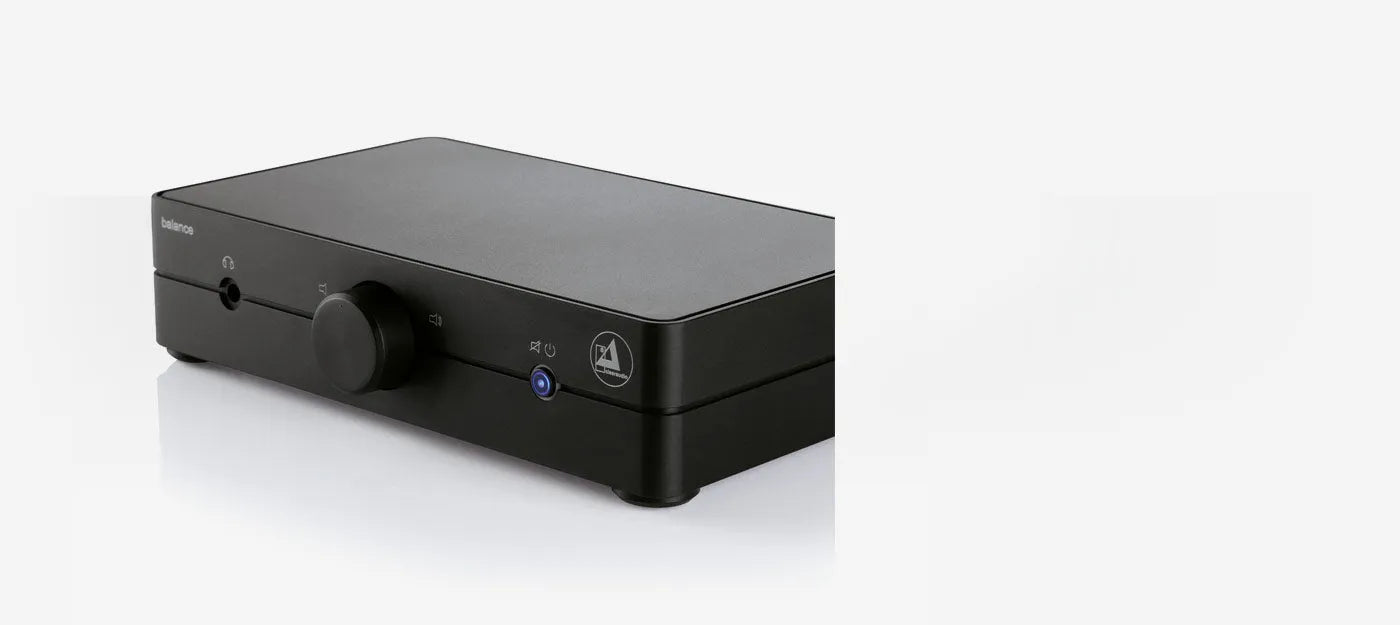

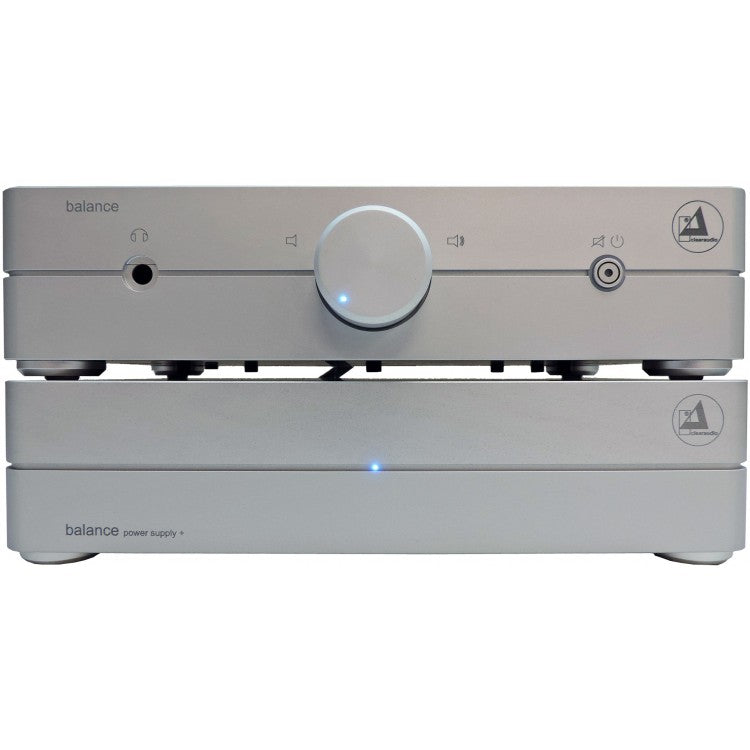

Clearaudio balance V2, phono korektorius

Clearaudio balance V2 -  tai aukštos kokybės phono korektorius, skirtas audiofilams, kurie vertina tiek paprastumą, tiek tikslumą.

Režimai: MM (Moving Magnet) / MC (Moving Coil) perjungimas
Ikigarsinis filtras: jungiamas (20Hz, -6dB/oct., kiekvienam kanalui)
Stiprinimas: MM režimas: +46dB, MC režimas: +66dB
Įėjimo apkrova: MM režimas: 47kΩ / 270pF, MC režimas: 500Ω / 270pF
RIAA tikslumas: ± 0.1dB
Bendras harmoninis iškraipymas (THD): < 0.001% (IEC A)
Signalo ir triukšmo santykis: MM režimas: -78dB, MC režimas: -79dB
Išėjimai: nesubalansuoti (RCA), subalansuoti (XLR), ausinių išėjimas (Jack 6.3mm)
Įėjimai: nesubalansuotas (RCA), subalansuotas (XLR)

With its superior performance, the balance V2 phonostage would not be out of place in any professional studio.

How do you balance simplicity with complexity? Clearaudio’s balance plus phono stage managed it with ease and now the new balance V2 advances its technologies while losing none of the equilibrium. On the one hand, its design remains elegantly unfussy and its operation effortlessly intuitive. And yet at the same time, the balance V2 offers an array of options to adjust and fine-tune its performance to your particular system and preferences.

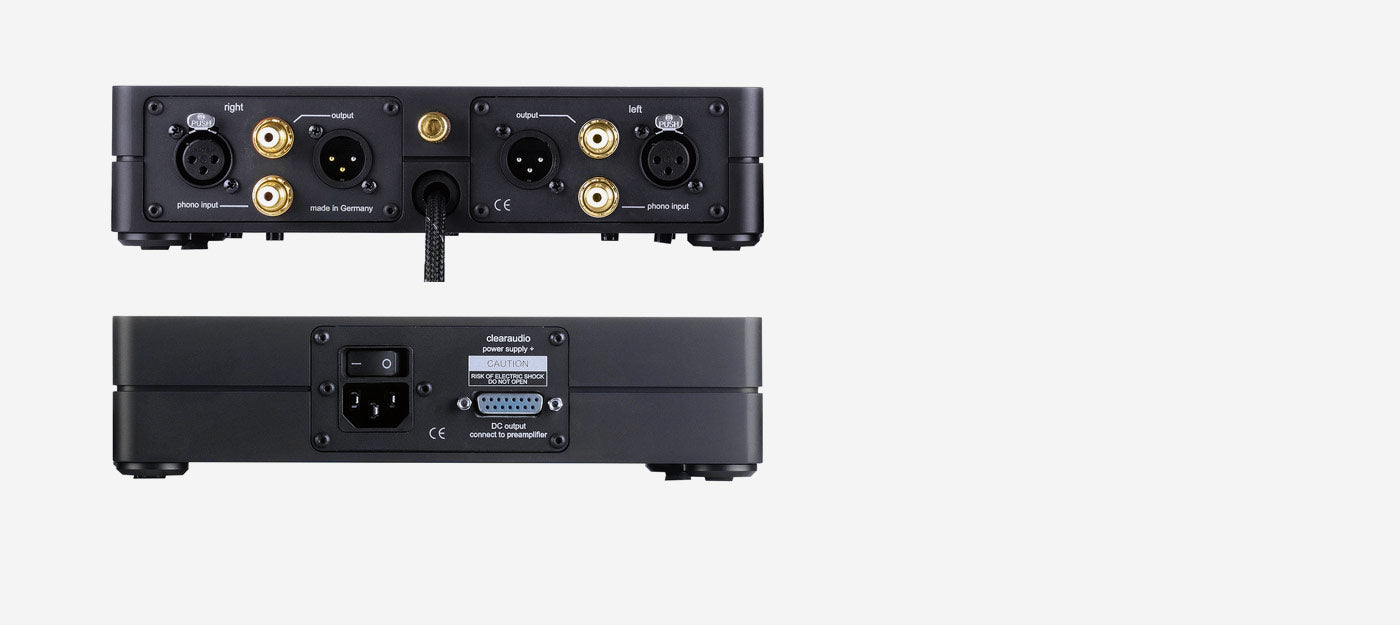

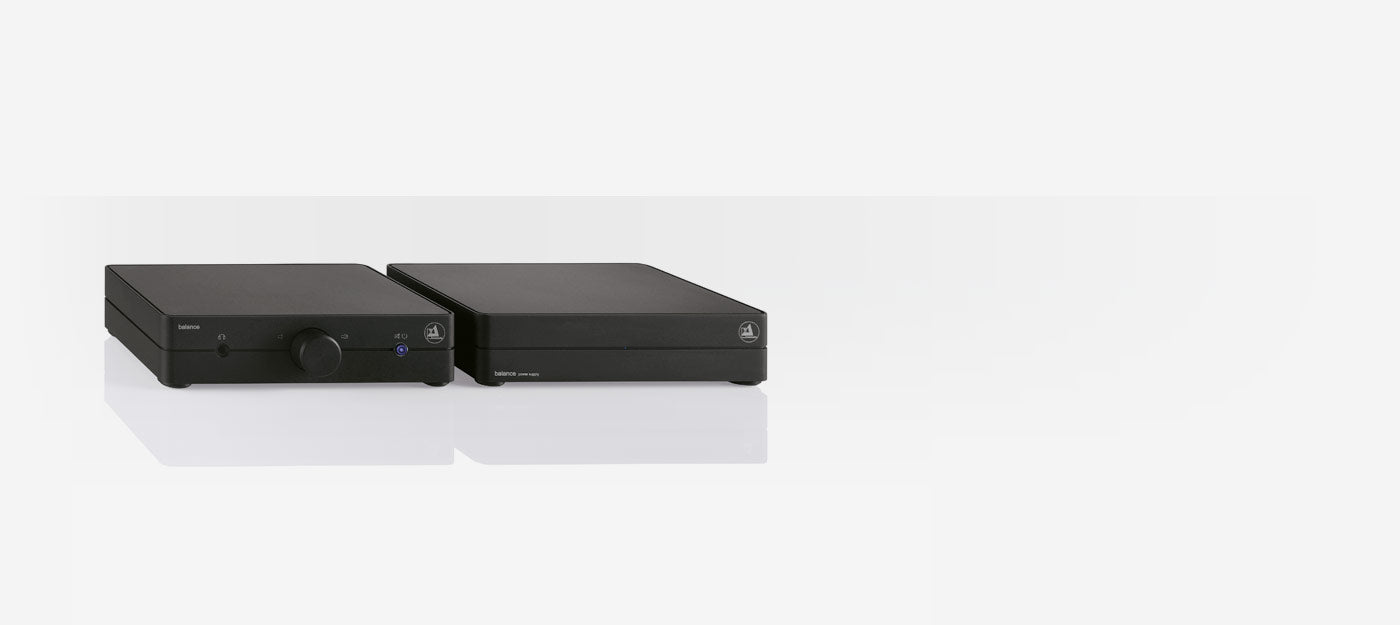

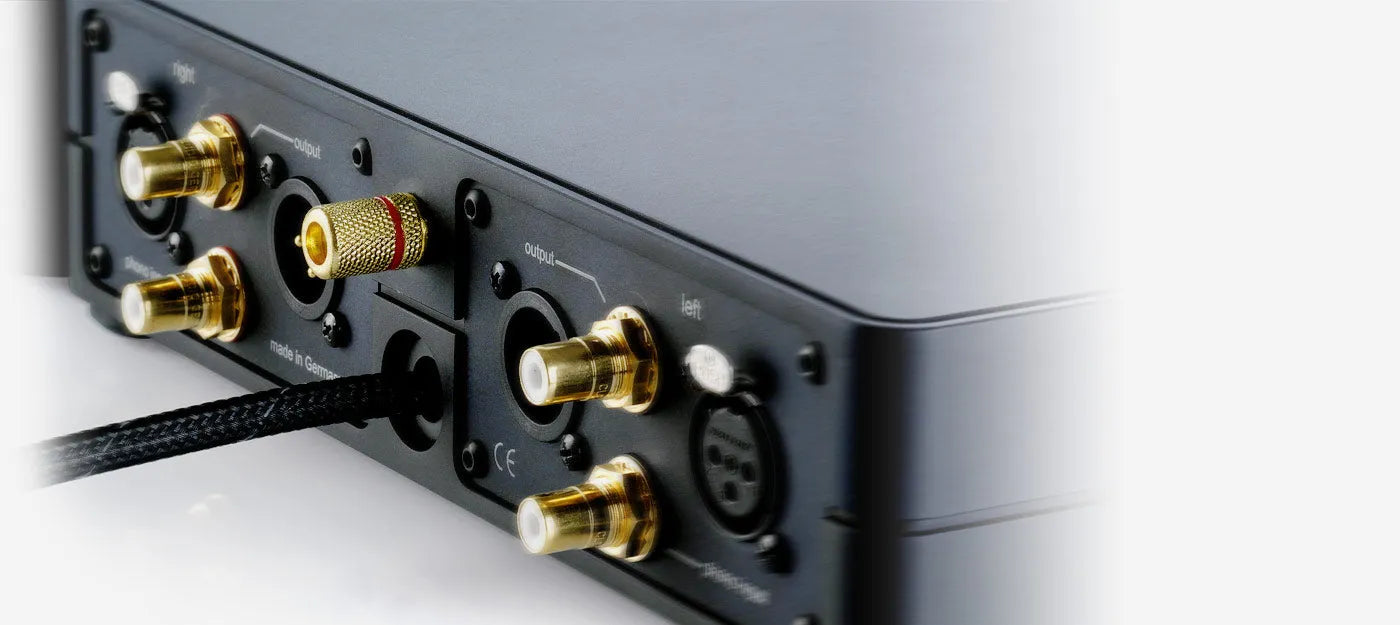

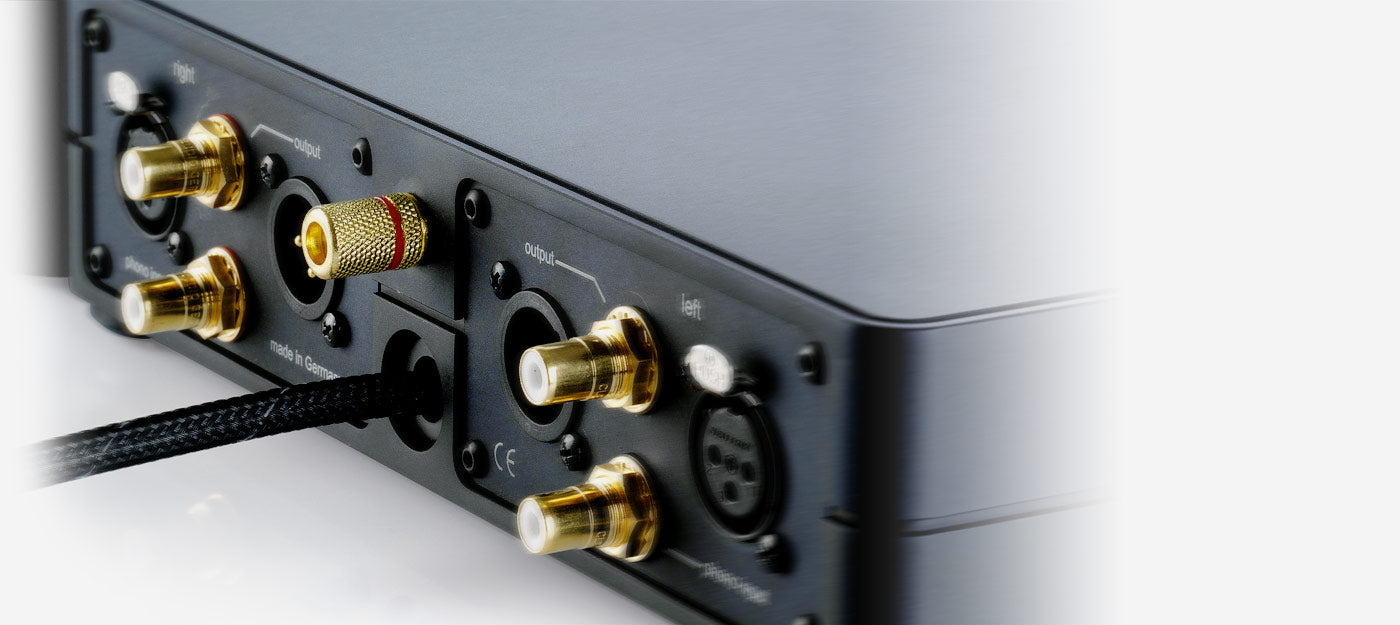

The sleek casing is crafted from precision-milled aluminium, which is also available with an anodized black finish. As well as the usual RCA outputs, the balance V2 features balanced XLR outputs and a 6.3 plug headphone output. All RCA inputs and outputs are gold-plated forsuperior signal transmission.

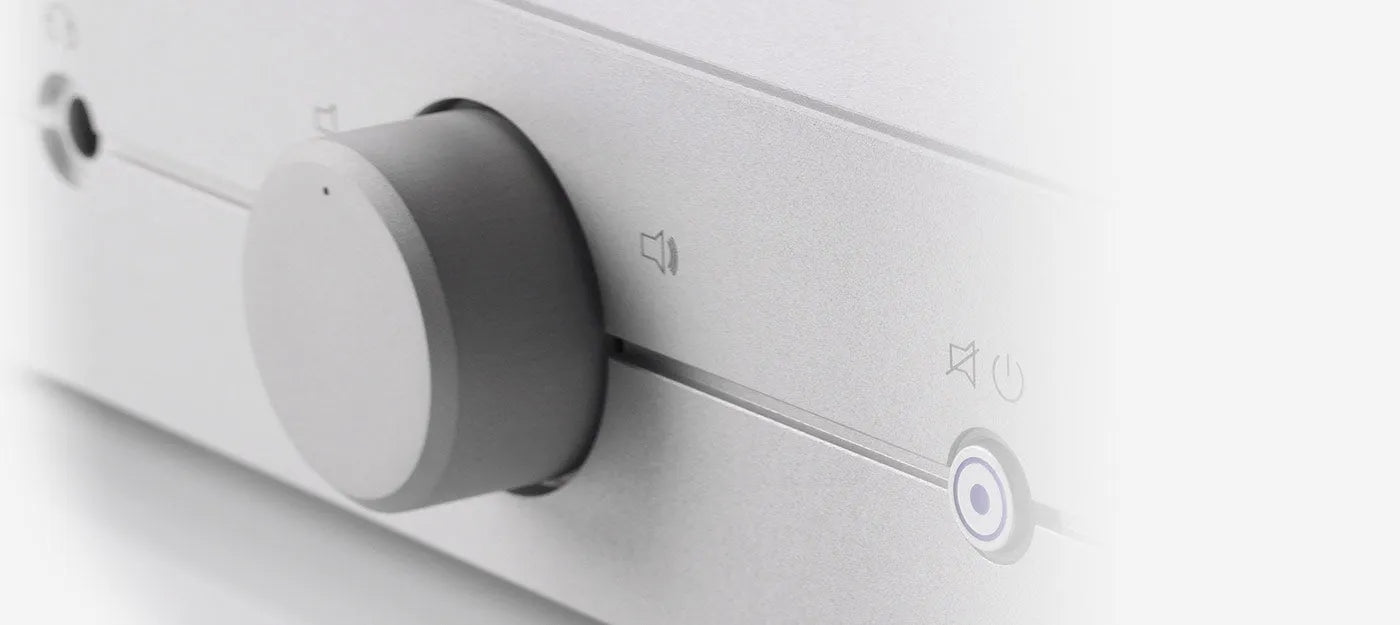

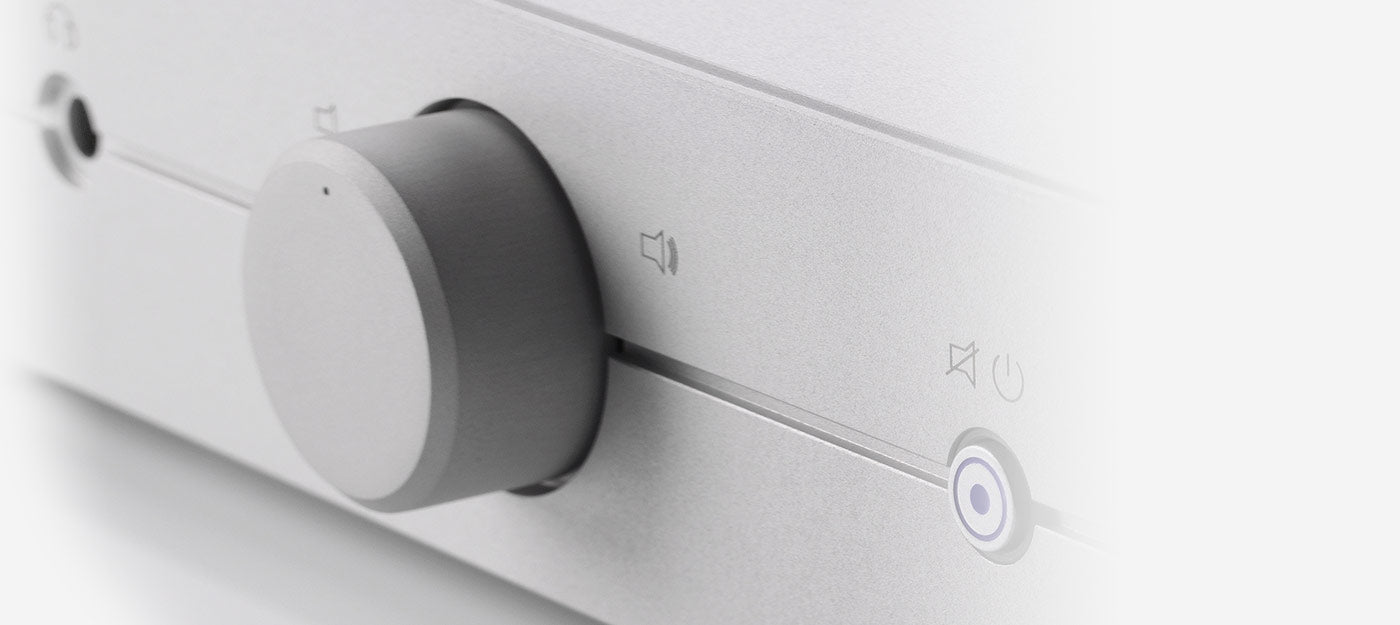

Besides the manual volume control you can choose between mute and automatic mode by button. A simple switch allows you to choose between moving magnet and moving coil mode. From there, the balance V2 will automatically harmonize with almost any highend phono cartridge without you needing to make any further adjustments.

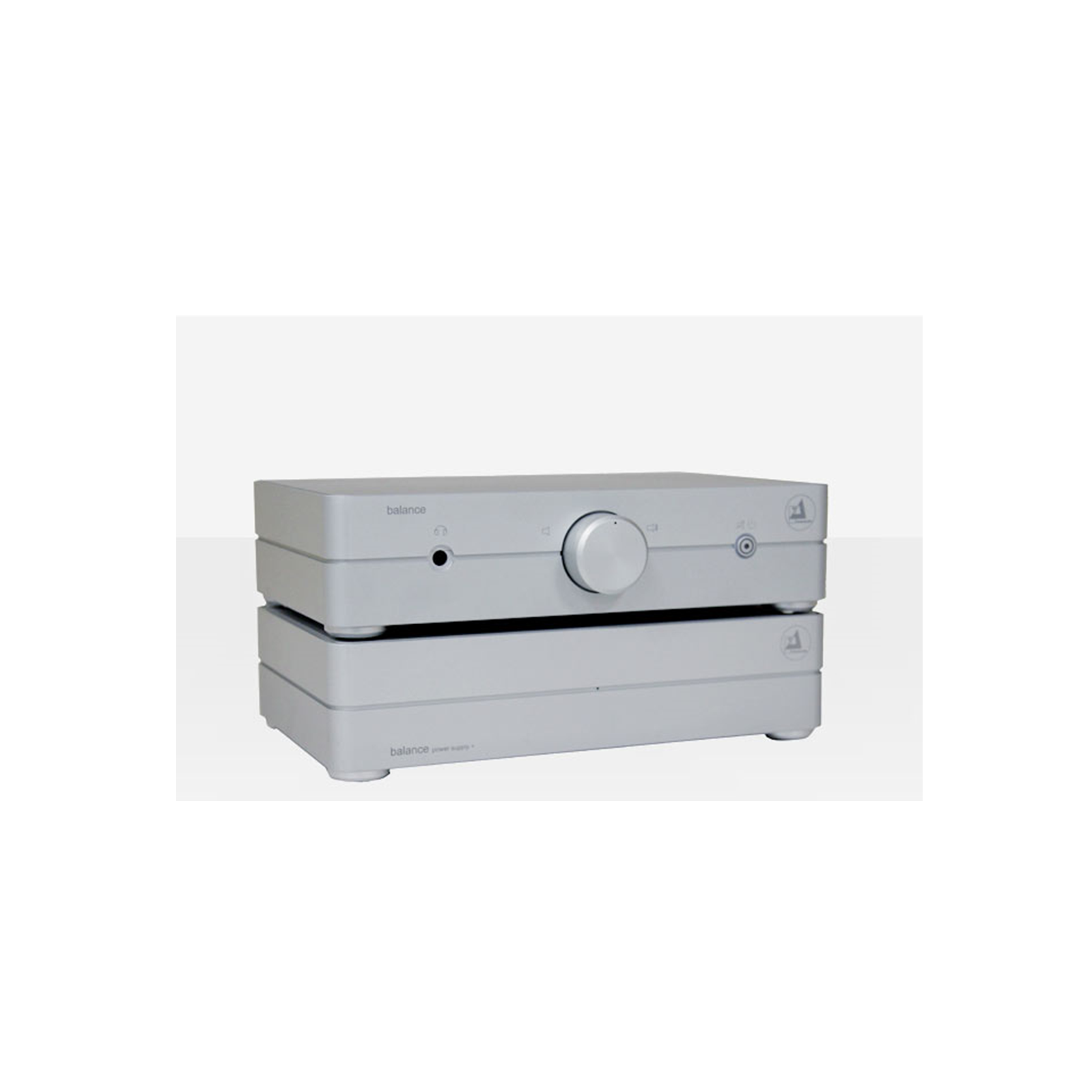

High precision RIAA equalization achieves an accuracy of within 0.1 dB, while an optional subsonic filter attenuates any unwanted low frequency noise. A separate power supply in its own aluminium casing keeps any potential unwanted interference at bay. With this small yet high-performance package, Clearaudio effectively balances audiophile-quality technology with a simplicity that can be enjoyed by any music enthusiast. Just take a seat and enjoy.

Mode:    MM / MC switchable (at bottom)
Subsonic filter switchable (at bottom)
20Hz (- 6dB / Oct.; on each channel)
Amplification:     + 46dB (MM mode)
 + 66dB (MC mode)
Input load:    47kΩ / 270pF (MM mode)
500Ω / 270pF (MC mode)
RIAA accuracy:    ± 0.1dB
THD:    < 0.001% (IEC A)
Signal to noise ratio:     - 78dB (MM mode)
 - 79dB (MC mode)
Headroom:     + 23dB
Max. output voltage:    > 12V (at 1kHz)
RIAA:    75μs / 318μs / 3180μs, 2 passive filter
Channel seperation:    > 92dB (at 1kHz)
Output impedance:    150Ω (balanced XLR)
75Ω (unbalanced RCA)
Inputs:    unbalanced (RCA)
balanced (XLR)
Outputs:    unbalanced (RCA)
balanced (XLR)
headphone output (Jack 6.3mm)
Power consumption:    Max. consumption: 6.6 watts
Standby mode: < 0.3 watts
Off mode: 0.0 watts
Power supply:    ± 18V DC
(+ 21V DC external power supply; 1.4m cable length)
Total weight preamplifier:    Approx. 2.3kg
Total weight power supply:    Approx. 1.4kg
Dimensions preamplifier (W/D/H):    Approx. 9.44 × 5.71 × (6.22 with RCA) × 2.44 inches
Dimensions preamplifier (W/D/H):    Approx. 240 × 145 (158 with RCA) × 62mm
Dimensions power supply (W/D/H):    Approx. 9.44 × 5.71 × 2.44 inches
Dimensions power supply (W/D/H):    Approx. 240 × 145 × 62mm
