CAS CAN-BUS Universal interface kit for steering wheel, ignition, etc

CX-401-UNI Universal CAN adapter for control of devices from the steering wheel and other functions from the CAN line.

• Ignition, lighting, reverse gear, speed
• Steering wheel buttons for some compatible vehicles (ARC-1xx cable required) - Becker NOT supported.
• PDC horn on some compatible vehicles (CX-LS required)
• Audio system support on some compatible vehicles
• On-board computer support for PSA vehicles
• Higher ignition and reverse gear load (max 1.5A each)
• LED Display (Sleep Mode, CAN Found, CAN Auto Detect)

As a steering wheel remote control adapter, the interface converts CAN encoded signals: steering wheel buttons, ignition (Kl.15), lighting (Kl.58d), speedometer signal (speed pulses) and reverse gear into analog signals. This means that at CAN BUS network vehicles can be connected to radios, navigation systems, taximeters and many other devices sold by various manufacturers.

Depending on the car, there is ignition (Z), speed signal (S), reverse gear (R), lighting (L) and PDC warning signal (PDC, with CX-LS), as well as an existing factory sound. system (SS) is enabled.
In cars with CAN on the multifunction steering wheel (MFL), depending on the vehicle, Alpine, Blaupunkt, Clarion, Digitaldynamic, JVC, Kenwood, Pioneer, Sony and Zenec mods can be controlled via the multifunction steering wheel together with a device-specific cable ARC-...

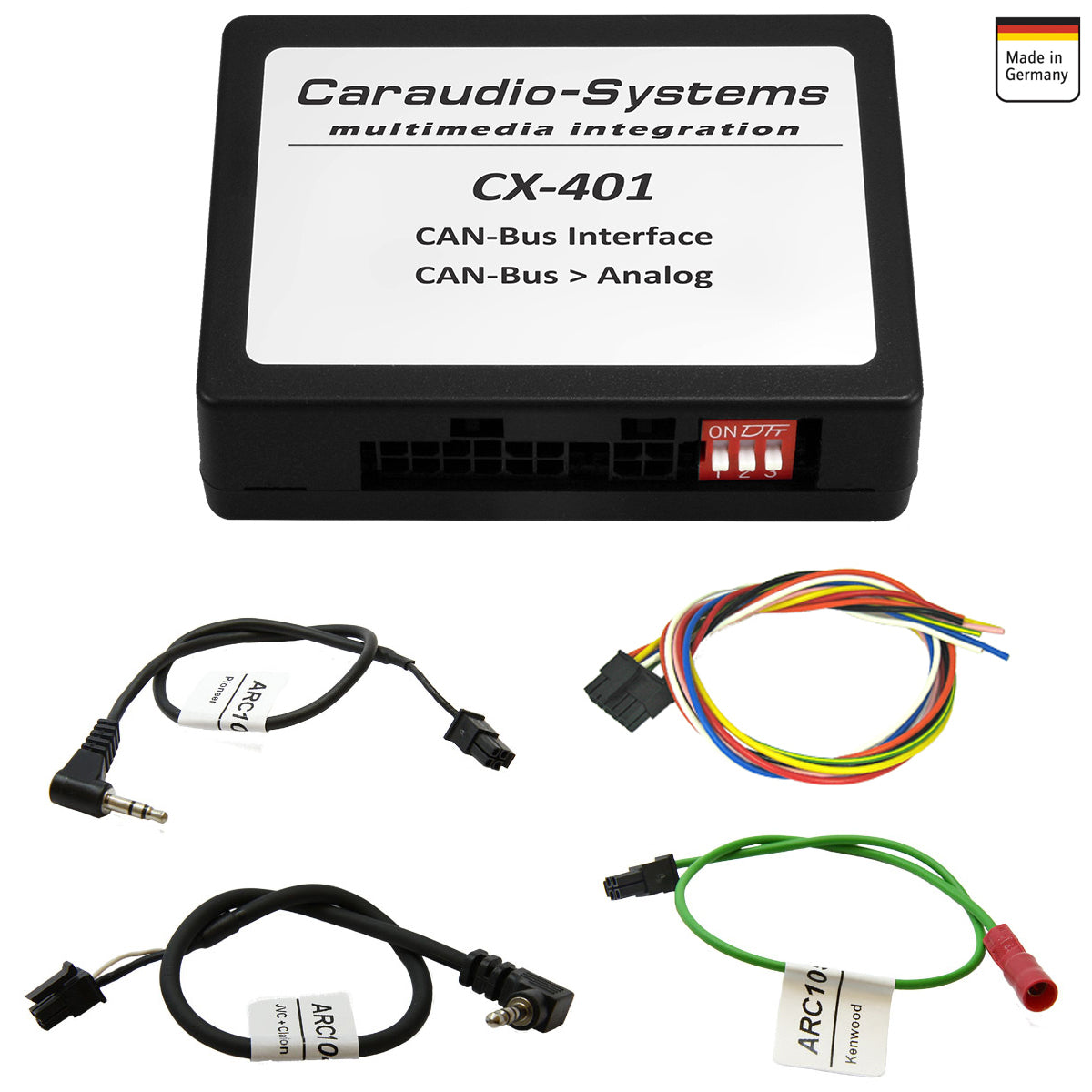

Included:

• 1x CX-401
• 1x CX-010
• 1x ARC-104
• 1x ARC-105
• 1x ARC-107

• ignition max. 1.5A
• reverse gear max. 1.5A
• illumination max. 0.1A

• voltage working range 10.5 - 14.8V
• Quiescent current <1mA
• Operating current ~50mA
• Energy consumption 0.07 - 40W
• Temperature range -30°C to +80°C
• Weight 38g
• Dimensions 71 x 22 x 50 mm (W x H x D)
