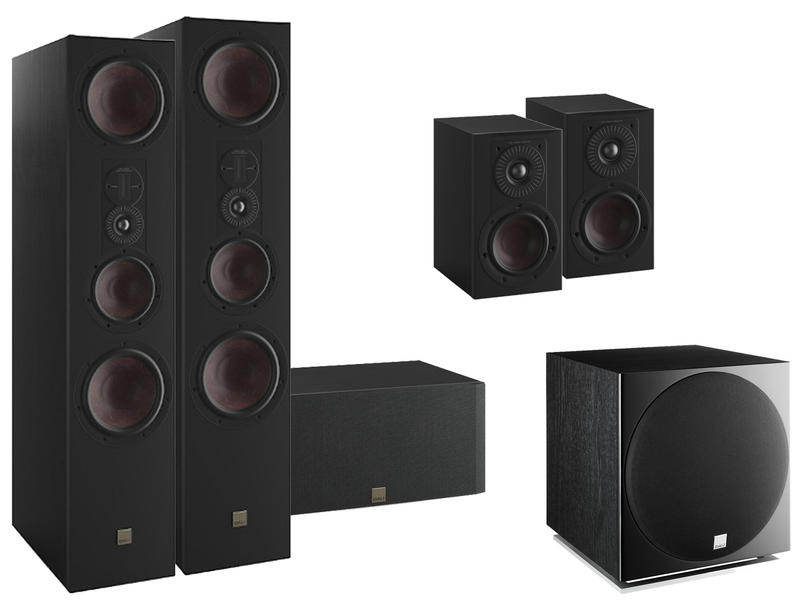

Dali OPTICON 8 MK2 5.1, Home theater speaker set

€5,074.00 EUR

Dali OPTICON 8 MK2 5.1, Home theater speaker set is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

The OPTICON MK2 speaker range is clear, undistorted, pleasing and consistent, perfectly complementing music, radio, streaming, TV or film sources.

  • 2 x OPTICON 8 MK2 Floor Speaker.
  • 2 x OPTICON 1 MK2 Bookshelf Speaker.
  • 1 x OPTICON VOKAL MK2 Center speaker.
  • 1 x SUB E-12 F Subwoofer.

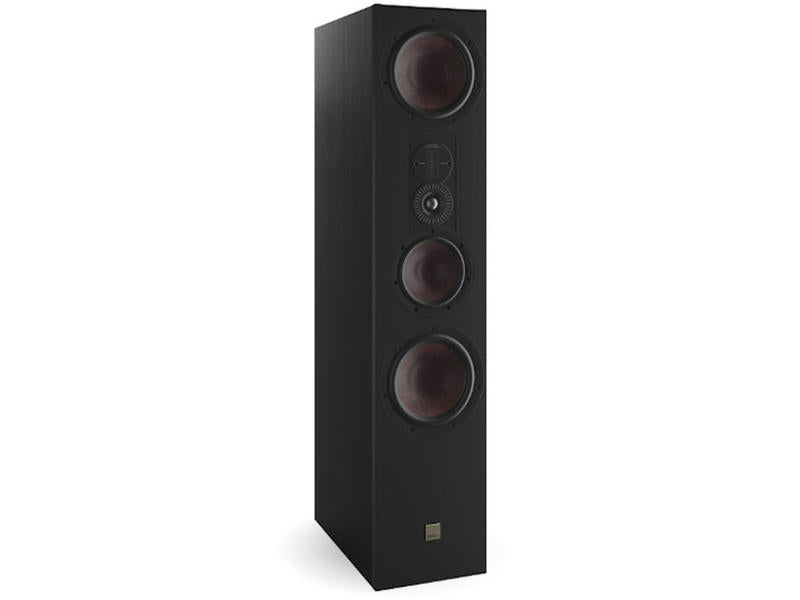

OPTICON 8 MK2

The large-scale, floor-standing OPTICON 8 MK2 is the powerhouse of the new OPTICON MK2 series. It is the sole three-way system in the series. It combines two 8” Wood Fiber diaphragm, SMC magnet bass drivers with a 6½” Wood Fiber diaphragm, SMC magnet system midrange driver. The OPTICON 8 MK2 offers optional bi-wiring to enable its bass and midrange/high frequency sections to be connected independently. The driver array of the OPTICON 8 MK2 locates the midrange and hybrid tweeter drivers between the two widely spaced bass drivers. This is done firstly in order to position the mid and high frequency drivers near typical seated ear height, and secondly to take advantage of the smoother low frequency room response that results from spaced bass drivers. The OPTICON 8 MK2 driver array helps make room positioning easier. Above the midrange driver, the OPTICON 8 MK2 incorporates a DALI hybrid tweeter that combines the new, CALLISTO derived 29mm soft dome driver alongside a 17mm x 45mm ribbon element. The OPTICON 8 MK2 enclosure incorporates separate internal sections for each driver with non-parallel dividing panels suppressing internal resonance and also significantly aiding enclosure rigidity. Each low frequency section is fitted with its own Dual Flare reflex port. Thanks to its size and true three-way format, the OPTICON 8 MK2 offers a level of performance unavailable from any other OPTICON model. It combines immense low frequency bandwidth, volume potential and dynamic accuracy with the extraordinary detail and clarity that arises from the use of a dedicated midrange driver. High frequencies from the hybrid tweeter are explicitly detailed and informative yet simultaneously smooth and endlessly listenable.

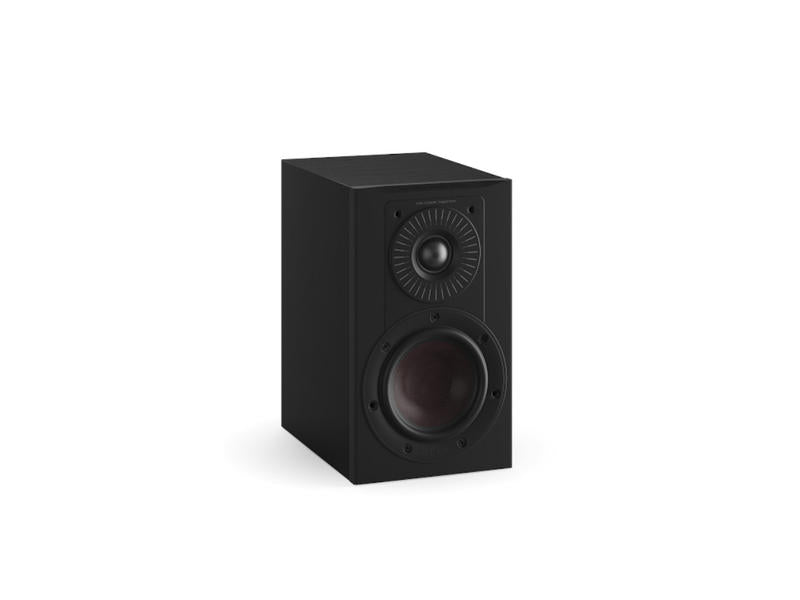

OPTICON 1 MK2

The OPTICON 1 MK2 is a compact stand mount speaker designed to be installed close to room boundaries or wall mounted in modest listening spaces. Its drivers comprise a 4¾” Wood Fiber diaphragm, SMC magnet bass/midrange unit and a newly designed 29mm soft dome tweeter derived from that employed in the CALLISTO series. The Dual Flare reflex loaded 5 Liter enclosure enables the OPTICON 1 MK2 to deliver remarkable bass performance for its size that integrates perfectly with the inherent midrange and high frequency quality of its drivers. The OPTICON 1 MK2 is supplied with a simple keyhole slot wall mounting bracket.

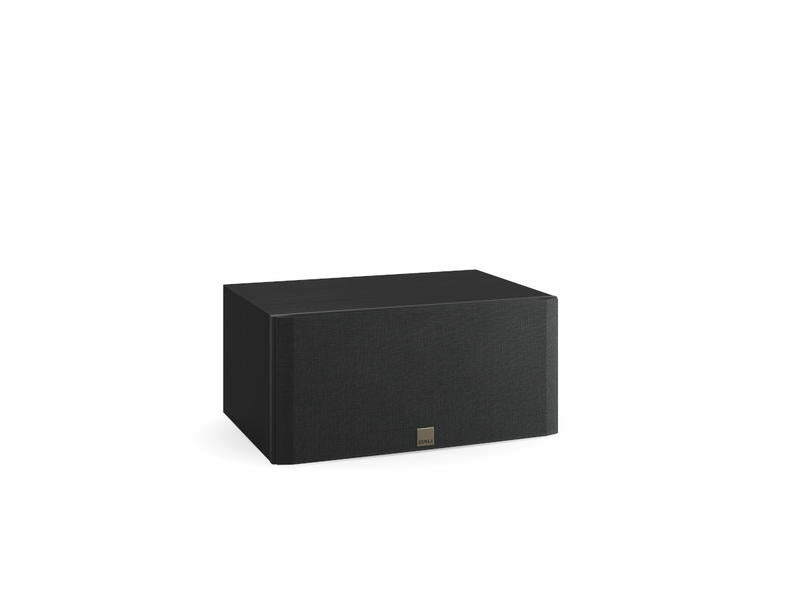

OPTICON VOKAL MK2

The OPTICON VOKAL MK2 brings a 6½” Wood Fiber diaphragm, SMC magnet bass/midrange driver and the DALI hybrid tweeter together in an enclosure format designed specifically for center channel applications in multi-channel audio-visual systems. The OPTICON VOKAL MK2 enclosure dimensions and proportions are specifically configured to enable its installation in audio-visual furniture units, and its front facing reflex ports mean that even fully enclosed mounting is feasible. The OPTICON VOKAL MK2 is specifically voiced to play the center channel role, but at the same time it displays all the characteristic qualities that enable it to dovetail perfectly in a full OPTICON MK2 audio visual system.


SPECIFICATIONS

OPTIKON 8 MKII Specifications

  • Frequency range (+/-3 dB) [Hz] 38 - 30,000
  • Sensitivity (2.83V/1m) [dB] 88.5
  • Nominal Impedance [ohm] 4
  • Maximum SPL [dB] 112
  • Recommended Amplifier Power [Watt] 40 - 300
  • Crossover frequency [Hz] 380 / 2,200 / 14,000
  • Crossover principle 3+½-way
  • High frequency driver 1 x 29 mm soft dome 1 x 17 x 45 mm ribbon
  • Low Frequency / mid-range Driver(s) 2 x 8” / 1 x 6½”
  • Enclosure type Bass reflex (mid-range closed box)
  • Bass Reflex Tuning Frequency [Hz] 29.5
  • Connection Input(s) Bi-wire / Bi-amp
  • Recommended placement Floor
  • Recommended distance from rear wall to speaker's rear panel [cm] 30 - 150
  • Dimensions (H x W x D) [mm] 1141 x 241 x 450
  • Dimensions (H x W x D) [inches] 44.9 x 9.5 x 18.1
  • Weight [kg/lb] 37.1/ 81.8
  • Included accessories Spike set, rubber feet, manual
  • product dimensions: 450 x 241 x 1141 mm
  • net weight: 37.10 kg
  • minimum quantity: 2 pcs.

    • OPTIKON 1 MKII Specifications

    • Frequency range (+/-3 dB) [Hz] 62 - 25,000
    • Sensitivity (2.83V/1m) [dB] 85
    • Nominal Impedance [ohm] 4
    • Maximum SPL [dB] 105
    • Recommended Amplifier Power [Watt] 25-100
    • Crossover frequency [Hz] 3.000
    • Crossover principle 2-way
    • High frequency driver 1 x 29 mm soft dome
    • Low Frequency / mid-range Driver(s) 1 x 4¾”
    • Enclosure type Bass reflex
    • Bass Reflex Tuning Frequency [Hz] 60
    • Connection Input(s) Single
    • Recommended placement Stand/Shelf/Wall
    • Recommended distance from rear wall to speaker's rear panel [cm] lut.80
    • Dimensions (H x W x D) [mm] 261 x 152 x 231
    • Dimensions (H x W x D) [inches] 10.28 x 6.0 x 9.1
    • Weight [kg/lb] 4.9/ 10.8
    • Included accessories Rubber feet, manual
  • product dimensions: 152 x 231 x 261 mm
  • minimum quantity: 2 pcs.

    • OPTIKON VOKAL MKII Specifications

    • Frequency range (+/-3 dB) [Hz] 47 - 30,000
    • Sensitivity (2.83V/1m) [dB] 88
    • Nominal Impedance [ohm] 4
    • Maximum SPL [dB] 109
    • Recommended Amplifier Power [Watt] 30-150
    • Crossover frequency [Hz] 2.400 / 14.000
    • Crossover principle 2+½-way
    • High frequency driver 1 x 29 mm soft dome + 1 x 17 x 45 mm ribbon
    • Low Frequency / mid-range Driver(s) 1 x 6½”
    • Enclosure type Bass reflex
    • Bass Reflex Tuning Frequency [Hz] 44
    • Connection Input(s) Single
    • Recommended placement Shelf
    • Recommended distance from rear wall to speaker's rear panel [cm] 0 - 30
    • Dimensions (H x W x D) [mm] 201 x 435 x 312
    • Dimensions (H x W x D) [inches] 7.9 x 17.1 x 12.3
    • Weight [kg/lb] 10.6/ 23.4
    • Included accessories Rubber feet, manual
  • product dimensions: 435 x 312 x 201 mm
  • net weight: 10.60 kg
  • minimum quantity: 1 pc.

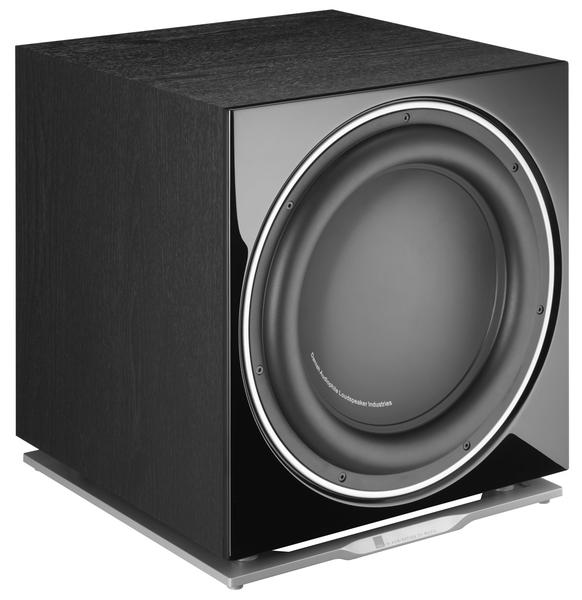

    • OPTIKON SUB E-12 F Specifications

    • Active subwoofer
    • Frequency band: +/- 3dB: 28 - 190 Hz
    • Maximum sensitivity: 112 dB
    • Filter frequency: 40 - 120 Hz
    • Woofer: 1 x 304 mm polymer aluminum diaphragm, active
    • Bass reflex frequency: 36 Hz
    • Max. Amplifier power: 220 W
    • Constant IEC power: 170 W
    • Input Impedance: 25k Ohms
    • Input: Mono line level (LFE), RCA, Stereo line level (low-pass filtered)
    • Functions: adjustable filter frequency, ON/OFF switch in standby mode, phase adjustment, volume adjustment
    • Recommended installation location: Floor
    • Recommended distance from the wall: >5 cm
    • Max. Power consumption: 650 W
    • Dimensions (HxDxD) [mm] 370 x 340 x 380
    • Weight: 14.7 kg.
    • In the package: user manual, shock absorbers, M6 studs
  • product dimensions: 340 x 370 x 380 mm
  • net weight: 14.70 kg
  • minimum quantity: 1 pc.
