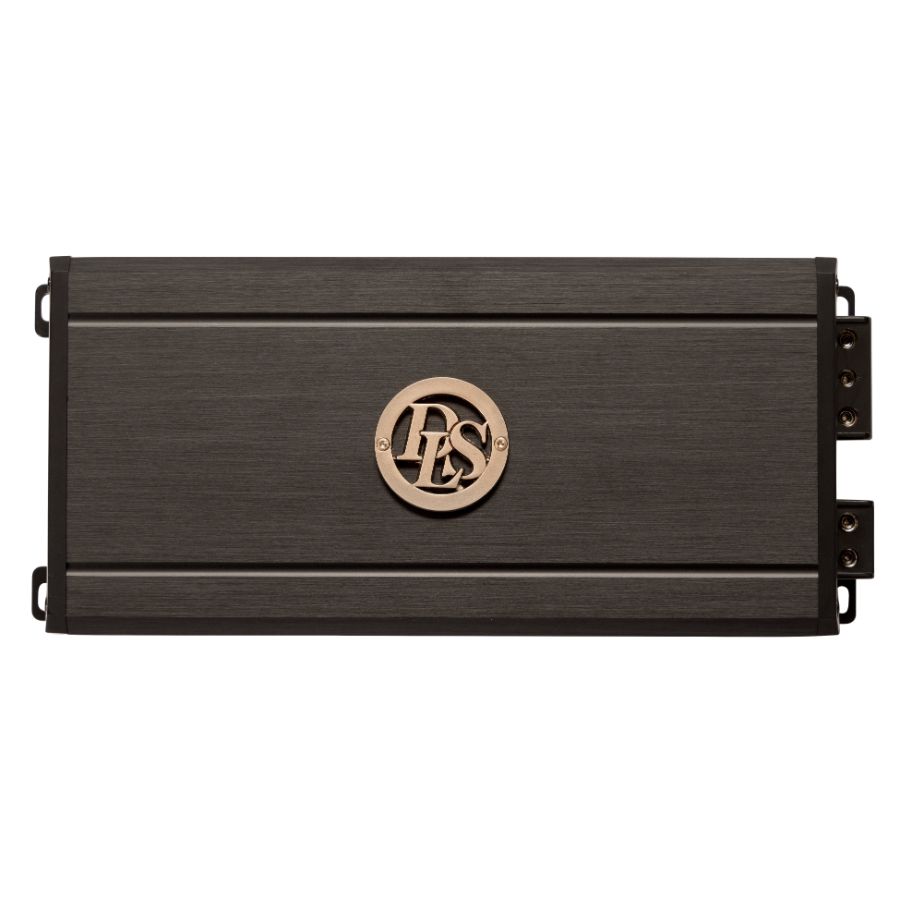

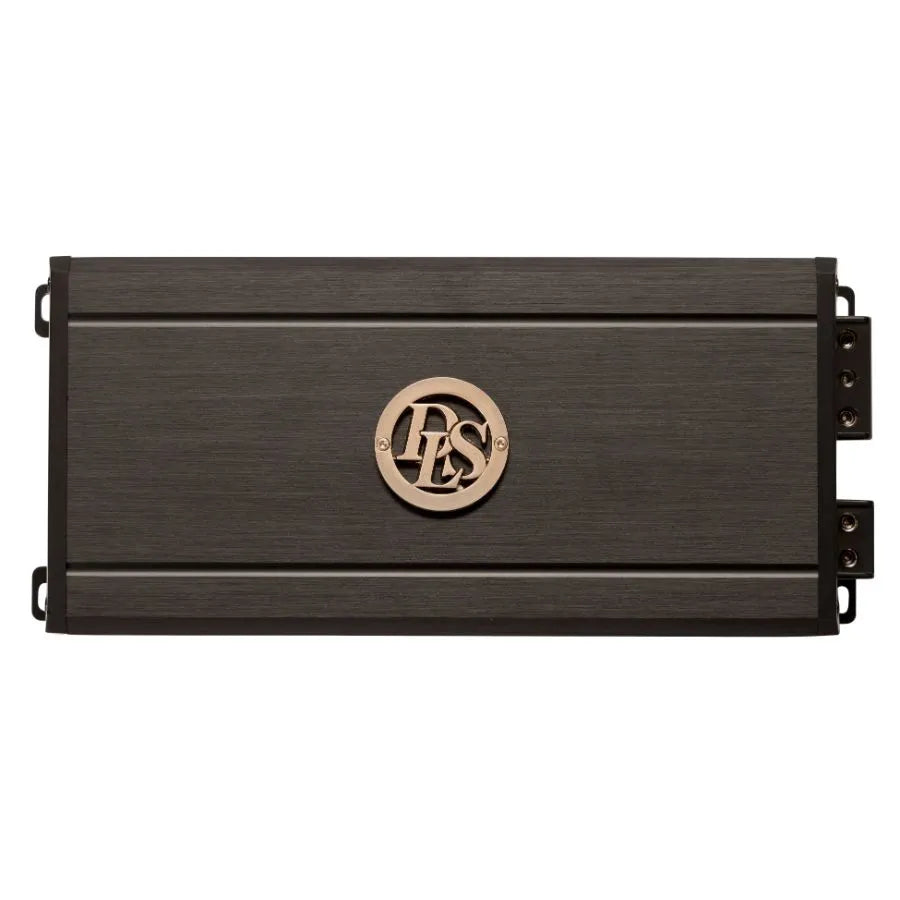

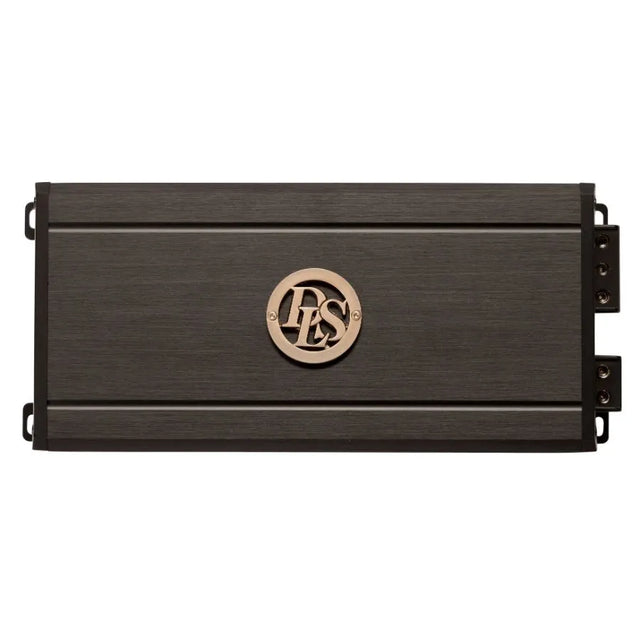

DLS DD31T, 2-channel car audio amplifier

€299.00 EUR

DLS DD31T, 2-channel car audio amplifier is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

The DD series 24 V amplifier is the latest creation of advanced Class D audio circuits, supplemented with many useful DLS functions.

  • Power: 2 x 125 W at 2 Ohms.
  • Frequency range: 10 Hz - 20 kHz.
  • Grand Bass filter: +0-18 dB.
  • Amplifier class D.

DD-series 24V amplifier represents the latest development of advanced audio class-D circuitry topped with a bunch of useful DLS features. Big power in a tiny small format makes it uniquely versatile for all serious sound installations in trucks, buses, RVs with 24Volt system voltage.

With a footprint of only 216×107 and 40mm height it is possible to install also in the most crammed truck cab while still producing over 2×80 + 1×200 RMS Watt pure DLS sound in 4Ω. The extremely high efficiency of over 85% keeps it cool. A non-switching parallel Aux input jack let you easily connect your mobile or other external source without needing to have direct access to the amplifier, it can be stowed away and still connected to the vehicles head unit!

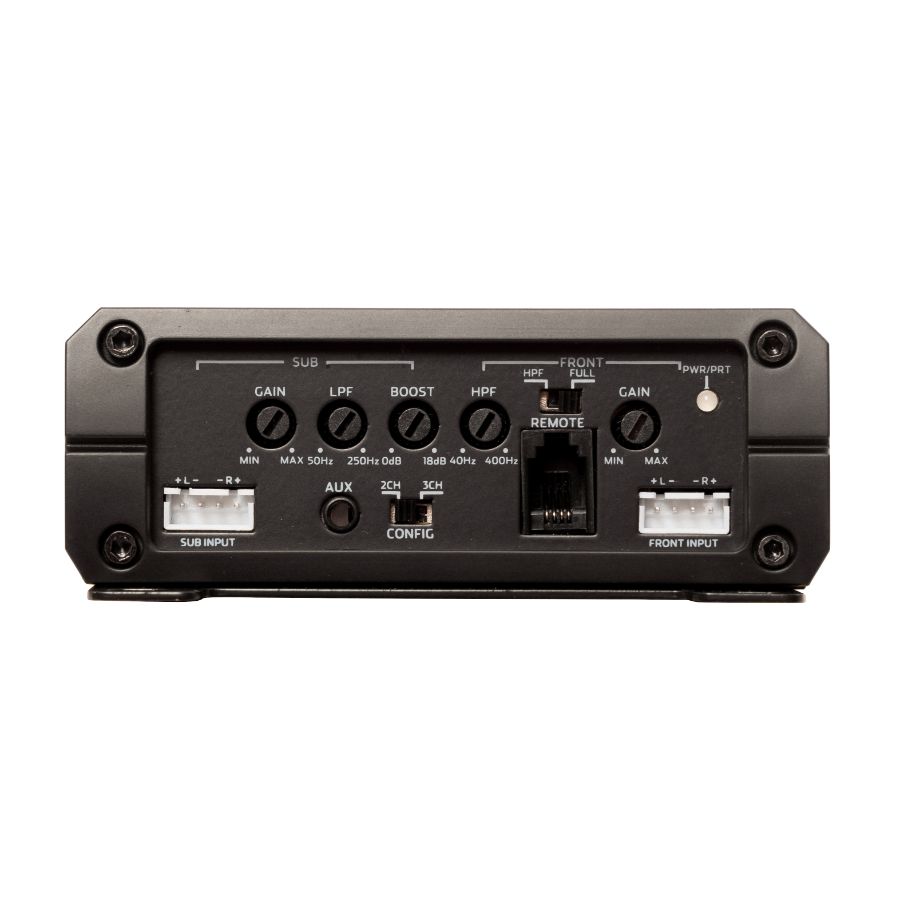

Variable High pass and Low pass filters + a powerful 18dB variable Bass boost provides possibilities to tune your sound just as you want it. There is also an EBC included – a remote External Bass Control that can be placed in the dash for balancing the sub volume depending on your mood.

With the included DLS High-level input speaker cable harness you can connect it to OEM head units and the amplifier AutoStart when the signal comes on.

SPECIFICATIONS

  • Number of channels – 3
  • Amplifier class – D
  • Output power in 2 ohm - 2 x 125 Watt
  • Output power in 4 ohm - 2 x 80 Watt
  • Mono sub channel 2 ohm - 350 Watt
  • Mono sub channel 4 ohm - 200 Watt
  • Damping factor >80
  • S/N ratio, A-weighted >90 dB
  • Frequency range 10 Hz - 20 kHz
  • Input sensitivity 1 - 4 Volts
  • Input impedance 22 kohm
  • Input impedance, high level 40 ohm
  • Remote bass level control Yes
  • Filter high pass 40 – 400 Hz
  • Filter low pass 50 – 250 Hz
  • Grand bass filter - +0-18 dB
  • Power consumption (idle) 0.6 A
  • Power consumption (max) 60 A
  • High level input with auto start Yes
  • Dimension (W x D x H) 103 x 215 x 35 (4.0 x 8.5 x 1.4)
  • Weight 3 kg

INSTRUCTIONS

User Manual (EN).
