DLS

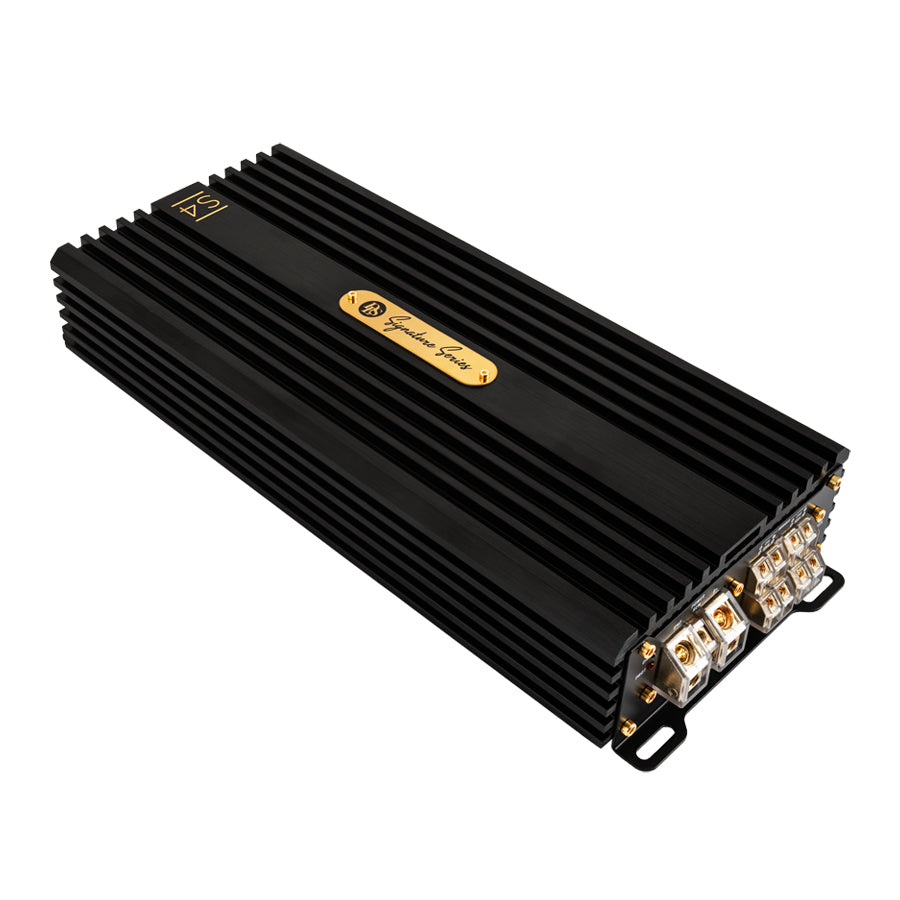

DLS Signature S4, 4-channel car audio amplifier

€599.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.


Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

A truly great amplifier that makes no sound at all. The Signature Series features unrivaled low distortion and an extremely high signal-to-noise ratio, allowing you to hear only the music and experience new details in your favorite songs with clarity and solid mid-bass.

  • Power: 4 x 130W (at 2 Ohms).
  • Amplifier class: AB.
  • Frequency band: 10 Hz - 60 kHz.
  • THD at 85W, 1kHz <0.065% .

The next evolution of DLS
2019 marked the 40th year anniversary of DLS. Four decades of giving enthusiasts exactly what they wanted, but we knew we could do even better. Together with Gordon Taylor we set out on a new journey to create perfection.

Silence is Golden
A truly great amplifier does not make any sound at all. The Signature series has unrivaled low distortion and an extremely high signal-to-noise ratio, letting you hear only music and experience new details in your favorite songs with a warm clarity and a firm mid bass with impressive authority.

Optimized for perfection

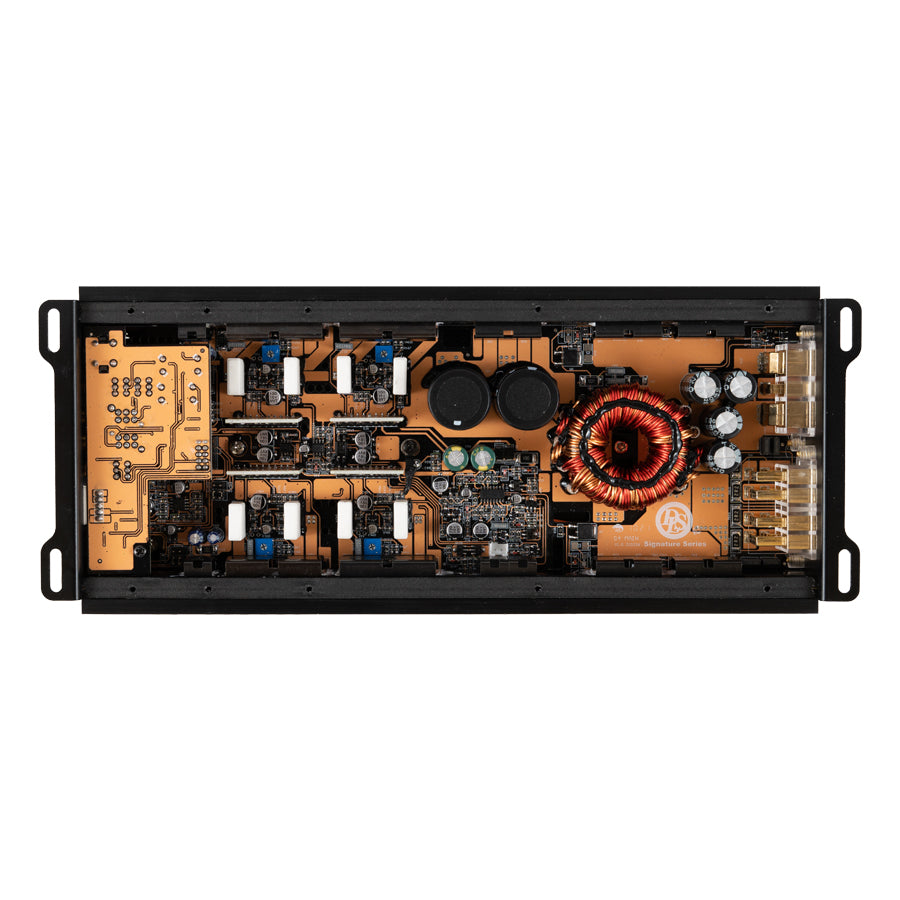

No detail has been left untweaked, from the custom cooling system to the power supply. We have even trimmed each channel individually and synchronized each component with each other to perform in perfect harmony.

When used together with a Digital Sound Processor there is an option to bypass all preamp circuitry, letting the DSP get complete control of all sound tuning parameters. This allows a clean and unaltered signal to reach the amplifying stage in full without sonic degradation.

Enjoy music in full, unaltered and perfect, with the Signature series.

SPECIFICATIONS

  • Number of channels – 4
  • Amplifier class – AB
  • Output power in 2 ohm - 4 x 130 Watt
  • Output power in 4 ohm - 4 x 90 Watt

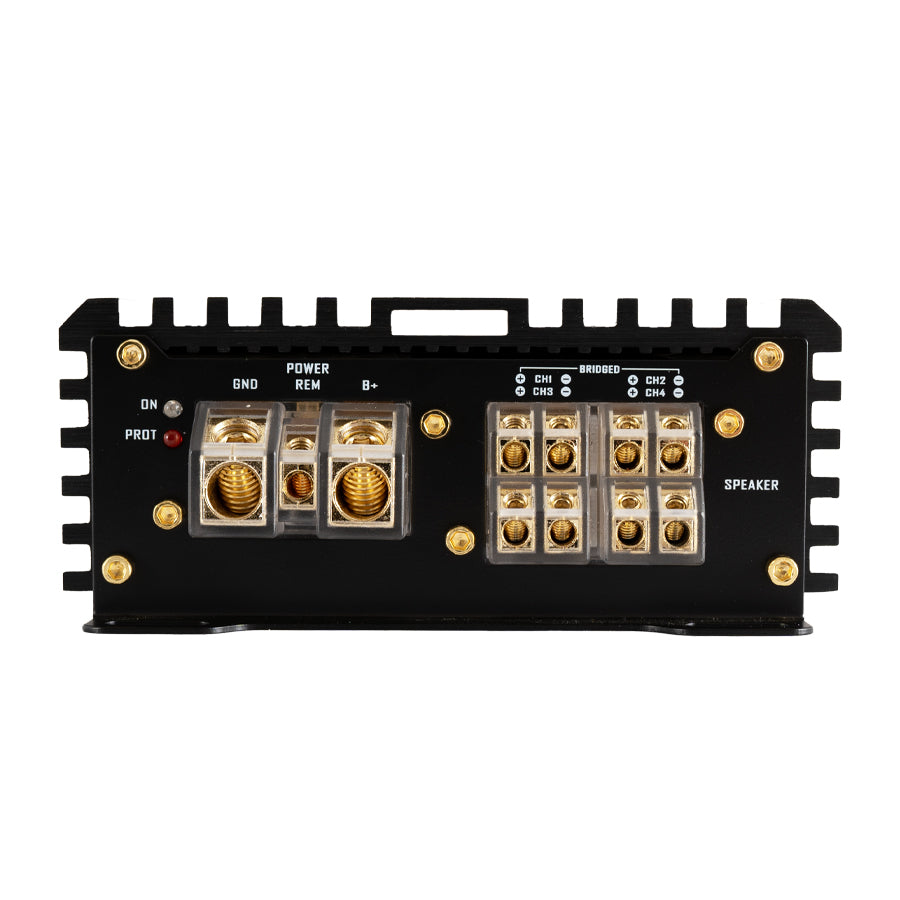

  • Output power in 4 ohm bridged - 2 x 260 Watt
  • Damping factor >300
  • THD at 3W, 20Hz-20kHz <0.065%
  • THD at 85W, 1kHz <0.065%
  • S/N ratio, A-weighted 116 dB
  • Frequency range 10 Hz - 60 kHz
  • Input sensitivity 1 - 4 Volts
  • Input impedance, low level 5 kohm
  • Input impedance, high level 45 ohm

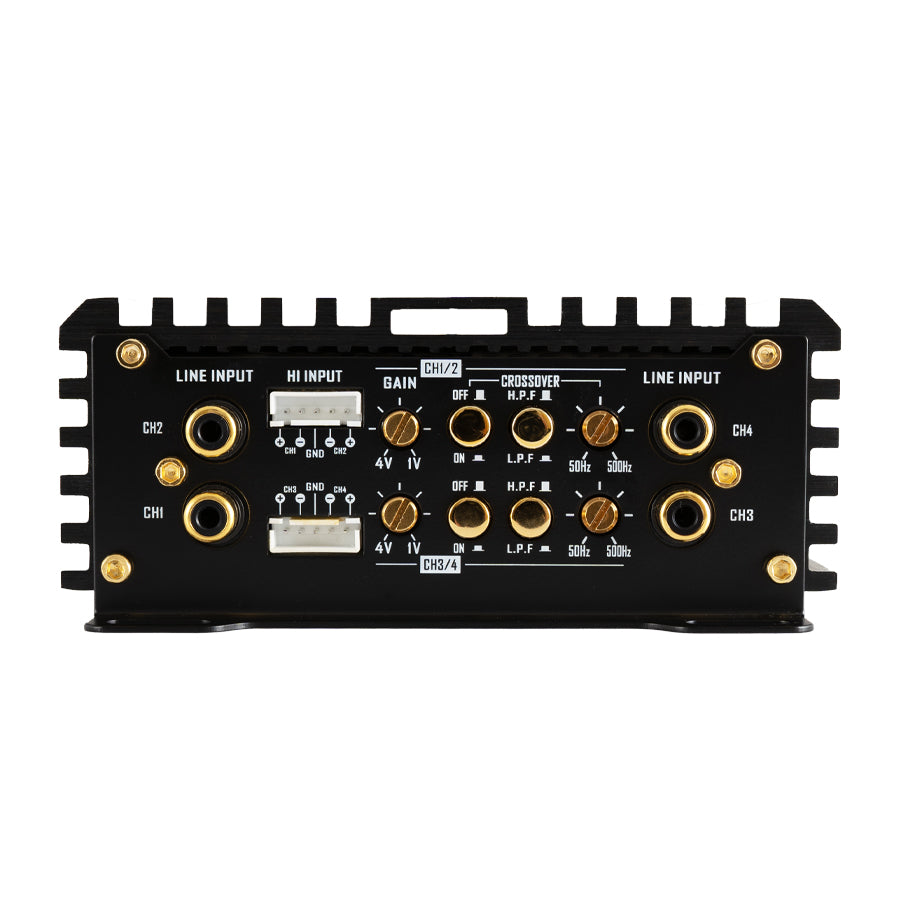

  • Low pass filter 50-500 Hz
  • High pass filter 50-500 Hz
  • Power consumption (idle) 0.7 A
  • Power consumption (max) 64 A
  • Internal cooling fan
  • Dimension (W x D x H) 129 x 320 x 54 mm (5.1″ x 12.6″ x 2.1″)
  • Weight 2.4 kg

INSTRUCTIONS

User Manual (EN).
