ETON ET-RES11, subwoofer with amplifier

Lacking bass but don't want to lose trunk space? There is a solution - a 25 cm band pass type active subwoofer ET-RES11 with an integrated amplifier, installed in place of the spare wheel.

• Power: 1 x 200 W RMS.
• Reproducible frequencies: 30 - 160 Hz.
• Adjustable sensitivity of linear inputs: 82mV - 0.8V.
• Signal to noise ratio: >91 dB.
• Integrated high signal level (hi-low) adapter (possibility of connecting to tape recorders that do not have linear outputs).

Lacking bass but don't want to lose trunk space? There is a solution - a 25 cm band pass type active subwoofer ET-RES11 with an integrated amplifier, installed in place of the spare wheel.

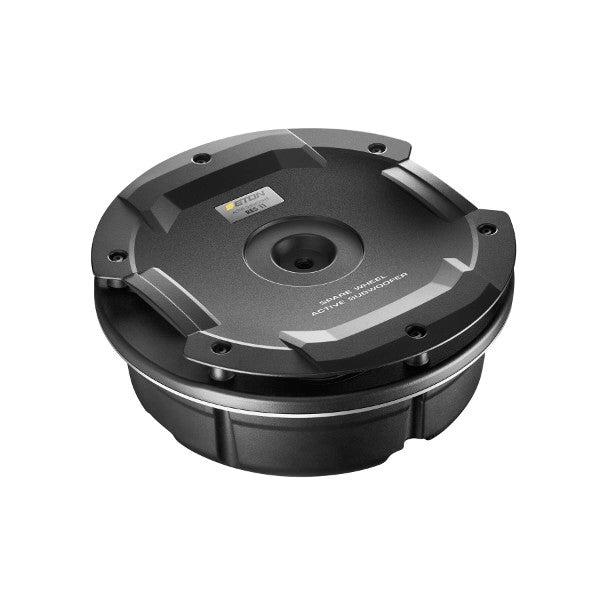

With a diameter of 36 cm and a height of 14.5 cm, this subwoofer fits in any standard space on the spare wheel without losing any space in the trunk. The 25 cm long-range woofer installed in the ETON subwoofer guarantees a powerful and dynamic sound.

A rather unusual solution in speakers of this price category is a high-quality sound amplification module with bipolar transistors, designed in a 29-liter bandpass-type housing together with 25 cm speakers, thanks to which an impressive 200W power is achieved, which will be enough for all bass lovers.

The automatic on/off function, controlled by an audio signal via the line inputs, makes installation even simpler and more convenient.

Adjusting the speaker is particularly convenient even after installation, thanks to the easily accessible amplifier.

SPECIFICATIONS

• Rated power (RMS): 1 x 200 W RMS

• Reproducible frequencies: 30 - 160 Hz

• Adjustable linear input sensitivity: 82mV - 0.8V

• Signal to noise ratio: >91 dB

• Integrated high-signal level (hi-low) adapter (possibility of connecting to tape recorders that do not have linear outputs)

• Dimensions (W x H): 360 x 144.5 mm

• Weight: 7.3 kg

INSTRUCTIONS

User Manual (EN).
